Entwodiksyon
The VILTROX JY-710-N3 is a versatile wireless camera timer remote control designed to enhance your photography experience. It offers various shooting modes including simple single shot, continuous shooting, Bulb mode, customized delay, and advanced timer plan shooting. This device helps minimize camera shake, ensuring sharper images, especially during long exposures or precise interval shooting. This manual provides detailed instructions for setup, operation, and maintenance of your JY-710-N3 remote control.
Pwodwi souview
The VILTROX JY-710-N3 system consists of a transmitter, a receiver, and a shutter release cable. The transmitter features an LCD display for setting parameters, while the receiver connects to your camera. The system operates on a 2.4GHz wireless frequency, providing a reliable connection.
Figure 1: VILTROX JY-710-N3 Wireless Camera Timer Remote Control components.
Figure 2: Close-up of the JY-710-N3 transmitter and receiver.
Figi 3: Detaye view of the JY-710RX receiver.
Karakteristik kle:
- Supports single shooting, 1-second continuous shooting, BULB shooting, delay shooting, and timer schedule shooting.
- Built-in FSK 2.4GHz wireless remote control system with 4 channels, offering a remoting distance of approximately 50-80 meters.
- Wired or wireless control options to prevent camera vibration during shutter release.
- Activates Bulb function on compatible cameras, allowing up to 399 shots.
- Modular design with separate transmitter, receiver, and shutter cord, allowing cable changes for different camera models.
Enstalasyon
- Enstale pil: Insert appropriate batteries into both the transmitter and receiver units. Ensure correct polarity.
- Connect Receiver to Camera:
- Locate the remote control port on your Nikon camera.
- Connect one end of the provided shutter release cable to the receiver unit.
- Konekte lòt bout kab deklanchman obturatè a nan pò kontwòl remote kamera ou a.
- Pouvwa sou: Turn on both the transmitter and receiver units.
- Chèn matche: Ensure both the transmitter and receiver are set to the same channel (1-4) for wireless communication. Refer to the device's display for channel selection.
Figure 4: Wireless setup with the remote control and camera.
Figure 5: Wired/wireless shutter release control for anti-shake photography.
Enstriksyon Operasyon
The JY-710-N3 offers multiple shooting modes. Use the SET button and arrow keys on the transmitter to navigate and adjust settings on the LCD display.

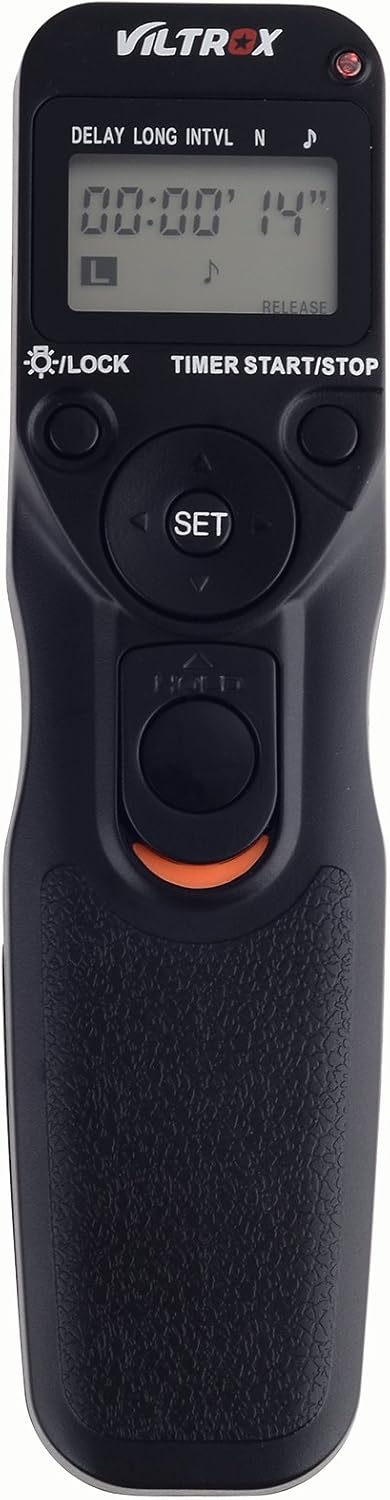

Figure 6: Transmitter controls and display.
Mòd operasyon:
- Delay / Self Timer (DELAY):
Set a delay time (in 1-second increments) up to 99 hours, 99 minutes, and 99 seconds before the shutter is released. This is similar to your camera's self-timer function.
- Entèval Kontwolè (INTVL):
Program the remote to take exposures at regular intervals, up to 100 hours. For example, setting it to 10 minutes will trigger an exposure every 10 minutes until the exposure count limit is reached or manually stopped.
- BULB / Long Exposure (LONG):
Allows for extended exposure times, up to 100 hours. This mode is ideal for capturing light trails, astrophotography, or time-lapse sequences of slow-changing subjects like blooming flowers.
Figi 7: Egzamples of Bulb shooting applications.
Video 1: Time-lapse demonstration of flowers blooming, showcasing a practical application of the Bulb mode for extended capture.
- Exposure Count (N):
Set the total number of exposures to be taken, up to 399 times. This works in conjunction with other modes like Interval Timer to define the total sequence length.
Figure 8: Transmitter and receiver functionality.
Antretyen
- Keep the device dry. Do not expose to moisture or rain.
- Clean with a soft, dry cloth. Avoid harsh chemicals or abrasive materials.
- Retire pil yo si ou pa pral itilize aparèy la pou yon peryòd tan pwolonje pou anpeche flit.
- Sere nan yon kote ki fre, sèk lwen limyè solèy la dirèk.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Aparèy pa alimante. | Pil ki mouri oswa ki mal mete. | Ranplase pil yo oubyen asire w ke polarite a kòrèk. |
| Remote not triggering camera. |
|
|
| Limited wireless range. | Interference or obstacles. | Move closer to the camera or clear line of sight. Avoid areas with strong electromagnetic interference. |
Espesifikasyon
| Nimewo Modèl | JY-710-N3 |
| Frekans san fil | FSK 2.4GHz |
| Chanèl | 4 |
| Distans san fil | Approx. 50-80 meters |
| Reta li tap konometre | 0s to 99h 59min 59s (1s increments) |
| Revèy entèval | 0s to 99h 59min 59s (1s increments) |
| Long Exposure (BULB) | 0s to 99h 59min 59s (1s increments) |
| Konte ekspoze | 1 to 399 shots |
| Aparèy konpatib | Nikon D7500, D7200, D7100, D600, D610, D5600, D5300, D7000, D5500, D3300, D750, D3200, D5200, D3100, D90, D5100, D5000 (and others with N3 type connector) |
| Pwa atik | 6.4 ons |
| Manifakti | Shenzhen Jueying Teknoloji co, Ltd |
Garanti ak sipò
For warranty information and technical support, please refer to the official VILTROX websit la oubyen kontakte distribitè lokal ou a. Kenbe resi acha ou a pou reklamasyon garanti.
Ofisyèl Websit: www.viltrox.com
