Yard Force YF1600A1 Electric Pressure Washer User Manual

1. Entwodiksyon ak souview

The Yard Force YF1600A1 is a compact electric pressure washer designed for various cleaning tasks around the home and yard. It delivers 1600 PSI at 1.2 GPM, providing efficient cleaning power. Its all-in-one design features built-in storage for nozzles, hose, power cord, and spray gun, ensuring all components are organized and readily accessible. The unit also includes a folding handle for easy storage and roll-along wheels for convenient mobility during use.

Karakteristik kle yo enkli:

• Pèfòmans serye: 1600 PSI @ 1.2 GPM from an axial cam pump, powered by a quiet 13 Amp motè elektrik.
• Compact Design with Built-in Storage: Integrated compartments for nozzles, hose, power cord, and spray gun, along with a folding handle for easy storage and transport.
• Roll-Along Wheels: Unique rear wheels allow for easy movement as you clean.
• 32 Ounce Built-in Soap Tank: On-board tank for easy application of soap and detergent, with a drain plug for rinsing.
• Complete Cleaning System: Includes 2 Quick-Connect Nozzles (25° and Soap) plus a BONUS Turbo Nozzle, trigger handle, and wand with metal quick-connect fitting.

2. Enfòmasyon sou Sekirite

Always read and understand all safety warnings and instructions provided in the full user manual before operating this pressure washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury. Keep children and pets away from the operating area. Wear appropriate personal protective equipment, including eye protection, during operation. Ensure the power cord and hose are free from damage before each use.

3. Pwodwi konpozan

The Yard Force YF1600A1 comes with several key components for effective cleaning:

• Pressure Washer Unit (main body with motor, pump, and soap tank)
• High-Pressure Hose (19 ft reinforced PVC hose)
• Trigger Handle and Spray Wand with metal quick-connect fitting
• 2 Quick-Connect Nozzles: 25° (green) and Soap (black)
• BONUS Turbo Nozzle
• Power Cord (with GFCI plug)
• Garden Hose Adapter (for water inlet)

4. Enstalasyon

1. Depake epi enspekte: Retire tout konpozan yo nan anbalaj la epi enspekte pou wè si gen nenpòt domaj.
2. Rasanble manch lan: If the handle is folded for storage, unfold and secure it in the upright position.
3. Konekte tiyo presyon an: Connect one end of the high-pressure hose to the pressure washer's high-pressure outlet and the other end to the trigger handle. Ensure connections are secure.
4. Konekte rezèv dlo: Attach a standard garden hose (not included) to the water inlet on the pressure washer. Ensure the water supply is clean and free of debris. Turn on the water supply fully.
5. Retire lè a nan sistèm nan: Before connecting to power, squeeze the trigger on the spray gun to allow water to flow through the system and purge any air. Continue until a steady stream of water emerges.
6. Konekte pouvwa: Plug the power cord into a grounded 120V AC outlet. Ensure the GFCI (Ground Fault Circuit Interrupter) plug is reset if necessary.

5. Operasyon Enstriksyon

5.1 Operasyon Jeneral

1. Ensure the unit is properly set up and connected to water and power.
2. Select the appropriate quick-connect nozzle for your cleaning task. Insert the nozzle firmly into the quick-connect collar on the spray wand until it clicks into place.
3. Turn the pressure washer ON using the power switch.

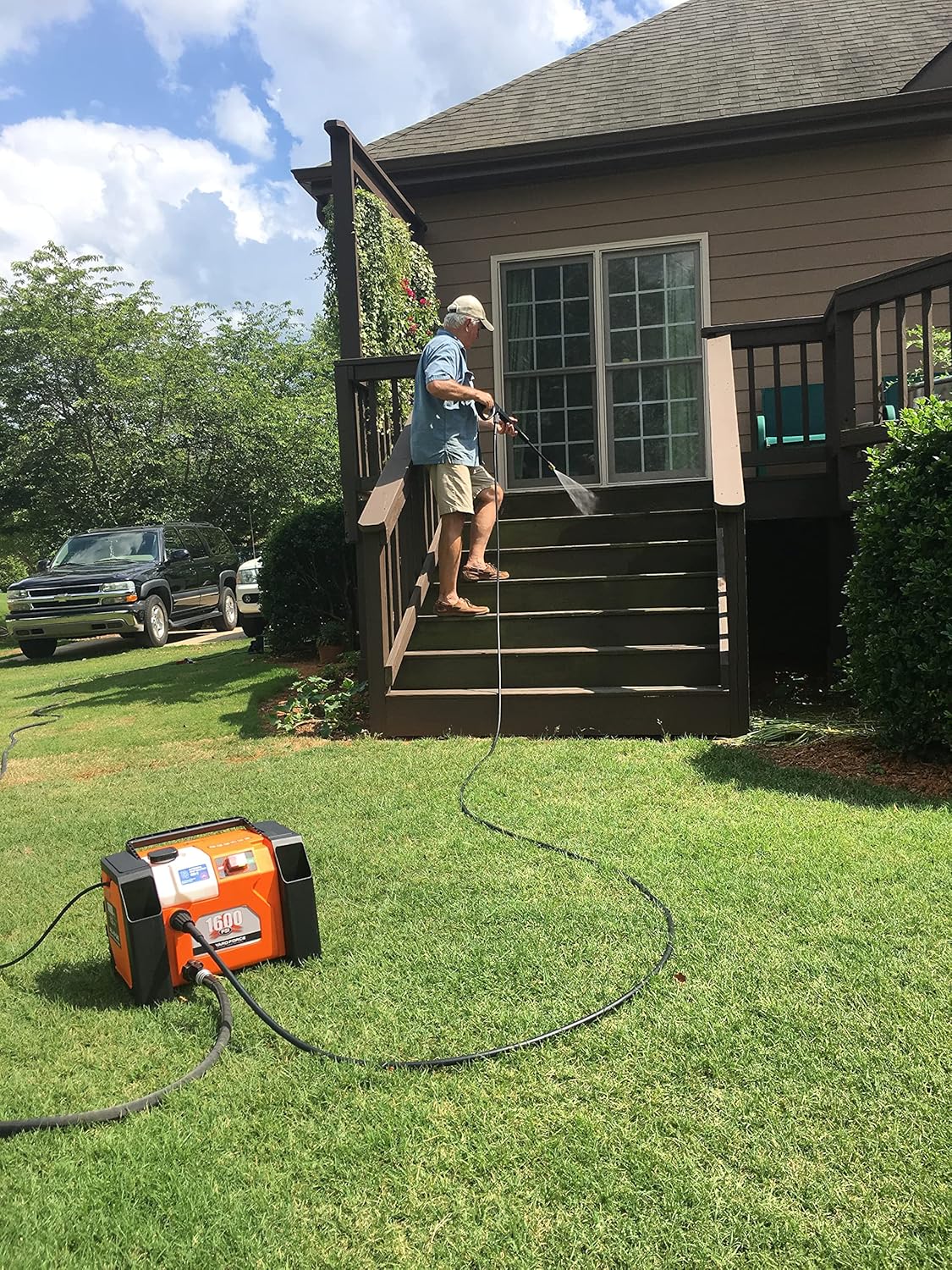

4. Point the spray wand at the surface to be cleaned, keeping a safe distance initially, and then squeeze the trigger to begin spraying. Adjust distance as needed for desired cleaning intensity.
5. To stop spraying, release the trigger. The motor will shut off automatically.
6. When finished, turn the power switch OFF, turn off the water supply, and squeeze the trigger to release any remaining pressure in the system.

5.2 Using the Soap Tank

1. Open the cap of the built-in 32-ounce soap tank.
2. Pour pressure washer safe detergent into the tank. Do not overfill.
3. Close the soap tank cap securely.
4. Attach the black Soap (low-pressure) nozzle to the spray wand. This nozzle activates the detergent injection system.
5. Turn on the pressure washer and apply detergent to the desired surface.
6. After applying detergent, switch to a high-pressure nozzle (e.g., 25° or Turbo) to rinse the surface.
7. To clean the soap tank, use the drain plug at the bottom to empty any remaining detergent and rinse with clean water.

6. Antretyen

Regular maintenance ensures the longevity and optimal performance of your pressure washer. Always disconnect the power supply and water supply before performing any maintenance.

• Netwayaj bouch: Periodically clean the nozzles to prevent blockages. Use the included nozzle cleaning tool if available, or a small pin to clear any debris.
• Filtè Dlo Inlet: Tcheke epi netwaye filtè dlo a regilyèman pou anpeche debri antre nan ponp lan.

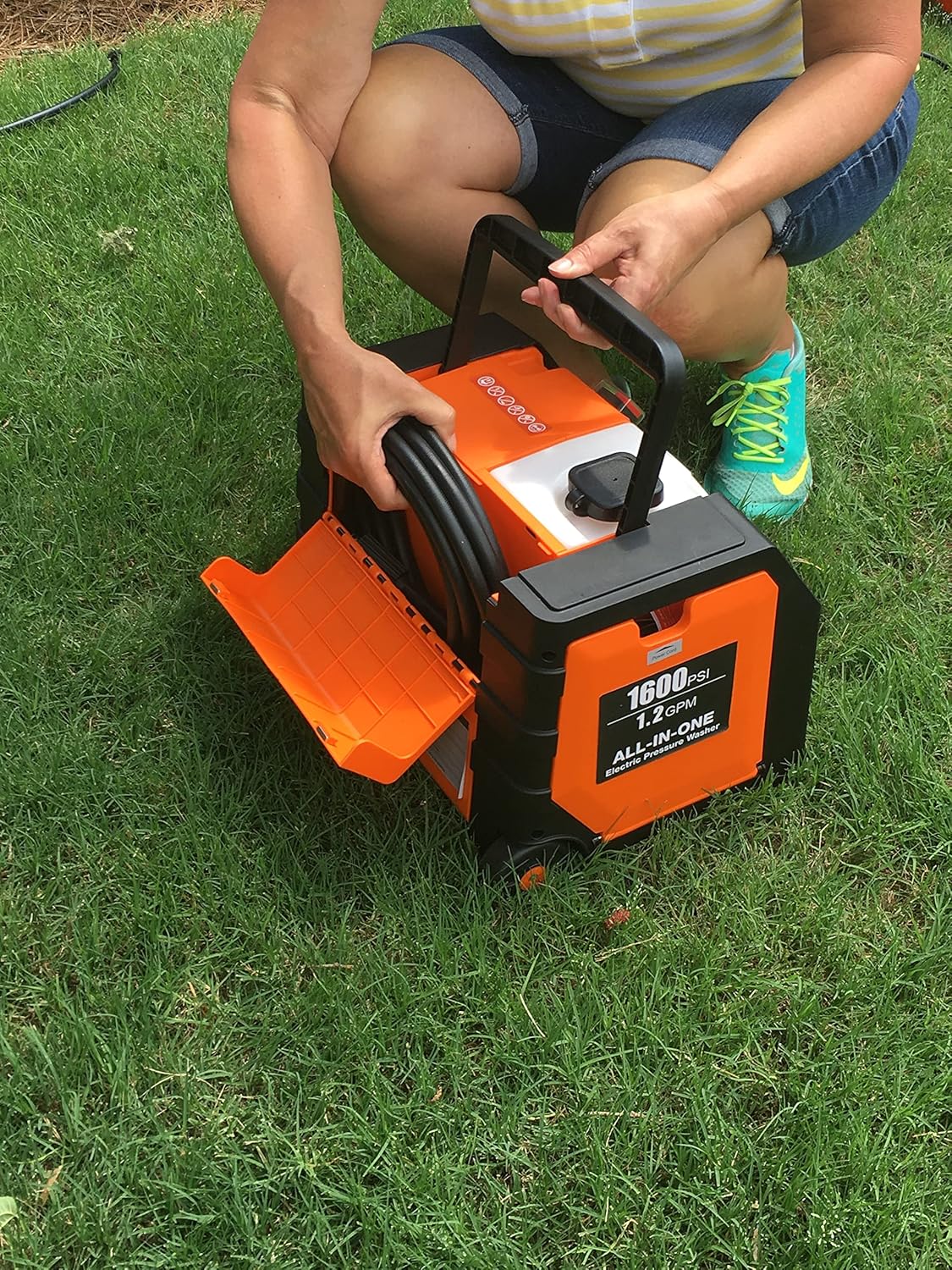

• Depo pou tiyo ak kòd: After each use, carefully coil the high-pressure hose and power cord and store them in their designated built-in compartments. This helps prevent kinks and damage.
• Winterization: If storing the unit in freezing temperatures, ensure all water is drained from the pump and hoses to prevent damage. Consider using a pump protector solution.
• Netwayaj jeneral: Siye eksteryè inite a ak anonsamp twal pou retire pousyè tè ak salte.

NAN. Depanaj

This section provides solutions to common issues. For more complex problems, refer to the full user manual or contact customer support.

8. Espesifikasyon

9. Garanti ak sipò

The Yard Force YF1600A1 Electric Pressure Washer is backed by a 24-mwa garanti on the pump and motor. For warranty claims, technical assistance, or general inquiries, please contact Yard Force customer service. Their world-class customer service call center is based in Georgia.

For a comprehensive guide and detailed instructions, you can download the official User Manual (PDF) from the following link: Telechaje Manyèl Itilizatè a (PDF)
