Entwodiksyon
This manual provides instructions for the safe operation, maintenance, and troubleshooting of the A-iPower SUA4000i Portable Inverter Generator. The SUA4000i is designed to provide clean, quiet, and efficient power for various applications, including camping, tailgating, RV use, and home emergencies. It delivers 4,000 starting watts and 3,500 running watts, suitable for sensitive electronics.

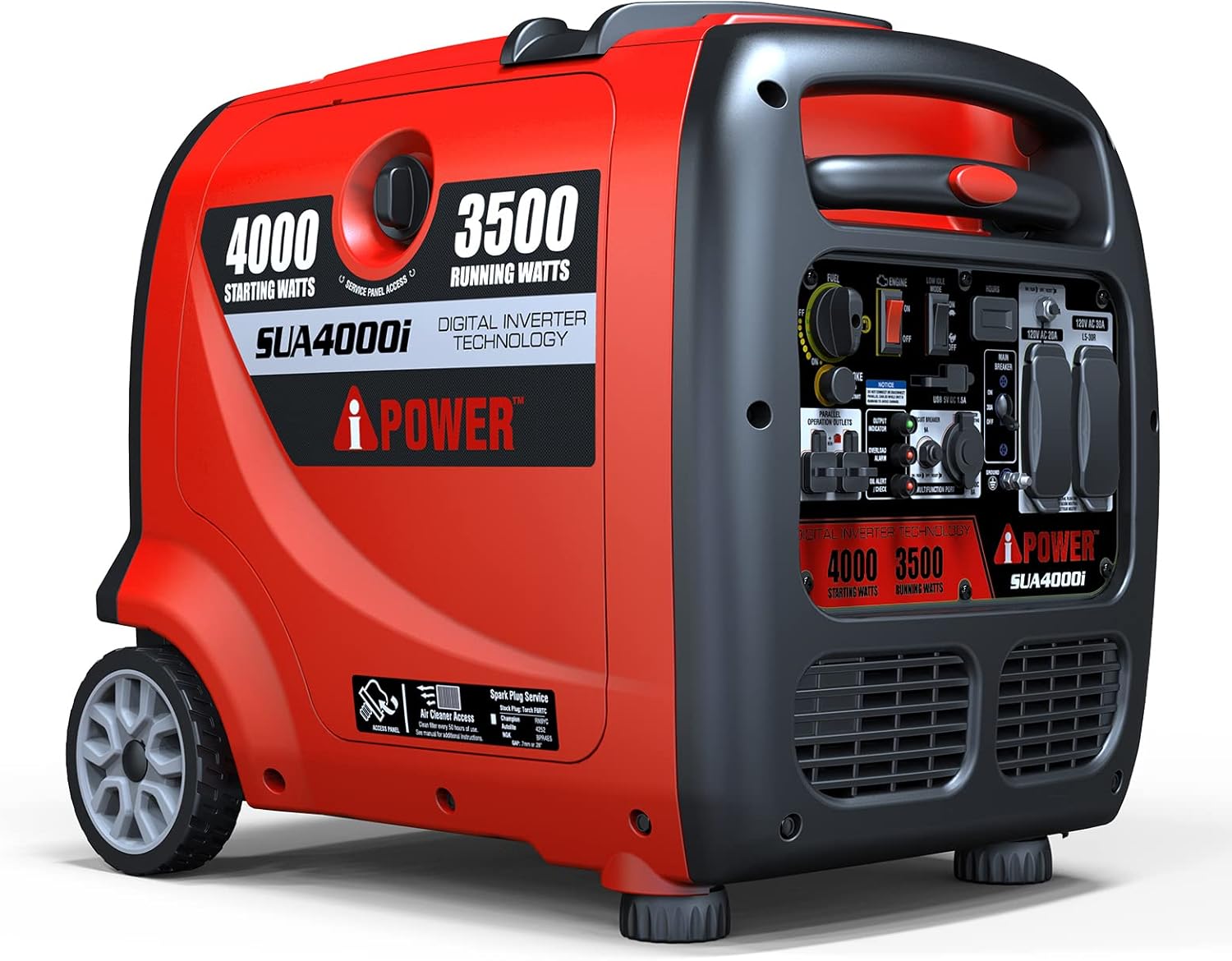

Image: The A-iPower SUA4000i portable inverter generator, showcasing konsepsyon kontra enfòmèl ant li yo ak panèl kontwòl li yo.
Enfòmasyon sou Sekirite
Always read and understand all safety warnings and instructions before operating the generator. Failure to follow these instructions can result in serious injury or death.
- Danje monoksid kabòn: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents. Never operate indoors or in enclosed spaces.
- Danje chòk elektrik: Do not operate the generator in wet conditions. Ensure all electrical connections are secure and dry.
- Danje dife: Gazolin se yon bagay ki ka pran dife fasil. Mete gaz la nan yon zòn ki byen ayere, etenn motè a epi kite l fre. Pa fimen oubyen pa kite flanm dife toupre jeneratè a.
- Sifas cho: The generator's engine and muffler become hot during operation and remain hot for a period after shutdown. Avoid contact to prevent burns.
- Timoun ak bèt kay: Kenbe timoun ak bèt kay lwen jeneratè a pandan l ap fonksyone.
Enstalasyon ak Asanble
Debalaj ak kontni
Carefully remove the generator and all components from the packaging. Inspect for any damage. Retain packaging for future storage or shipping.

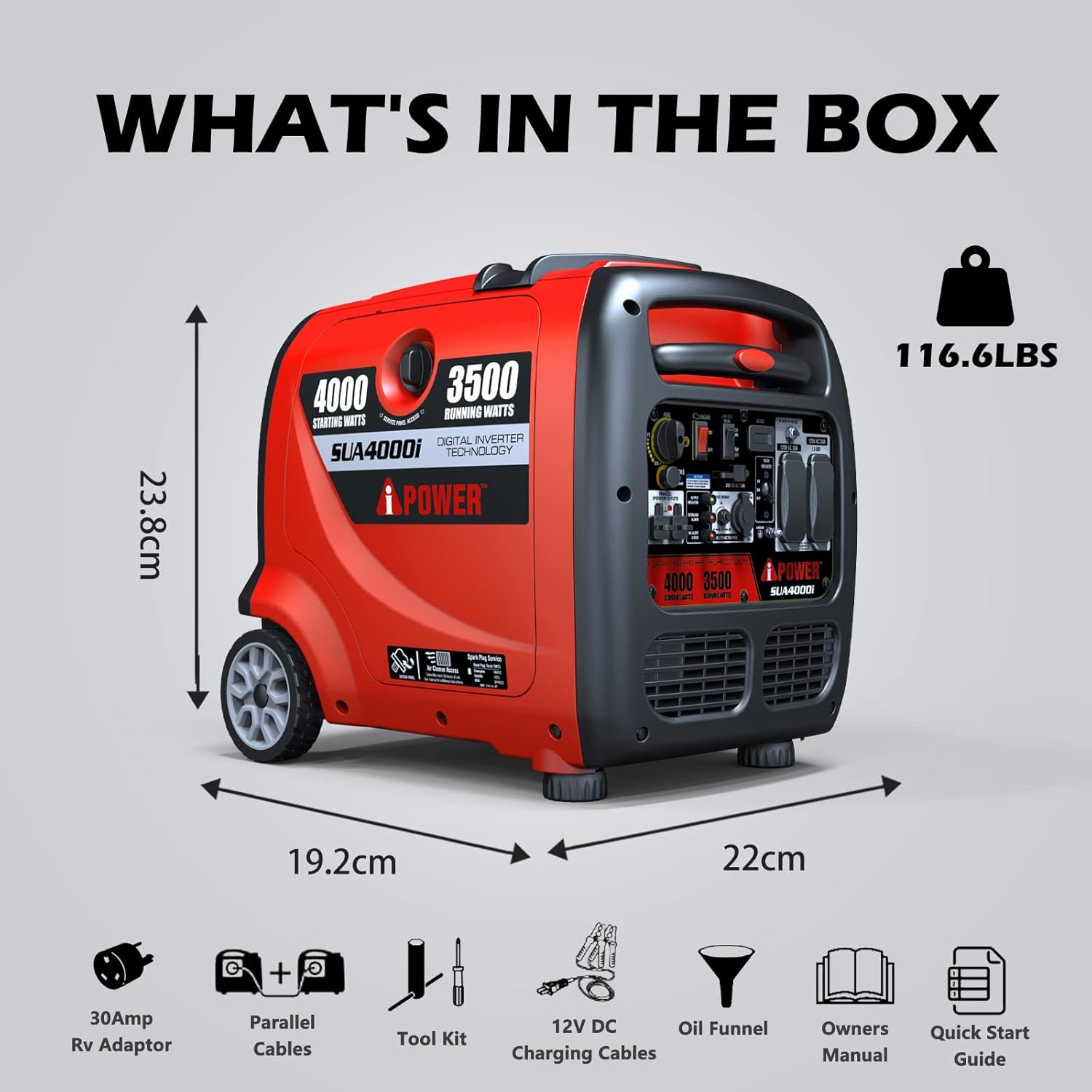

Image: Diagram showing the contents included with the A-iPower SUA4000i generator, such as the telescoping handle, wheels, 30A RV adaptor, parallel cables, tool kit, 12V DC charging cables, oil funnel, owner's manual, and quick start guide.
Wheel and Handle Installation
The SUA4000i comes with a built-in telescoping handle and wheels for easy transport. Attach the wheels and handle according to the instructions in the included quick start guide or owner's manual. Ensure all fasteners are securely tightened.

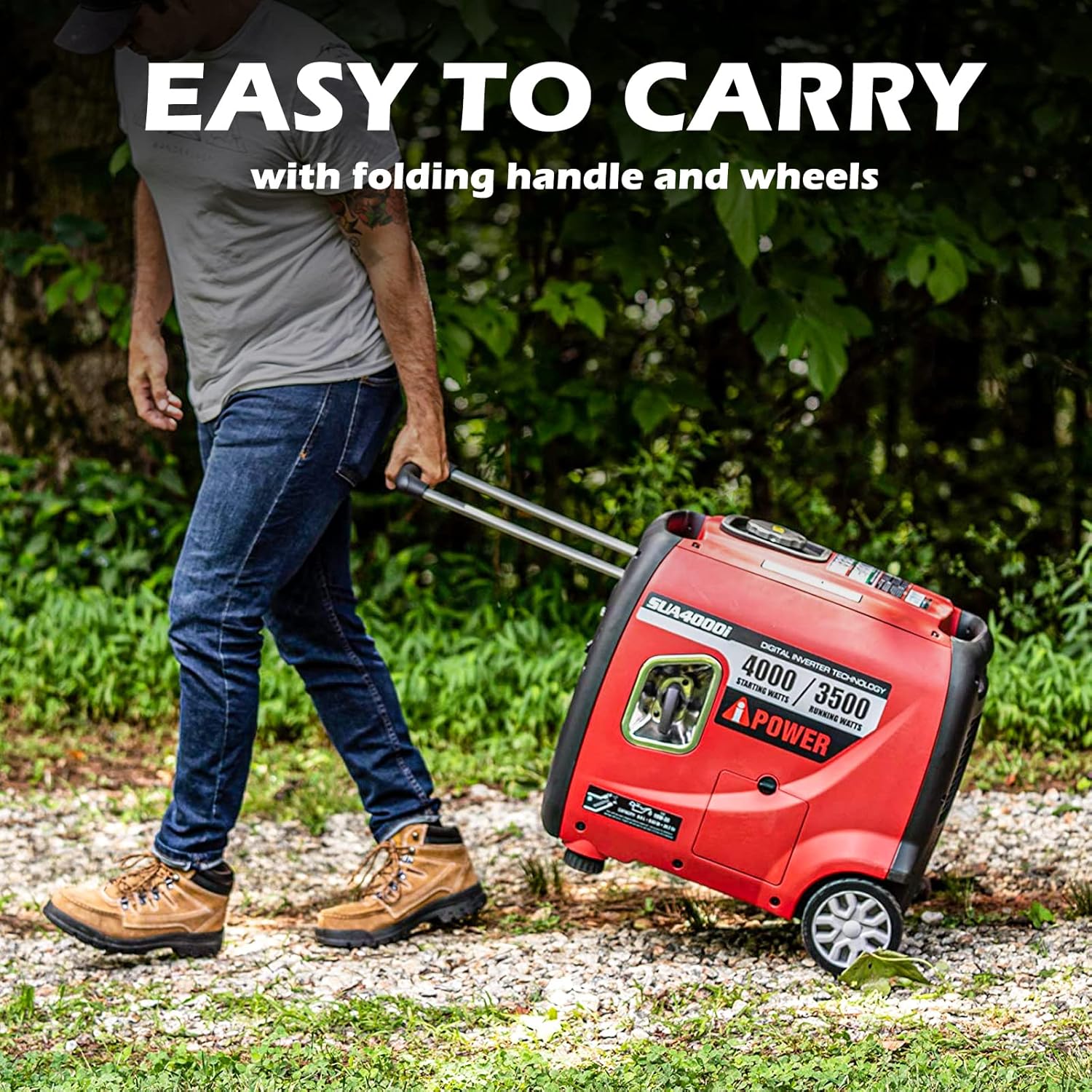

Image: A person easily transporting the A-iPower SUA4000i generator using its integrated folding handle and wheels.
Ajoute lwil motè
The generator is shipped without engine oil. Before first use, add the recommended amount and type of oil (typically 10W-30) using the provided oil funnel. Refer to the owner's manual for exact oil capacity and type. The generator is equipped with a low oil alert light and automatic shutdown to protect the engine.
Ajoute gaz
This generator operates on gasoline. Fill the fuel tank with fresh, unleaded gasoline. Do not overfill. Ensure the fuel cap is securely tightened after refueling.
Warning: Do not use E85 or any other fuel containing more than 10% ethanol. This can damage the engine and void the warranty.
Enstriksyon Operasyon
Kontwòl Panel Plis paseview
Image: Detailed diagram of the A-iPower SUA4000i control panel, highlighting the fuel switch, engine switch, low idle mode switch, hour meter, output indicators, circuit breakers, DC outlets (USB and automotive), and AC outlets (120V 20A Household and 120V 30A L5-30R Locking).
Kòmanse dèlko a
- Ensure the generator is on a level surface and away from any obstructions.
- Vire valv gaz la nan pozisyon "ON".
- Mete switch motè a sou "ON".
- Rale manch demarè a byen fèm epi piti piti jiskaske motè a demarre.
- Once the engine is running, allow it to warm up for a few moments.
Konekte aparèy elektrik
The SUA4000i provides clean power suitable for sensitive electronics. It features:
- Two NEMA 120V AC 20A Household outlets
- One NEMA 120V AC 30A L5-30R Locking outlet (RV Ready)
- Two USB outlets (1.5A, 5VDC)
- One 12VDC Automotive outlet (8.3A)
Plug your devices into the appropriate outlets. Do not exceed the generator's running wattage nan 3,500 wat.
Image: The A-iPower SUA4000i generator providing power to an RV, demonstrating its RV-ready capability.
Image: A person charging a smartphone directly from one of the USB ports on the generator's control panel.
Low Idle Technology
The generator features A-iPower's "Low idle" technology, which automatically adjusts engine speed to match the load. This extends run time (up to 7 hours at 50% load) and reduces noise levels (58 decibels).
Image: A sound meter displaying 58 dB, indicating the quiet operation of the A-iPower SUA4000i generator.
Kapasite Paralèl
The SUA4000i is designed with fully integrated parallel capability, allowing you to connect two identical generators together to double the power output. Refer to the owner's manual for detailed instructions on parallel connection using the appropriate cables.
Antretyen
Regular maintenance ensures optimal performance and extends the life of your generator. Always shut down the engine and allow it to cool before performing any maintenance.
- Lwil motè: Check oil level before each use. Change engine oil after the first 20 hours of operation, then every 100 hours or annually, whichever comes first.
- Filtè lè: Enspekte epi netwaye filtè lè a chak 50 èdtan oswa pi souvan nan kondisyon ki gen pousyè. Ranplase si li domaje.
- Bouji: Enspekte bouji a chak 100 èdtan. Netwaye oswa ranplase jan sa nesesè.
- Filtè gaz: Inspect and clean or replace the fuel filter as recommended in the owner's manual.
- Depo: For long-term storage, drain the fuel tank and carburetor, or add a fuel stabilizer. Store in a clean, dry area.
Depanaj
Seksyon sa a adrese pwoblèm komen ou ka rankontre ak dèlko ou a.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Motè pa pral kòmanse | No fuel, low oil, engine switch off, spark plug issue | Add fuel, check oil level, turn engine switch ON, inspect/replace spark plug |
| Pa gen pwodiksyon pouvwa | Circuit breaker tripped, overload, device fault | Reset circuit breaker, reduce load, check connected devices |
| Motè a kouri mal | Gaz ki pa fre, filtè lè sal, pwoblèm bouji | Drain and replace fuel, clean air filter, inspect/replace spark plug |
| Low oil shutdown activated | Engine oil level is too low | Ajoute lwil motè a nan nivo ki kòrèk la |
For issues not listed here, or if troubleshooting steps do not resolve the problem, contact A-iPower customer support.
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | A-iPower |
| Non modèl | 4000 Watt pòtab dèlko varyateur |
| Nimewo Modèl Atik | SUA4000i |
| Kòmanse Wattage | 4000 Watts |
| Kouri Wattage | 3500 Watts |
| Kalite motè | 223cc OHV 4-tan |
| Kalite gaz | Gazolin |
| Volim tank | 4.7 galon |
| Voltage | 120 Volts |
| Plòg pouvwa total | 5 (2x 120V AC 20A, 1x 120V AC 30A L5-30R, 2x USB) |
| Kalite Sistèm Ignisyon | Kòmanse rkul |
| Nivo bri | 58 Desibèl |
| Pwa atik | 100 liv |
| Dimansyon pwodwi | 23.8 x 19.2 x 22 pous |
| Karakteristik espesyal | Portable, Low Idle Technology, Parallel Capability |
Garanti ak sipò
For warranty information and customer support, please refer to the official A-iPower websit la oswa kat garanti ki vini ak pwodwi ou a. Kenbe resi acha ou a pou reklamasyon garanti.
For technical assistance or parts, contact A-iPower customer service. Contact details are typically found in your owner's manual or on the manufacturer's websit.
