SW-MOTECH Drybag 700 Tail Bag Instruction Manual

1. Entwodiksyon

This manual provides essential information for the proper installation, operation, and maintenance of your SW-MOTECH Drybag 700 Tail Bag. The Drybag 700 is a waterproof rear bag designed to protect up to 70 liters of luggage from moisture and dirt during motorcycle travel. Please read these instructions thoroughly before using the product to ensure safe and optimal performance.

2. Enstriksyon Sekirite

• Tachman an sekirite: Always ensure the Drybag 700 is securely fastened to your motorcycle using the provided loop straps and D-rings. Loose luggage can cause instability and accidents.
• Distribisyon pwa: Distribute weight evenly within the bag and ensure it does not exceed the motorcycle's load capacity.
• Vizibilite: Ensure the bag does not obstruct your motorcycle's lights, turn signals, or license plate. The Drybag 700 features reflective details for enhanced safety.
• Tèks regilye: Periodically check the straps and mounting points during your journey to confirm they remain tight and secure.
• Motorcycle Handling: Be aware that adding luggage can alter your motorcycle's handling characteristics. Practice riding with the loaded bag in a safe environment before long trips.

3. Pake kontni

Verifye ke tout atik yo prezan nan pakè a:

• 1x SW-MOTECH Drybag 700 Tail Bag
• 4x Loop Straps
• 1x braslè zepòl

4. Pwodwi Features

The SW-MOTECH Drybag 700 offers the following key features:

• Universal fit for most motorcycles.
• Waterproof construction from robust 500D polyester with PVC coating.
• Large main opening for easy loading and unloading.
• Adjustable width (32 - 42 cm) via a zip on the bottom for individual motorcycle rear fitment.
• Reflective details for increased visibility.
• Clip adapter for combining with other Drybags (sold separately).
• Padded handle for comfortable carrying.
• D-rings for secure attachment to the motorcycle.

5. Enstalasyon ak Enstalasyon

Follow these steps to properly install the Drybag 700 on your motorcycle:

1. Prepare sak la: Unpack the Drybag 700 and ensure all accessories are present.
2. Adjust Width (Optional): If necessary, use the zip on the bottom of the bag to adjust its width (32 - 42 cm) to best fit the rear section of your motorcycle.
3. Mete sak la an pozisyon: Place the Drybag 700 on the rear seat or luggage rack of your motorcycle. Ensure it is centered and does not interfere with riding controls or passenger comfort.
4. Attach Loop Straps: Thread the four provided loop straps through the D-rings on the Drybag. Secure the other end of the loop straps to suitable attachment points on your motorcycle's frame, passenger footpeg mounts, or luggage rack.
5. Sere byen sere: Pull the straps tight to firmly secure the bag. Ensure there is no excessive movement or slack. The bag should not shift during riding.
6. Tcheke final la: Before riding, gently push and pull on the bag to confirm it is stable and will not come loose. Verify that all lights and signals are unobstructed.

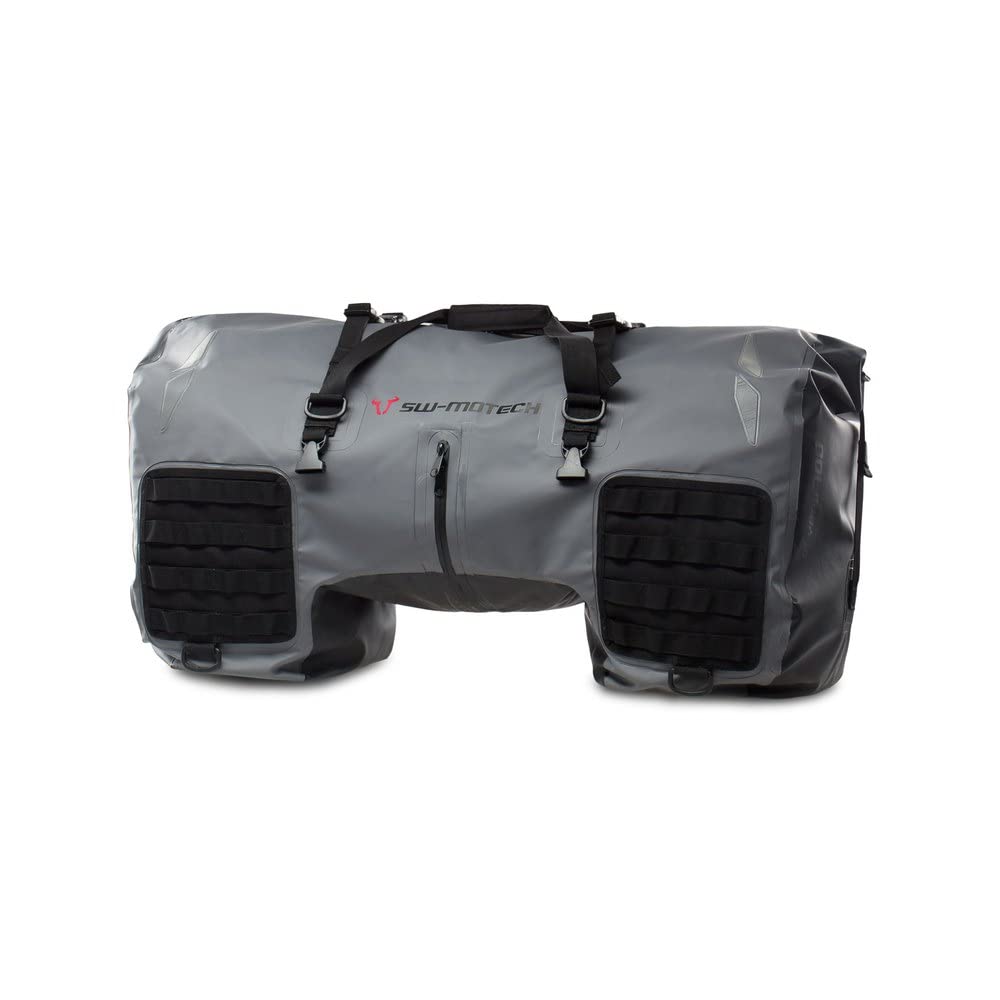

Image: The SW-MOTECH Drybag 700 Tail Bag securely mounted on the rear of a motorcycle. This image illustrates the bag's placement and how it integrates with the motorcycle's design.

6. Operasyon ak Itilizasyon

The Drybag 700 is designed for straightforward use.

• Chaje: The large top opening allows for easy loading of items. For optimal waterproofing, roll the top closure down at least three times and secure the buckles.
• Enpèmeyab: Ensure the roll-top closure is properly sealed to maintain the bag's waterproof integrity.
• Pote: Use the padded handle for short-distance carrying or attach the included shoulder strap for hands-free transport when off the motorcycle.
• Expanding Capacity: Utilize the clip adapters to attach additional SW-MOTECH Drybags (sold separately) if more storage is required.

7. Antretyen

• Netwayaj: Clean the Drybag with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the material and coating. Rinse thoroughly and allow to air dry completely before storage.
• Depo: Sere sak la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk lè w pa itilize li.
• Enspeksyon: Periodically inspect the bag for any signs of wear, tears, or damage to the material, seams, or buckles. Address any issues promptly to maintain waterproofing and security.

NAN. Depanaj

9. Espesifikasyon

10. Garanti ak sipò

For warranty information and customer support, please refer to the official SW-MOTECH websit la oubyen kontakte konsesyonè otorize ou a. Kenbe resi acha ou kòm prèv acha.
