MENABO Polaris 3 Bike Rack User Manual

Entwodiksyon

The MENABO Polaris 3 Bike Rack is a robust and secure rear-mounted bicycle carrier designed to transport up to three bikes. It features a steel frame and aluminum rails, providing a stable and reliable solution for vehicle-based bike transport. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your Polaris 3 Bike Rack.

The unique strapless fixing system enhances safety, making it a secure choice for transporting your bicycles. It is also designed to accommodate Fat Bikes, offering versatility for various bicycle types.

Figi 1: Plis paseview of the MENABO Polaris 3 Bike Rack, showcasing its robust steel frame and aluminum rails.

Enfòmasyon sou Sekirite

Always prioritize safety when installing and using the bike rack. Failure to follow these instructions could result in property damage, personal injury, or death.

• Li epi konprann tout enstriksyon yo anvan asanblaj ak enstalasyon.
• Ensure the bike rack is securely attached to your vehicle according to the installation guidelines.
• Do not exceed the maximum load capacity of 45 kg (99 lbs) or the maximum number of 3 bikes.
• Verify that all bikes are properly secured to the rack before driving.
• Check the rack and bike security periodically during long trips.
• Be aware of the increased length and width of your vehicle when the rack and bikes are installed, especially when parking, backing up, or driving through low clearances.
• Ensure that vehicle lights and license plate are not obstructed. If they are, consider using an auxiliary light board and license plate holder.
• Drive at reduced speeds, especially over rough terrain or during strong winds.
• Remove the bike rack when not in use to prevent unnecessary wear and tear and to improve fuel efficiency.

Kontni pake

Upon opening the package, verify that all components are present and undamaged. While a detailed list is not provided, the package typically includes:

• Main steel frame assembly
• Aluminum bike rails (3 sets)
• Wheel stop brackets and straps (for 3 bikes)
• Frame attachment clamps/straps
• Mounting straps for vehicle attachment
• Materyèl asanblaj (boulon, nwa, rondelle)
• Manyèl enstriksyon

If any parts are missing or damaged, contact MENABO customer support immediately.

Enstalasyon ak Asanble

The Polaris 3 Bike Rack requires some initial assembly before its first use. Follow these steps carefully:

1. Depake konpozan: Retire tout pati yo nan anbalaj la avèk prekosyon epi mete yo sou yon sifas pwòp e plat.
2. Rasanble ankadreman prensipal la: Connect the upper and lower sections of the steel frame if they are separate. Secure with the provided bolts and ensure they are tightened firmly.
3. Attach Aluminum Rails: Slide the aluminum rails onto the designated slots on the main frame. Ensure they are evenly spaced and secured.
4. Install Wheel Stop Brackets: Attach the wheel stop brackets to the aluminum rails. These brackets are adjustable to accommodate different wheelbases.
5. Secure Frame Attachment Clamps: Install the bike frame attachment clamps onto the vertical support bars. These clamps will hold the bike frames in place.

Figure 2: Detail of the frame attachment point, showing how the bike's top tube is secured.

Ensure all bolts and fasteners are tightened to the manufacturer's specifications. Do not overtighten.

Enstalasyon sou machin

The Polaris 3 Bike Rack is designed for rear vehicle mounting. Follow these steps for secure installation:

1. Prepare machin: Clean the areas of your vehicle where the rack will make contact to prevent scratching. Consider applying protective film or soft cloths.
2. Position Rack: Place the bike rack on the rear of your vehicle, ensuring the lower support arms rest firmly on the bumper or trunk lid. The upper arms should rest on the top edge of the trunk or rear door.
3. Tache espageti anwo yo: Hook the upper straps to the top edge of your trunk or rear door. Pull the straps tight to secure the top of the rack.
4. Mete senti bò yo: Hook the side straps to the side edges of your trunk or rear door. Tighten these straps to prevent lateral movement.
5. Mete senti ki pi ba yo: Hook the lower straps to the bottom edge of your trunk or rear bumper. Tighten these straps to pull the rack firmly against the vehicle.
6. Ajiste epi verifye: Once all straps are attached, push and pull the rack to ensure it is stable and does not wobble. Re-tighten all straps if necessary. The rack should be firmly seated against the vehicle.

Figure 3: The Polaris 3 Bike Rack securely installed on the rear of a vehicle, demonstrating its capacity to carry multiple bicycles.

Periodically check the tightness of the straps during your journey, especially after the first few miles.

Chaje bisiklèt

Properly loading bikes is crucial for safe transport. The Polaris 3 is designed for up to three bikes, including Fat Bikes.

1. Prepare bisiklèt yo: Remove any loose items from your bikes such as water bottles, pumps, or bags.
2. Position First Bike: Place the first bike on the rail closest to the vehicle. Position the bike's wheels into the wheel stop brackets.
3. Wou an sekirite: Use the provided straps to firmly secure the bike's wheels to the aluminum rails. Ensure the straps are tight and the wheels cannot move.
4. Secure Bike Frame: Attach the bike's top tube to the frame attachment clamp on the vertical support bar. Tighten the clamp to prevent the bike from swaying.
5. Load Additional Bikes: Repeat the process for the second and third bikes, alternating their direction if necessary to optimize spacing and prevent contact between bikes.
6. Tcheke final la: Once all bikes are loaded, gently shake each bike to ensure it is securely fastened. Check for any potential contact points between bikes or between bikes and the vehicle. Adjust as needed.

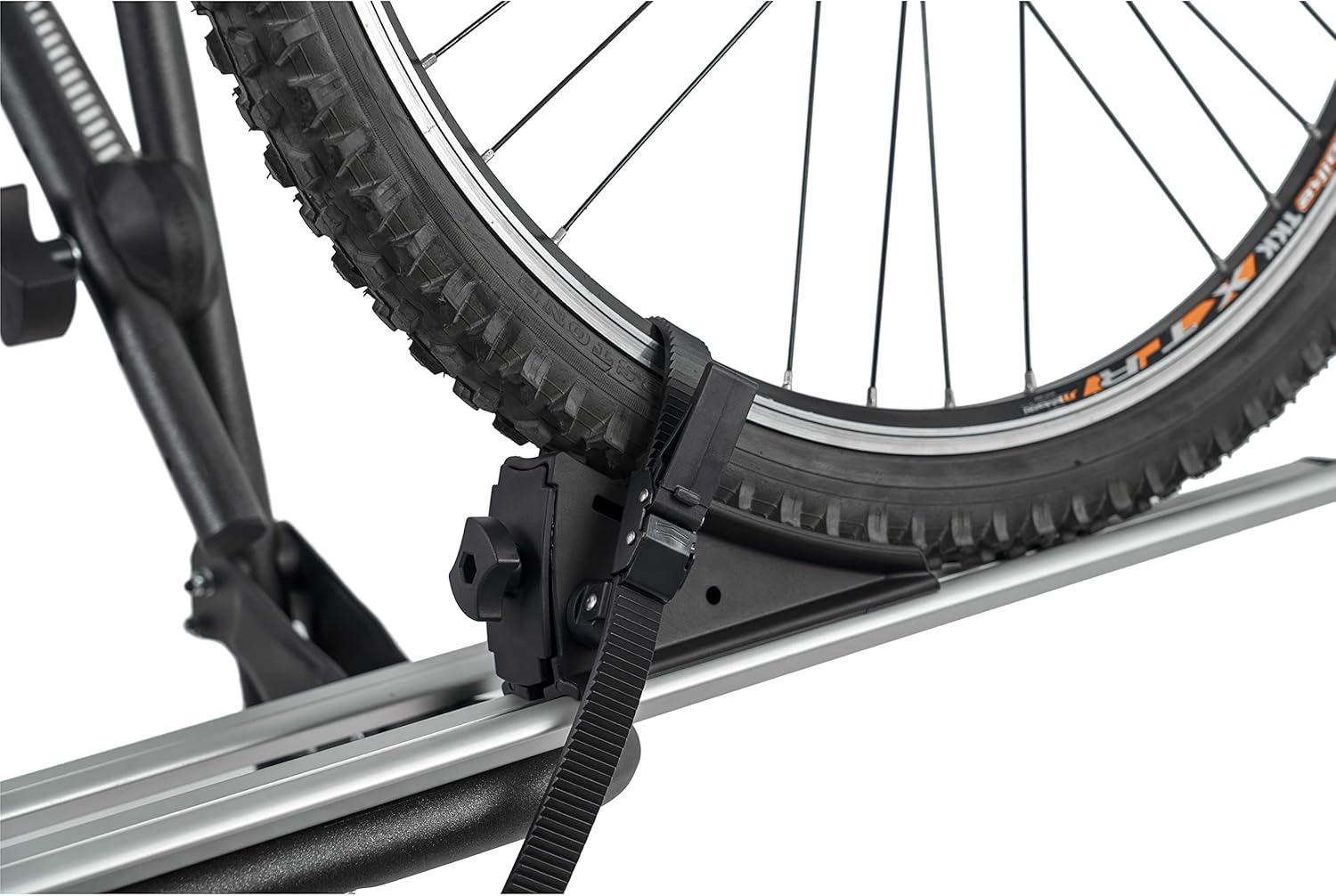

Figi 4: Detaye view of the wheel securing mechanism, showing the strap and wheel stop bracket.

Figure 5: The Polaris 3 Bike Rack configured to hold three bicycles, highlighting its capacity.

Operasyon ak Itilizasyon

Once the rack and bikes are securely installed, observe the following operational guidelines:

• Kondwi: Drive cautiously, especially when turning, braking, or driving over bumps. Avoid sudden maneuvers.
• Vitès: Maintain a moderate speed. High speeds can increase wind resistance and stress on the rack and vehicle.
• Clearance: Be mindful of overhead and rear clearance, particularly when entering garages, car washes, or parking spaces.
• Ekonomi gaz: Expect a decrease in fuel economy due to increased aerodynamic drag.
• bri: Some wind noise or minor vibrations may occur during travel. This is normal, but excessive noise or movement should prompt an immediate stop to check the rack's security.

Antretyen

Regular maintenance will extend the life of your MENABO Polaris 3 Bike Rack:

• Netwayaj: Clean the rack with mild soap and water after each use, especially if exposed to dirt, salt, or road grime. Rinse thoroughly and dry.
• Enspeksyon: Periodically inspect all straps, buckles, bolts, and frame components for signs of wear, damage, or corrosion. Replace any worn or damaged parts immediately.
• Lubrifikasyon: Apply a small amount of silicone spray or light lubricant to moving parts and hinges to ensure smooth operation.
• Depo: Store the bike rack in a dry, protected area when not in use. Avoid prolonged exposure to extreme weather conditions.

Depanaj

Espesifikasyon

Garanti ak sipò

For information regarding warranty coverage, technical support, or replacement parts, please refer to the official MENABO websit la oubyen kontakte sèvis kliyan yo dirèkteman. Kenbe resi acha w la kòm prèv acha.

Remak: Espesifikasyon ak karakteristik pwodwi yo ka chanje san avètisman alavans.
