MOOER UK Gold 900 Micro Preamp (M002) Manyèl Enstriksyon

Karakteristik kle

• High-quality dual-channel preamp.
• Independent 3-band EQ (Treble, Mid, Bass) for each channel.
• Independent Gain and Volume controls for each channel.
• Switchable speaker cabinet simulation.
• Two footswitch operating modes: On/Off or Channel A/B switching.
• Compact and durable metal housing.

Kontwòl ak Koneksyon

Imaj: Devan view of the MOOER UK Gold 900 Micro Preamp, showing the control knobs and footswitch.

• TRE (Treble) Knob: Ajiste repons frekans segondè a.
• MID (Middle) Knob: Adjusts the mid-range frequency response.
• Bouton BASS: Ajiste repons ba-frekans lan.
• Bouton GAIN: Controls the amount of overdrive/distortion.
• Bouton VOL (Volim): Ajiste nivo pwodiksyon an jeneral.
• CH/CAB Button:
  • Press to switch between Channel A and Channel B.
  • Press and hold to toggle the speaker cabinet simulation on or off.
• Footswitch: Activates or bypasses the preamp, or switches between channels depending on the selected mode.
• Antre Jack: Konekte gita ou oswa lòt enstriman.
• Sòti Jack: Konekte ak yon amplifier, mixer, oswa koòdone odyo.
• DC 9V Antre pouvwa: Connect a 9V DC power adapter (center negative, 300mA minimum).

Imaj: Dèyè view of the MOOER UK Gold 900 Micro Preamp, showing the 9V DC power input.

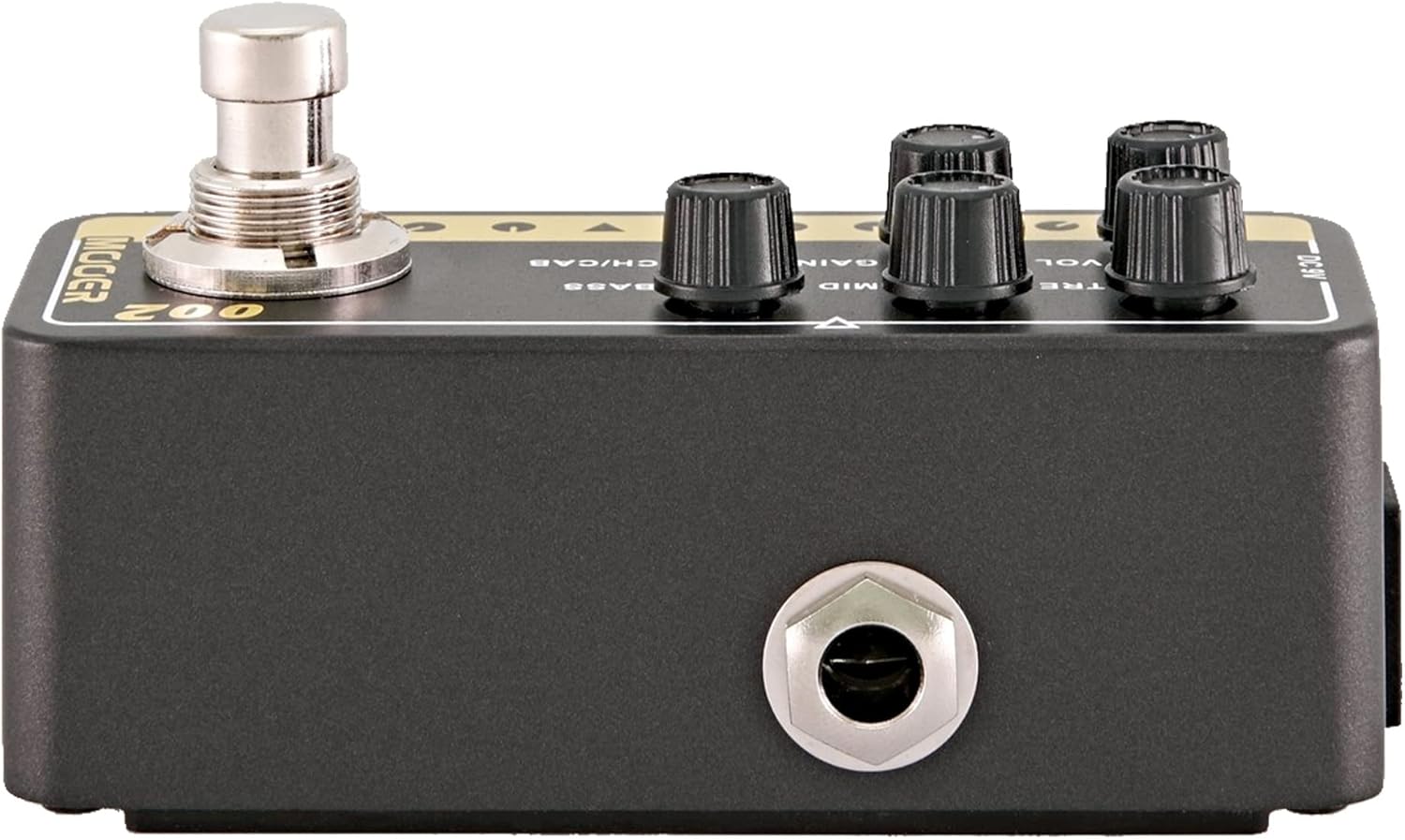

Imaj: Bò kote view of the MOOER UK Gold 900 Micro Preamp, illustrating the input and output jacks.

Enstalasyon

1. Koneksyon pouvwa: Connect a 9V DC power adapter (center negative, 300mA minimum) to the DC 9V input jack on the rear of the unit. Ensure the power supply meets these specifications to prevent damage.
2. Koneksyon Enstriman: Connect your guitar or other instrument to the INPUT jack on the right side of the preamp using a standard 1/4-inch instrument cable.
3. Koneksyon Sòti: Connect the OUTPUT jack on the left side of the preamp pou ou amplifier's input, effects loop return, or an audio interface/mixer.
4. Premye Anviwònman: Before powering on, set all control knobs (TRE, MID, BASS, GAIN, VOL) to their minimum positions to avoid sudden loud sounds.
5. Pouvwa sou: Once all connections are secure, apply power to the unit. The LED indicator will illuminate.

Enstriksyon Operasyon

Seleksyon Chèn

The UK Gold 900 features two channels, A and B, each with independent EQ, Gain, and Volume settings.

• To switch channels: Briefly press the CH/CAB button. The LED color will change to indicate the active channel (e.g., green for Channel A, red for Channel B).

Speaker Cabinet Simulation

Pre laamp includes an integrated speaker cabinet simulation, which is useful for direct recording or connecting to a PA system.

• To toggle cabinet simulation: Press and hold the CH/CAB button for approximately 2 seconds. The LED will flash to indicate the change.

Footswitch mòd

The footswitch can operate in two different modes:

1. On/Off Mode: In this mode, the footswitch acts as a bypass, turning the preamp efè sou oswa koupe.
2. Channel A/B Mode: In this mode, the footswitch switches between Channel A and Channel B.

Refer to the product's full manual or manufacturer's website for instructions on how to switch between these footswitch modes, as this functionality is typically configured via a hidden switch or specific power-up sequence.

Ajisteman Ton

Adjust the following controls to shape your sound:

• GAY: Increase for more overdrive and distortion. Decrease for cleaner tones.
• VOL: Ajiste volim pwodiksyon an jeneral.
• TRE, MID, BASS: Use these three knobs to fine-tune the equalization for your desired tone.

Antretyen

• Netwayaj: Use a soft, dry cloth to clean the unit. Do not use liquid cleaners or solvents.
• Depo: Store the preamp in a dry environment, away from extreme temperatures and direct sunlight.
• Pwovizyon pou pouvwa: Always use the specified 9V DC (center negative) power supply. Incorrect power can damage the unit.
• Koneksyon: Ensure all cables are securely connected but do not overtighten. Disconnect cables when the unit is not in use for extended periods.

Depanaj

• Pa gen son:
  • Tcheke tout koneksyon kab yo (antre, sòti, pouvwa).
  • Asire w ke ekipman pou pouvwa a byen konekte epi li fonksyone.
  • Verify that the volume knobs on the preamp ak ou amplifier yo pa mete a zewo.
  • Test with different cables and instruments to rule out faulty equipment.
• Undesired Noise/Buzz:
  • Ensure you are using a regulated 9V DC (center negative) power supply. Unregulated or incorrect power supplies can introduce noise.
  • Check for ground loops by trying different power outlets or isolating the power supply.
  • Reduce gain settings if the noise is excessive distortion.
  • Asire w ke tout kab yo pwoteje epi yo an bon kondisyon.
• Footswitch Not Responding:
  • Asire w ke inite a limen.
  • If the footswitch mode is set to Channel A/B, it will not bypass the effect.

Espesifikasyon

Garanti ak sipò

For warranty information and technical support, please refer to the official MOOER website or contact your authorized MOOER dealer. Keep your purchase receipt as proof of purchase for warranty claims.

MOOER Official Websit: www.mooeraudio.com
