Entwodiksyon
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Craftmade CPJM-1PNK Design-A-Fixture Mini Pendant Lighting. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Enfòmasyon sou Sekirite
Pou diminye risk dife, chòk elektrik, oswa aksidan pèsonèl, toujou swiv prekosyon sekirite debaz sa yo:
- Dekonekte pouvwa: Always turn off the electrical supply at the main fuse box or circuit breaker before installing, servicing, or cleaning the fixture.
- Elektrisyen ki kalifye: Si ou pa sèten sou pwosesis enstalasyon an, konsilte yon elektrisyen kalifye.
- Itilize andedan kay la sèlman: This fixture is rated for indoor locations only. Do not install in wet or damp zòn yo.
- Fil elektrik apwopriye: Ensure all electrical connections are made in accordance with local codes and ordinances, as well as the National Electric Code (NEC).
- Espesifikasyon anpoul: Sèvi ak sèlman kalite anpoul espesifye ak wattage (E26 base, maximum 60 watts incandescent or equivalent LED/CFL). Exceeding the maximum wattage ka lakòz surchof.
- Montaj sekirite: Ensure the fixture is securely mounted to a structurally sound junction box.
Kontni pake
Verify that all components listed below are present and undamaged:
- Pendant Fixture Assembly (CPJM-1PNK)
- Extension Rods (Two 6-inch, Two 12-inch)
- Mounting Hardware (for junction box)
Note: Light bulb(s) and junction box are not included.
Enstalasyon (Enstalasyon)
Follow these steps to install your pendant light:
- Prepare pou enstalasyon: Koupe kouran an nan disjonktè a oswa nan bwat fizib la. Asire w ke kouran an konplètman dekonekte anvan ou kontinye.
- Asanble Downrod la: Determine the desired hanging height for your pendant. Connect the appropriate combination of 6-inch and 12-inch extension rods to the fixture body and the canopy. Ensure all connections are secure.
- Koneksyon fil elektrik: Carefully connect the fixture's electrical wires to the corresponding wires from the junction box. Typically, connect the black fixture wire to the black (live) supply wire, the white fixture wire to the white (neutral) supply wire, and the bare copper or green fixture wire to the green or bare copper (ground) supply wire. Use approved wire connectors and ensure all connections are tight.
- Mount Fixture: Securely attach the canopy to the existing junction box using the provided mounting hardware. Ensure the fixture is stable and flush against the ceiling.
- Enstale anpoul: Insert one E26 base, maximum 60-watt incandescent bulb (or equivalent LED/CFL) into the socket. Do not overtighten.
- Retabli pouvwa: Once installation is complete and all connections are secure, restore power at the circuit breaker or fuse box.

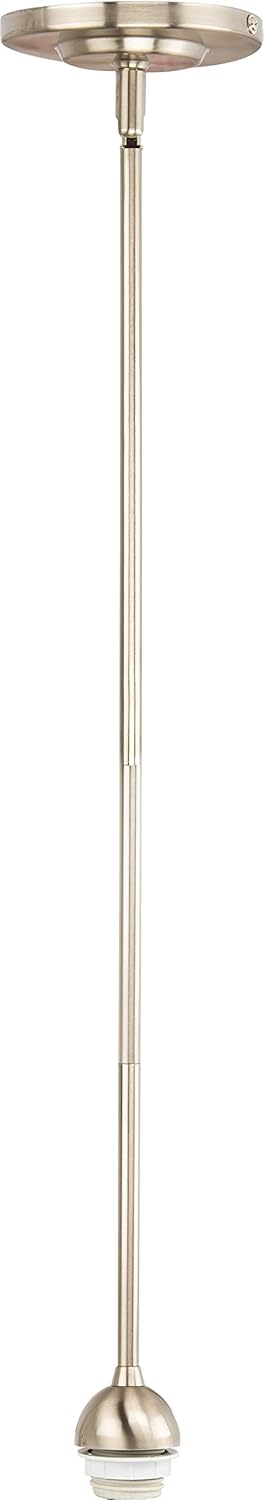

This image displays the Craftmade CPJM-1PNK mini pendant light. It features a polished nickel finish, with a circular canopy at the top, a long slender downrod, and a bell-shaped socket housing at the bottom designed to hold an E26 base bulb. The overall design is sleek and minimalist.
Operasyon
The Craftmade CPJM-1PNK pendant light is operated via a standard wall switch. For dimming functionality, ensure you are using a dimmable E26 bulb and a compatible dimmer switch (not included) installed in your electrical system.
Antretyen
Regular maintenance ensures the longevity and appearance of your fixture.
- Netwayaj: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or polishes as they may damage the finish.
- Ranplasman anpoul: Ensure power is off and the bulb has cooled completely before attempting to replace it. Unscrew the old bulb and screw in a new E26 base, maximum 60-watt incandescent or equivalent LED/CFL bulb.
Depanaj
Si ou rankontre pwoblèm ak lanp pandye ou a, gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Limyè a pa klere. | Pa gen pouvwa nan aparèy la. | Tcheke disjonktè a oswa fizib la. Asire w ke switch miray la limen. |
| Anpoul la gen pwoblèm oswa li lach. | Replace bulb or tighten it securely. | |
| Koneksyon fil elektrik ki pa kòrèk. | Turn off power and recheck wiring connections. Consult an electrician if necessary. | |
| Dimming function does not work. | Non-dimmable bulb used. | Replace with a dimmable E26 bulb. |
| Entèriptè gradatè ki pa konpatib. | Ensure a compatible dimmer switch is installed. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | Fèt atizanal |
| Nimewo Modèl | CPJM-1PNK |
| Non modèl | One Light Mini Pendant Hardware |
| Dimansyon (L x W x H) | 6 x 5.25 x 40 pous |
| Pwa atik | 9.75 liv |
| Koulè | Brushed Polished Nickel |
| Fini | Poli |
| Materyèl | Alloy Steel |
| Fòm aparèy limyè | Pandan |
| Itilizasyon Andedan kay la / Deyò | Andedan kay la |
| Kantite sous limyè | 1 |
| Max watage | 60 wat |
| Baz anpoul | E26 |
| Voltage | 120 Volts |
| Karakteristik espesyal | Dimmable |
| Sètifikasyon | ETL ki nan lis |
Garanti ak sipò
This Craftmade product is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Craftmade website. For technical support or assistance with parts, please contact Craftmade customer service directly.
Craftmade Customer Service: Refer to your product packaging or the Craftmade websit pou jwenn enfòmasyon kontak aktyèl.
