OEMTOOLS 24534 Smoke Diagnostic Machine Instruction Manual

1. Entwodiksyon

This instruction manual provides comprehensive guidance for the safe and effective use of the OEMTOOLS 24534 Smoke Diagnostic Machine. This device is designed to assist technicians in identifying various system leaks in domestic and import cars and light trucks, including air intake, cooling, evaporation, fuel, exhaust, and vacuum systems. Please read this manual thoroughly before operating the machine to ensure proper function and longevity.

2. Enfòmasyon sou Sekirite

Always observe the following safety precautions when operating the OEMTOOLS 24534 Smoke Diagnostic Machine:

• Mete ekipman pwoteksyon pèsonèl ki apwopriye, tankou linèt sekirite ak gan.
• Operate the machine in a well-ventilated area to prevent inhalation of smoke.
• Asire w ke ekipman pou pouvwa a koresponn ak bezwen machin nan.
• Do not operate the machine near open flames or flammable materials.
• Keep the machine away from water and moisture.
• Do not attempt to modify or repair the machine yourself. Refer to qualified service personnel.
• ATANSYON: Do not remove the cap when the unit is in use. Soak the fiberglass element (wick) in mineral oil or baby oil before initial use. Failure to do so can burn out the fiberglass element.

3. Pwodwi souview

The OEMTOOLS 24534 Smoke Diagnostic Machine is a robust tool designed for efficient leak detection. Familiarize yourself with its main components:

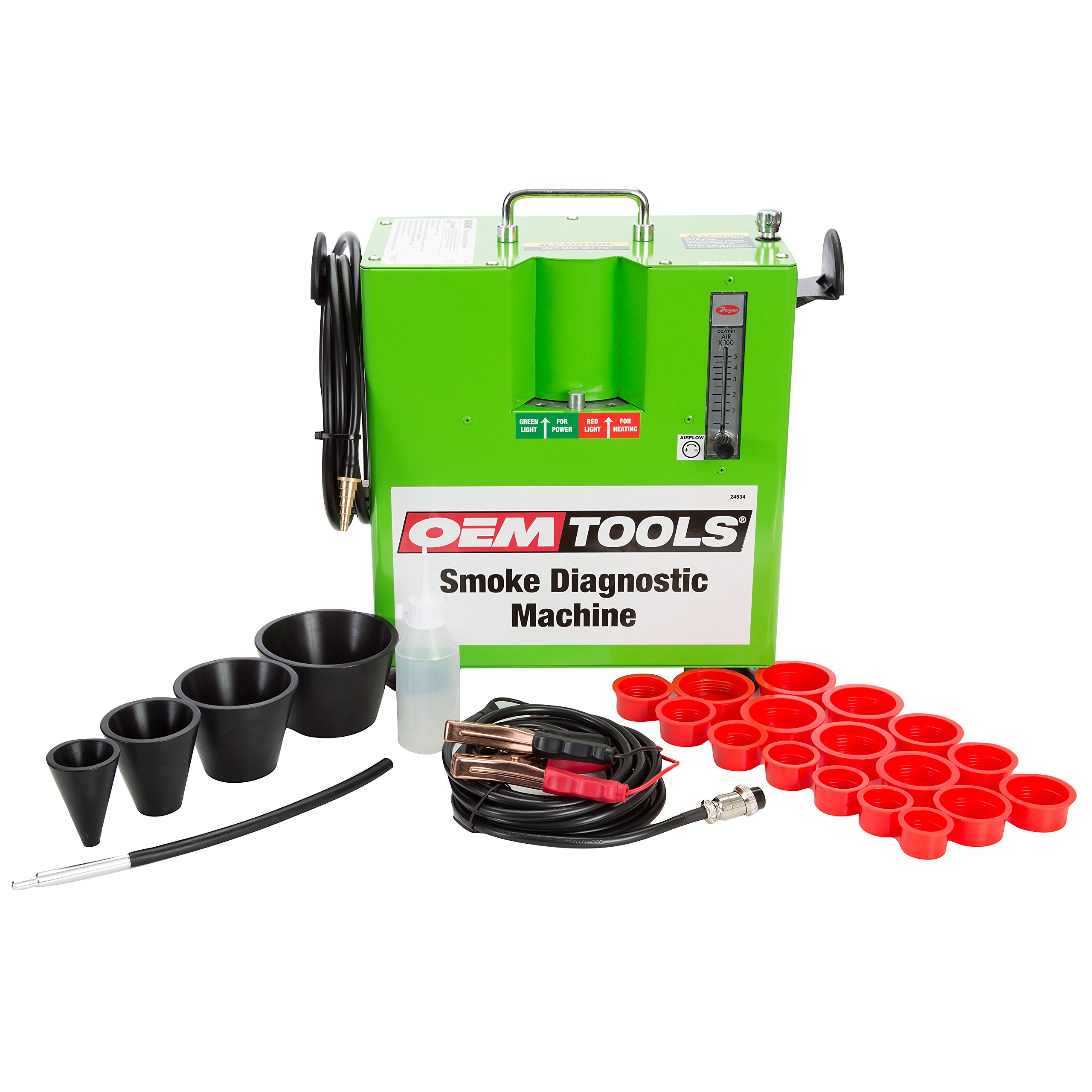

Figi 3.1: The OEMTOOLS 24534 Smoke Diagnostic Machine, showing its compact design and integrated handle for portability.

Figi 3.2: The smoke diagnostic machine alongside its protective carrying case, illustrating the complete kit.

Figi 3.3: Side view of the machine, highlighting the integrated hose storage for convenience and organization.

Konpozan kle:

• Inite Prensipal: Houses the smoke generator, heating element, and control circuitry.
• Smoke Output Hose: Connects to the system being tested.
• Kòd pouvwa: Pou konekte ak yon priz elektrik.
• Kontwòl Panel: Features power and heating indicator lights, and airflow adjustment.
• rezèvwa likid: For smoke-generating fluid.

4. Enstalasyon

Before initial use, and whenever the fluid level is low, the machine requires filling with appropriate smoke-generating fluid (mineral oil or baby oil).

1. Prepare the Fiberglass Element: For first-time use, ensure the fiberglass element (wick) is thoroughly soaked in mineral oil or baby oil. This prevents burnout.
2. Ranpli rezèvwa a: Locate the filling port on the top of the machine. Carefully pour the recommended smoke-generating fluid into the reservoir using the provided dispenser bottle. Do not overfill.

Figi 4.1: Illustrates the process of filling the smoke diagnostic machine's reservoir with fluid using the provided bottle.
3. Konekte pouvwa: Ploge fil elektrik la nan yon priz elektrik apwopriye.
4. Connect Air Supply (if applicable): If your model requires an external air supply, connect it according to the instructions on the unit.

5. Operasyon Enstriksyon

Follow these steps to operate your OEMTOOLS 24534 Smoke Diagnostic Machine:

1. Pouvwa sou: Locate the power switch, typically indicated by a green light. Turn the machine on. The green light will illuminate, indicating power is supplied.

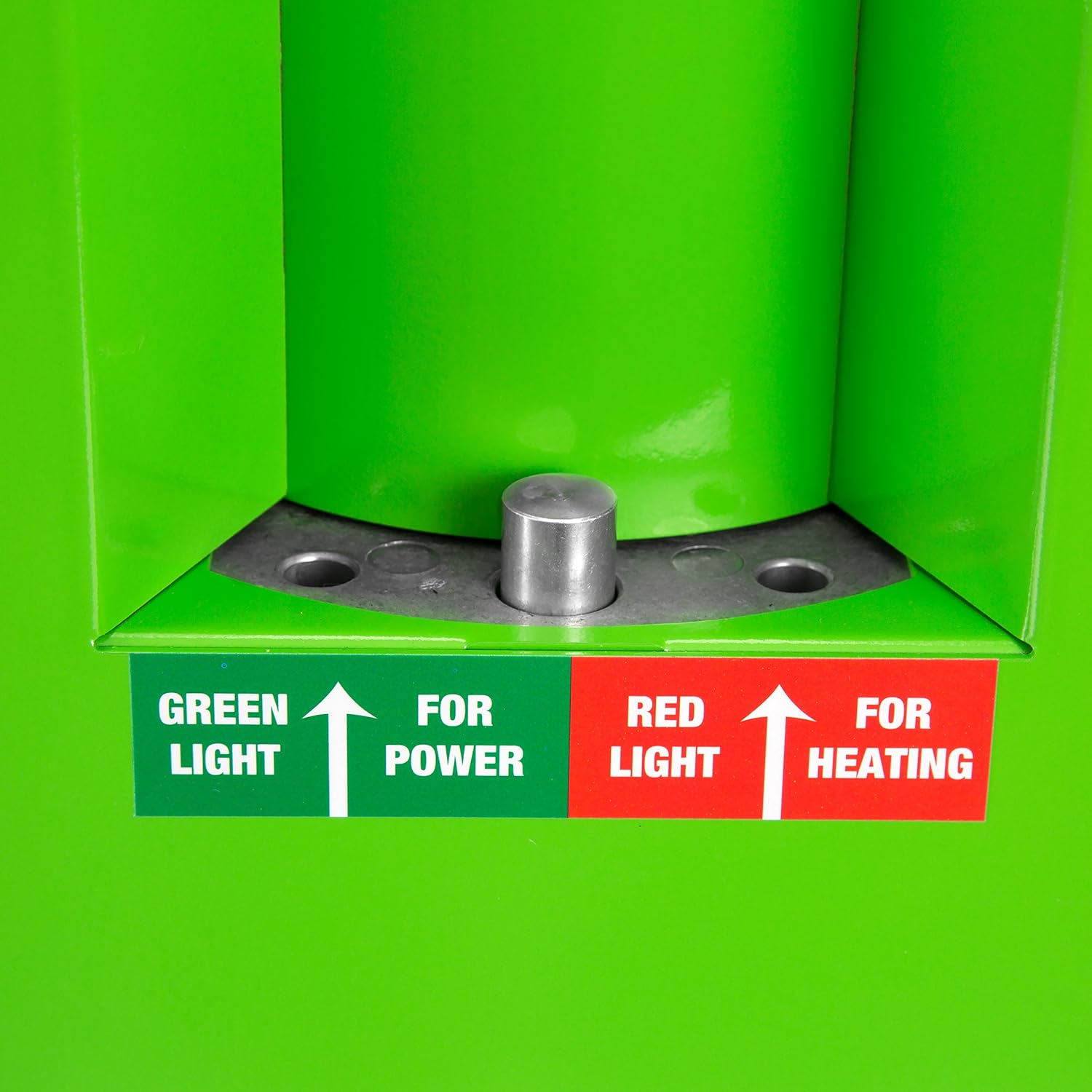

Figi 5.1: Close-up of the control panel, showing the green light for power and the red light for heating, along with their respective labels.
2. Aktive chofaj: Engage the heating function, usually indicated by a red light. Allow the machine to warm up for a few minutes until it reaches operating temperature and begins producing smoke.
3. Ajiste Airflow: Use the integrated regulator and variable flow control to adjust the smoke output and pressure as needed for the specific diagnostic task.
4. Konekte nan sistèm: Attach the smoke output hose to the vehicle system you intend to test (e.g., air intake, exhaust, vacuum lines). Ensure a secure connection to prevent smoke leakage at the connection point.
5. Fè tès flit: Introduce smoke into the system. Visually inspect for smoke escaping from any cracks, loose connections, or damaged components. This indicates a leak.
6. Etenn: Once the diagnosis is complete, turn off the heating element first, then the main power. Disconnect the hose from the vehicle and store the machine properly.

This machine is effective for testing various systems including turbo systems, engine blocks, fuel systems, and exhaust systems.

6. Antretyen

Regular maintenance ensures the longevity and optimal performance of your smoke diagnostic machine:

• Nivo likid: Regularly check the smoke-generating fluid level and refill as necessary. Never operate the machine dry.
• Fiberglass Element: Periodically inspect the fiberglass element (wick) for wear or damage. Replace if necessary, ensuring it is properly saturated with fluid before use.
• Netwayaj: Keep the exterior of the machine clean and free of dust and debris. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Enspeksyon kawotchou: Inspect the smoke output hose for cracks, kinks, or damage. Replace if compromised to ensure accurate testing.
• Depo: Store the machine in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the hose is neatly coiled and secured.

NAN. Depanaj

If you encounter issues with your OEMTOOLS 24534 Smoke Diagnostic Machine, refer to the following common problems and solutions:

8. Espesifikasyon

Technical specifications for the OEMTOOLS 24534 Smoke Diagnostic Machine:

• Nimewo Modèl: 24534
• Mak: OEMTOOLS
• Dimansyon pwodwi: 32.92 x 17.02 x 33.02 cm (12.96 x 6.70 x 13.00 pous)
• Pwa atik: 7.28 kg (16.05 liv)
• Materyèl: Melanje
• Koulè: Multi
• Manifakti: OEMTOOLS
• Aplikasyon: Air intake, cooling, evaporation, fuel, exhaust, vacuum systems, turbo systems, engine block.

9. Garanti ak sipò

For warranty information, technical support, or service inquiries regarding your OEMTOOLS 24534 Smoke Diagnostic Machine, please contact OEMTOOLS customer service directly. Refer to the product packaging or the official OEMTOOLS websit la pou jwenn enfòmasyon kontak ak kondisyon garanti ki pi resan yo.
