Entwodiksyon
This instruction manual provides guidance for the proper installation and maintenance of the Polaris 380/360 Pool Cleaner Belt Kit, Part Number 9-100-1017. This kit includes both a small and a large belt, essential components for the drive mechanism of your Polaris 380 or 360 automatic pool cleaner. Correct installation ensures optimal performance and longevity of your pool cleaning system.
Kontni Twous
- 1 x Small Drive Belt
- 1 x Large Drive Belt
Enfòmasyon sou Sekirite
Always ensure the pool cleaner is disconnected from its power source (booster pump) before performing any maintenance or installation. Failure to do so may result in injury. If you are unsure about any step, consult a qualified pool technician.
Enstalasyon ak Enstalasyon
Before beginning the installation, ensure you have a clean, dry workspace. It is recommended to lay out all components to prevent loss.
Zouti obligatwa
- Phillips head screwdriver (if required for cleaner disassembly)
- Flat head screwdriver (if required for cleaner disassembly)
- Netwaye twal
Etap enstalasyon yo
- Dekonekte pouvwa: Turn off the booster pump and disconnect the pool cleaner from the hose.
- Access Drive Mechanism: Refer to your Polaris 380 or 360 owner's manual for specific instructions on how to open the cleaner's housing to access the drive mechanism where the belts are located. This typically involves removing screws or clips.
- Retire senti fin vye yo: Carefully remove the old, worn, or broken belts from their pulleys. Note the routing of the belts for correct reinstallation.
- Zòn pwòp: Use a clean cloth to wipe away any debris or grime from the pulleys and surrounding areas.
- Enstale nouvo senti yo:
- Place the new large belt onto its designated pulleys first. Ensure it is seated correctly and not twisted.
- Install the new small belt onto its respective pulleys, ensuring proper tension and alignment.
- Verify Belt Routing: Double-check that both belts are correctly routed around all pulleys according to the cleaner's design.
- Reassemble Cleaner: Carefully reassemble the cleaner's housing, ensuring all screws or clips are securely fastened.
- Operasyon tès: Reconnect the cleaner to the hose and turn on the booster pump to verify proper operation. Observe the cleaner's movement to ensure the belts are functioning correctly.

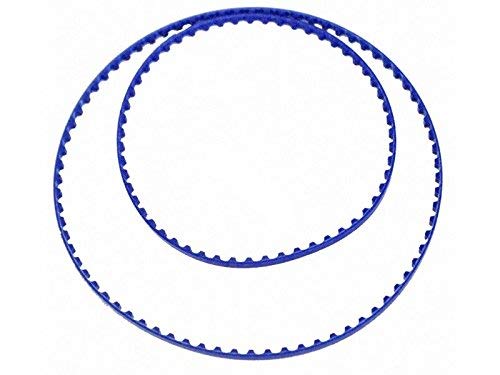

Image: The Polaris 380/360 Belt Kit, showing one small and one large blue ribbed belt. These belts are crucial for the cleaner's drive mechanism and must be installed correctly for optimal performance.
Enstriksyon Operasyon
Once the belts are correctly installed, the Polaris 380 or 360 pool cleaner should operate as designed. The belts transmit power from the water-driven engine to the wheels, enabling the cleaner to move and clean the pool surfaces. For detailed operating instructions of your specific Polaris cleaner model, please refer to its original owner's manual.
Antretyen
Regular inspection of the drive belts is recommended to ensure continued efficient operation of your pool cleaner. Inspect the belts for signs of wear, cracking, stretching, or damage every few months, or if you notice a decrease in cleaner performance. Replace belts promptly if any damage is observed to prevent further issues with the cleaner's drive system.
Depanaj
Pwoblèm komen ak solisyon yo
- Aparèy netwayaj la pa deplase oswa li deplase dousman:
- Check if belts are properly installed and not slipping.
- Inspect belts for excessive wear or breakage. Replace if necessary.
- Ensure there are no obstructions in the drive mechanism.
- Belts Constantly Coming Off:
- Verify correct belt routing and tension.
- Inspect pulleys for damage or misalignment.
For other issues not related to the belts, consult your Polaris 380 or 360 pool cleaner's main instruction manual.
Espesifikasyon
- Nimewo Pati: 9-100-1017
- Konpatibilite: Polaris 380, Polaris 360 Automatic Pool Cleaners
- Twous Gen ladann: 1 Small Belt, 1 Large Belt
- Koulè: Ble
- Stil senti: Standard ribbed
Enfòmasyon sou Garanti
This product is typically covered by the manufacturer's standard warranty against defects in materials and workmanship. Please refer to the original product packaging or contact the manufacturer directly for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
Sipò
For further assistance, technical support, or inquiries regarding your Polaris pool cleaner or replacement parts, please contact Polaris customer service or visit their official website. When contacting support, have your cleaner model number and the belt kit part number (9-100-1017) available.
