Entwodiksyon
Thank you for choosing the Yard Force YF1800LR Electric Pressure Washer. This manual provides important information for the proper assembly, operation, maintenance, and troubleshooting of your pressure washer. Please read this manual thoroughly before operating the unit and keep it for future reference.
The YF1800LR is designed for a wide range of cleaning applications, offering 1800 PSI at 1.2 GPM of cleaning power. Its features include a "live" hose reel, an easy-wind power cord reel, a low-profile cart with a folding handle for compact storage, and a 1-gallon super soap tank.
Enfòmasyon enpòtan sou sekirite
AVÈTISMAN: Li tout avètisman sekirite ak enstriksyon yo. Si w pa suiv avètisman ak enstriksyon yo, sa ka lakòz chòk elektrik, dife, ak/oswa blesi grav.
- Always wear appropriate personal protective equipment, including safety glasses, when operating the pressure washer.
- Pa dirije kouran dlo a sou moun, bèt kay, oswa aparèy elektrik.
- Ensure the power cord and hose are free from damage before each use.
- Connect the unit to a grounded outlet only.
- Pa sèvi ak machin pou lave a presyon an nan lapli oswa nan kondisyon mouye.
- Kenbe timoun yo ak moun ki t ap pase yo lwen zòn operasyon an.
- Always turn off the unit and disconnect the power before performing any maintenance or cleaning.
Pwodwi konpozan
Familiarize yourself with the main components of your Yard Force YF1800LR Electric Pressure Washer.
Figi 1: Devan view of the Yard Force YF1800LR Electric Pressure Washer with its handle extended, showing the hose reel and nozzle storage.

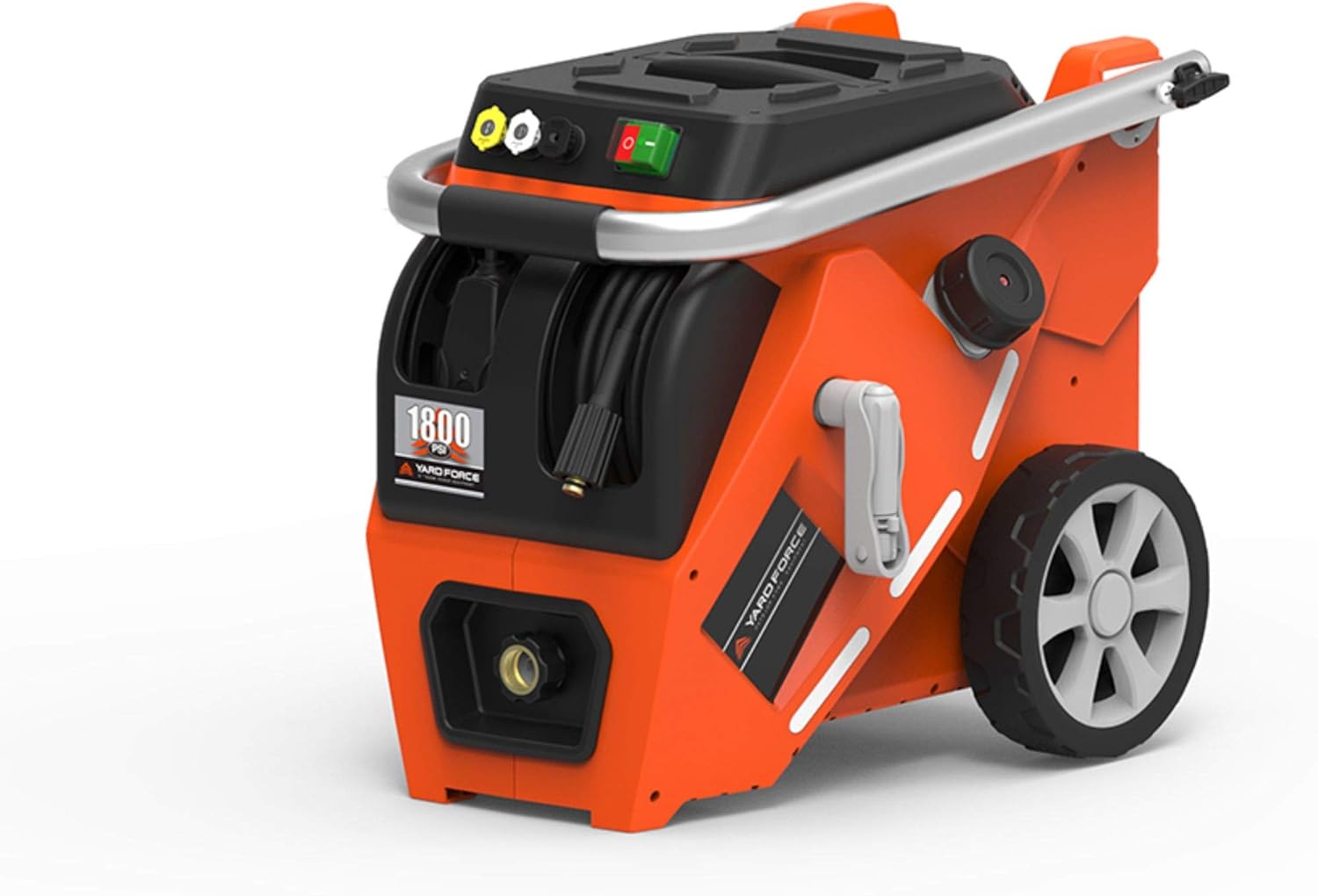

Figi 2: Side view of the pressure washer, highlighting its compact design and wheels.

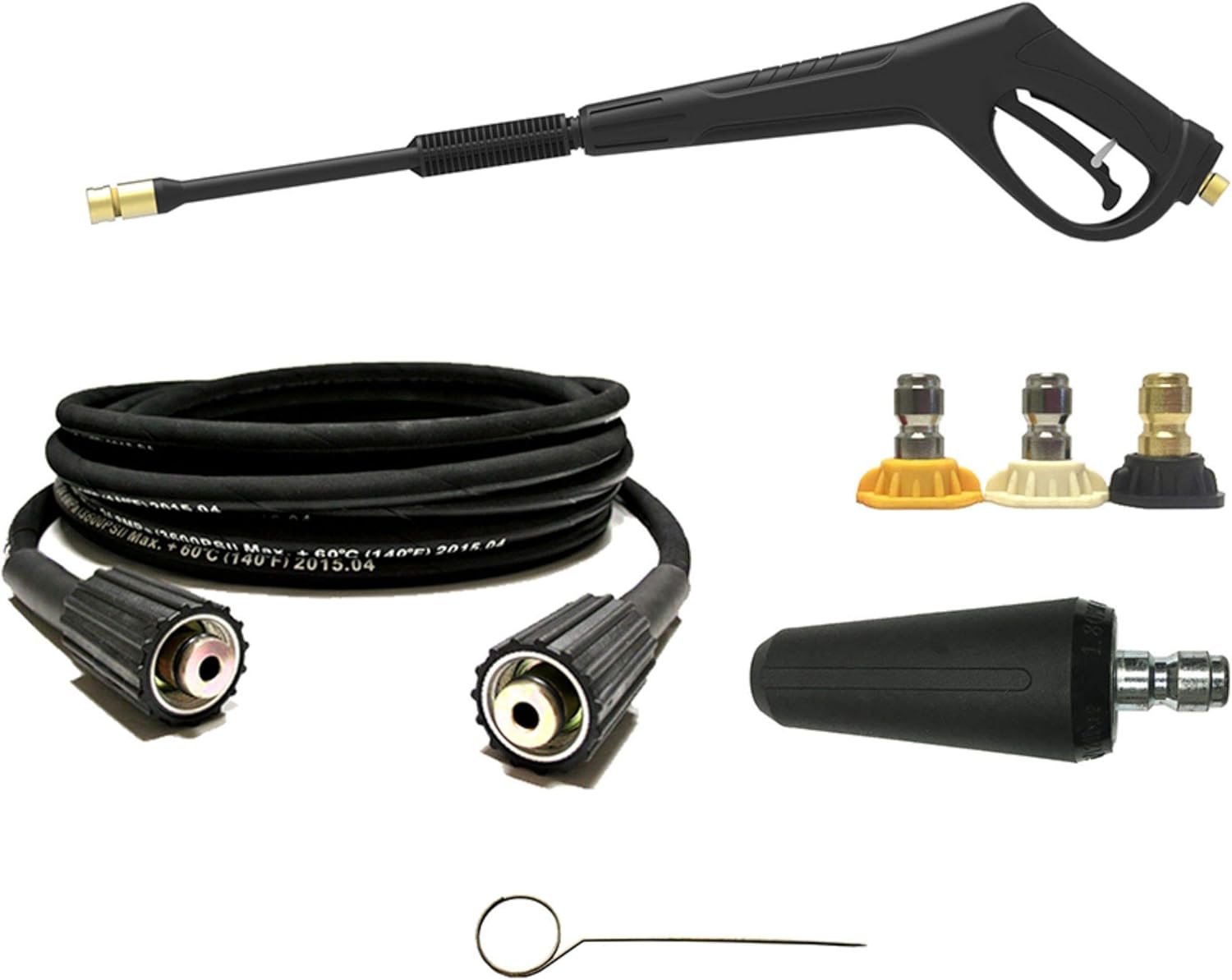

Figi 3: Included accessories: spray gun, high-pressure hose, quick-connect nozzles (15°, 40°, Soap, and Turbo), and a nozzle cleaning tool.
Karakteristik kle:
- "Live" Hose Reel: The 25-foot high-pressure hose is directly connected to the water supply, allowing you to pull out only the length needed.
- Easy-Wind Power Cord Reel: Manages the 35-foot power cord, preventing tangles and simplifying storage.
- 1-Gallon Super Soap Tank: Large capacity for extended cleaning without frequent refills.
- Bouch koneksyon rapid: Includes 15°, 40°, Soap, and a Turbo Nozzle for versatile cleaning.
- Low-Profile Cart with Folding Handle: Ensures stability and compact storage or transportation.
Enstalasyon ak Asanble
Debake:
Carefully remove all components from the packaging. Ensure all parts listed in the manual are present. Retain packaging for future storage or transport.
Manch Asanble:
Extend the folding handle to its upright position until it locks securely. The handle provides a comfortable grip for moving the unit.
Figi 4: A person extending the handle of the pressure washer for use.
Koneksyon dlo:
Connect a standard garden hose (not included) to the water inlet on the pressure washer. Ensure the connection is tight to prevent leaks. The "live" hose reel allows the high-pressure hose to be pulled out as needed.
Figi 5: Illustrates connecting the water supply hose to the pressure washer's inlet.
High-Pressure Hose and Spray Gun Assembly:
Connect the high-pressure hose to the outlet on the pressure washer and to the spray gun. Ensure all connections are secure. Select the desired quick-connect nozzle and attach it to the spray wand.
Figi 6: A user operating the pressure washer, demonstrating the hose connection and spray gun use.
Koneksyon pouvwa:
Unwind the power cord from the easy-wind reel and plug it into a grounded 120V AC outlet. Ensure the outlet is suitable for outdoor use and protected by a Ground Fault Circuit Interrupter (GFCI).
Enstriksyon Operasyon
Kòmanse Inite a:
Before turning on the power, ensure the water supply is fully open and the spray gun trigger is depressed for a few seconds to purge air from the system. This primes the pump. Then, turn the power switch to the "ON" position.
Figi 7: Top view of the pressure washer, indicating the location of the power switch and quick-connect nozzle holders.
Using Quick-Connect Nozzles:
The YF1800LR comes with various quick-connect nozzles for different cleaning tasks:
- Bouch 15° (Jòn): For intense cleaning of hard surfaces like concrete and brick.
- Bouch 40° (Blan): For general cleaning of larger areas, such as siding, decks, and vehicles.
- Bouch savon (nwa): Pou aplike detèjan.
- Turbo Nozzle (Bonus): Provides a rotating stream for aggressive cleaning of stubborn stains.
To change nozzles, turn off the pressure washer and ensure no pressure remains in the system by squeezing the trigger. Pull back the collar on the spray wand, insert the new nozzle, and release the collar to lock it in place.
Figi 8: Yon fèmen view of the quick-connect nozzles, showing their color coding and spray patterns.
Itilizasyon tank savon an:
Fill the 1-gallon super soap tank with pressure washer safe detergent. Attach the black soap nozzle to the spray wand. The pressure washer will automatically draw detergent when the soap nozzle is in use. After applying soap, switch to a high-pressure nozzle (15° or 40°) to rinse.
Videyo 1: Demonstrates the setup and operation of the Yard Force YF1800LR pressure washer, including connecting hoses, power, and using the soap tank. This video is provided by the seller and shows key features in action.
Teknik netwayaj:
Always start cleaning from top to bottom. Hold the spray gun at a consistent distance from the surface, typically 6-12 inches, adjusting as needed. Use overlapping strokes to ensure even cleaning. For delicate surfaces, start with the 40° nozzle or increase the distance.
Antretyen ak Depo
Apre chak itilizasyon:
Turn off the pressure washer and water supply. Squeeze the spray gun trigger to release any remaining pressure. Disconnect the garden hose and drain any water from the unit. Remove and clean the soap tank, rinsing it thoroughly.
Netwayaj bouch:
Use the included nozzle cleaning tool to clear any blockages from the quick-connect nozzles. Rinse nozzles with water after cleaning.
Preparasyon pou ivè (pou klima frèt):
To prevent damage from freezing, drain all water from the pump and hoses. Consider using a pump protector or non-toxic antifreeze solution if storing in temperatures below freezing.
Depo:
The folding handle allows for compact storage. Wind the power cord onto its reel and store the high-pressure hose on its reel. Store the spray gun and nozzles in the designated compartments on the unit.
Figi 9: The compact dimensions of the pressure washer (19"L x 15"W x 18"H) for easy storage.
Figi 10: The pressure washer's compact size allows for easy transport, such as in a car trunk.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Inite pa kòmanse. | No power, GFCI tripped, power switch off. | Check power connection, reset GFCI, turn power switch ON. |
| Ba presyon. | Insufficient water supply, clogged nozzle, air in pump. | Ensure water supply is fully open, clean nozzle, purge air from system. |
| Dlo koule. | Loose connections, damaged O-rings. | Tighten all connections, inspect and replace O-rings if damaged. |
| Motè a sispann pandan operasyon an. | Thermal overload, low voltage. | Allow unit to cool down, ensure proper voltagekipman pou. |
For further assistance, please contact Yard Force customer support.
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Modèl | YF1800LR |
| Presyon maksimòm | 1800 psi |
| Pousantaj maksimòm koule | NAN GPM |
| Sous pouvwa | 13 Amp Electric Motor (Corded) |
| Longè kawotchou | 25 pye |
| Longè kòd pouvwa | 35 pye |
| Volim Tank Savon an | 1 galon |
| Pwa atik | 29.5 liv |
| Dimansyon pwodwi (L x W x H) | 19" x 15" x 18" |
Garanti ak sipò
The Yard Force YF1800LR Electric Pressure Washer is backed by a 2-ane garanti on the pump and motor. For warranty claims, technical support, or replacement parts, please contact Yard Force customer service.
Enfòmasyon pou kontakte:
- Websit: www.YardForceUSA.com
- Sèvis Kliyan: Refer to the contact details provided on the official websit la oswa dokiman acha ou a.
Please have your model number (YF1800LR) and purchase date available when contacting support.
