1. Entwodiksyon
This manual provides essential information for the installation, operation, and maintenance of your ARIES AeroTread 5" x 73" Polished Stainless Running Boards, Model 2051873. Please read these instructions thoroughly before proceeding with installation or use to ensure proper function and longevity of the product. These running boards are designed to provide a secure and convenient step for entering and exiting your vehicle.
2. Pwodwi souview
The ARIES AeroTread running boards are constructed with an extruded aluminum base and feature a polished stainless steel trim accent piece. They are designed for modern SUVs and crossovers, offering a sleek appearance and a functional stepping surface.
Image 2.1: ARIES AeroTread 5" x 73" Polished Stainless Running Boards, showcasing their design and finish.
2.1 Karakteristik kle
- Konsepsyon dous: Features rounded corners, tapered ends, and an aerodynamic-style tread pattern.
- Dual Build Construction: Composed of a strong, lightweight aluminum core with a polished stainless steel trim accent piece.
- Kowozyon ki reziste: Both aluminum and stainless steel components offer high resistance to rust.
- Comfortable Step: Equipped with 5-inch wide, full-length, non-skid plastic treads for secure footing.
- Enstalasyon san perçage: Utilizes a track mounting system designed for vehicle-specific brackets (brackets sold separately).

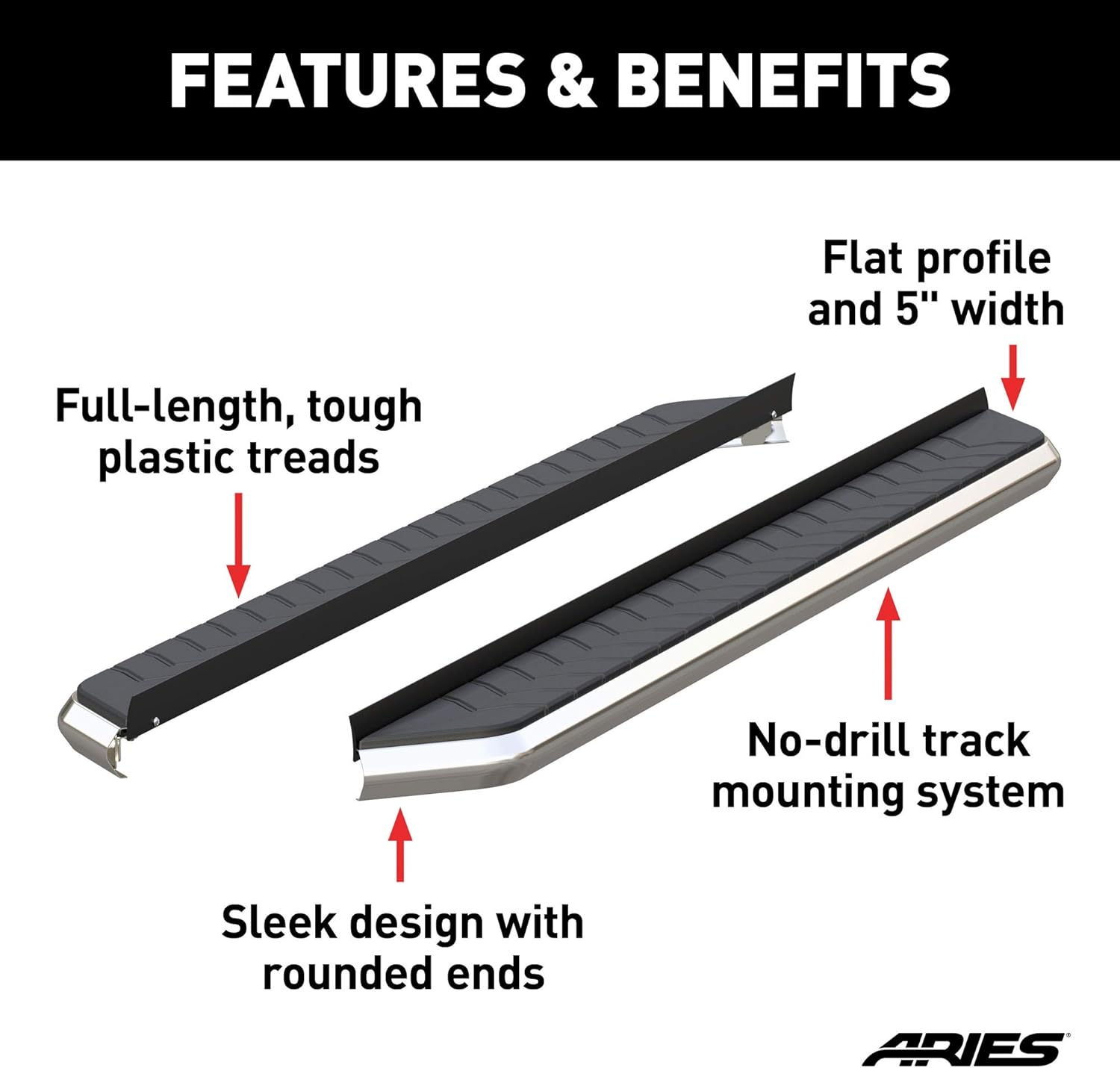

Image 2.2: Diagram illustrating key features such as flat profile, 5" width, full-length plastic treads, sleek design, and no-drill track mounting system.
Imaj 2.3: Gwo plan view highlighting the sleek design with rounded ends of the running board.
Imaj 2.4: Detaye view of the full-length, tough plastic treads, showing their non-skid surface.
3. Enstalasyon ak Enstalasyon
These ARIES AeroTread running boards are designed for a no-drill installation using a track mounting system. IMPORTANT: Mounting brackets are NOT included with this product (Model 2051873) and must be purchased separately. Refer to the application information to determine the correct vehicle-specific brackets for your vehicle.
3.1 Sa ki nan bwat la
- AeroTread Running Boards (Quantity: 2)
3.2 Installation Process Overview
- Prepare machin: Ensure the vehicle is on a level surface and securely supported.
- Idantifye pwen montaj yo: Locate the pre-existing holes in your vehicle's frame for bracket attachment.
- Enstale parantèz: Attach the vehicle-specific mounting brackets (sold separately) to the vehicle frame according to their specific instructions.
- Attach Running Boards: Slide the running boards onto the track mounting system of the installed brackets. Adjust for desired position.
- Secure Boards: Tighten all fasteners to secure the running boards firmly to the brackets.
- Final Enspeksyon: Verify that the running boards are securely mounted and stable before use.
Image 3.1: Close-up of the underside of the running board, illustrating the track mounting system for bracket attachment.
Imaj 3.2: Egzanpample of ARIES AeroTread Running Boards installed on a vehicle.
4. Opere
The ARIES AeroTread running boards are passive accessories designed to provide a stable step. No active operation is required. Simply use them as a stepping aid when entering or exiting your vehicle. Ensure your footing is secure on the non-skid treads before applying full weight.
5. Antretyen
Regular maintenance will help preserve the appearance and functionality of your running boards.
- Netwayaj: Clean the running boards regularly with mild soap and water. For the polished stainless steel, use a non-abrasive cleaner specifically designed for stainless steel to maintain its shine. Avoid harsh chemicals or abrasive pads that could scratch the finish.
- Enspeksyon: Periodically inspect all mounting hardware, bolts, and the running board structure for any signs of looseness, wear, or damage. Tighten any loose fasteners immediately.
- Tread Condition: Check the plastic treads for excessive wear or damage that could compromise their non-skid properties.
NAN. Depanaj
- Loose Running Board: If a running board feels loose, inspect all mounting bolts and brackets. Tighten any loose fasteners. If the issue persists, re-check the installation instructions for your specific brackets.
- Squeaking/Rattling: This may indicate loose hardware. Inspect and tighten all bolts. Ensure no components are rubbing against the vehicle body.
- Corrosion/Stains: For stainless steel, use appropriate stainless steel cleaners. For aluminum, ensure proper cleaning and avoid prolonged exposure to harsh elements.
7. Espesifikasyon
| Spesifikasyon | Detay |
|---|---|
| Mak | ARIES |
| Nimewo Modèl | 2051873 |
| Materyèl | Aluminum (base), Stainless Steel (trim) |
| Eksteryè Fini | Poli Nerjaveèi |
| Koulè | Ajan |
| Dimansyon atik (L x W x H) | 78 x 8 x 7 pous (Dimansyon pwodwi) |
| Running Board Length | 73 pous |
| Running Board Width | 5 inches (step pad) |
| Pwa atik | 27.9 liv |
| Kalite enstalasyon | No-Drill (requires vehicle-specific brackets, sold separately) |
| UPC | 812410023612 |
| Nimewo OEM Pati | 2051873 |
Image 7.1: Diagram showing the approximate dimensions of the running board: 73 inches in length and 5 inches in width.
8. Garanti ak sipò
For information regarding product warranty, please refer to the documentation provided with your purchase or visit the official ARIES Automotive website. For technical support or assistance with installation, please contact ARIES customer service directly. Keep your purchase receipt for warranty claims.
