OpenBox V8 Combo Satellite Receiver User Manual

Entwodiksyon

The OpenBox V8 Combo is a versatile satellite and terrestrial receiver designed to provide high-definition entertainment. It supports DVB-S2 and DVB-T2 standards, offering a wide range of channels and multimedia capabilities. This manual will guide you through the setup, operation, and maintenance of your device.

Figi 1: Devan view of the OpenBox V8 Combo receiver.

Kontni pake

Anvan ou kontinye ak enstalasyon an, tanpri asire w ke tout bagay yo prezan nan pake a:

• OpenBox V8 Combo Receiver
• Remote Control (Note: Remote control may not be included with all packages, as per product specifications.)
• Power Adapter (Please ensure you have the correct plug type for your region.)
• HDMI kab
• Manyèl Itilizatè a (Dokiman sa a)

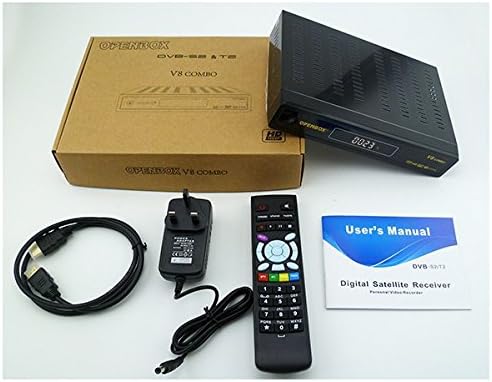

Figure 2: Contents typically included with the OpenBox V8 Combo package, including the receiver, remote, power adapter, HDMI cable, and user manual.

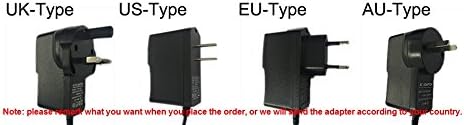

Figure 3: Various power adapter plug types (UK, US, EU, AU) that may be supplied with the device. Ensure you have the correct type for your region.

Gid Enstalasyon

Follow these steps to set up your OpenBox V8 Combo receiver:

1. Konekte ak televizyon an: Use the provided HDMI cable to connect the HDMI OUT port on the receiver to an HDMI IN port on your television.
2. Connect to Antenna/Dish:
   • For Satellite (DVB-S2): Connect your satellite dish LNB cable to the "LNB IN" port on the receiver.
   • For Terrestrial (DVB-T2): Connect your terrestrial antenna cable to the "RF IN" port on the receiver.
3. Konekte ak rezo a (Si ou vle):
   • Koneksyon filaire: Connect an Ethernet cable from your router to the LAN port on the receiver.
   • Koneksyon san fil: The device supports Wi-Fi. Refer to the "Network Settings" section in Operating Guide for Wi-Fi setup.
4. Konekte pouvwa: Plug the power adapter into the DC IN port on the receiver, then plug the adapter into a wall outlet.
5. Pouvwa sou: Turn on your television and select the correct HDMI input source. The receiver should power on automatically or can be turned on using the power button on the front panel or remote control.

Figure 4: Illustrative diagram showing connections for the OpenBox V8 Combo, including HDMI to TV and network connections.

Gid operasyon

Konfigirasyon Inisyal ak Eskane Chanèl

1. Upon first power-on, the receiver may guide you through an initial setup wizard. Follow the on-screen prompts.
2. Navigate to the "Installation" or "Channel Search" menu using the remote control.
3. Select your satellite or terrestrial antenna type and perform an automatic or manual channel scan. The receiver supports automatic, manual, and network search for channels.
4. Once the scan is complete, save the channels.

Fonksyon debaz yo

• Chèn Navigasyon: Use the CH+/CH- buttons on the remote to change channels. Enter channel numbers directly using the numeric keypad.
• Kontwòl Volim: Use the VOL+/VOL- buttons to adjust volume.
• Aksè nan meni: Press the "MENU" button to access the main menu for settings and features.
• Gid Pwogram Elektwonik (EPG): Press the "EPG" button to view program schedules for up to 7 days.
• Lang OSD: The On-Screen Display (OSD) supports multiple languages including English, German, French, Portuguese, Spanish, Italian, Russian, Turkish, Polish, Arabic, and Farsi. Adjust this in the system settings.

Miltimedya lèktur

The OpenBox V8 Combo features a USB input for playing multimedia files from external storage devices such as USB disks or mobile hard drives. It supports various video and image formats.

• Fòma videyo sipòte: MPEG2/MPEG1, AVS, AVI, MKV, MP4, FLV, F4V, TS, M2TS, MOV, 3GP, MP3, AAC.
• Fòma imaj ki sipòte: JPEG, BMP, PNG, GIF.

Figure 5: Visual representation of supported media formats and compatible storage devices like mobile hard disks, USB disks, and SD cards (with adapter).

Karakteristik avanse

• Koneksyon Wi-Fi: Connect to your home network wirelessly for internet-based features.
• Sipò DLNA: Stream media content from compatible devices (e.g., smartphones, tablets) to your TV via the receiver.
• PVR (Anrejistrè Videyo Pèsonèl): Record TV programs to an external USB storage device.
• Kontwòl Paran: Set up parental controls for channels to restrict access to certain content.
• Lojisyèl ajou: Update the receiver's firmware via USB.

Antretyen

To ensure the longevity and optimal performance of your OpenBox V8 Combo receiver, follow these maintenance guidelines:

• Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye deyò reseptè a. Pa sèvi ak pwodui netwayaj likid oswa materyèl abrazif.
• Vantilasyon: Ensure the receiver is placed in a well-ventilated area. Do not block the ventilation openings.
• Pouvwa Off: If the receiver will not be used for an extended period, disconnect it from the power outlet.
• Mizajou mikrolojisyèl: Periodically check for and install firmware updates via USB to improve performance and add new features.

Depanaj

If you encounter issues with your OpenBox V8 Combo, refer to the following common problems and solutions:

Espesifikasyon

Key technical specifications for the OpenBox V8 Combo receiver:

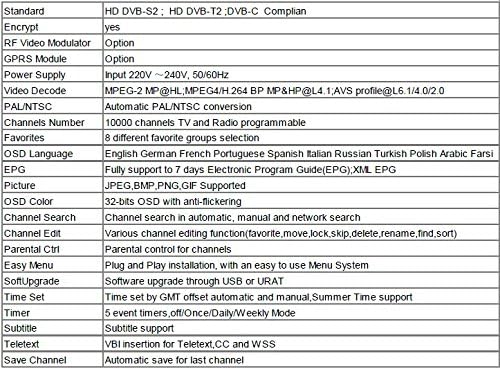

Figure 6: Detailed technical specifications table for the OpenBox V8 Combo receiver.

Garanti ak sipò

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, please reach out to the product manufacturer or your point of sale.

This product is designed for reliable operation. Should you require assistance beyond the scope of this manual, professional support is recommended.
