Pwodwi souview
The Craftmade Tempo 44-inch hugger fan (Model TMPH44W5) is designed for smaller rooms and spaces with shorter ceilings. It features a sleek profile and integrates LED down lighting for both aesthetic appeal and functional illumination. This fan is rated for indoor locations only.
Image: The Craftmade Tempo 44-inch ceiling fan in white, showcasing its five blades and central LED light. This fan is designed for flush mounting, making it suitable for rooms with lower ceilings.
Enfòmasyon sou Sekirite
Always ensure power is disconnected before installation, maintenance, or troubleshooting. Installation should be performed by a qualified electrician. This product is designed for indoor use only and cannot be mounted on a sloped ceiling.
Pwodui sa a ka ekspoze w a pwodui chimik tankou plon, ke Eta Kalifòni konnen ki lakòz kansè ak domaj nesans oswa lòt pwoblèm repwodiktif. Pou plis enfòmasyon, ale nan www.P65Warnings.ca.gov.
Kontni pake
Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:
- Asanble motè
- 5 White Plywood Blades
- Integrated Light Kit (16 Watt LED)
- Pòtatif Remote Kontwòl
- Kontwòl mi
- Gid enstalasyon
- Pati Asanble
- Optional White Blank Light Lens Cover (for no-light operation)
Image: A detailed specification sheet for the Craftmade Tempo 44-inch ceiling fan, highlighting its flush mount design, included remote and wall controls, 5 white blades, integrated 16W LED light kit (dimmable, 3000K, 1415 Lumens), 2910 CFM average airflow, and 153 X 15 mm motor size.
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Modèl | TMPH44W5 |
| Dimansyon (D x W x H) | 44"D x 44"W x 6.32"H |
| Overall Height (Ceiling to Bottom of Light) | 10.43 pous (26.5 santimèt) |
| Dyamèt baz | 10.93 pous (27.76 santimèt) |
| Blade Span Diameter | 44 pous |
| Kantite lam | 5 |
| Materyèl lam | Engineered Wood (Plywood) |
| Lam goudwon | 13 degre |
| Kalite limyè | Integrated 16W LED (3000K, 1415 Lumens, 80CRI) |
| Dimmable limyè | Wi |
| Metòd kontwòl | Remote Control & Wall Control |
| Vitès fanatik | 3 RPM |
| Airflow (Average) | 2910 CFM |
| Airflow (High) | 3874.76 CFM |
| Efikasite Airflow | 74 pye kib pa minit pa wat |
| Gwosè motè | 153 X 15 mm, Standard 3-Speed Reversible |
| Voltage | 120 Volts |
| Wattage | 72.00 W (Fan), 16 W (Light) |
| Pwa pandye | 18.6 liv |
| Itilizasyon Andedan kay la / Deyò | Andedan kay la sèlman |
| Sètifikasyon | UL sètifye |
Image: A dimensional diagram of the Craftmade Tempo ceiling fan, illustrating its compact design with an overall height of 10.43 inches (26.5 cm) and a base diameter of 10.93 inches (27.76 cm). The fan features a 44-inch blade span, ideal for smaller rooms and low ceilings.
Image: EnergyGuide label indicating an estimated yearly energy cost of $11 for the fan, based on 12 cents per kWh and 6.4 hours per day usage. It also shows an airflow of 2,910 Cubic Feet Per Minute and an airflow efficiency of 74 Cubic Feet Per Minute Per Watt.
Enstalasyon ak Enstalasyon
For detailed installation instructions, please refer to the official Installation Manual. A PDF version is available for download: Telechaje Manyèl Enstalasyon an (PDF).
Key Installation Notes:
- This is a flush mount fan, designed to sit close to the ceiling.
- It cannot be mounted on a sloped ceiling.
- Ensure all electrical connections are secure and follow local electrical codes.
- Fanatik la opere sou 120 volts.

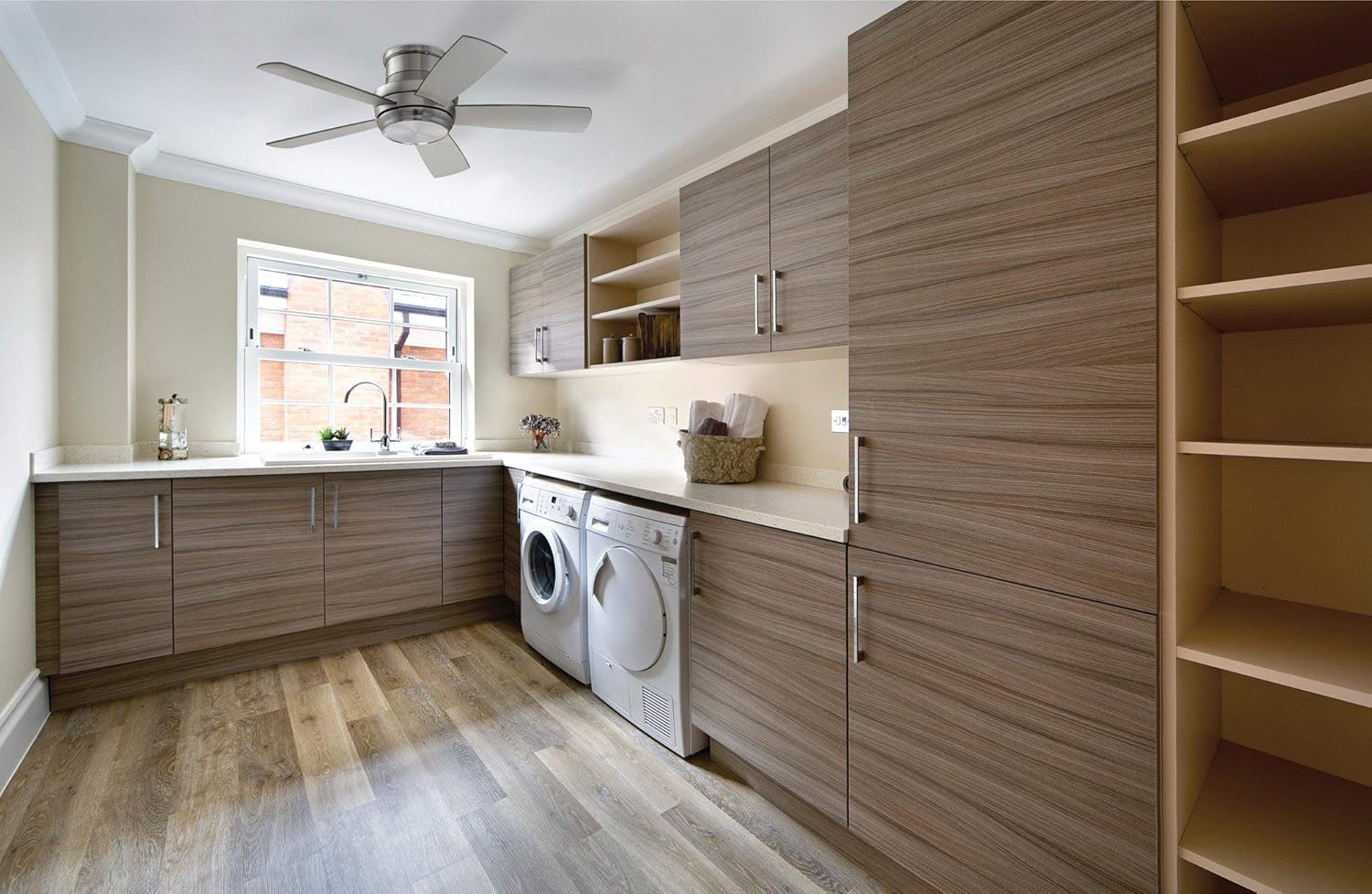

Image: The Craftmade Tempo 44-inch ceiling fan installed in a room, showcasing its flush-mount design and how it integrates seamlessly into a modern interior space, such as a laundry room.
Enstriksyon Operasyon
The Craftmade Tempo fan comes with both a handheld remote and a wall control for convenient operation.
Operasyon Fan
- Kontwòl vitès: Use the remote or wall control to select one of the three available fan speeds.
- Fonksyon ranvèse: The fan features a reverse mode to change the direction of airflow. This is useful for circulating air upwards in cooler weather or downwards in warmer weather. Refer to the installation manual for specific instructions on how to engage the reverse function, as it may be a switch on the motor housing or controlled via the remote.
Operasyon limyè
- On/Off: Use the dedicated light button on the remote or wall control to turn the integrated LED light on or off.
- Dimming: The LED light is dimmable. Press and hold the light button to adjust the brightness to your desired level.
- No-Light Option: An optional white blank light lens cover is included if you prefer to use the fan without the light.
Antretyen
- Netwayaj: To clean the fan, wipe surfaces with a soft, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvan. Asire w ke kouran an koupe anvan ou netwaye.
- Swen lam: Periodically check that the fan blades are securely attached and clean. Dust accumulation can affect performance.
- Kouvèti Limyè: If a slight ticking noise occurs, ensure the glass cover over the light is tightened securely.
- Remote/Wall Control Batteries: The handheld remote and wall control require batteries. If controls stop working, check and replace the batteries. The wall switch typically has a battery accessible from the front of the wall plate.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Fan does not operate / Remote not working | Dead batteries in remote or wall control. Loose wiring. | Replace batteries in both handheld remote and wall control. Check all electrical connections. |
| Fan is noisy (ticking/squeaking) | Loose light cover or other components. | Ensure the glass cover over the light is tightened. Check all screws and connections for tightness. |
| Light is too harsh/unpleasant | Light is at full brightness. | Use the dimming function on the remote or wall control to adjust brightness. |
| Fan only works on one speed / Light stopped working | Battery in wall switch is dead. | Replace the battery in the wall switch. |
Garanti ak sipò
All products purchased have a 30-day replacement parts policy to ensure a fully working item. All products are covered under a 1-Year warranty when purchased on Amazon. The warranty period begins on the day the product is originally shipped.
The warranty covers all items and conditions identified in the original manufacturer's warranty. Items specifically not covered include loss and theft, water damage, customer abuse, and finish deterioration due to UV or coastal exposure.
For customer support, please contact Craftmade at (800) 486-4892.
