Roadstar CLR-2615 Portable FM PLL Clock Radio

1. Entwodiksyon

This manual provides essential information for the safe and efficient operation of your Roadstar CLR-2615 Portable FM PLL Clock Radio. Please read these instructions carefully before using the device and retain them for future reference.

The Roadstar CLR-2615 is a compact clock radio featuring a large 1.8-inch white LCD display, FM PLL radio with 20 preset stations, dual alarm functionality (radio or buzzer), and convenient sleep and snooze functions. It operates on AC power with a battery backup for time and alarm settings during power outages.

2. Enfòmasyon sou Sekirite

• Pa ekspoze aparèy la anba lapli oswa imidite pou evite dife oswa chòk elektrik.
• Asire bon vantilasyon; pa bouche okenn ouvèti vantilasyon.
• Itilize sèlman atachman/akseswa manifakti a espesifye.
• Disconnect the apparatus during lightning storms or when unused for long periods.
• Refere tout sèvis yo bay pèsonèl sèvis kalifye.
• Jete pil yo itilize yon fason responsab selon règleman lokal yo.

3. Pake kontni

Tanpri verifye si atik sa yo enkli nan pakè ou a:

• Roadstar CLR-2615 Clock Radio Unit
• AC/DC pouvwa adaptè
• Manyèl Enstriksyon

4. Pwodwi souview

Panèl Devan ak Ekspozisyon

The front panel features a large 1.8-inch white LCD display for clear visibility of time and radio information.

Imaj: Devan view of the Roadstar CLR-2615 clock radio, highlighting the 1.8-inch white digital display showing '23:59'.

Kontwòl Panel Top

The top panel houses various control buttons for easy access to functions:

• SNOOZE/SLEEP Button: Aktive repetisyon an pandan yon alam oswa mete revèy pou dòmi an.
• M (Memory) Button: Used for storing and recalling radio presets.
• << / >> Buttons: Used for tuning radio frequencies or adjusting time/alarm settings.
• + / - Bouton: Used for volume control or adjusting time/alarm values.

Imaj: Gwo plan view of the top panel of the Roadstar CLR-2615, showing the 'SNOOZE/SLEEP' button and other control buttons.

Panèl dèyè ak koneksyon

The rear panel includes the power input and the FM antenna.

Imaj: Dèyè view of the Roadstar CLR-2615 clock radio, showing the integrated stand, power input, and FM antenna wire.

5. Enstalasyon

5.1 Koneksyon pouvwa

1. Insert the DC plug of the supplied AC/DC adapter into the DC IN jack located on the rear of the unit.
2. Plug the AC adapter into a standard wall outlet (AC 230V~50Hz).
3. Aparèy la ap limen, epi ekran an ap limen.

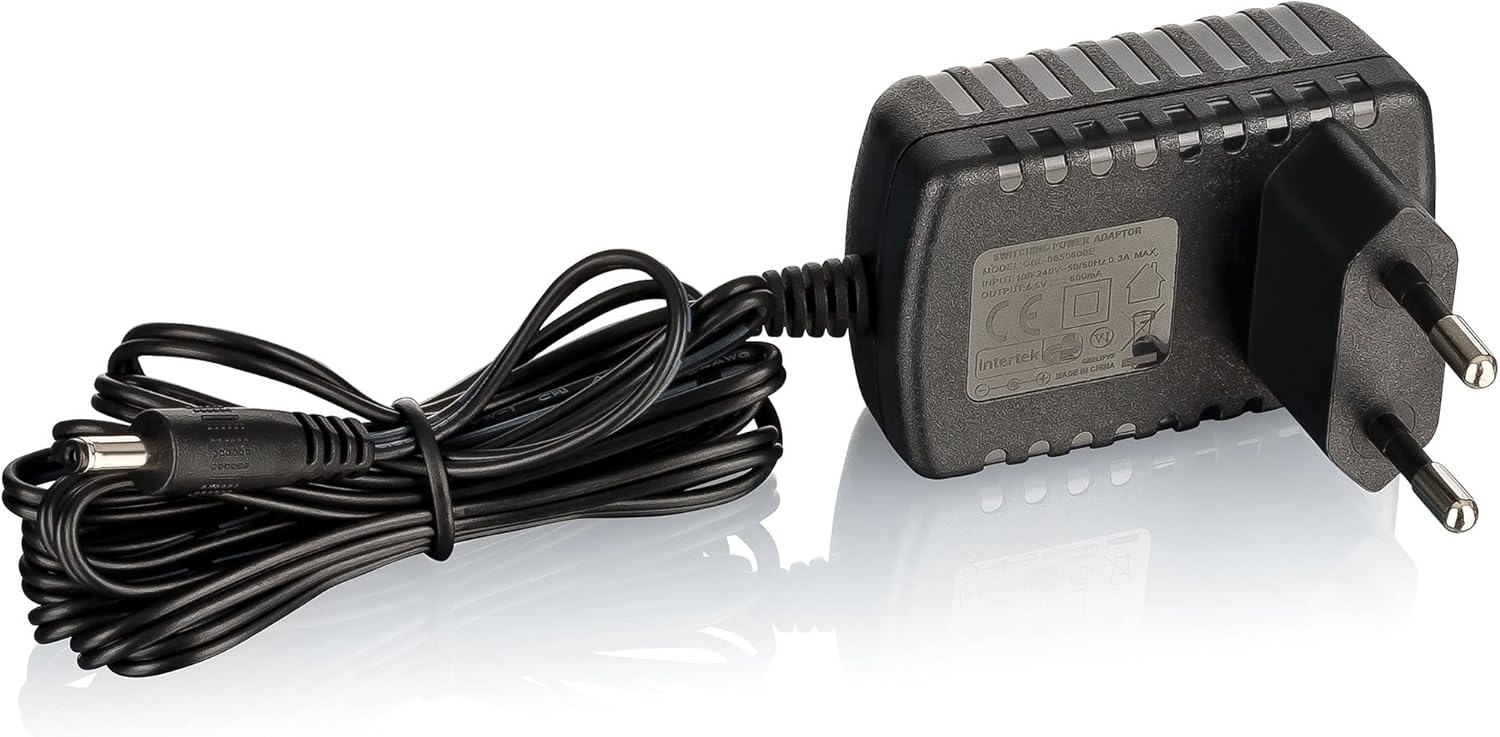

Image: The AC/DC power adapter with its cable and plug.

5.2 Enstalasyon batri backup

The CLR-2615 uses a CR-2025 button cell battery (not always included) for backup power. This battery preserves time and alarm settings during a power outage.

1. Locate the battery compartment on the bottom or rear of the unit.
2. Louvri kouvèti lòj batri a.
3. Insert one CR-2025 battery, ensuring the correct polarity (+/-).
4. Fèmen kouvèti lòj batri a byen.

5.3 FM Antèn

Extend the wire antenna located at the rear of the unit for optimal FM radio reception. Adjust its position for the best signal quality.

6. Operasyon Enstriksyon

6.1 Mete revèy la

1. Nan mòd sibstiti, peze epi kenbe la TAN SET button (if available, otherwise refer to specific button combination in your unit's quick start guide, often a combination of 'M' and '+/-').
2. Chif lè yo ap flache. Sèvi ak + or - bouton pou ajiste lè a.
3. Peze TAN SET ankò pou konfime lè a. Chif minit yo ap flache.
4. Sèvi ak la + or - bouton pou ajiste minit yo.
5. Peze TAN SET once more to save the time.

6.2 Operasyon radyo

1. Peze a POUVWA bouton pou limen radyo a.
2. Peze a MÒD button (if available) to select FM radio mode.
3. Akor otomatik: Peze epi kenbe la >> or << bouton yo pou chèche otomatikman pwochen estasyon ki disponib la.
4. Manyèl akor: Yon ti tan peze la >> or << buttons to fine-tune the frequency step-by-step.
5. Ajisteman Volim: Sèvi ak la + or - bouton pou ajiste nivo volim la.

Storing and Recalling Presets (20 Stations)

1. Branche estasyon radyo ou vle.
2. Peze epi kenbe la M (Memory) bouton an jiskaske nimewo prereglaj la ap flache sou ekran an.
3. Sèvi ak la >> or << bouton yo pou chwazi nimewo prereglaj ou vle a (1-20).
4. Peze M again to confirm and save the station.
5. Pou raple yon estasyon predefini, peze yon ti tan bouton an M button repeatedly to cycle through the stored stations.

6.3 Alarm Functions (Dual Alarm)

The CLR-2615 features two independent alarms (Alarm 1 and Alarm 2).

Mete yon alam

1. Nan mòd sibstiti, peze epi kenbe la ALAM 1 or ALAM 2 bouton.
2. Chif lè alam lan ap flache. Sèvi ak + or - bouton yo pou mete lè alam ou vle a.
3. Peze a ALAM Peze bouton an ankò pou konfime lè a. Chif minit yo ap flache.
4. Sèvi ak la + or - bouton yo pou mete minit alam ou vle yo.
5. Peze a ALAM button again to select the alarm source (Radio or BEEP). Use + or - yo chwazi.
6. Peze a ALAM button once more to save the alarm setting.

Activating/Deactivating Alarms

Yon ti tan peze la ALAM 1 or ALAM 2 button to toggle the respective alarm on or off. An alarm icon will appear/disappear on the display.

Fonksyon Snooze

Lè yon alam sonnen, peze bouton an SNOOZE/DOMÒM bouton an pou fèmen alam lan tanporèman pou apeprè 9 minit. Alam lan ap sonnen ankò apre peryòd sa a.

Fonksyon dòmi

When the radio is playing, press the SNOOZE/DOMÒM button repeatedly to set a sleep timer (e.g., 90, 60, 30, 15 minutes, or OFF). The radio will automatically turn off after the selected time.

7. Antretyen

7.1 Netwayaj

Wipe the unit with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the surface.

7.2 Ranplasman batri

If the clock or alarm settings are lost during a power outage, the CR-2025 backup battery may need replacement. Follow the instructions in section 5.2 to replace the battery.

NAN. Depanaj

9. Espesifikasyon

Image: Detailed specifications table for the Roadstar CLR-2615.

10. Garanti ak sipò

Roadstar products are designed and manufactured to the highest quality standards. For warranty information and customer support, please refer to the warranty card included with your product or visit the official Roadstar websit la. Kenbe prèv acha ou a pou nenpòt reklamasyon garanti.
