Salton Single Stainless Steel Infrared Portable Electric Cooktop

Entwodiksyon

Thank you for choosing the Salton Single Stainless Steel Infrared Portable Electric Cooktop, Model HP1502. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read all instructions carefully before first use and retain this manual for future reference.

Enfòmasyon enpòtan sou sekirite

Lè w ap itilize aparèy elektrik, yo ta dwe toujou swiv prekosyon sekirite debaz yo pou diminye risk pou dife, chòk elektrik ak blesi moun, tankou sa ki annapre yo:

• Read all instructions before operating the cooktop.
• Pa manyen sifas cho. Sèvi ak manch oswa bouton.
• Pou pwoteje kont danje elektrik, pa plonje kòd la, ploge yo, oswa aparèy la nan dlo oswa lòt likid.
• Sipèvizyon sere se nesesè lè nenpòt aparèy itilize pa oswa toupre timoun yo.
• Debranche soti nan priz lè yo pa itilize ak anvan netwaye. Kite refwadi anvan ou mete oswa retire pati yo, epi anvan ou netwaye aparèy la.
• Pa opere nenpòt aparèy ki gen yon kòd oswa ploge ki domaje, oswa apre aparèy la fonksyone mal oswa li te domaje nan nenpòt fason.
• Sèvi ak atachman akseswar ki pa rekòmande pa manifakti aparèy la ka lakòz blesi.
• Pa sèvi ak deyò.
• Pa kite kòd pandye sou kwen tab oswa kontwa, oswa manyen sifas cho.
• Pa mete sou oswa toupre yon gaz cho oswa recho elektrik, oswa nan yon fou chofe.
• Ou dwe pran anpil prekosyon lè w ap deplase yon aparèy ki gen lwil cho oswa lòt likid cho.
• Toujou branche ploge a nan aparèy la an premye, answit branche kòd la nan priz miray la. Pou dekonekte li, vire nenpòt kontwòl sou 'OFF', answit retire ploge a nan priz miray la.
• Pa sèvi ak aparèy pou lòt itilizasyon kay la.
• The entire unit, including the stainless steel housing, can become hot during and after use. Exercise caution.

Pwodwi souview

The Salton HP1502 is a single infrared portable electric cooktop designed for efficient and versatile cooking. Its compact size and durable stainless steel construction make it suitable for various settings.

Figure 1: Salton Single Infrared Portable Electric Cooktop, front view, montreasing the stainless steel finish, single heating zone, and control knob.

Figi 2: Side view of the Salton Single Infrared Portable Electric Cooktop, highlighting its compact design.

Eleman:

• Infrared Heating Zone: The primary cooking surface.
• Bouton kontwòl: Used to turn the unit on/off and adjust temperature.
• Limyè endikatè pouvwa: Illuminates when the unit is powered on and heating.
• Lojman asye pur: Provides durability and a sleek appearance.

Enstalasyon

1. Debake: Carefully remove the cooktop from its packaging. Retain packaging for storage or in case of return.
2. Plasman: Place the cooktop on a stable, level, and heat-resistant surface. Ensure there is adequate clearance around the unit for proper ventilation. Do not place it directly against a wall or under cabinets that may be damaged by heat.
3. Koneksyon pouvwa: Plug the power cord into a standard 120V AC electrical outlet. Ensure the outlet is easily accessible.
4. Premye itilizasyon: Before first use, wipe the heating surface with a damp cloth. It is normal for a slight odor or smoke to occur during the first few minutes of operation as manufacturing residues burn off. This is temporary and harmless.

Enstriksyon Operasyon

The Salton Infrared Portable Electric Cooktop offers efficient and precise heating for various cooking needs.

Figure 3: The cooktop in operation with a pot, demonstrating its functionality.

1. Limen ak Off:

To turn the cooktop on, rotate the control knob clockwise from the '0' (OFF) position to your desired heat setting. The power indicator light will illuminate, signaling that the unit is active. To turn off, rotate the control knob counter-clockwise back to the '0' position. The indicator light will turn off.

2. Kontwòl Tanperati:

The control knob allows for precise temperature adjustments, ranging from '0' (minimum heat) to 'MAX' (maximum heat). Start with a lower setting and gradually increase as needed for your cooking requirements. The infrared technology ensures quick response to temperature changes.

3. Cookware Compatibility:

This infrared cooktop is compatible with all types of cookware, including glass, ceramic, stainless steel, cast iron, and aluminum. Ensure the base of your cookware is flat and covers the heating zone for optimal heat transfer.

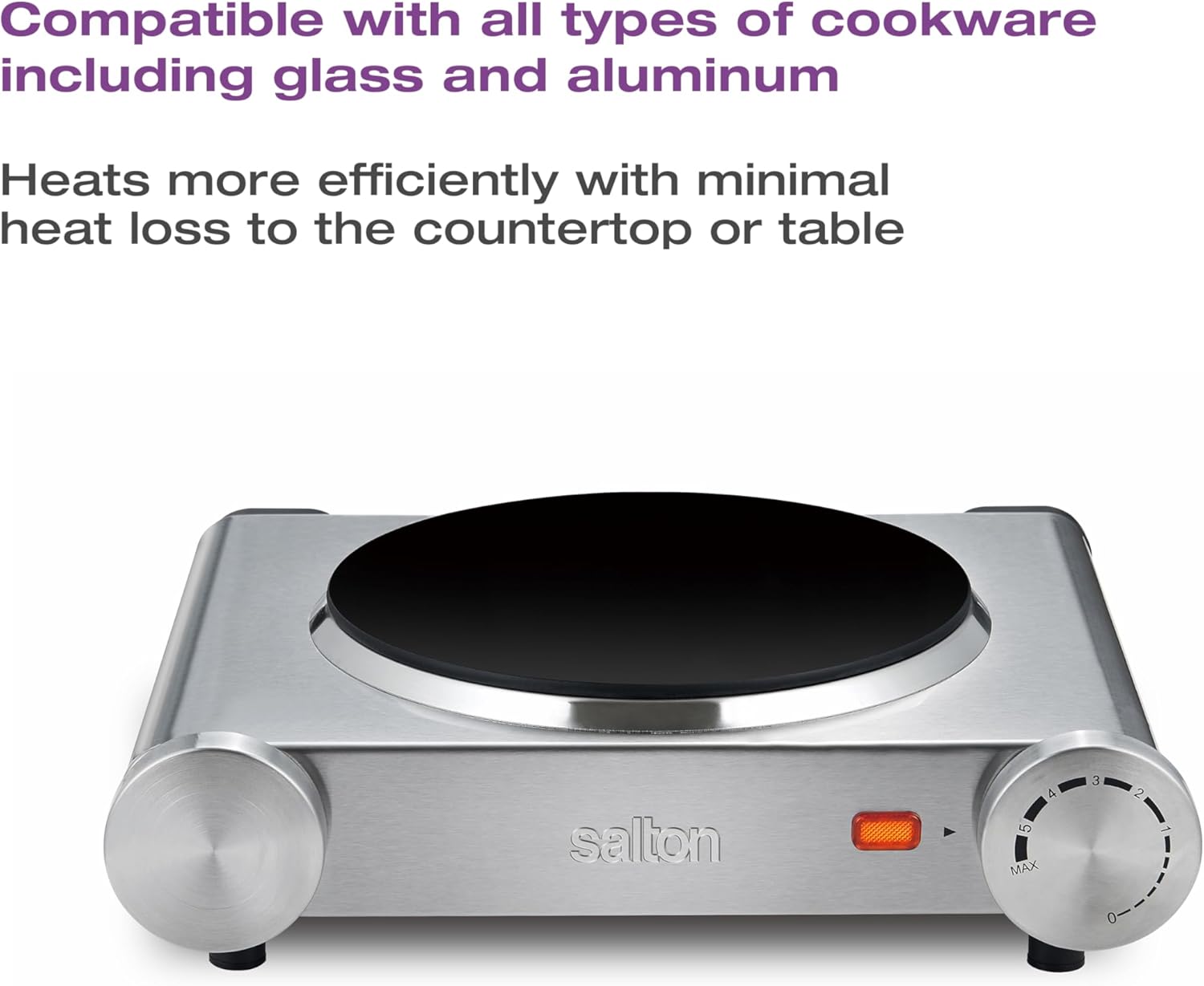

Figure 4: The cooktop highlighting its compatibility with all types of cookware, including glass and aluminum, and its efficient heating with minimal heat loss.

4. Pèfòmans chofaj:

The infrared heating element heats up and cools down faster than conventional cooking ranges, providing efficient and responsive cooking. It offers precise temperature control for consistent results.

Figure 5: Visual representation of the cooktop's key features: 1200 watts for faster heat-up, precise temperature control, and ease of cleaning.

Antretyen ak netwayaj

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your Salton cooktop.

1. Toujou Dekonekte: Before cleaning, ensure the cooktop is unplugged from the power outlet and has completely cooled down.
2. Netwaye sifas la: Wipe the glass heating surface and stainless steel housing with a soft, damp cloth. For stubborn stains, a mild non-abrasive cleaner can be used. Avoid using abrasive pads, scouring powders, or harsh chemicals, as these can scratch or damage the surface.
3. Devèsman: Clean up spills immediately once the unit has cooled to prevent them from baking onto the surface.
4. Depo: When not in use, store the cooktop in a dry place.

Depanaj

If you encounter any issues with your cooktop, refer to the following common problems and solutions:

• Cooktop does not heat:
  • Asire w ke kòd kouran an byen branche nan yon priz elektrik ki fonksyone.
  • Check that the control knob is turned to a heat setting above '0'.
• Heating is slow or uneven:
  • Ensure the cookware base is flat and makes full contact with the heating surface.
  • Verify that the control knob is set to an appropriate temperature for your cooking needs.
• Unit becomes very hot during use:
  • It is normal for the entire stainless steel housing to become hot during operation. Always use caution and avoid touching hot surfaces.
  • Asire w ke gen ase vantilasyon toutotou inite a.

If the problem persists after checking these points, please contact Salton customer service for assistance.

Espesifikasyon

Garanti ak sipò

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Salton website. If you have any questions or require assistance with your Salton Single Stainless Steel Infrared Portable Electric Cooktop, please contact Salton customer service.
