Pwodwi souview
The VILTROX MC-C3 is an advanced timer remote control and intervalometer designed for precise camera control. It allows photographers to set delay times, exposure durations, interval times, and the number of shots for various photography techniques, including time-lapse and long exposure.

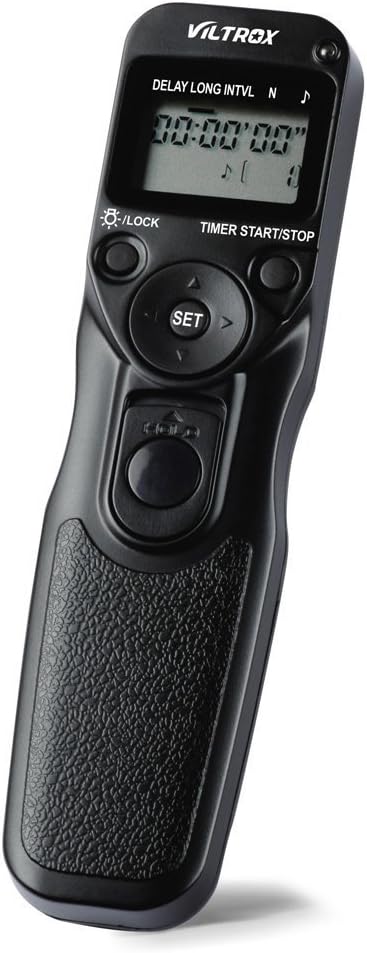

Figi 1: The VILTROX MC-C3 Timer Remote Control, showcasing its ergonomic design and LCD display.
This device is equipped with an LCD screen for easy programming and supports manual release even when a timed sequence is active. Its versatile settings make it an essential tool for professional and enthusiast photographers alike.
Kontni pake
Lè w ap ouvri pake a, asire w ke tout bagay sa yo la:
- 1 x VILTROX MC-C3 Remote Shutter Controller
- 1 x Connection Cable (C3 type for Canon cameras)
- 1 x Manyèl Itilizatè (Angle ak Chinwa)
Gid Enstalasyon
1. Enstalasyon batri
The MC-C3 requires two AAA batteries (not included) for operation.
- Jwenn konpatiman batri a sou dèyè telekòmand lan.
- Glise kouvèti batri a anba pou ouvri li.
- Mete de pil AAA, asire w polarite a kòrèk (+/-).
- Close the battery cover by sliding it back into place until it clicks.
Figi 2: Dèyè view of the MC-C3 showing the battery compartment with the cover removed, ready for AAA battery insertion.
2. Konekte ak Kamera
The MC-C3 connects to your camera via the provided C3 connection cable.
- Ensure your camera is turned off before connecting the cable.
- Plug one end of the C3 connection cable into the remote port on your camera.
- Plug the other end of the cable into the port on the VILTROX MC-C3 remote controller.
- Turn on your camera. The remote is now ready for use.

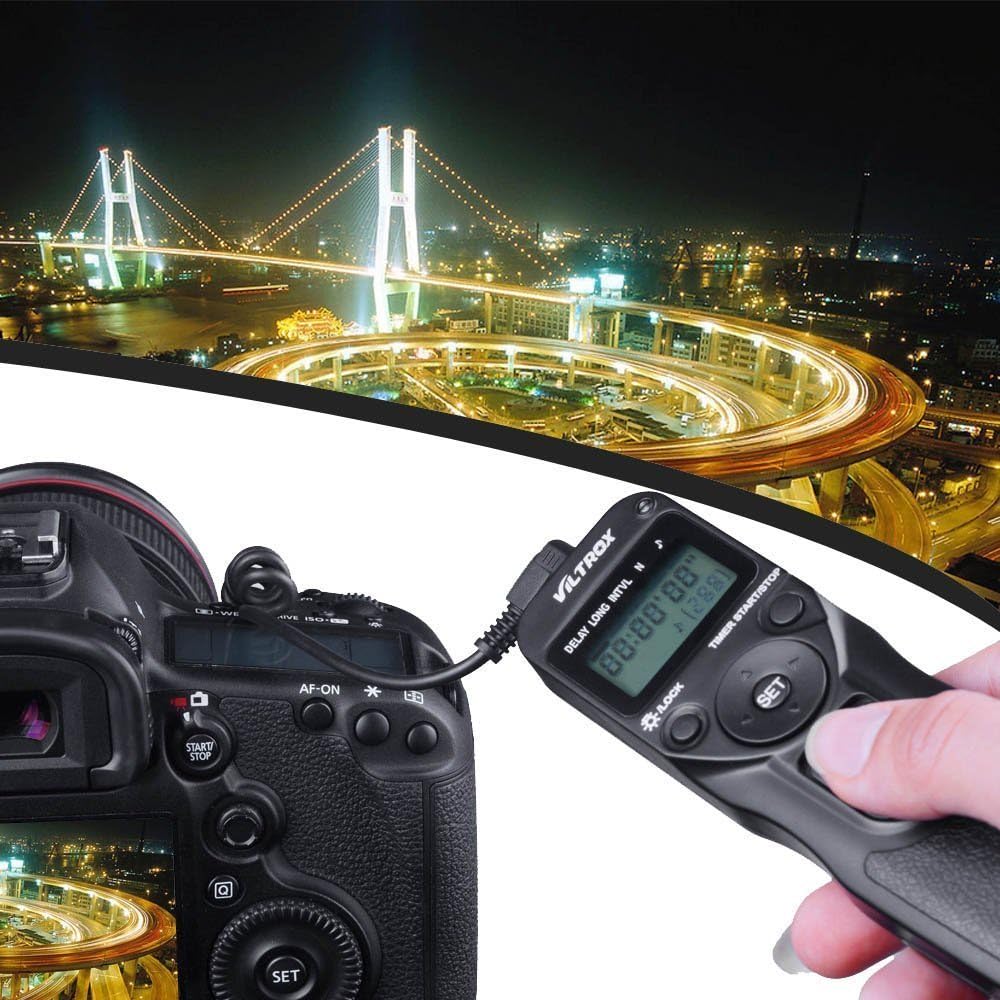

Figi 3: The VILTROX MC-C3 connected to a Canon DSLR camera, illustrating the cable connection for remote operation.
Modèl Kamera Canon konpatib: EOS-5Ds, EOS-7D MARK II, EOS-1D X, EOS-1Ds Mark III, EOS-1Ds Mark II, EOS-1Ds, EOS-1D Mark IV, EOS-1D Mark III, EOS-1D Mark II N, EOS-1D Mark II, EOS-1D, EOS D2000, EOS 5D Mark III, EOS 5D Mark II, EOS 5D, EOS 6D, EOS 7D, EOS 50D, EOS 40D, EOS 30D, EOS 20D, EOS 10D, EOS D60/30, EOS-1v HS, EOS-1v, EOS-3.
Enstriksyon Operasyon
The MC-C3 features an intuitive interface with an LCD screen and control buttons for setting various parameters.
Figi 4: Close-up of the VILTROX MC-C3's LCD display and control buttons, showing the interface for setting timer functions.
Fonksyon kle:
- DELAY (Self Timer): Sets the delay before the first shot is taken. Adjustable from 0 seconds to 99 hours, 59 minutes, 59 seconds in 1-second increments.
- LONG (Exposure Timer): Sets the duration of the exposure. Ideal for bulb mode or long exposures. Adjustable from 0 seconds to 99 hours, 59 minutes, 59 seconds in 1-second increments.
- INTVL (Entèval Kontwòl): Sets the time between consecutive shots. Adjustable from 1 second to 99 hours, 59 minutes, 59 seconds in 1-second increments.
- N (Number of Shots): Sets the total number of shots to be taken. Adjustable from 1 to 399 shots, or unlimited (indicated by "--").
- Bouton DEMARAJ/ARETE MINITÈ: Initiates or halts the programmed timer sequence.
- Bouton Deklancheman: Functions as a manual shutter release. Press halfway for autofocus, fully press to take a single shot. This can be used even when a timer sequence is running.
- SET bouton: Confirms selections and enters programming mode for parameters.
- Bouton direksyon (Anwo/Anba/Agoch/Dwat): Navigate through settings and adjust values.
- LIGHT/LOCK Button: Toggles the LCD backlight and locks/unlocks the buttons to prevent accidental changes.
Programming a Sequence:
- Peze a SET button to enter programming mode. The first parameter (DELAY) will blink.
- Sèvi ak la Leve/Desann buttons to adjust the value for the blinking parameter.
- Sèvi ak la Goch/Dwat buttons to move between hours, minutes, and seconds, or to select the next parameter (LONG, INTVL, N).
- Repete etap 2 ak 3 pou tout paramèt ou vle yo.
- Yon fwa tout paramèt yo konfigire, peze SET ankò pou sòti nan mòd pwogramasyon an.
- Peze a KÒMANSE/ARETE MINITÈ button to begin the programmed sequence. The LCD will display the remaining time and shot count.
- To stop the sequence at any time, press the KÒMANSE/ARETE MINITÈ bouton ankò.
Figi 5: A hand demonstrating the comfortable grip and accessibility of the main shutter release button on the VILTROX MC-C3.
Antretyen
- Netwayaj: Use a soft, dry cloth to clean the exterior of the remote controller. Do not use liquid cleaners or solvents.
- Depo: When not in use for extended periods, remove the AAA batteries to prevent leakage and potential damage to the device. Store in a cool, dry place away from direct sunlight.
- Swen kab: Avoid bending or kinking the connection cable excessively. Store it neatly to prevent damage.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Aparèy pa limen. | Pil yo mouri oswa yo mal enstale. | Tcheke polarite pil yo. Ranplase yo ak nouvo pil AAA. |
| Camera does not respond to remote. | Cable not properly connected; camera not in correct mode; incompatible camera model. | Ensure cable is securely connected to both remote and camera. Verify camera is on and in a shooting mode (e.g., P, Av, Tv, M, Bulb). Confirm your camera model is listed in the compatible models. |
| Timer sequence does not start. | "TIMER START/STOP" button not pressed; settings not confirmed. | After setting parameters, press the SET button to exit programming mode, then press KÒMANSE/ARETE MINITÈ. |
| LCD backlight not working. | Backlight feature is off; low battery. | Peze a LIGHT/LOCK button to toggle the backlight. Replace batteries if low. |
Espesifikasyon
| Paramèt | Valè |
|---|---|
| Time Delay (DELAY) | 0s to 99hrs 59min 59s (1-second increments) |
| Interval Timer (INTVL) | 1s to 99hrs 59min 59s (1-second increments) |
| Exposure Timer (LONG) | 0s to 99hrs 59min 59s (1-second increments) |
| Number of Shots (N) | 1 to 399 times, or unlimited ("--") |
| Sous pouvwa | 2 x AAA pil (pa enkli) |
| Tanperati Fonksyònman | -20°C a +50°C (-4°F a +122°F) |
| Dimansyon atik (L x W x H) | XNX x 15.5 x 4 cm (2 x 6.1 x 1.6 nan) |
| Pwa atik | 64g (2.3oz) |
| Kalite kab koneksyon | C3 (for compatible Canon cameras) |
Enfòmasyon sou Garanti
VILTROX offers a replacement warranty for non-human damage within the first 6 months of purchase. Please retain your proof of purchase for warranty claims.
For further details or to initiate a warranty claim, please refer to the contact information provided with your purchase or visit the official VILTROX websit.
Sipò
For technical assistance, product inquiries, or support, please visit the official VILTROX brand store or contact their customer service through the platform where the product was purchased.
You can find more information and potentially updated resources on the VILTROX Brand Store on Amazon.
