1. Entwodiksyon
The Alpine IVA-W520E is a full-featured 2DIN DVD player solution designed for in-car entertainment and media. It integrates advanced video and audio technologies, including a 7-inch LED touchscreen and a Burr-Brown 24-bit DAC, to deliver high-quality sound and clear images. This manual provides essential information for the proper installation, operation, and maintenance of your IVA-W520E unit.
2. Enfòmasyon sou Sekirite
Please read all safety instructions carefully before installing or operating the unit. Failure to follow these instructions may result in injury or damage to the unit or vehicle.
- Enstalasyon pwofesyonèl rekòmande: Due to the complexity of car audio-visual systems, professional installation is highly recommended to ensure proper wiring and functionality.
- Sous pouvwa: Konekte aparèy la sèlman ak yon ekipman pou kouran 12V DC ak tè negatif.
- Evite distraksyon: Do not operate the unit's controls or view video content while driving, as this can lead to accidents. Always pull over to a safe location before making adjustments.
- Vantilasyon: Asire w ke gen ase vantilasyon toutotou aparèy la pou anpeche l chofe twòp. Pa bloke ouvèti vantilasyon yo.
- Imidite ak likid: Keep the unit away from moisture and liquids. Do not expose it to rain or water.
- Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye. Evite pwodui netwayaj abrazif oswa solvan.
3. Pake kontni
Verifye ke tout atik yo prezan nan pake a anvan ou kontinye ak enstalasyon an:
- Alpine IVA-W520E Head Unit
- Ekipman pouvwa/oratè
- Materyèl pou monte (vis, sipò)
- Koupe bag
- Manyèl Itilizatè (dokiman sa a)
- Enfòmasyon sou Garanti
4. Enstalasyon ak Enstalasyon
4.1. Gid enstalasyon yo
Bon enstalasyon enpòtan anpil pou pèfòmans ak sekirite optimal. Li rekòmande anpil pou yon pwofesyonèl kalifye enstale aparèy la.
- Dekonekte batri: Anvan ou kòmanse nenpòt travay elektrik, dekonekte tèminal negatif batri machin nan pou evite kous kout.
- Montaj: Securely mount the unit in the vehicle's double-DIN opening using the provided mounting brackets and screws. Ensure it is stable and does not obstruct any vehicle controls.
- Fil elektrik: Connect the power harness, speaker wires, and other input/output cables according to the wiring diagram provided in the separate installation guide. Pay close attention to ground connections.
- Antenna and External Devices: Connect the radio antenna and any external devices such as a reverse camera or external amplifikatè.
4.2. Inisyal Enstalasyon
After installation, reconnect the battery and power on the unit for the first time.
- Seleksyon Lang: Swiv enstriksyon yo sou ekran an pou chwazi lang ou prefere a.
- Lè ak Dat: Set the correct time and date for accurate display.
- Anviwònman odyo: Adjust basic audio settings such as volume, balance, and fader.

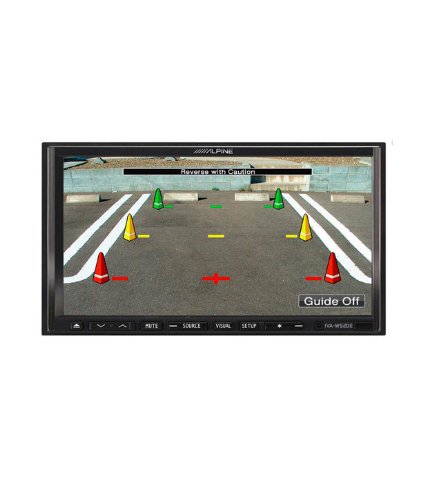

Figi 4.1: Egzample of the IVA-W520E displaying a reverse camera feed, showing parking guidelines. This feature aids in safe vehicle maneuvering.
5. Opere Inite a
5.1. Touchscreen and Button Controls
The IVA-W520E features a responsive 7-inch LED touchscreen for primary control, supplemented by physical buttons for quick access to common functions.
- Ekran tactile: Navigate menus, select sources, and control playback by touching the screen.
- Kontwòl Volim: Use the dedicated volume buttons or on-screen controls to adjust audio levels.
- Sous bouton: Press to cycle through available audio/video sources (Radio, DVD, USB, iPod, AUX, Bluetooth).
- Bouton bèbè: Fèmen son odyo a silans tanporèman.
- Bouton konfigirasyon: Aksè nan meni paramèt sistèm lan.
5.2. Odyo lèktur
The unit supports various audio formats and sources, enhanced by its Burr-Brown 24-bit DAC for superior sound quality.
- USB odyo: Konekte yon aparèy USB ki gen odyo files. The unit will display track information and allow navigation through folders.
- iPod/iPhone Connectivity: Connect your iPod or iPhone for direct audio playback and control.
- Lektur DVD/CD: Insert a DVD or CD into the disc slot for audio or video playback.
- Sentonizè radyo: Jwenn aksè a estasyon radyo AM/FM yo.

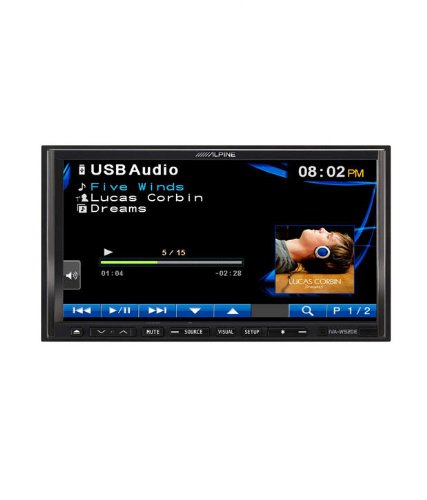

Figure 5.1: The IVA-W520E displaying the USB Audio interface, showing current track, artist, and playback controls. This allows for easy navigation of digital music files.
Figure 5.2: The IVA-W520E displaying the iPod interface, showing a list of songs and album art. This demonstrates seamless integration with Apple devices for music playback.
5.3. Lektur videyo
The 7-inch LED screen provides enhanced image quality with higher resolution, better contrast, and improved color reproduction compared to standard LCD screens.
- DVD Video: Insert a video DVD for playback. Ensure the parking brake safety wire is correctly connected for video to display while the vehicle is stationary.
- External Video Input: The unit supports external video sources, such as a reverse camera or other video devices.
5.4. Bluetooth Koneksyon
The IVA-W520E is upgradable for Bluetooth hands-free system functionality, allowing for safe and convenient communication while driving.
- Peyaj: Refer to the separate Bluetooth module manual (if applicable) for pairing instructions with your mobile phone.
- Apèl men lib: Make and receive calls directly through the unit.
- Difizyon odyo: Stream audio from your Bluetooth-enabled device.
5.5. Navigation System (Upgradable)
The unit is designed to be upgradable with a navigation system. Consult your Alpine dealer for compatible navigation modules and installation.
6. Antretyen
Regular maintenance helps ensure the longevity and optimal performance of your Alpine IVA-W520E.
- Netwayaj ekran: Gently wipe the touchscreen with a soft, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water or a screen-specific cleaner. Do not spray cleaner directly onto the screen.
- Plas disk: Keep the disc slot free of dust and debris. Avoid inserting bent, scratched, or irregular discs.
- Netwayaj jeneral: Use a soft, dry cloth to wipe the unit's exterior. Avoid harsh chemicals or abrasive materials.
NAN. Depanaj
If you encounter issues with your IVA-W520E, refer to the following common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen pouvwa | Fuzib boule, fil elektrik ki pa kòrèk, koneksyon ki lach. | Check vehicle fuses and unit's fuse. Verify power and ground wiring connections. Ensure battery is connected. |
| Pa gen Son | Volume too low, mute activated, speaker wiring issue, incorrect source selected. | Increase volume. Deactivate mute. Check speaker connections. Select correct audio source. |
| Disk Erè | Disk sal, grate, oswa enkonpatib. | Clean the disc. Try a different, known-good disc. Ensure disc format is supported. |
| Video Not Displaying (while driving) | Parking brake safety wire not connected or incorrectly connected. | This is a safety feature. Video playback is disabled while the vehicle is in motion. Ensure the parking brake wire is correctly connected to the vehicle's parking brake circuit. |
| Pwoblèm Kouplè Bluetooth | Bluetooth module not connected, phone not in pairing mode, interference. | Ensure optional Bluetooth module is correctly installed. Put phone in pairing mode. Move closer to the unit. |
If the problem persists after trying these solutions, please contact your authorized Alpine dealer or customer support.
8. Espesifikasyon
Key technical specifications for the Alpine IVA-W520E:
- Modèl: IVA-W520E
- Gwosè ekspozisyon: 7 pous (18 cm)
- Kalite ekspozisyon: LED LCD Touchscreen
- Rezolisyon: 480 x 272 piksèl
- Audio DAC: Burr-Brown 24-bit
- Aparèy konpatib: Smartphone (via USB/iPod, Bluetooth upgradable)
- Karakteristik espesyal: Touchscreen, Bluetooth (upgradable)
- Audio Sòti Mode: Oratè
- Manifakti: Alpine
- Premye disponib: 20 out 2015
9. Garanti ak sipò
For detailed warranty information, please refer to the warranty card included with your product package or visit the official Alpine websit la. Kenbe resi acha ou kòm prèv acha.
For technical support, service, or inquiries about compatible accessories and upgrades (such as navigation modules or Bluetooth kits), please contact your authorized Alpine dealer or visit the Alpine customer support portal online.
Ofisyèl Alpin Websit: www.alpine.com
