Entwodiksyon

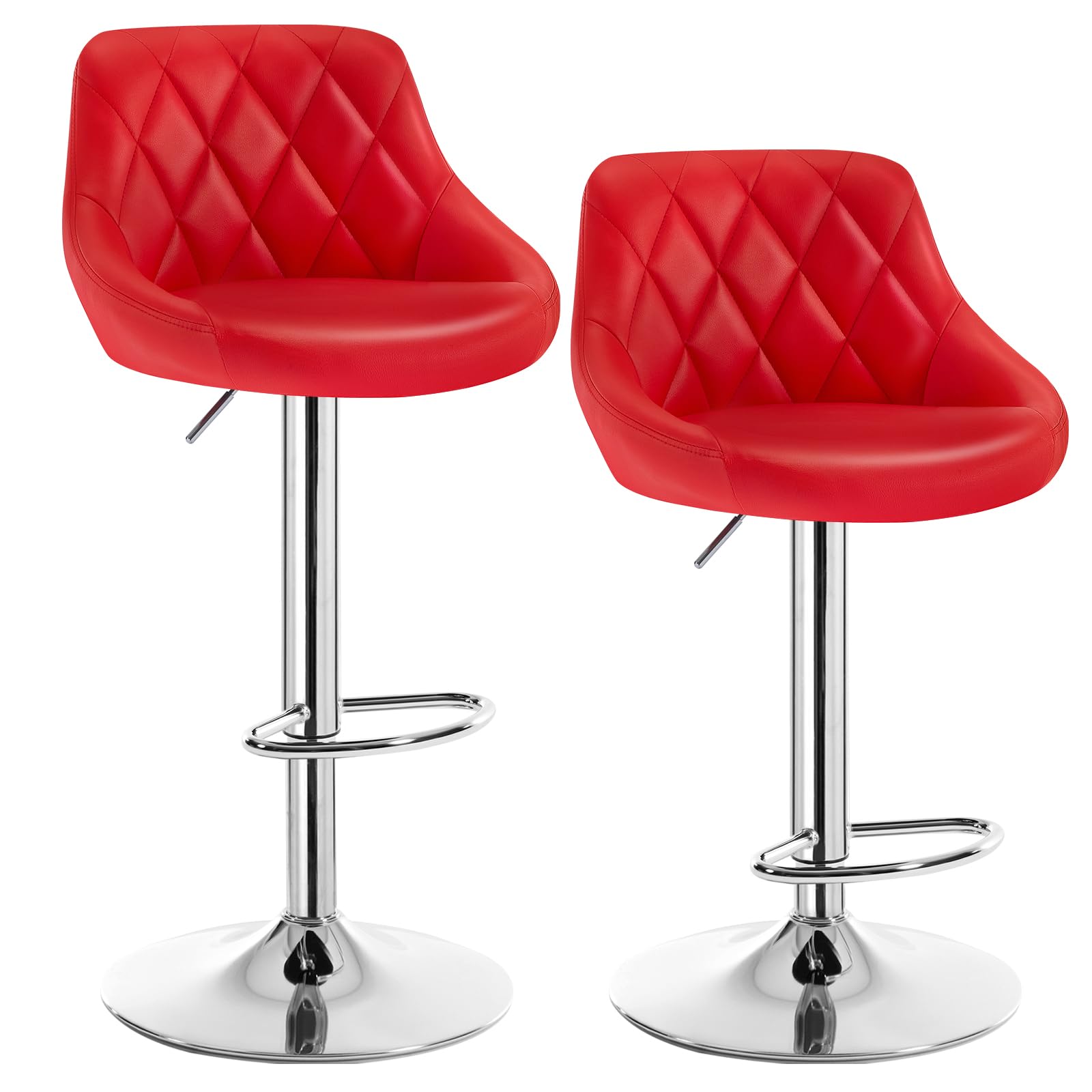

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your WOLTU BH23rt-2 adjustable bar stools. Please read these instructions carefully before assembly and use to ensure safe and correct operation.
Enstriksyon Sekirite
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or defective.
- Rasanble tabourè a sou yon sifas mou epi pwòp pou evite reyur.
- Important: Remove the protective cap from the gas lift before installation. Failure to do so will prevent height adjustment.
- Do not stand on the stool. Use it only for seating.
- Pa depase kapasite chaj maksimòm 150 kg (330 lbs).
- Kenbe timoun yo lwen zòn asanblaj la. Ti pyès yo ka reprezante yon danje toufe.
- Regularly check all screws and connections to ensure they are tight. Retighten if necessary.
- Avoid exposing the stool to direct sunlight or extreme temperatures to prevent material damage.
Kontni pake
Tanpri verifye ke tout konpozan ki nan lis anba a yo enkli nan pake ou a. Si gen nenpòt pyès ki manke oswa ki domaje, tanpri kontakte sèvis kliyan.
| Pati | Quantity (per stool) |
|---|---|
| Chèz ak dosye | 1 |
| Silenn asansè gaz | 1 |
| Baz | 1 |
| Bag pou repo pye | 1 |
| Mounting plate (pre-attached to seat) | 1 |
| Vis ak kle Allen | 1 seri |
Imaj: Eksploze view ki montre tout konpozan ki nesesè pou asanblaj la.
Enstriksyon Enstalasyon ak Asanblaj
Follow these steps carefully to assemble your bar stool:
- Prepare baz la: Place the large round base on a flat, stable surface. Ensure the anti-slip rubber ring is correctly positioned on the underside of the base to protect your floor.
- Mete asansè gaz la: Mete silenn asansè gaz la nan twou santral baz la. Remember to remove the protective cap from the top of the gas lift before inserting it.
- Mete sipò pye a an plas: Slide the footrest ring over the gas lift cylinder. Ensure it rests securely on the designated groove or support.
- Mount the Seat: Align the mounting plate (usually pre-attached to the underside of the seat) with the top of the gas lift cylinder. Carefully lower the seat onto the gas lift, ensuring it is firmly seated. You may need to apply slight pressure.
- Fikse Syèj la: If the mounting plate is separate, attach it to the underside of the seat using the provided screws and Allen key. Then, place the assembled seat onto the gas lift.
- Tcheke final la: Once assembled, sit on the stool to ensure all connections are secure and the gas lift functions correctly.
Image: Illustration of the 360° swivel and height adjustment mechanism.
Image: Close-up of the practical footrest and the anti-slip rubber ring on the base.
Enstriksyon Operasyon
- Ajisteman wotè: To raise the seat, lift the lever located under the seat while standing up. To lower the seat, lift the lever while seated. Release the lever at the desired height.
- Fonksyon Swivel: The seat can rotate 360 degrees freely. Simply turn the seat to face your desired direction.
Antretyen
- Netwayaj: For the faux leather seat, wipe with a soft, damp cloth. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid abrasive cleaners or harsh chemicals.
- Ankadreman ak baz: Clean the metal frame and base with a soft, dry cloth. If necessary, use a slightly damp twal epi sèk byen.
- Tèks regilye: Periodically check all screws and bolts to ensure they are tight. Retighten as needed to maintain stability and safety.
- Evite domaj: Do not drag the stool across the floor; lift it to move to prevent damage to the base and floor.
Image: Close-up of the high-quality faux leather seat with resilience sponge filling.
Image: Illustration highlighting the ergonomic design of the backrest.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Syèj la pa ajiste wotè. | Protective cap still on gas lift. | Remove the protective cap from the top of the gas lift cylinder. |
| Poupou a ap tranble. | Screws are loose; gas lift not fully inserted. | Check and tighten all screws. Ensure the gas lift is fully inserted into the base and seat mechanism. |
| Difikilte pou vire. | Mekanis bloke oswa domaje. | Tcheke pou wè si gen nenpòt obstak. Si pwoblèm nan pèsiste, kontakte sèvis kliyan. |
| Noise during use. | Loose connections; friction. | Tighten all screws. Ensure the anti-slip ring is properly seated on the base. |
Espesifikasyon
- Nimewo Modèl: BH23rt-2
- Materyèl: Faux Leather (seat), Metal (frame and base)
- Koulè: Red (for this variant)
- Wotè total: Approx. 83-104 cm (32.7-40.9 inches)
- Wotè chèz: Approx. 61-82 cm (24-32.3 inches)
- Dimansyon chèz: Approx. 47 cm (Width) x 38 cm (Depth) (18.5 x 15 inches)
- Dyamèt baz: Apeprè. 39 cm (15.4 pous)
- Kapasite maksimòm chaj: 150 kg (330 liv)
- Weight per Stool: Apeprè. 6.9 kg (15.2 liv)
Image: Detailed diagram showing the dimensions of the bar stool.
Garanti ak sipò
WOLTU products are designed for quality and durability. For any questions, missing parts, or issues not covered in this manual, please contact WOLTU customer support through your purchase platform or the official WOLTU website. Please have your model number (BH23rt-2) and purchase details ready when contacting support.
