Intel NUC Kit NUC5PPYH User Manual

1. Entwodiksyon

The Intel NUC Kit NUC5PPYH is a compact, barebones mini PC designed for various computing needs. This kit provides the foundation for a complete system, allowing users to customize memory and storage components. Its small form factor integrates a quad-core Intel Pentium processor, offering performance suitable for everyday tasks, entertainment, and productivity in a space-saving design.

2. Pake kontni

Verifye ke tout atik yo prezan nan pake a anvan ou kontinye ak enstalasyon an.

• Intel NUC Kit NUC5PPYH Chassis
• Power Adapter with regional plugs
• VESA Mounting Bracket with screws
• Integrated Fan and Heat Sink (pre-installed)

3. Pwodwi souview

The NUC5PPYH features a robust set of connectivity options and internal expansion capabilities within its compact chassis. Key features include 802.11ac Wireless, Intel HD Graphics, and support for DDR3L SODIMM memory.

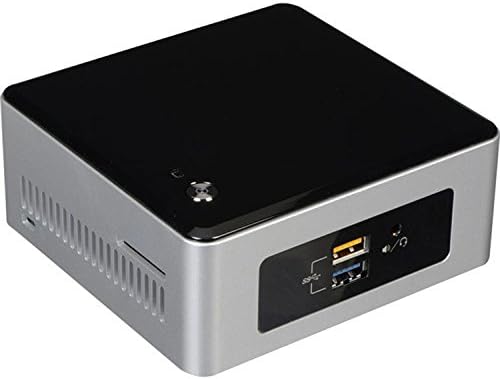

Figure 3.1: Intel NUC Kit NUC5PPYH. This image displays the overall compact design of the NUC unit.

Figure 3.2: Rear Panel Connectivity. Features include HDMI 1.4b, VGA, Gigabit Ethernet, two USB 3.0 ports, and a TOSLINK audio jack.

Figure 3.3: Front Panel Connectivity. Includes two USB 3.0 ports (one with fast charging), a 3.5mm audio jack, and a consumer infrared sensor.

4. Enstalasyon

4.1 Enstale Memwa (RAM)

1. Unscrew the four bottom screws and remove the bottom cover of the NUC chassis.
2. Locate the DDR3L SODIMM slots on the motherboard.
3. Align the notch on the SODIMM module with the notch in the slot.
4. Insert the SODIMM module at a 45-degree angle and push down until the clips on both sides snap into place.
5. Repeat for the second SODIMM module if installing two.

4.2 Installing a 2.5-inch SSD or HDD

1. With the bottom cover removed, locate the 2.5-inch drive bay and SATA connector.
2. Gently slide the 2.5-inch SSD or HDD into the drive bay, ensuring it connects securely to the SATA data and power connector.
3. Secure the drive with the provided screws, if applicable, to the drive caddy.

4.3 Reassembling the NUC

1. Carefully replace the bottom cover, aligning it with the chassis.
2. Secure the bottom cover with the four screws removed earlier.

4.4 Initial Power On and Operating System Installation

Connect the power adapter, a display via HDMI or VGA, and a USB keyboard/mouse. Power on the NUC. You will need to install an operating system (OS) such as Windows 10 or a Linux distribution. For Windows 7 installation, specific USB 3.0 drivers may need to be integrated into the installation media due to the NUC's exclusive USB 3.0 ports.

5. Operasyon Enstriksyon

5.1 Limen/Etenyen

• Pouvwa sou: Press the power button located on the top panel of the NUC.
• Pouvwa Off: Sèvi ak fonksyon fèmen sistèm operasyon an. Ou kapab tou peze epi kenbe bouton pouvwa a pandan 4 segonn pou fòse yon fèmen (itilize sèlman lè sa nesesè).

5.2 Konekte periferik

Utilize the available USB 3.0 ports for keyboards, mice, and other USB devices. Connect displays via the HDMI or VGA ports. Audio can be output through HDMI, the 3.5mm audio jack, or the TOSLINK optical audio port.

6. Antretyen

6.1 Netwayaj

Regularly clean the exterior of the NUC with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions to maintain optimal airflow and cooling performance.

6.2 Mizajou Firmwèr ak Chofè

Tcheke sipò ofisyèl Intel la regilyèman. website for the NUC5PPYH model for the latest BIOS firmware and driver updates. Keeping these components updated ensures system stability, performance, and compatibility.

NAN. Depanaj

• Pa gen okenn rezilta ekspozisyon: Ensure the display cable (HDMI or VGA) is securely connected to both the NUC and the monitor. Verify the monitor is set to the correct input source.
• Operating System Installation Issues (Windows 7): The NUC5PPYH features only USB 3.0 ports. Windows 7 installation media may require integrated USB 3.0 drivers to recognize USB peripherals (keyboard/mouse) during setup. Refer to Intel's support resources for specific tools or instructions.
• Pwoblèm koneksyon san fil: Ensure Wi-Fi drivers are installed. If experiencing interference with wireless keyboards/mice, try using a USB extension cable for the wireless dongle to move it away from the NUC chassis.
• Twòp bri fanatik: Ensure the NUC's ventilation openings are clear. Update BIOS firmware, as fan control algorithms are often improved. If the issue persists, contact Intel support.
• Sistèm nan pa limen: Verify the power adapter is correctly connected to both the NUC and a working power outlet. Test with a different power outlet if possible.

8. Espesifikasyon

9. Garanti ak sipò

The Intel NUC Kit NUC5PPYH is covered by Intel's standard warranty. For detailed warranty information, technical support, driver downloads, and troubleshooting resources, please visit the official Intel support websit la. Kenbe prèv acha ou pou reklamasyon garanti.

Sipò sou entènèt: Sipò Intel NUC
