CURT 29427 Manual Hand Crank Boat Trailer Winch User Manual

1. Entwodiksyon

This manual provides comprehensive instructions for the safe and effective use, installation, and maintenance of the CURT 29427 Manual Hand Crank Boat Trailer Winch. Please read this manual thoroughly before operating the winch to ensure proper function and to prevent injury or damage.

The CURT 29427 is a robust hand crank winch designed for various pulling and lifting applications, particularly suited for boat trailers. It features a 1,700 lbs capacity, an 8-inch handle, and a 5.1:1 gear ratio, built with cold-forged steel for durability and reliability.

2. Enfòmasyon sou Sekirite

Always prioritize safety when operating any mechanical equipment. Failure to follow these safety guidelines may result in serious injury or property damage.

• Li Manyèl la: Konprann tout enstriksyon ak avètisman yo anvan ou itilize li.
• Aplikasyon ki kòrèk la: This winch is designed for pulling and lifting applications, such as boat trailers. It is pa designed for vehicle towing or lifting people.
• Limit Kapasite: Do not exceed the rated capacity of 1,700 lbs. Overloading can cause winch failure and injury.
• Montaj sekirite: Ensure the winch is securely mounted to a stable surface capable of withstanding the maximum load.
• Enspekte anvan w itilize: Before each use, inspect the winch, strap/cable (sold separately), and mounting hardware for any signs of wear, damage, or corrosion. Do not use if damaged.
• Kenbe kontwòl: Always maintain a firm grip on the handle during operation. Be aware of the locking lever and its function.
• Kenbe klè: Keep hands, clothing, and body parts clear of moving parts, gears, and the strap/cable during operation.
• Use Appropriate Strap/Cable: Ensure the strap or cable used with the winch is in good condition and rated for the intended load.
• Pwoteksyon korozyon: The winch has a zinc plating for corrosion resistance, but regular inspection and cleaning are recommended, especially after exposure to water.

3. Pake kontni

Lè w ap ouvri pake a, verifye si tout konpozan yo la epi yo pa domaje.

• CURT 29427 Manual Hand Crank Winch (1)

Note: Winch strap or cable is sold separately and is not included with the winch unit.

Image: The packaging box for the CURT 29427 Hand Winch, indicating "High-quality steel construction" and "Capacity: 1,700 lbs."

4. Pwodwi Features

The CURT 29427 Hand Winch is engineered with several key features for reliable performance:

• Montaj versatile: Features a versatile base with slotted holes for easy mounting in a variety of settings, compatible with CURT winch straps.
• Ratcheting Lock: Includes a locking lever for increased safety and control. Designed with strong, broached pinions to prevent gear-to-shaft bonding failures and securely engage the gear.
• Konstriksyon gwo fòs: Built from cold-forged steel for reliable strength, rated for a capacity of 1,700 pounds.
• Manch grip konfòtab: Equipped with an 8-inch long handle and a comfortable plastic grip for easier operation and solid leverage.
• Kowozyon ki reziste: Finished with a durable zinc plating to protect against rust and corrosion, especially suitable for outdoor and marine environments.

Image: Diagram highlighting key features of the CURT 29427 Hand Winch, including the 5.1:1 gear ratio, locking lever, 8-inch crank handle, high-strength cold-forged steel, and base with slotted screw holes for flexible mounting.

5. Espesifikasyon

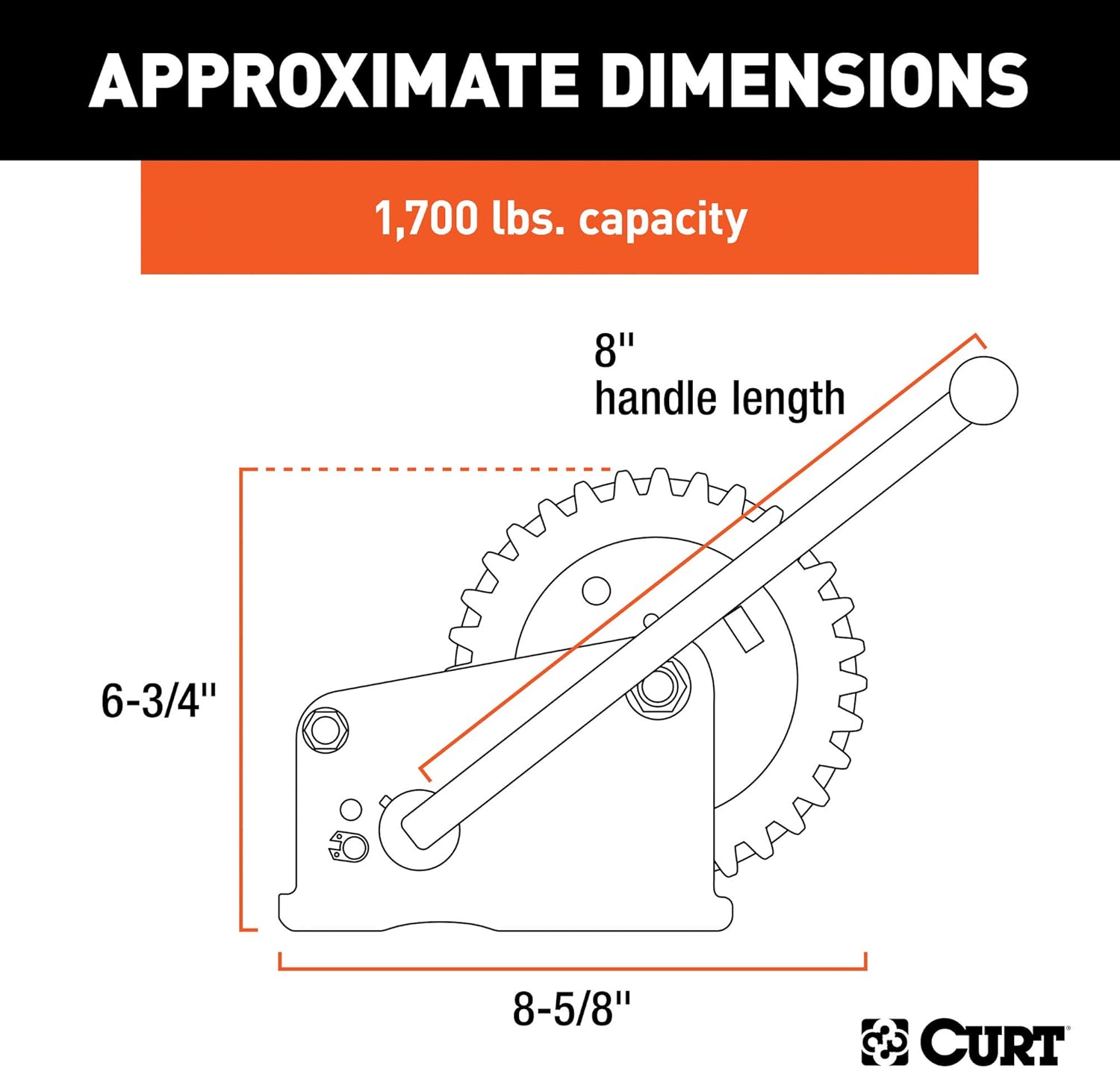

Image: Diagram showing approximate dimensions of the CURT 29427 Hand Winch, including 1,700 lbs. capacity, 8" handle length, 6-3/4" height, and 8-5/8" base length.

6. Enstalasyon ak Enstalasyon

Proper installation is crucial for the safe and effective operation of your CURT hand winch.

6.1 Monte treuil la

1. Chwazi yon kote: Choose a mounting location on your trailer or desired surface that is structurally sound and can support the maximum load capacity of the winch (1,700 lbs). The location should allow for full rotation of the handle and clear path for the strap/cable.
2. Mete treuil la an pozisyon: Place the winch base on the chosen surface. The base features slotted holes for flexible mounting.
3. Make pwen egzèsis: Use the slotted holes on the winch base as a template to mark the drilling points on the mounting surface.
4. Fè twou: Drill appropriate size holes for your mounting hardware (bolts, nuts, washers - not included). Ensure the holes are clean and free of burrs.
5. Fikse treuil la: Attach the winch to the mounting surface using high-strength bolts, lock washers, and nuts. Tighten all fasteners securely. Periodically check the tightness of mounting hardware.

6.2 Attaching Winch Strap/Cable

(Winch strap or cable is sold separately)

1. Prepare Strap/Cable: Ensure your winch strap or cable is in good condition, free from fraying, cuts, or kinks.
2. Feed Through Drum: Locate the attachment point on the winch drum. Feed the end of your strap or cable through the slot or attachment hole on the drum.
3. Tachman an sekirite: Securely fasten the strap or cable to the drum using the provided hardware or by following the strap/cable manufacturer's instructions. Ensure it is tightly wound onto the drum.
4. Wind Evenly: Manually crank the handle to wind the strap or cable onto the drum, ensuring it spools evenly and tightly. Avoid overlapping or loose wraps.

7. Operasyon

Follow these steps for safe and effective operation of your CURT hand winch.

7.1 Winding In (Pulling/Lifting)

1. Engage Locking Lever: Ensure the ratcheting locking lever is engaged in the forward (winding in) position. This prevents the drum from unwinding unintentionally.
2. Atache chaj la: Securely attach the hook of your winch strap/cable to the item you wish to pull or lift. Ensure the attachment point on the load is strong and appropriate.
3. Manch manivèl: Grasp the 8-inch handle firmly and begin to crank clockwise (or as needed for your setup) to wind the strap/cable onto the drum. Apply steady, even pressure.
4. Chaj Siveyans: Continuously monitor the load and the winch for any signs of strain or malfunction. Do not exceed the 1,700 lbs capacity.
5. Maintain Even Spooling: Guide the strap/cable to ensure it spools evenly across the drum. Uneven spooling can damage the strap/cable or the winch.

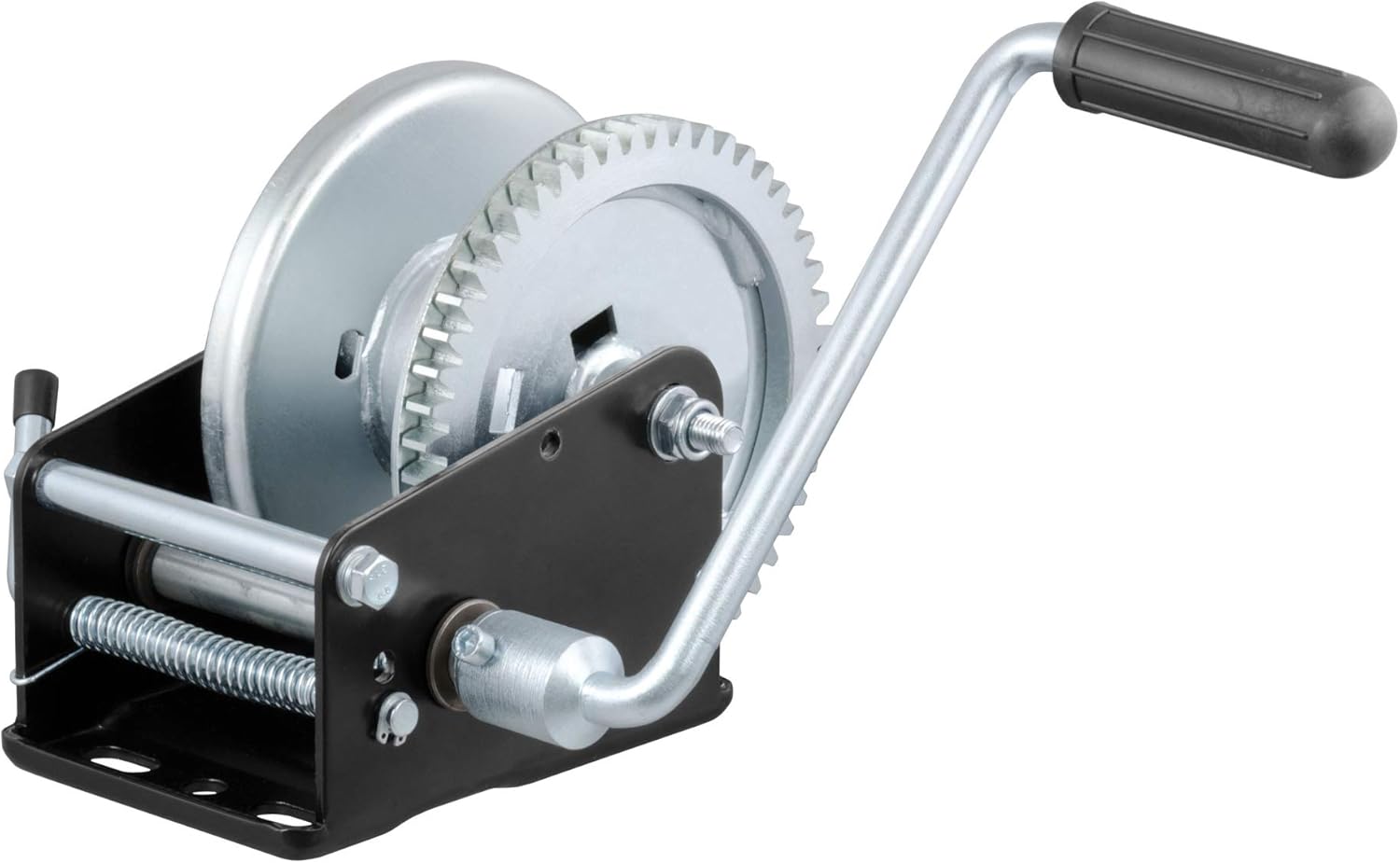

Imaj: Yon klè view of the CURT 29427 Manual Hand Crank Winch, showing the drum, gears, handle, and base, ready for operation.

7.2 Winding Out (Releasing Load)

1. Control Release: To release the strap/cable and lower the load, carefully disengage the locking lever. Some winches may require slight forward cranking to release tension before disengaging.
2. Kenbe kontwòl: Always maintain control of the handle. The load will exert force on the handle as it unwinds. Do not let the handle spin freely.
3. Gradual Release: Release the strap/cable gradually and in a controlled manner to prevent sudden drops or uncontrolled movement of the load.
4. Re-engage Lock: Once the desired amount of strap/cable is released or the load is fully lowered, re-engage the locking lever to secure the drum.

Imaj: Gwo plan view of the CURT 29427 Hand Winch showing the locking lever mechanism and a winch strap. Arrows indicate the direction of strap movement and lever engagement for increased safety.

8. Antretyen

Regular maintenance will extend the life and ensure the safe operation of your CURT hand winch.

• Netwayaj: After each use, especially in marine environments, clean the winch to remove dirt, salt, and debris. Use fresh water and a mild detergent if necessary. Dry thoroughly.
• Lubrifikasyon: Periodically apply a light coat of grease or lubricant to the gears and moving parts to ensure smooth operation and prevent corrosion. Avoid over-lubrication.
• Enspeksyon: Regularly inspect the winch for:
  • Loose or damaged mounting hardware.
  • Wear or damage to gears, pawls, or the drum.
  • Corrosion on any metal parts, despite the zinc plating.
  • Damage to the handle or grip.
  • Condition of the winch strap/cable (if applicable). Replace if frayed, kinked, or damaged.
• Depo: When not in use, store the winch in a clean, dry place to protect it from the elements.

NAN. Depanaj

This section addresses common issues you might encounter with your hand winch.

If you encounter issues not listed here or if solutions do not resolve the problem, contact CURT customer support for assistance.

10. Garanti ak sipò

CURT products are manufactured to high standards and undergo rigorous quality control. For specific warranty information regarding your CURT 29427 Manual Hand Crank Winch, please refer to the warranty documentation included with your purchase or visit the official CURT websit.

For technical support, replacement parts, or further assistance, please contact CURT customer service. Contact information can typically be found on the product packaging or the official CURT websit.
