Minolta Hi-matic AF2-M 35mm Film Camera Instruction Manual

Entwodiksyon

This manual provides essential information for the proper use and care of your Minolta Hi-matic AF2-M 35mm film camera. Please read these instructions carefully before operating the camera to ensure optimal performance and longevity.

Enstalasyon

1. Enstalasyon batri

The Minolta Hi-matic AF2-M requires batteries for operation, which are not included with the camera. Locate the battery compartment, typically on the bottom or side of the camera body. Insert the correct type and number of batteries, ensuring proper polarity (+/-) as indicated inside the compartment. Close the battery compartment securely.

2. Chaje fim nan

To load a 35mm film roll:

1. Open the camera back by sliding the latch, usually located on the side or top of the camera.
2. Mete katouch fim nan nan chanm fim nan sou bò gòch la.
3. Pull the film leader across to the take-up spool on the right side, ensuring it catches onto the spool's teeth.
4. Fèmen dèyè kamera a byen fèm jiskaske li bloke.
5. Advance the film by pressing the shutter button or using the film advance lever (if manual) until the frame counter shows '1'. This ensures the film is properly loaded and ready for the first shot.

Imaj: Dèyè view of the Minolta Hi-matic AF2-M camera, illustrating the film door latch and film rewind switch. This view is crucial for understanding film loading and unloading procedures.

Opere kamera a

1. Powering On / Off

The camera typically powers on automatically when the lens cover is opened or a dedicated power switch is engaged. To power off, close the lens cover or switch off the power.

2. Sistèm otofokus

The Minolta Hi-matic AF2-M features an autofocus system. To focus, gently press the shutter button halfway down. The camera will automatically detect and focus on the subject. A focus confirmation light or sound may indicate successful focus. Once focused, press the shutter button fully to take the picture.

3. Sèvi ak Flash entegre a

This camera includes a built-in flash for low-light conditions. The flash may activate automatically in dim environments or can be manually engaged via a switch, often labeled 'FLASH ON' or similar. Ensure the flash is charged before taking a picture in flash mode. Allow a few seconds for the flash to recycle between shots.

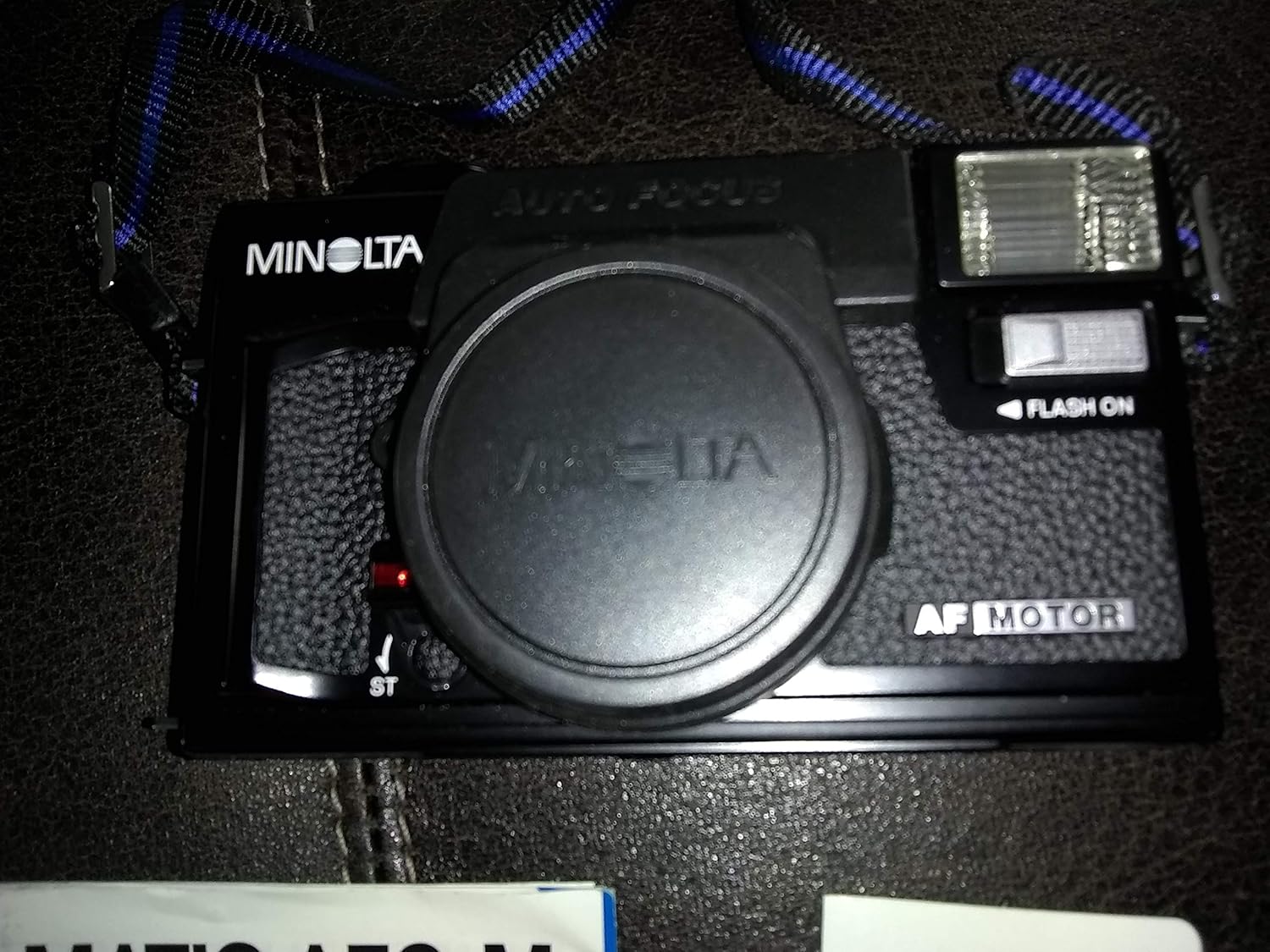

Imaj: Anwo-anba view of the Minolta Hi-matic AF2-M camera, displaying the lens cap, integrated flash unit, and the 'AUTO FOCUS' designation. This image highlights key operational components.

4. Pran yon foto

1. Frame your subject through the viewChèche.
2. Press the shutter button halfway to engage autofocus and exposure metering.
3. Peze bouton deklanchè a nèt pou pran foto a.
4. The film will automatically advance to the next frame after each shot.

5. Rebobinaj ak Dechajman Fim nan

Once all frames on the film roll have been exposed, the camera will typically indicate this (e.g., frame counter at '36' or '24', or an audible signal). To rewind the film:

1. Locate the film rewind button or switch, often on the bottom or back of the camera (refer to the image in the Setup section).
2. Engage the rewind mechanism. The camera may automatically rewind the film, or you might need to hold the button and turn a rewind crank.
3. Once rewinding is complete (indicated by a change in sound or the frame counter returning to 'S' or '0'), open the camera back.
4. Remove the rewound film cartridge and take it for development.

Antretyen

1. Netwaye lantiy la

Use a soft, lint-free cloth or a specialized lens cleaning brush to gently remove dust and smudges from the lens surface. For stubborn marks, apply a small amount of lens cleaning fluid to the cloth, not directly to the lens. Avoid touching the lens with your fingers.

2. Camera Body Care

Wipe the camera body with a soft, dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive materials. Keep the film compartment clean and free of debris to prevent film scratches or malfunctions.

3. Depo

When not in use, store the camera in a cool, dry place, away from direct sunlight, extreme temperatures, and high humidity. It is advisable to remove batteries if the camera will not be used for an extended period to prevent leakage.

Depanaj

• Kamera a pa limen: Tcheke enstalasyon pil yo epi asire w pil yo fre.
• Flash la pa tire: Verify the flash is enabled and has sufficient time to charge. Ensure batteries have enough power.
• Fim nan pa avanse: Confirm film is properly loaded and the leader is engaged with the take-up spool. Check for any obstructions in the film path.
• Blurry photos: Ensure the autofocus system has locked onto the subject before fully pressing the shutter. Maintain a steady hand or use a tripod if necessary.
• Film door will not close: Check for any film leader or debris obstructing the door mechanism.

Espesifikasyon

Garanti ak sipò

Your Minolta Hi-matic AF2-M camera may be accompanied by a Minolta International Warranty Certificate. Please refer to this document for specific terms, conditions, and duration of your warranty coverage.

Image: Contents of the Minolta Hi-matic AF2-M package, including the camera, a protective carrying case, the instruction manual, and the Minolta International Warranty Certificate.

For technical assistance, service, or warranty claims, please contact Minolta customer support or an authorized Minolta service center. Contact information can typically be found on the warranty card or the official Minolta websit.
