1. Entwodiksyon
The Klein Tools Torque Screwdriver Set (Cat. No. 57032) is engineered for professionals requiring precise torque application. This compact and user-friendly set ensures high-quality performance for various tasks. It features a wide torque range of 5-40 in. lbs, enhanced usability, and improved readability for accurate adjustments.
Karakteristik kle yo enkli:
- Versatile torque range from 5-40 in. lbs for diverse applications.
- Tri-lobular design with a textured finish for superior grip and comfort.
- Made in the USA with high-quality materials for durability and reliability.
- Includes a N.I.S.T. traceable calibration certificate for accuracy and precision.
Figure 1: The Klein Tools 57032 Torque Screwdriver Set, including the torque screwdriver, various bits, and its protective carrying case.
2. Enfòmasyon sou Sekirite
AVÈTISMAN: Always adhere to safety guidelines when using this tool.
- Toujou mete pwoteksyon pou je apwouve.
- Zouti sa a se PA insulated. It will PA protect against electrical shock.
- Do PA use this tool to pry or chisel.
3. Pake kontni
The Klein Tools 57032 Torque Screwdriver Set includes the following components:
- 1 x Torque Screwdriver
- 6 x 3.5-Inch Power Driver Bits:
- Phillips: #1 and #2
- Slotted: 3/16-Inch (4.8 mm) and 1/4-Inch (6.4 mm)
- Square: #1 and #2
- 1 x 1/4-Inch Nut Driver
- 1 x Rugged Blow-Molded Case with Foam Inserts
- 1 x N.I.S.T. Traceable Calibration Certificate
Figure 2: All components of the Klein Tools 57032 set, including the screwdriver, bits, and carrying case.
4. Enstalasyon
To prepare your Klein Tools Torque Screwdriver for use:
- Louvri Ka a: Unlatch and open the blow-molded carrying case.
- Chwazi Bit ki kòrèk la: Identify the appropriate Phillips, Slotted, or Square bit, or the 1/4-inch nut driver, required for your task.
- Mete Bit la: Firmly insert the selected bit into the magnetic bit holder of the torque screwdriver until it is securely seated.
Figure 3: The torque screwdriver with its various bits, illustrating the tri-lobular handle design and the NIST traceability.
5. Operasyon Enstriksyon
The Klein Tools Torque Screwdriver is designed for precise fastening applications. Follow these steps for optimal use:
- Mete valè koupl la: Locate the torque adjustment mechanism on the screwdriver handle. Rotate the adjustment collar to set the desired torque value within the 5-40 in. lbs range. Ensure the desired value aligns with the indicator mark for accuracy.
- Grip the Screwdriver: Hold the screwdriver firmly using the tri-lobular handle. The textured finish provides an enhanced grip and comfort during operation.
- Aplike koupl: Place the bit onto the fastener. Apply steady, even pressure and rotate the screwdriver. The tool is designed to click or slip once the set torque value is reached, preventing over-tightening.
- Verify Torque (Optional): For critical applications, it is recommended to verify the applied torque with a separate torque testing device.
Figure 4: Proper handling of the torque screwdriver, showcasing the ergonomic tri-lobular design.

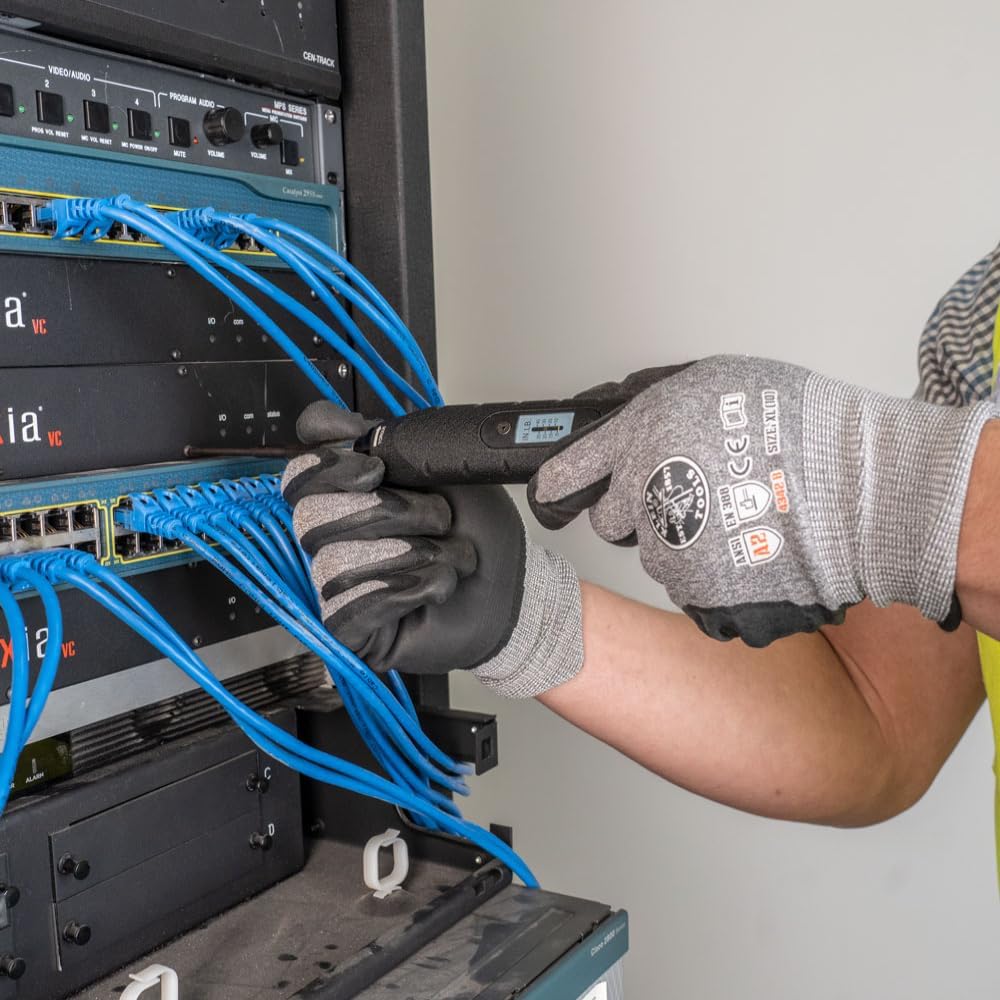

Figure 5: The torque screwdriver in use, demonstrating its application in precise fastening tasks.
Figi 6: Detaye view of the torque adjustment mechanism and display for setting precise inch-pound values.
6. Antretyen
Proper maintenance ensures the longevity and accuracy of your torque screwdriver set:
- Netwayaj: After each use, wipe down the screwdriver and bits with a clean, dry cloth to remove any dirt, grease, or debris. Avoid using abrasive cleaners or solvents that could damage the tool's finish or internal components.
- Depo: Always store the torque screwdriver and bits in the provided blow-molded case. The foam inserts protect the tools from impact and keep them organized, preventing loss or damage. Store in a dry environment to prevent corrosion.
- Kalibrasyon: As a precision instrument, the torque screwdriver includes a N.I.S.T. traceable calibration certificate. Regular re-calibration may be necessary depending on usage frequency and industry standards to maintain accuracy. Refer to the calibration certificate for recommended intervals.
- Enspeksyon: Periodically inspect the bits for wear or damage. Replace any worn or damaged bits to ensure proper engagement with fasteners and prevent stripping.
NAN. Depanaj
This section addresses common issues you might encounter with your torque screwdriver.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Torque value feels inaccurate. | Tool is out of calibration; improper setting; worn bit. | Ensure torque is set correctly. Consider professional re-calibration if accuracy is critical and tool has seen extensive use. Replace worn bits. |
| Bit does not stay in the holder. | Bit not fully inserted; magnetic holder is dirty or damaged. | Ensure bit is pushed firmly into the holder. Clean the magnetic holder area. If damaged, contact customer support. |
| Screwdriver mechanism does not click/slip at set torque. | Tool malfunction; extreme wear. | Discontinue use. Contact Klein Tools customer support for assistance or repair. |
8. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Non modèl | 57032 |
| Mak | Zouti KLEIN |
| Koupl Range | 5-40 in. lbs |
| Bits enkli yo | Phillips #1, #2; Slotted 3/16", 1/4"; Square #1, #2; 1/4" Nut Driver |
| Manch Materyèl | Aluminum (with tri-lobular textured finish) |
| Pwa atik | 1 liv (apeprè) |
| Dimansyon pwodwi (L x W x H) | 1 x 1 x 1 pous (apeprè) |
| Kalibrasyon | N.I.S.T. traceable certificate included; ASME B107.300-2010 compliant |
| Peyi orijin | USA |
9. Garanti ak sipò
Garanti: The Klein Tools 57032 Torque Screwdriver Set comes with a 1 Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims.
Sipò Kliyan: For technical assistance, warranty inquiries, or to purchase replacement parts, please visit the official Klein Tools store or contact their customer service department.
