Electro-Harmonix Small Clone EH 4600 Analog Chorus Pedal User Manual

Entwodiksyon

The Electro-Harmonix Small Clone Analog Chorus Pedal is designed to produce lush, shimmering chorus tones. This pedal is renowned for its rich, warm analog sound, making it a valuable tool for guitarists seeking classic modulation effects. It offers a range of chorus effects from subtle shimmer to dramatic, swirling modulation, suitable for various musical styles.

Key features include true bypass for signal integrity, a 9V battery for power, and a pure analog circuit for authentic tone.

Ki sa ki nan bwat la

• Electro-Harmonix Small Clone EH 4600 Analog Chorus Pedal
• 9V batri

Enstalasyon

Pouvwa pedal la

The Small Clone EH 4600 can be powered by a 9V battery (included) or an optional 9V DC power adapter (not included). To install the battery, remove the bottom plate of the pedal.

Koneksyon

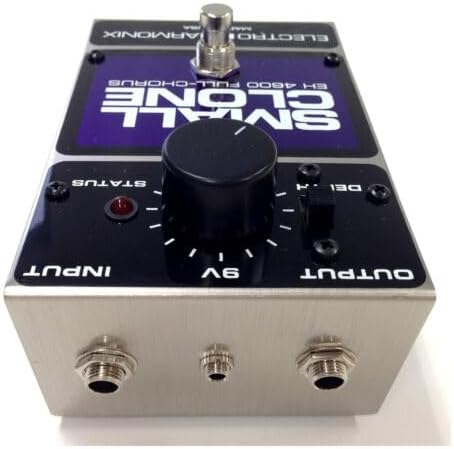

The pedal features standard 1/4 inch (6.35mm) audio jacks for input and output.

1. Konekte gita ou oswa lòt enstriman ou a Antre jack sou bò dwat pedal la.
2. Konekte a SOTI jack sou bò gòch pedal la pou ou amplifier or the input of another effects pedal.

Enstriksyon Operasyon

The Small Clone EH 4600 features simple controls for easy tone shaping.

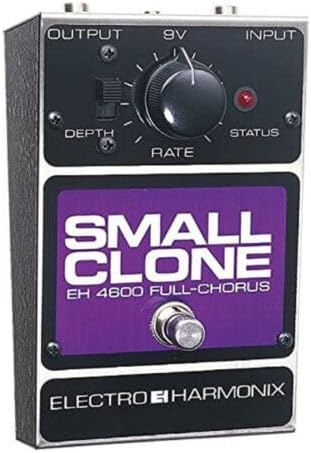

Kontwòl

• Bouton RAT: This knob controls the speed of the chorus effect. Turning it clockwise increases the speed, while turning it counter-clockwise decreases it.
• DEPTH Switch: This switch controls the intensity or width of the chorus effect. The up position provides a deeper, more pronounced chorus, while the down position offers a more subtle effect.
• STATUS ki ap dirije: Indicates when the effect is active.
• SWITCH PYE: Engages or bypasses the effect. The pedal features true bypass, ensuring your instrument's tone remains unaffected when the pedal is disengaged.

Videyo pwodwi ofisyèl la

Antretyen

To ensure optimal performance and longevity of your Small Clone EH 4600 pedal, follow these simple maintenance guidelines:

• Netwayaj: Use a soft, dry cloth to clean the pedal's exterior. Avoid using abrasive cleaners or solvents.
• Ranplasman batri: If using battery power, replace the 9V battery when the STATUS LED dims or the effect performance degrades. To replace, carefully remove the four screws on the bottom plate, replace the battery, and reattach the plate.
• Depo: Sere pedal la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm lè w pa ap itilize li.

Depanaj

If you encounter issues with your Small Clone EH 4600, try the following steps:

• Pa gen son: Check all cable connections. Ensure the power supply (battery or adapter) is functioning correctly. Verify that your instrument and amplifier are working.
• Weak or Distorted Effect: Replace the 9V battery if it's low. Ensure all cables are fully inserted and not damaged.
• Bri endezirab: Try using a different power supply or a fresh battery. Ensure the pedal is not placed too close to other electronic devices that might cause interference.

Espesifikasyon

Garanti ak sipò

For warranty information, technical support, or further inquiries, please visit the official Electro-Harmonix store or contact their customer service directly.

Ou ka jwenn plis enfòmasyon ak sipò nan Electro-Harmonix Store.
