1. Entwodiksyon

This manual provides comprehensive instructions for the safe and correct installation, operation, and maintenance of your Green Valley Roof Rack Bars, Model 156. These roof bars are specifically designed for the Kia Venga model, manufactured from February 2010 onwards, and are intended for vehicles without pre-installed fixed mounting points on the roof. Please read all instructions carefully before installation and use to ensure safety and optimal performance.

2. Enfòmasyon sou Sekirite

• Kapasite maksimòm chaj: Always adhere to the maximum load capacity specified for both your vehicle's roof and the roof rack system. Never exceed the lower of these two limits.
• Tachman an sekirite: Ensure all components are securely fastened according to the instructions. Regularly check the tightness of all bolts and connections, especially after the first few kilometers of driving and periodically thereafter.
• Distribisyon chaj: Distribute the load evenly on the roof bars. Avoid concentrating heavy items in one area.
• Driving Behavior: Adjust your driving speed to suit the load and road conditions. Be aware that a loaded roof rack can affect vehicle handling, braking, and fuel consumption. Avoid sudden maneuvers.
• Otè clearance: Be mindful of the increased vehicle height when the roof rack is installed, especially when entering garages, car washes, or low-clearance areas.
• Kwen byen file: Ensure there are no sharp edges or protruding parts that could cause injury or damage.

3. Pake kontni

Tanpri verifye ke tout konpozan sa yo prezan nan pake ou a:

• 2 x Green Valley Roof Rack Bars (Steel Alloy)
• 4 x Mounting Feet/Supports
• Installation Hardware (bolts, clamps, washers)
• Hex Key (for tightening)
• Manyèl Enstriksyon

If any components are missing or damaged, please contact your retailer or Green Valley customer service.

4. Enstalasyon

This roof rack system is designed for vehicles without fixed mounting points on the roof. The mounting feet clamp directly onto the vehicle's door frames.

Image 1: Illustration of a car roof without fixed mounting points, indicating the clampmetòd ing.

1. Prepare machin nan: Ensure the vehicle roof and door frames are clean and free from debris.
2. Assemble Mounting Feet: Attach the appropriate mounting feet to each roof bar. Ensure they are oriented correctly for your vehicle.
3. Position the Front Bar: Place the front roof bar across the vehicle roof. The distance from the front windshield to the front bar should be approximately 310 mm, as indicated in the diagram.
4. Position the Rear Bar: Place the rear roof bar across the vehicle roof. The recommended distance between the front and rear bars is approximately 700 mm. This distance is crucial for stability and load distribution.
5. Sekirize Clamps: Carefully open the vehicle doors and position the mounting clamps around the door frame. Ensure the rubber pads are correctly seated to protect the vehicle's paintwork.
6. Sere boulon Fastener: Using the provided hex key, gradually tighten the bolts on each mounting foot. Tighten evenly on both sides of the vehicle. The recommended tightening torque is 6 Nm. Pa twò sere.
7. Tcheke final la: After tightening, gently pull on each roof bar to ensure it is firmly secured and does not move. Close the vehicle doors and re-check the stability.

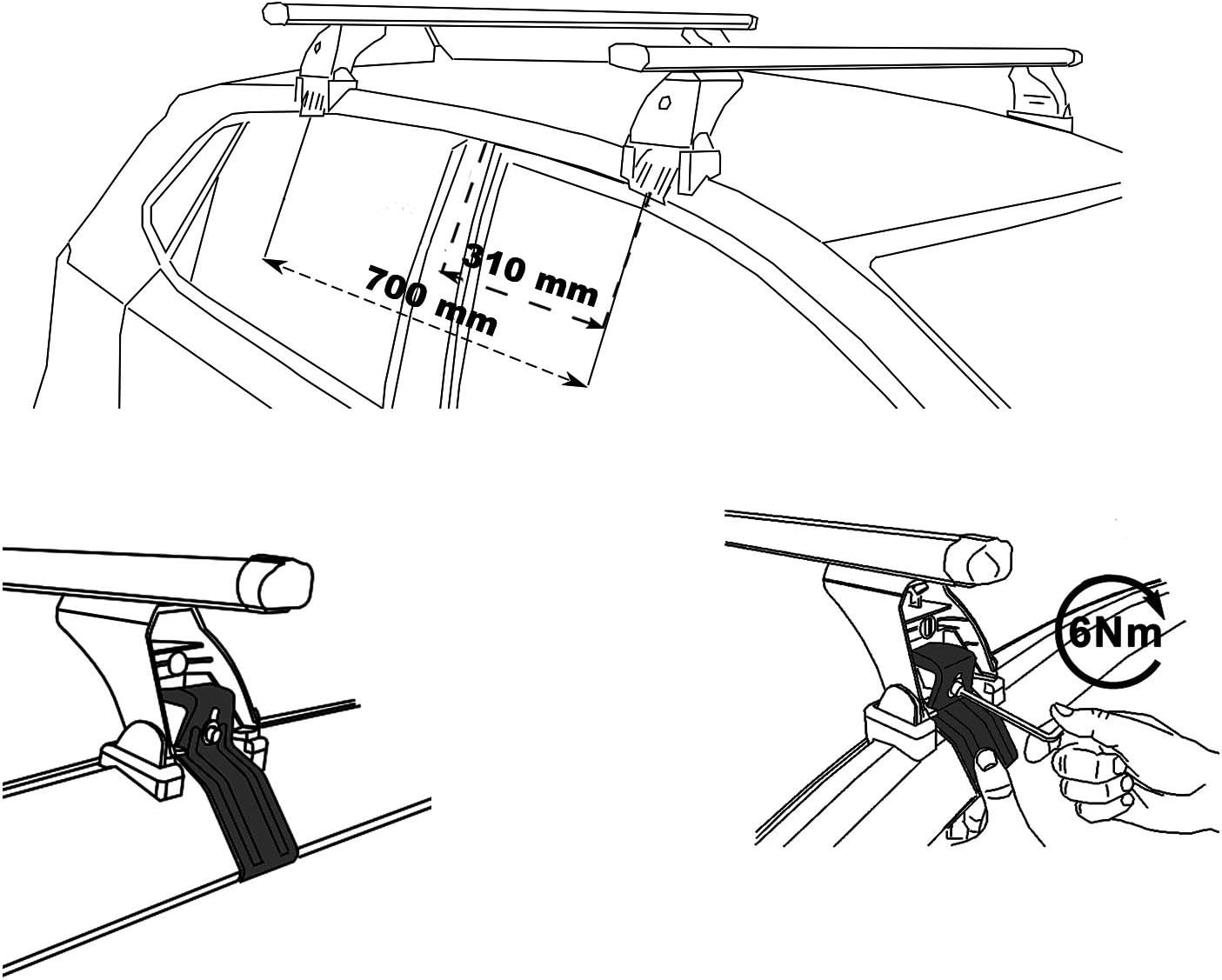

Image 2: Detailed installation diagram illustrating the recommended distances (310mm from front, 700mm between bars) and the 6 Nm tightening torque for the mounting bolts.

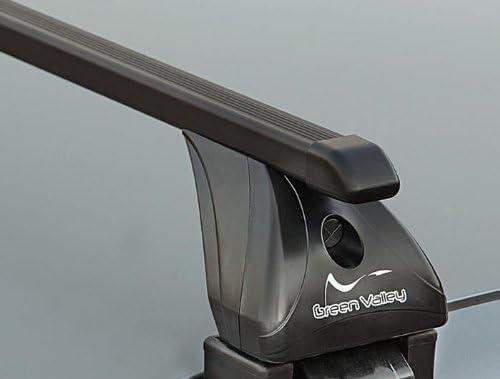

Imaj 3: Gwo plan view of the Green Valley roof bar end, showing the robust design of the mounting foot.

5. Operasyon Enstriksyon

Once the roof rack is securely installed, it is ready for use. Follow these guidelines for safe operation:

• Chaje: Place items on the roof bars, ensuring the weight is distributed as evenly as possible. Use appropriate tie-down straps or accessories to secure the load.
• Sekirize chaj la: All items must be firmly secured to prevent movement during transit. Check the load before starting your journey and periodically during long trips.
• Aerodinamik: Large or irregularly shaped loads can significantly affect vehicle aerodynamics and stability. Drive cautiously.
• Dechaje: Exercise caution when removing items from the roof rack to avoid injury or damage to the vehicle.

6. Antretyen

Regular maintenance will prolong the life of your roof rack and ensure continued safe operation:

• Tèks regilye: Periodically inspect all components for signs of wear, damage, or corrosion. Pay close attention to the mounting feet, rubber pads, and bar connections.
• Sere: Re-check the tightness of all bolts and fasteners at regular intervals, especially after driving on rough roads or after carrying heavy loads.
• Netwayaj: Clean the roof bars and mounting feet with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish or rubber components.
• Depo: If the roof rack is not in use for an extended period, it is recommended to remove it from the vehicle and store it in a dry, protected area.

NAN. Depanaj

If you encounter any issues with your Green Valley Roof Rack Bars, consider the following:

• Bri/Siflèt: Ensure all components are tightly secured. Check for any gaps or misalignments. Adjusting the position of the load or adding fairings (if available) can reduce wind noise.
• Detachman: If the roof bars become loose, immediately pull over and re-tighten all fasteners to the specified torque (6 Nm). If loosening persists, inspect for damaged components or incorrect installation.
• Difikilte pou enstale: Double-check that the roof rack model is compatible with your specific vehicle year and type. Review the installation steps carefully, ensuring correct orientation of all parts.

If problems persist, consult a professional installer or contact Green Valley customer support.

8. Espesifikasyon

Image 4: Cross-section diagram of the roof bar, indicating dimensions of 32mm width and 22mm height.

Imaj 5: Plis paseview of the Green Valley roof rack bars, showcasing the complete product.

9. Garanti ak sipò

For detailed information regarding the product warranty, please refer to the manufacturer's official warranty policy provided at the time of purchase or on the Green Valley websit. Tèm garanti yo anjeneral kouvri domaj fabrikasyon.

For technical assistance, spare parts, or any other inquiries, please contact Green Valley customer service through their official channels. When contacting support, please have your product model number (156) and purchase details readily available.
