Entwodiksyon
Welcome to your new XTERRA Fitness FS1.5 Elliptical Machine Trainer. This manual provides essential information for the safe assembly, operation, and maintenance of your elliptical. Please read this manual thoroughly before using the equipment to ensure proper function and to maximize your workout experience.
Figure 1: XTERRA Fitness FS1.5 Elliptical Machine Trainer, a compact and effective fitness solution.
Enfòmasyon enpòtan sou sekirite
- Konsilte doktè ou anvan ou kòmanse nenpòt pwogram egzèsis.
- Li tout enstriksyon ki nan manyèl sa a anvan ou itilize ekipman an.
- Kenbe timoun ak bèt kay lwen ekipman an pandan operasyon an.
- Place the elliptical on a solid, level surface with adequate clearance around it.
- Asire w ke tout boulon ak nwa yo byen sere anvan chak itilizasyon.
- Mete rad espò ak soulye atletik ki apwopriye.
- Si ou santi vètij, kè plen, doulè nan pwatrin, oswa nenpòt lòt sentòm anòmal, sispann antrennman ou imedyatman epi konsilte yon doktè.
- The maximum user weight for this elliptical is 250 lbs (113 kg).
- Ekipman sa a se pou itilize lakay sèlman.
Enstalasyon ak Asanble
The XTERRA Fitness FS1.5 Elliptical Machine Trainer requires assembly. It is recommended to have two people for assembly. Ensure all parts are present before beginning. Refer to the included owner's manual for detailed step-by-step assembly diagrams.
- Debake: Carefully remove all components from the packaging. Lay them out in an organized manner.
- Asanble baz: Attach the front and rear stabilizer bars to the main frame. Ensure all bolts are tightened securely.
- Upright Post Installation: Secure the upright post to the main frame.
- Pedal Arms and Handlebars: Connect the pedal arms and moving handlebars. Pay attention to "R" (right) and "L" (left) markings to ensure correct orientation.
- Console Attachment: Mount the console onto the upright post and connect all necessary wiring.
- Koneksyon pouvwa: Plug the 110V power adapter into the designated port, typically located at the front bottom of the unit.
- Nivelman: Use the rear spin-out levelers to correctly balance the elliptical on your floor, preventing wobbling during use.
Figure 2: Adjusting the rear spin-out levelers to ensure stability on uneven surfaces.
Videyo 1: Yon overview of the XTERRA Fitness FS1.5 Elliptical Machine Trainer, demonstrating its features and smooth operation. This video provides a visual guide to the product's design and functionality, which can aid in understanding assembly and usage.
Enstriksyon Operasyon
The FS1.5 Elliptical is designed for a smooth, non-impact total body workout. It features a 14-inch stride length and a 17.6 lb heavy-duty flywheel for fluid motion.
Fonksyon konsole
Figure 3: The 5.59-inch LCD console displays workout data and allows program selection.
- Ekspozisyon LCD: The large 5.59-inch LCD console shows time, speed, RPM, distance, calories, watt, heart rate, program, and resistance levels.
- Kòmanse/Stop: Initiates or ends your workout.
- Flèch anwo/desann: Adjust resistance levels (16 available) or navigate through program selections.
- Mòd: Changes the display mode or confirms selections.
- Antre: Confirms program or setting selections.
- Rekiperasyon: Activates the heart rate recovery function.
Pwogram antrennman
The FS1.5 offers 13 inspiring programs to vary your workouts:
- 6 Pwogram Prereglaj
- 1 Manual Program
- 1 Body Fat Program
- 1 Pwogram pèsonalize
- 1 Target Heart Rate Program
- 3 Heart Rate Control Programs (55%, 65%, 75%, 85%)
Figure 4: User engaging with the elliptical, highlighting the full-body workout capability.
Siveyans batman kè
Hand grip pulse sensors are conveniently located on the fixed handlebars to monitor your heart rate during your workout. Grip both sensors firmly to get a reading on the console display.
Figure 5: Hand pulse sensors on the fixed handlebars for heart rate monitoring.
Pedals and Stride
The elliptical features oversized pedals for a secure, non-slip surface and an ergonomic 14-inch stride length, allowing for comfortable motion in both forward and reverse directions to engage multiple muscle groups.
Figure 6: Oversized pedals provide a stable and comfortable platform for your feet.
Antretyen
Regular maintenance ensures the longevity and optimal performance of your XTERRA Fitness FS1.5 Elliptical.
- Netwayaj: Wipe down the equipment after each use with a damp twal pou retire swe ak pousyè. Evite pwodui netwayaj abrazif.
- Lubrifikasyon: Periodically apply silicone spray to pivot points and moving parts to ensure smooth operation and prevent squeaks. Avoid petroleum-based lubricants on plastic components.
- Ranfòse koneksyon: Regularly check and tighten all bolts, nuts, and screws. Loose connections can lead to noise and wear.
- Enspekte pou mete: Periodically inspect the equipment for any signs of wear or damage, especially on cables, pedals, and handlebars. Replace worn parts immediately.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Elliptical makes a "clunking" sound. | Loose bolts or worn plastic bearings at pivot points. | Check and tighten all assembly bolts. Inspect plastic bearings for cracks or wear and replace if necessary. Apply silicone spray to pivot points. |
| Ekran konsole a vid oswa li pa fonksyone. | Power adapter not connected or faulty. Loose console wiring. | Ensure the 110V power adapter is securely plugged into the elliptical and a working outlet. Check console wiring connections. |
| Resistance is not changing. | Console malfunction or internal resistance mechanism issue. | Ensure you are correctly using the UP/DOWN buttons. If the issue persists, contact customer support. |
| Heart rate reading is inaccurate or absent. | Improper hand placement on sensors. | Ensure both hands are firmly gripping the pulse sensors. Hands should be clean and dry. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact XTERRA Fitness customer support.
Espesifikasyon
- Non modèl: FS1.5 Elliptical
- Mak: XTERRA
- Koulè: Nwa
- Dimansyon pwodwi (L x W x H): 63.8" x 25" x 50.8" (Assembled)
- Materyèl: Alloy Steel, plastik
- Mekanis rezistans: Mayetik
- Rekòmandasyon pou pwa maksimòm: 250 liv
- Longè Stride: 14 pous
- Gwosè ekran: 5.59 pous (LCD)
- Pwa atik: 99.2 lbs (Assembled)
- Pwa Volan: 17.6 liv
- Kantite Nivo Rezistans: 16
- Pwogram yo: 13 (6 preset, 1 manual, 1 body fat, 1 custom, 1 target HR, 3 HR control)
- Kondisyon pou pouvwa: 110V plug-in
- UPC: 795447115027
- Nimewo Modèl: 115012

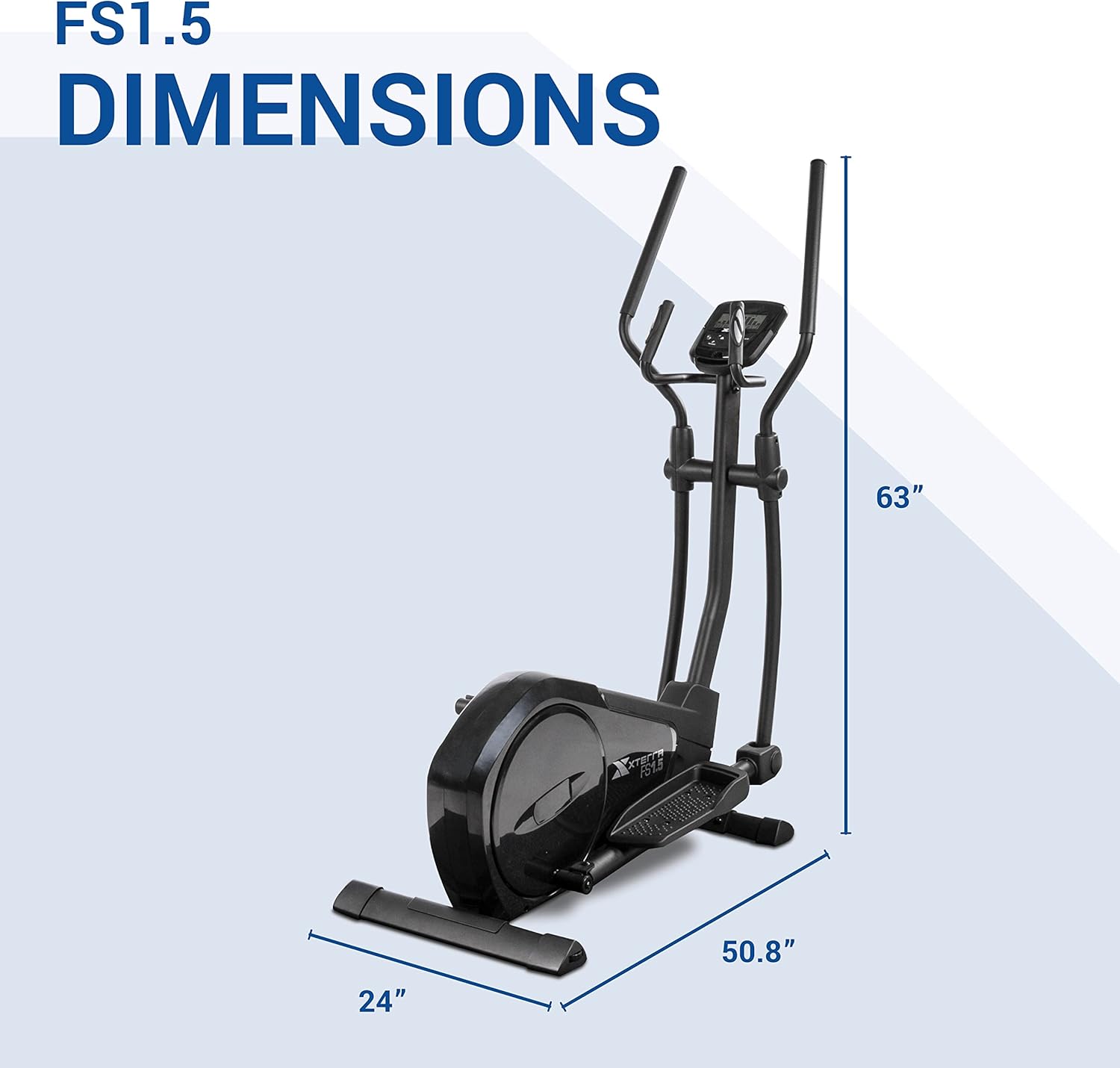

Figure 7: Visual representation of the elliptical's dimensions for space planning.
Garanti
The XTERRA Fitness FS1.5 Elliptical Machine Trainer comes with the following warranty:
- Ankadreman: 5 Ane
- Pati: 1 ane
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and does not cover damage due to misuse, accident, or unauthorized modifications.
Sipò pou Kliyan
For any questions, assistance with assembly, troubleshooting, or warranty inquiries, please contact XTERRA Fitness customer support. Have your model number (FS1.5) and serial number ready when you call or email.
You can find more information and contact details on the official XTERRA Fitness websit.
