JOCCA 5555 Steamer System User Manual

Entwodiksyon

The JOCCA 5555 Steamer System is an electric steam cooker designed for healthy and delicious cooking. This appliance allows you to prepare various foods by steaming, ensuring that food does not come into direct contact with water and eliminating the need for oil, thus preserving essential vitamins and nutrients.

Karakteristik kle:

• 60-minute mechanical timer for precise cooking control.
• Includes a lid and removable inserts for versatile use and easy cleaning.
• Two stackable steaming baskets provide double capacity, allowing you to cook multiple items simultaneously.
• Designed to preserve food vitamins during the steaming process.

Enstriksyon Sekirite Enpòtan

Tanpri li tout enstriksyon yo ak anpil atansyon anvan ou itilize aparèy la. Si ou pa swiv enstriksyon sa yo, ou ka pran chòk elektrik, pran dife, oswa pran gwo blesi.

• Toujou asire w ke aparèy la mete sou yon sifas ki estab e ki reziste chalè.
• Do not immerse the electrical base unit, cord, or plug in water or any other liquid.
• Kenbe aparèy la lwen timoun ak bèt kay.
• Unplug the steamer from the outlet when not in use and before cleaning.
• Pa opere aparèy la ak yon kòd oswa ploge ki domaje, oswa apre aparèy la fonksyone mal oswa li te domaje nan nenpòt fason.
• Sèvi ak sèlman Pwodwi pou Telefòn rekòmande pa manifakti a.
• Pran anpil prekosyon lè w ap deplase yon aparèy ki gen lwil cho oswa lòt likid cho.
• Do not touch hot surfaces. Use handles or knobs. Steam is hot and can cause burns.
• Ensure the water reservoir is filled to the appropriate level before operation. Do not operate dry.
• Pa mete aparèy la toupre recho gaz oswa elektrik cho, oubyen nan yon fou chofe.
• Aparèy sa a se pou itilize nan kay la sèlman.

Eleman

Familiarize yourself with the parts of your JOCCA 5555 Steamer System:

1. Kouvèti
2. Upper Steaming Basket
3. Lower Steaming Basket
4. Removable Inserts/Grids (for baskets)
5. Dlo rezèvwa
6. Eleman chofaj
7. Base Unit with Control Panel (Timer Dial, Power Indicator Light)
8. Kòd pouvwa ak ploge

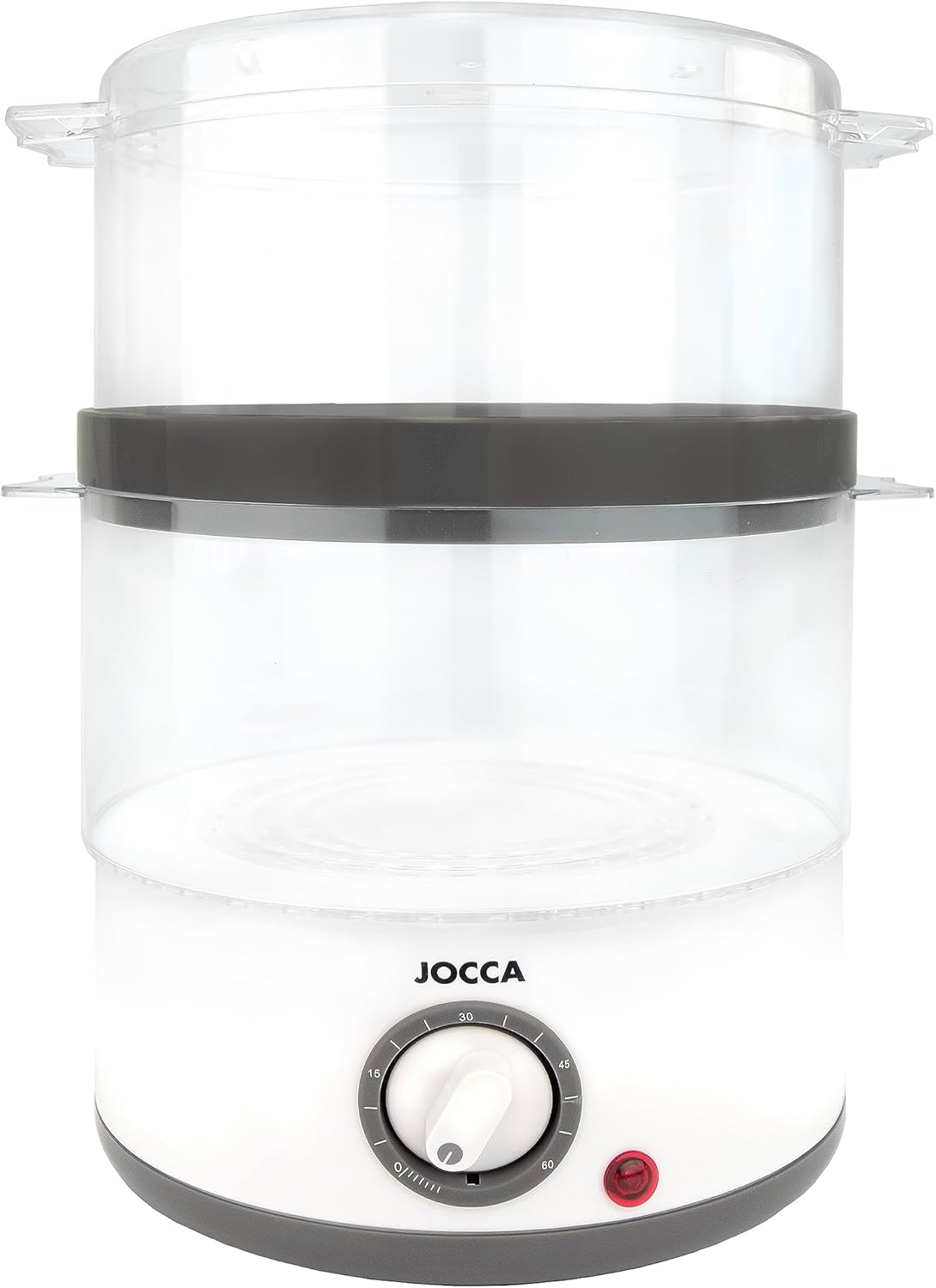

Image: The JOCCA 5555 Steamer System assembled with two empty steaming baskets and the lid, ready for use. This view highlights the clear plastic baskets and the white base unit with the timer dial.

Image: The disassembled components of the JOCCA 5555 Steamer System, including the main base unit with its power cord and the two steaming baskets with their lid. This image helps in identifying individual parts for assembly and cleaning.

Enstalasyon

Before first use, wash all removable parts (steaming baskets, lid, inserts) in warm soapy water, rinse thoroughly, and dry. Wipe the base unit with a damp twal.

1. Mete Inite Baz la: Position the steamer base unit on a flat, stable, and heat-resistant surface, away from walls or cabinets to allow steam to escape freely.
2. Ranpli Rezèvwa Dlo a: Open the water inlet and fill the water reservoir with clean tap water up to the MAX fill line. Do not overfill.
3. Assemble Steaming Baskets: Place the removable inserts into the bottom of the steaming baskets. You can use one or both baskets depending on the amount of food. For double capacity, stack the upper basket onto the lower basket.

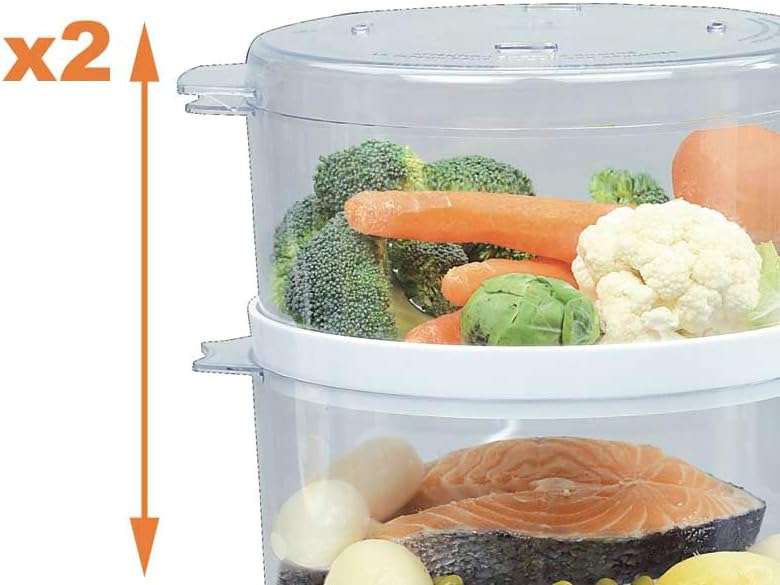

   Image: An illustration highlighting the "x2" capacity of the JOCCA 5555 Steamer, demonstrating how the two steaming baskets can be stacked to double the cooking volume for various foods like vegetables and fish.

4. Manje kote: Arrange food evenly in the steaming baskets. Do not overcrowd the baskets, as this can impede steam circulation and affect cooking efficiency.
5. Kouvri ak kouvèti: Place the lid securely on top of the uppermost steaming basket.

Enstriksyon Operasyon

Follow these steps to operate your JOCCA 5555 Steamer System:

1. Ploge nan: Once the steamer is assembled and filled with water and food, plug the power cord into a suitable electrical outlet (230V).
2. Mete revèy: Turn the timer dial clockwise to the desired cooking time (up to 60 minutes). The power indicator light will illuminate, indicating that the steamer has started heating.


   Image: The JOCCA 5555 Steamer System in active use, with various vegetables and fish steaming in its two transparent baskets. The timer dial on the base is visible, indicating ongoing operation.

3. Pwosesis vapè: Water will begin to boil and produce steam, which will rise through the baskets to cook the food.
4. Siveye Nivo Dlo: If steaming for extended periods, you may need to add more water to the reservoir. Use the water inlet to carefully add water during operation if necessary.
5. Konplete: Once the set time has elapsed, the timer will ring, and the steamer will automatically shut off. The power indicator light will turn off.
6. Retire Manje: Carefully remove the lid, being mindful of hot steam. Use oven mitts or a towel to handle the hot baskets. Serve food immediately.
7. Deploge: Toujou debranche aparèy la nan priz kouran an apre w fin itilize li.

General Steaming Guidelines:

• Vegetables: 10-20 minutes (depending on type and desired tenderness)
• Fish/Seafood: 8-15 minutes
• Poultry (thin cuts): 15-25 minutes
• Rice (in a heat-proof bowl): 20-30 minutes

Note: Cooking times are approximate and may vary based on food quantity, size, and personal preference. Always ensure food is cooked thoroughly.

Antretyen ak netwayaj

Regular cleaning will ensure the longevity and optimal performance of your steamer.

1. Dekonekte epi refwadi: Toujou debranche aparèy vapè a nan priz kouran an epi kite l refwadi nèt anvan ou netwaye li.
2. Vide rezèvwa dlo: Carefully pour out any remaining water from the reservoir.
3. Lave Pati detachable: Wash the lid, steaming baskets, and removable inserts in warm, soapy water. Rinse thoroughly and dry completely. These parts are generally dishwasher safe (top rack recommended), but hand washing is preferred to prolong their life.
4. Netwaye Inite Baz la: Siye deyò inite baz la ak piblisiteamp Pa sèvi ak pwodui netwayaj abrazif oswa kousinen abrazif. Pa janm plonje inite baz la nan dlo oswa nan okenn lòt likid.
5. Detartraj (si sa nesesè): Over time, mineral deposits (limescale) may build up on the heating element. To descale, fill the water reservoir with a mixture of equal parts white vinegar and water. Run the steamer for 20-30 minutes. After the cycle, unplug, let cool, and rinse the reservoir thoroughly several times with fresh water.
6. Depo: Ensure all parts are completely dry before storing. Store the steamer in a cool, dry place.

Depanaj

Gade tablo ki anba a pou pwoblèm komen ak solisyon yo:

Espesifikasyon

Garanti ak sipò

This JOCCA product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact the manufacturer or your local distributor. Keep your proof of purchase for warranty validation.

Contact information for support can typically be found on the product packaging or the manufacturer's official websit.
