axion STIM PRO ECO 2-Channel TENS Device User Manual

1. Introduction to TENS Therapy

The axion STIM PRO ECO is a compact and powerful Transcutaneous Electrical Nerve Stimulation (TENS) device designed for effective pain therapy. It utilizes electrical impulses to stimulate nerves, providing relief from acute and chronic pain without medication. This manual provides essential information for the safe and effective use of your device.

The device offers personalized pain therapy with individually adjustable parameters across 3 different TENS modes. It is suitable for various types of pain, including back pain, neck pain, headaches, joint pain, and muscle pain.

Image: The STIM PRO ECO device shown with various body areas where it can provide pain relief, such as the back, neck, and joints.

2. Enfòmasyon sou Sekirite ak Avètisman

The axion STIM PRO ECO is a CE-marked medical product, certified by a German manufacturer. Always read and understand all safety instructions before using the device. Improper use can lead to injury or device malfunction.

Prekosyon Sekirite Enpòtan:

• Do not use if you have a pacemaker, implanted defibrillator, or other metallic or electronic implanted devices.
• Pa sèvi ak si w ansent.
• Do not use on areas of skin that are numb, broken, or have open wounds.
• Do not use near the heart, on the head, or over the carotid sinus nerves (front of the neck).
• Consult a physician before use if you have epilepsy, heart disease, or any other serious medical condition.
• Kenbe soti nan atenn timoun yo.
• Only use electrodes and accessories approved by axion.

Image: The STIM PRO ECO device highlighting its medical certification (Class IIa according to MDR (EU) 2017/745) and key features.

3. Pake kontni

Your axion STIM PRO ECO package includes the following items:

• 1x axion STIM PRO ECO TENS Device
• 4x Self-adhesive Electrodes (5x5 cm)
• 2x Electrode Connection Cables
• 1x 9V Battery
• 1x Clip senti
• 1x depo ka
• 1x Manyèl Itilizatè (dokiman sa a)
• Electrode Placement Recommendation Cards

Image: All components of the axion STIM PRO ECO TENS device kit, neatly arranged.

4. Aparèy souview

Familiarize yourself with the different parts and controls of your STIM PRO ECO device.

Imaj: Devan view of the STIM PRO ECO device with key controls labeled.

1. Intensity Control (Channel 1 & 2 ON/OFF): Rotary knobs to adjust the intensity of the electrical impulses for each channel. Also serves as the ON/OFF switch.
2. Activity Indicator (Channel 1 & 2 LED): Lights indicate active channels.
3. Seleksyon pwogram: Dial to select one of the three TENS modes (B: Burst, C: Normal, M: Modulation).
4. Pulse Width (adjustable from 30 µs to 260 µs): Dial to set the duration of each electrical pulse.
5. Frequency (adjustable from 2 Hz to 150 Hz): Dial to set the number of electrical pulses per second.
6. Timer Setting (30 / 60 min, 'C' for continuous): Dial to set the treatment duration.

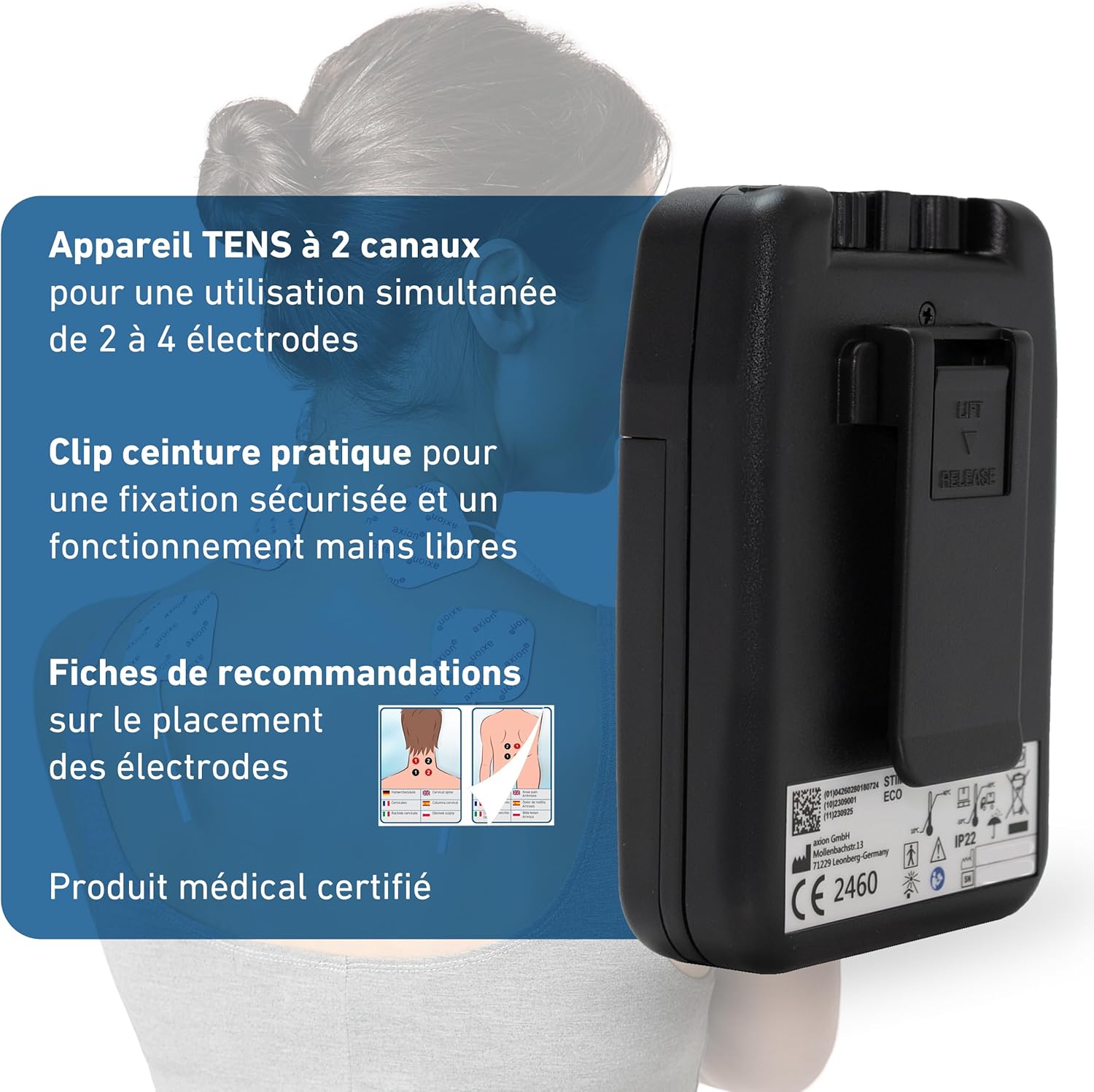

Imaj: Dèyè view of the STIM PRO ECO device, illustrating the practical belt clip for hands-free operation.

5. Enstalasyon

5.1 Enstalasyon batri

1. Ensure the device is turned off (intensity knobs fully counter-clockwise).
2. Louvri kouvèti lòj batri a sou do aparèy la.
3. Insert the 9V battery, matching the polarity (+/-) indicators.
4. Fèmen kouvèti lòj batri a byen.

5.2 Konekte elektwòd

The STIM PRO ECO has 2 channels, allowing up to 4 electrodes to be used simultaneously.

1. Connect the electrode cables to the output jacks at the top of the device.
2. Attach the electrodes to the pins on the other end of the cables.
3. Peel the electrodes from their protective film and apply them to clean, dry skin in the desired treatment area. Ensure good skin contact for optimal performance.

Image: The included 5x5 cm electrodes, highlighting their plug connection, suitability for various pain types, and reusability.

6. Operasyon Enstriksyon

6.1 Limen/Etenyen

To turn on the device, slowly turn the intensity control knobs (1) clockwise until you hear a click. The activity indicator LEDs (2) will light up. To turn off, turn the intensity knobs fully counter-clockwise until they click off.

6.2 Seleksyon mòd

Select your desired TENS mode using the Program Selection dial (3):

• C (Normal TENS): Continuous stimulation. This mode blocks pain signal transmission to the brain.
• B (Burst TENS): Intermittent bursts of stimulation. This mode stimulates the release of endorphins, the body's natural pain relievers.
• M (Modulation): The pulse width and/or frequency are varied automatically. This mode helps prevent the body from adapting to the stimulation, reducing the habituation effect.

6.3 Adjusting Pulse Width and Frequency

Use the Pulse Width dial (4) to set the duration of each electrical pulse (30 µs to 260 µs). Use the Frequency dial (5) to set the number of pulses per second (2 Hz to 150 Hz). These parameters allow for personalized treatment.

6.4 Ajisteman Entansite a

Slowly turn the intensity control knobs (1) clockwise to increase the intensity. Adjust until you feel a comfortable, strong, but not painful, tingling sensation. Each channel can be adjusted independently.

6.5 Mete revèy la

Use the Timer Setting dial (6) to choose the treatment duration:

• 30 min: Device will automatically turn off after 30 minutes.
• 60 min: Device will automatically turn off after 60 minutes.
• C (Continuous): Device will operate continuously until manually turned off.

Image: Visual representation of adjustable parameters (pulse width, intensity, frequency) and the three selectable TENS modes with their effects.

7. Elektwòd Plasman

Correct electrode placement is crucial for effective TENS therapy. Always apply electrodes to clean, dry, intact skin. Avoid placing electrodes directly over joints, bony prominences, or areas with excessive hair.

For specific pain areas, refer to the included electrode placement recommendation cards. Generally, electrodes should be placed around the painful area, ensuring the electrical current passes through the affected region.

Imaj: Egzamples of electrode placement on various body parts for targeted pain relief, including the upper back, lower back, shoulder, and foot.

Image: A hand demonstrating how to peel an electrode from its backing. Electrodes are delivered in a sealed bag and can be stored on their backing between uses.

8. Antretyen

8.1 Netwaye Aparèy la

Siye aparèy la ak yon mou, damp cloth. Do not use abrasive cleaners or immerse the device in water. Ensure the device is completely dry before storage or next use.

8.2 Electrode Care and Storage

After each use, carefully peel the electrodes from your skin and place them back onto their protective film. Store them in the sealed bag provided. If the electrodes lose their adhesiveness, they may need to be replaced. Replacement electrodes are available from axion.

8.3 Ranplasman batri

When the device's performance diminishes or it fails to turn on, replace the 9V battery as described in Section 5.1. Dispose of used batteries according to local regulations.

NAN. Depanaj

10. Espesifikasyon

11. Garanti ak sipò

The axion STIM PRO ECO device is manufactured by axion GmbH. For warranty information, please refer to the documentation included with your purchase or contact the manufacturer directly. As a certified medical product, it adheres to high quality standards.

If you have any questions regarding your TENS device, its operation, or need medical advice related to electrotherapy, axion's medical advisors are available to assist you via phone or chat. Please visit the official axion websit pou detay kontak.
