1. Pwodwi souview
The XPOWER X-430TF Pro Centrifugal Air Mover is a versatile and powerful unit designed for various drying, ventilation, and air circulation tasks. It features a durable ABS plastic housing, a highly balanced induction motor for quiet operation, and a multi-speed control with a timer. This air mover is suitable for water damage restoration, janitorial work, plumbing, and general home use, including pet drying applications.
Figi 1: Devan view of the XPOWER X-430TF Pro Air Mover, showcasing konsepsyon kontra enfòmèl ant li yo ak panèl kontwòl li yo.
2. Karakteristik kle
- Powerful & Energy-Efficient: Equipped with a 1/3 HP motor, delivering up to 2000 CFM airflow while drawing only 3.8 Amps at its highest setting.
- Lejè & pòtab: Weighs only 27 pounds with dimensions of 13.9" x 14.8" x 14.6", featuring a convenient handle and stackable design for easy transport and storage.
- Operasyon versatile: Offers 3 speed settings and 4 operating positions (0°, 20°, 45°, 90°) to direct airflow precisely where needed.
- Revèy entegre: Features a 3-hour timer control for automated operation.
- Sistèm filtè doub: Unique 2-filter system protects the motor and is easily accessible for cleaning.
- Konstriksyon dirab: Manufactured with rugged, high-impact ABS plastic housing for long-lasting performance and minimal maintenance.
- Sètifye sekirite: ETL / CETL safety certified with dual thermal protection.

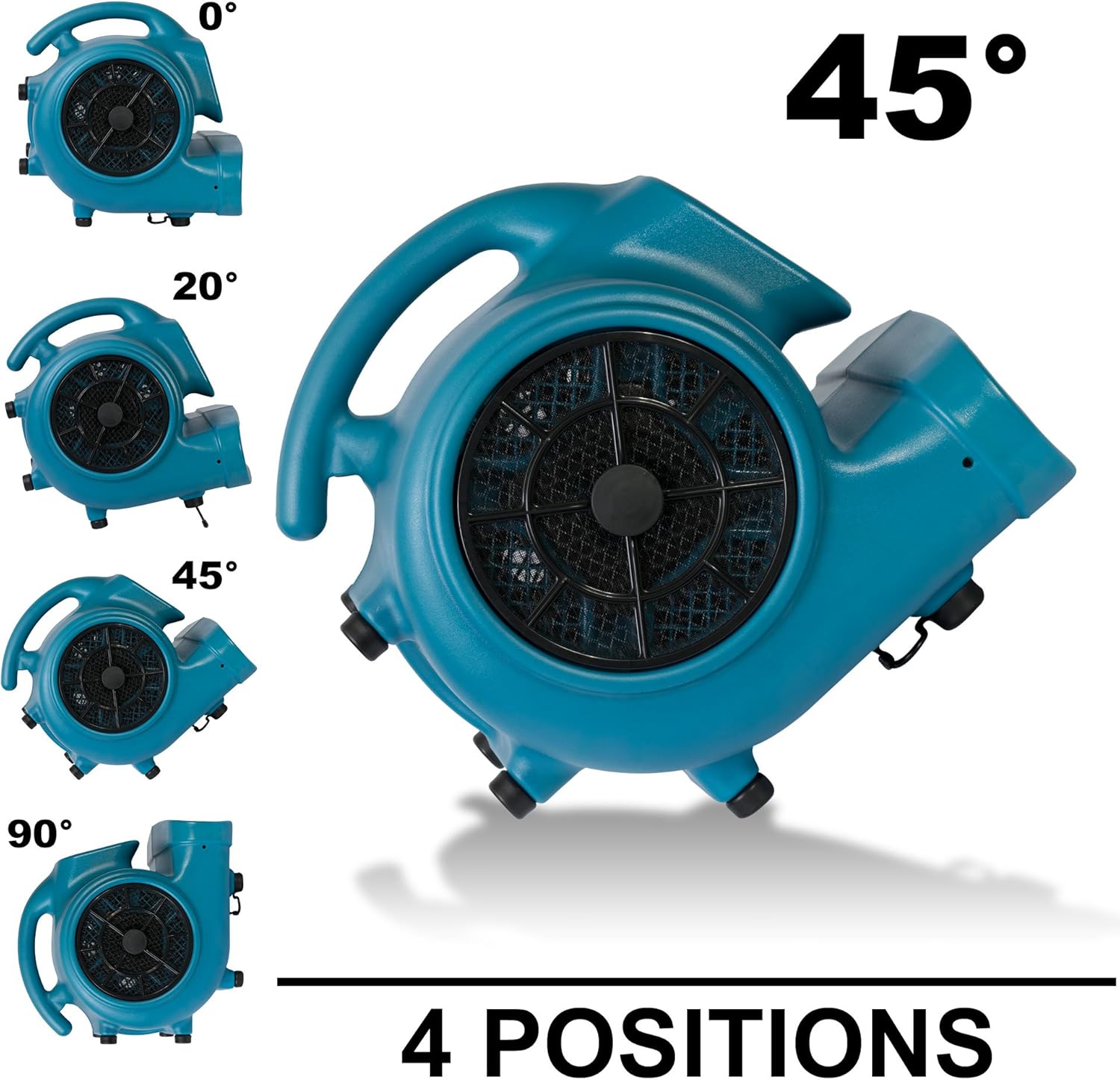

Figure 2: The X-430TF can be positioned at 0°, 20°, 45°, and 90° angles for targeted drying.
3. Enstalasyon
- Debake: Carefully remove the air mover from its packaging. Inspect the unit for any signs of damage during transit.
- Plasman: Position the air mover on a stable, flat surface. Ensure the intake and exhaust vents are clear of obstructions. The unit can be placed in any of its 4 operating positions (0°, 20°, 45°, 90°) depending on the drying or ventilation needs.
- Koneksyon pouvwa: Plug the 20 ft. power cord into a standard 115V electrical outlet. Ensure the outlet is properly grounded.
Figi 3: Side view of the air mover, showing its robust housing and integrated handle for portability.
4. Operasyon Enstriksyon
The X-430TF features simple controls for efficient operation.
- Limen/Etenyen: Locate the main power switch on the control panel. Turn the switch to the "ON" position to activate the unit.
- Seleksyon vitès: Use the speed control knob to select one of the three available speeds (1, 2, or 3). Speed 1 provides the lowest airflow, while Speed 3 provides the maximum 2000 CFM.
- Fonksyon revèy: The unit includes a 3-hour timer. Rotate the timer knob to set the desired operating duration. The unit will automatically shut off once the set time has elapsed. For continuous operation, set the timer to the "ON" position (usually indicated by a specific mark or beyond the timed settings).
- Ajisteman pozisyon: The air mover can be placed in four different positions (0°, 20°, 45°, 90°) to optimize airflow direction for various applications such as drying floors, walls, or carpets. Ensure the unit is stable in the chosen position.
Figure 4: Close-up of the control panel, showing the speed and timer knobs.
5. Antretyen
Regular maintenance ensures optimal performance and longevity of your XPOWER X-430TF air mover.
- Netwayaj filtè: The unit features a dual filter system. Regularly check and clean the filters to prevent dust and debris buildup, which can reduce airflow and strain the motor. The filters are easily accessible from the open side intakes.
- Netwayaj eksteryè: Siye eksteryè inite a ak anonsamp twal pou retire pousyè ak salte. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
- Depo: When not in use, store the air mover in a cool, dry place. The unit is stackable, allowing for efficient storage in limited spaces. Wrap the power cord neatly around the designated cord wrap area.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Inite pa limen. | Pa gen kouran; disjonktè a deklanche; kòd kouran an gen pwoblèm. | Check power outlet and connection. Reset circuit breaker. Inspect power cord for damage. |
| Low koule lè. | Clogged filters; obstructed intake/exhaust; motor issue. | Clean or replace filters. Clear any obstructions. If problem persists, contact customer support. |
| Bri oswa vibrasyon etranj. | Loose components; foreign object inside; motor bearing wear. | Turn off and unplug unit. Inspect for loose parts or foreign objects. If noise continues, contact customer support. |
7. Espesifikasyon
- Mak: XPOWER
- Non modèl: X-430TF "MULTI CAGE DRYER"
- Motè: 1 / 3 HP
- Kapasite koule lè: Jiska 2000 CFM
- Amp Trase: 3.8 Amps (at highest setting)
- Voltage: 115 Volts
- Wattage: 350 wat
- Vitès: 3
- Pozisyon Operasyonèl: 0°, 20°, 45°, 90°
- Revèy: 3 èdtan
- Pwa atik: 17 liv
- Dimansyon pwodwi: 13.9 x 14.8 x 14.6 pous
- Materyèl Lojman: ABS plastik
- Sètifikasyon sekirite: ETL / CETL
- Peyi orijin: Lachin
- UPC: 848025043004
8. Garanti ak sipò
The XPOWER X-430TF Pro Air Mover comes with a 1-ane garanti limite. For any questions, technical assistance, or warranty claims, please contact XPOWER's California-based customer service team. They are dedicated to providing comprehensive support and ensuring a first-class customer experience.
For more information, visit the official XPOWER Store: XPOWER Store on Amazon
