1. Entwodiksyon
Thank you for choosing the GROHE Euphoria Mono Shower Head. This manual provides essential information for the safe installation, operation, and maintenance of your new shower head. Please read these instructions carefully before installation and retain them for future reference.
Imaj 1.1: Devan view of the GROHE Euphoria Mono Shower Head, showcasing its polished chrome finish and single spray plate.
Karakteristik pwodwi:
- High Pressure compatibility (over 1.0 Bar)
- Scratch-resistant chrome finish for durability
- Enstalasyon ak antretyen san efò
- Integrated water-saving technology
- Anti-limescale function for easy cleaning
2. Enfòmasyon sou Sekirite
Observe the following safety instructions to prevent injury and damage:
- Installation must be carried out by a qualified professional or a competent person in accordance with local plumbing and building regulations.
- Ensure the water supply is turned off before commencing any installation or maintenance work.
- Pwoteje pwodwi a kont jèl.
- Do not use abrasive cleaners or solvents on the chrome finish, as this may cause damage.
- Tcheke tout koneksyon pou fwit apre enstalasyon yo.
3. Pake kontni
The GROHE Euphoria Mono Shower Head package typically includes:
- 1 x GROHE Euphoria Mono Shower Head (Model 27265000)
Note: Shower hose and wall holder are usually sold separately.
4. Enstalasyon ak Enstalasyon
Zouti obligatwa (pa enkli):
- Kle reglabl oswa kle kle
- PTFE tape (thread seal tape)
- Twal mou
Etap enstalasyon:
- Prepare Koneksyon an: Ensure the water supply to your shower system is turned off. If replacing an existing shower head, unscrew it from the shower hose.
- Apply PTFE Tape: Wrap PTFE tape clockwise around the threaded end of your shower hose connection. This helps create a watertight seal.
- Tache tèt douch la: Carefully screw the GROHE Euphoria Mono Shower Head onto the shower hose connection. Hand-tighten first, then use an adjustable wrench to gently tighten it further. Do not overtighten, as this can damage the threads or the product finish.
- Tcheke pou fwit: Turn on the water supply and check all connections for any leaks. If leaks occur, tighten the connection slightly more or reapply PTFE tape.
Image 4.1: Technical diagram illustrating the dimensions (in mm) and the standard G 1/2 inch connection thread for installation.
5. Operasyon Enstriksyon
The GROHE Euphoria Mono Shower Head features a single, consistent spray pattern designed for optimal showering comfort and water efficiency.
- Activating the Flow: Turn on your shower mixer to initiate water flow through the shower head.
- Water-Saving Technology: This shower head incorporates GROHE EcoJoy™ technology, which reduces water consumption without compromising the showering experience.

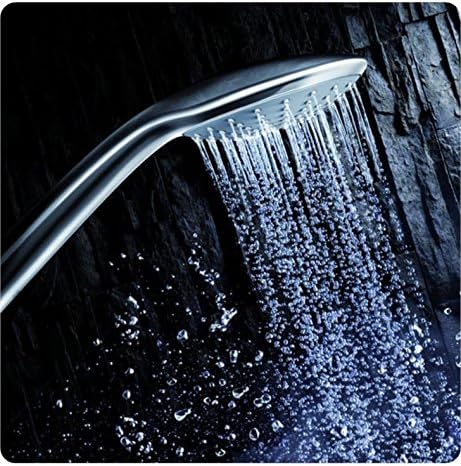

Image 5.1: The GROHE Euphoria Mono Shower Head delivering a consistent and refreshing spray pattern during use.
6. Antretyen
Regular cleaning and maintenance will ensure the longevity and optimal performance of your GROHE Euphoria Mono Shower Head.
Cleaning the Shower Head:
- Netwayaj chak jou: Wipe the shower head with a soft cloth after each use to prevent water spots and soap residue buildup.
- Retire kalkè: The shower head features an anti-limescale function. Limescale deposits on the spray nozzles can be easily removed by gently rubbing them with your finger or a soft brush.
- Netwayaj pwofon: For more stubborn deposits, use a mild, non-abrasive cleaning solution specifically designed for bathroom fixtures. Apply the cleaner to a soft cloth, wipe the shower head, and rinse thoroughly with water.
- Evite pwodwi chimik piman bouk: Never use abrasive sponges, scouring pads, or cleaning agents containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the chrome finish.
NAN. Depanaj
If you encounter issues with your shower head, refer to the following common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Ba presyon dlo | Clogged nozzles or filter; insufficient household water pressure | Clean the spray nozzles (see Maintenance section). Check the water supply pressure to your home. Ensure the shower hose is not kinked. |
| Water dripping after use | Residual water in the shower head | A small amount of dripping is normal as residual water drains. If dripping persists excessively, check for loose connections or internal issues. |
| Leaks at connection point | Loose connection; worn washer; insufficient PTFE tape | Ensure the shower head is securely tightened to the hose. Turn off water, unscrew, check the washer, and reapply PTFE tape before re-tightening. |
If the problem persists after attempting these solutions, please contact a qualified plumber or GROHE customer support for assistance.
8. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | GROHE |
| Nimewo Modèl | 27265000 |
| Style | Mono |
| Koulè | Chrome |
| Fini | Poli |
| Materyèl | Chrome |
| Fòm | Round |
| Dimansyon pwodwi | 26 x 11.48 x 12.7 cm (approx. 10.2L x 4.5W cm for head) |
| Pwa atik | 270 g |
| Pousantaj koule | 1.5 galon pou chak minit |
| Kantite Anviwònman | 1 |
| Karakteristik espesyal | Water saving technology, Anti-limescale function |
| Metòd enstalasyon | Wandmontiert (Wall-mounted, typically via hose) |
9. Garanti ak sipò
Garanti manifakti a:
The GROHE Euphoria Mono Shower Head 27265000 comes with a Garanti manifakti 5 anGaranti sa a kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon ak sèvis nòmal. Tanpri konsève prèv acha ou pou reklamasyon garanti.
Image 9.1: Logos indicating the GROHE 5-Year Guarantee, 'Made in Germany' origin, and WRAS Approved Product certification.
Sipò Kliyan:
For technical assistance, warranty inquiries, or further information, please visit the official GROHE website or contact their customer service department. Contact details can typically be found on the GROHE websit oswa anbalaj pwodwi a.
