Powerplus POWX410 4-in-1 Power Station User Manual

Entwodiksyon

The Powerplus POWX410 is a versatile 4-in-1 power station designed for various automotive and emergency needs. It integrates a jump starter for engines up to 1600cc, a power bank function for devices, a 17-bar air compressor, and a 3.6W emergency light into a single portable unit. This manual provides detailed instructions for safe and effective use of all its functions.

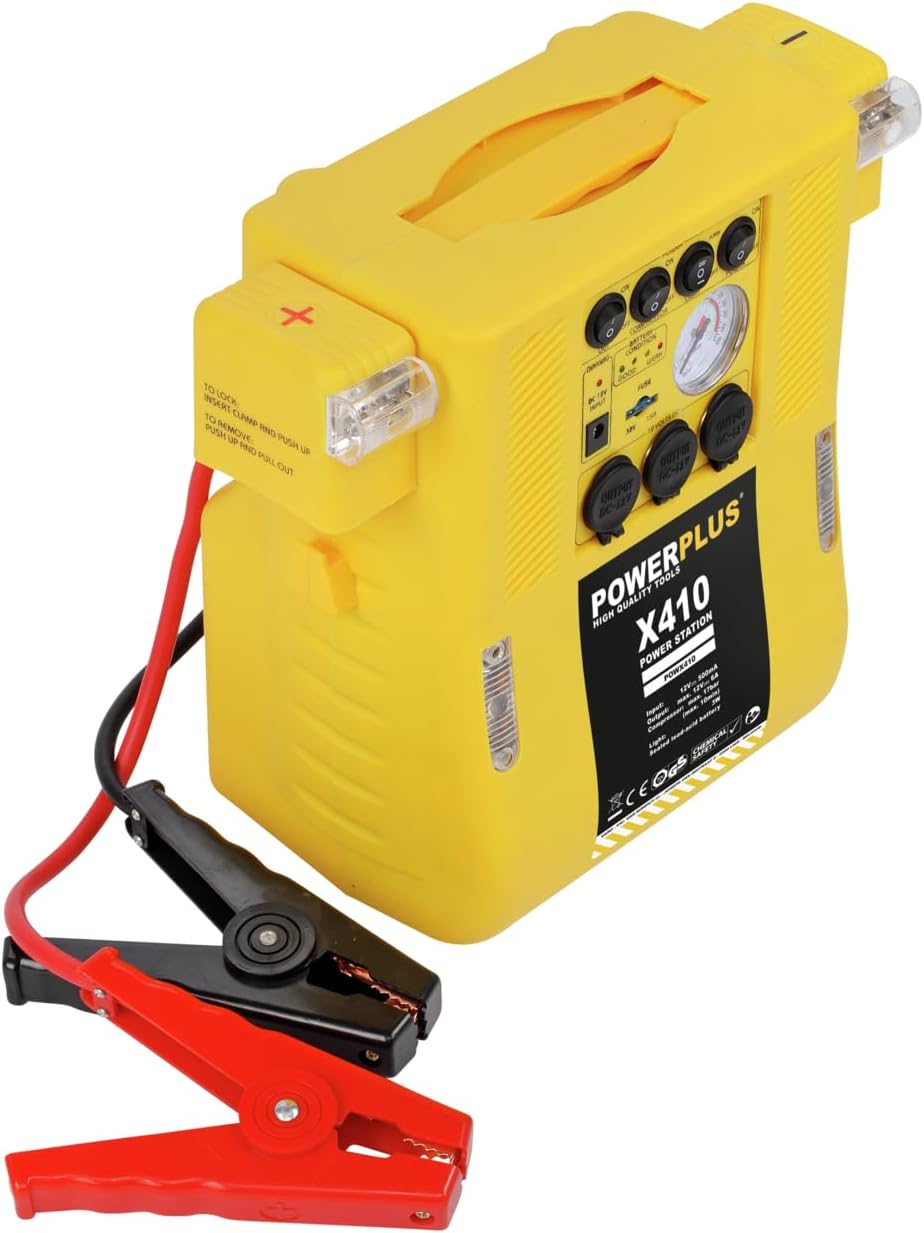

Figi 1: Devan view of the Powerplus POWX410 Power Station.

Enstriksyon Sekirite

• Toujou li epi konprann tout enstriksyon yo anvan ou itilize aparèy la.
• Mete pwoteksyon pou je lè w ap travay ak pil.
• Asire w ke gen bon vantilasyon lè w ap chaje oswa lè w ap itilize aparèy la.
• Pa ekspoze aparèy la a lapli oswa imidite.
• Keep children and unauthorized persons away from the device during operation.
• Pa eseye sote kòmanse yon batri nan frizè.
• Connect the jumper cables in the correct polarity: positive to positive, negative to negative (or vehicle chassis).
• Evite fè kous sikwi sou klou jumper la.amps.
• Do not use the compressor for prolonged periods without allowing it to cool down.
• Sere aparèy la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk.

Pwodwi konpozan

The Powerplus POWX410 includes the following main components and accessories:

• Power Station Unit with integrated jump starter cables and clamps.
• Air Compressor with pressure gauge and hose.
• Emergency Light (3.6W).
• DC Output Sockets (12V, max 6A).
• Power Adapter for charging the unit.
• Cigarette Lighter Power Cable.
• Ball Needle and 2 Air Mattress Adapters for the compressor.
• Spare Fuses and Lamps.

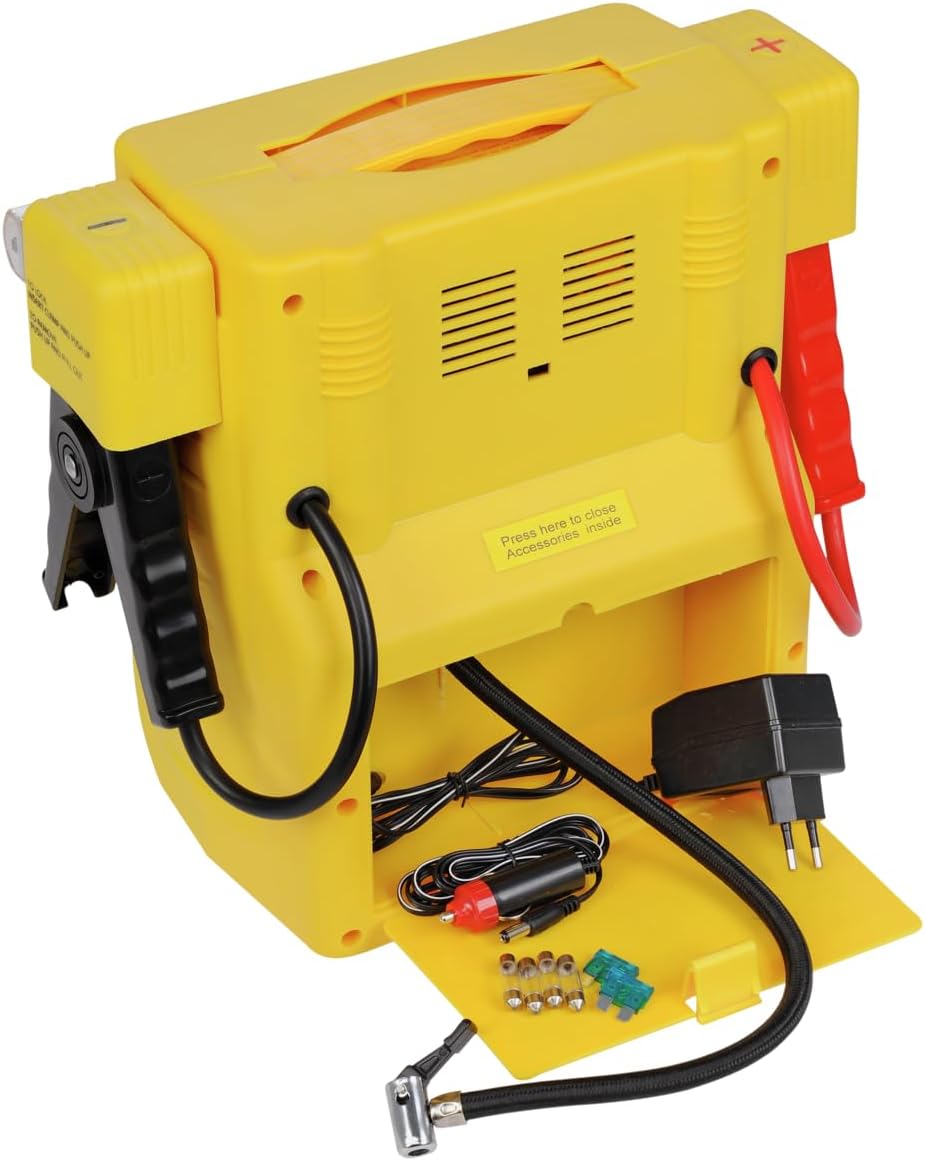

Figure 2: Rear storage compartment for accessories.

Enstalasyon

Inisyal chaje

Before first use, fully charge the Powerplus POWX410 power station.

1. Connect the provided power adapter to the charging port on the unit.
2. Plug the power adapter into a standard wall outlet (AC power).
3. Allow the unit to charge until the charge indicator shows a full charge. This may take several hours.
4. Alternatively, the unit can be charged via the cigarette lighter power cable in a vehicle.

Nòt: Regular charging is recommended to maintain battery health, especially after use or if stored for extended periods.

Enstriksyon Operasyon

1. Jump Starter Function

Use this function to start vehicles with a dead battery, suitable for engines up to 1600cc (petrol).

1. Ensure the vehicle's ignition and all accessories are turned off.
2. Konekte a wouj pozitif (+) clamp nan tèminal pozitif (+) batri machin nan.
3. Konekte a nwa negatif (-) clamp to a clean, unpainted metal part of the vehicle's chassis, away from the battery and fuel lines. Alternatively, connect to the negative (-) terminal of the battery if accessible and safe.
4. Asire w ke koneksyon an sekirite.
5. Attempt to start the vehicle. If it doesn't start immediately, wait a few minutes before trying again. Do not crank for more than 5 seconds at a time.
6. Yon fwa machin nan kòmanse, dekonekte nwa negatif (-) clamp premyèman, lè sa a wouj pozitif (+) clamp.
7. Sere cl laamps safely back on the unit.

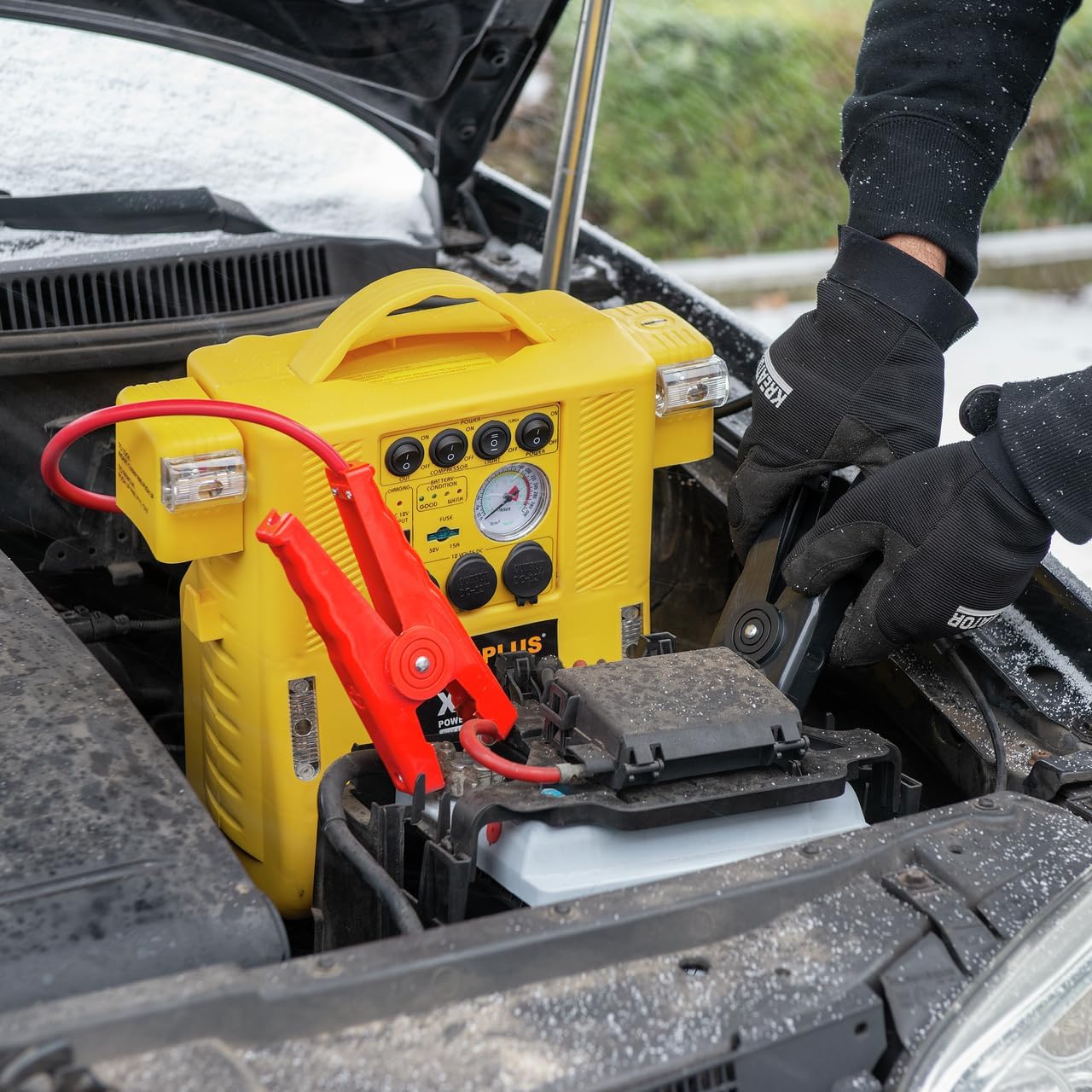

Figure 3: Using the Power Station to jump start a vehicle.

Figure 4: Proper connection of jumper clamps nan tèminal batri.

2. Power Bank Function (DC Output)

The unit provides 12V DC power through its output sockets for compatible devices.

1. Locate the 12V DC output sockets on the unit.
2. Plug your device's 12V DC adapter into one of the sockets.
3. Ensure your device is compatible with 12V DC input and does not exceed the maximum 6A output current.
4. The unit features overload protection for safety.

3. Air Compressor Function

Inflate tires, sports equipment, and other inflatables up to 17 bar (246 PSI).

1. Select the appropriate adapter nozzle (ball needle, air mattress adapter) for your item.
2. Attach the nozzle to the compressor hose.
3. Connect the compressor hose to the item to be inflated.
4. Limen switch la COMPRESSOR.
5. Monitor the pressure gauge on the unit to reach the desired pressure.
6. Yon fwa yo rive presyon an vle, fèmen COMPRESSOR a epi dekonekte kawotchou a.

Atansyon: Do not over-inflate items. Allow the compressor to cool down after extended use to prevent overheating.

4. Fonksyon Limyè Ijans

The integrated 3.6W light provides illumination in dark conditions.

1. Locate the light switch on the unit.
2. Toggle the switch to turn the light on or off.

Antretyen

Chaje ak Depo

• Recharge after each use: To maximize battery life, recharge the unit fully after every use, especially after jump-starting or prolonged compressor operation.
• Chaj regilye: If the unit is stored for extended periods, recharge it every 2-3 months to prevent battery discharge and damage.
• Netwayaj: Siye aparèy la avèk yon twal sèk epi mou. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
• Depo akseswar: Utilize the integrated storage compartment at the back of the unit for all accessories to keep them organized and readily available.
• Anviwònman Depo: Store the power station in a cool, dry place, away from direct sunlight, extreme temperatures, and moisture.

Depanaj

Espesifikasyon

Figure 5: Product dimensions for the Powerplus POWX410.

Garanti ak sipò

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Varo (Powerplus) websit la. Kenbe prèv acha ou a pou nenpòt reklamasyon garanti.
