Entwodiksyon
The ECCO 530 Back-Up Alarm is part of ECCO's 500 Series, designed to provide a reliable and cost-effective warning solution for vehicles. This alarm features a durable glass-filled nylon housing with epoxy-encapsulated electronics, offering exceptional protection against moisture, dust, and vibration. It is engineered to meet SAE certifications, ensuring quality and performance.
Enstalasyon ak Enstalasyon
Proper installation is crucial for the optimal performance and longevity of your ECCO 530 Back-Up Alarm. This unit is designed for surface mounting and features a simple 2-bolt attachment system, making it suitable for a universal range of applications.

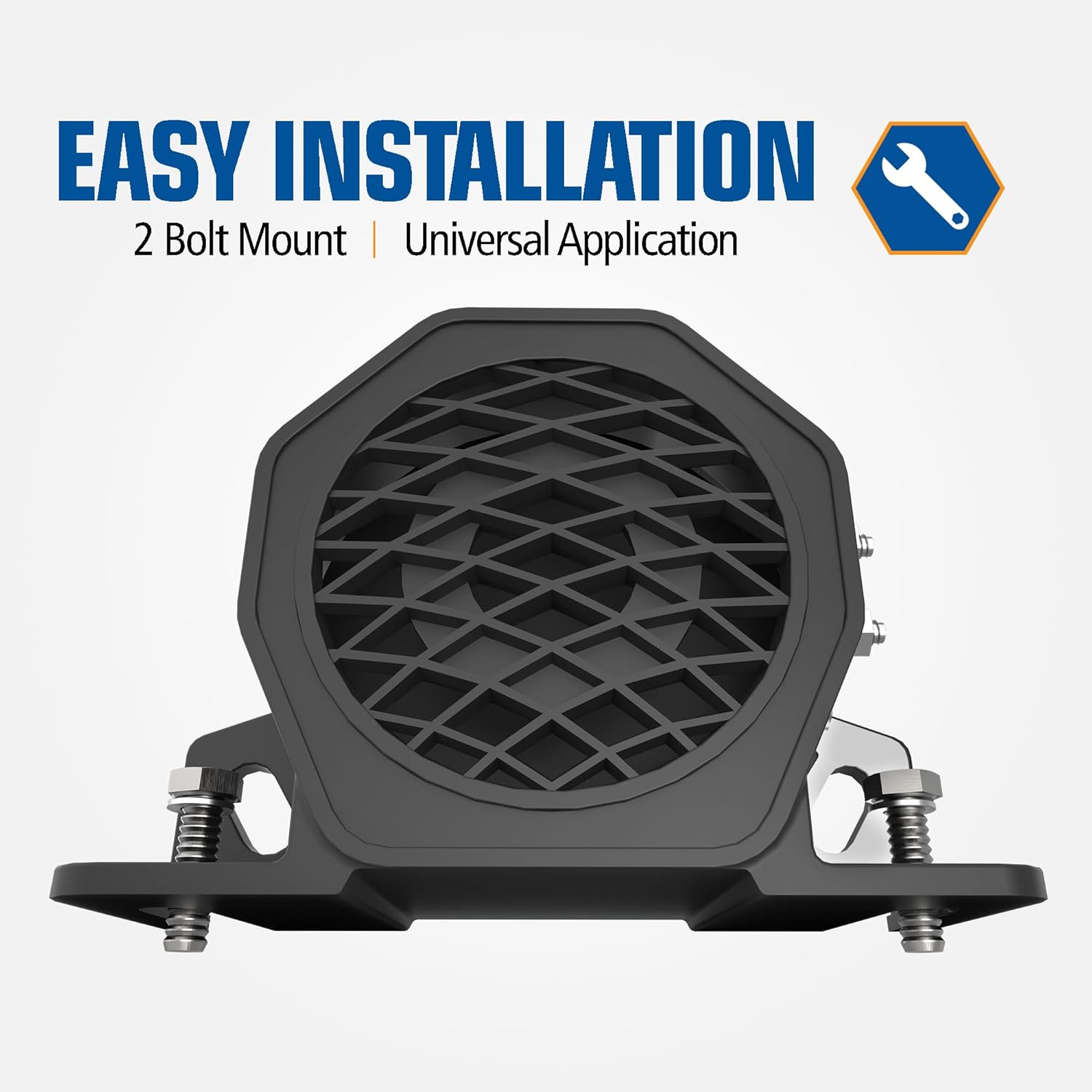

Figure 1: Easy Installation. The alarm features a straightforward 2-bolt mount design for quick and universal application.
Figure 2: Product Dimensions. The compact size of the alarm is 4 inches (L) x 1.6 inches (W) x 2.8 inches (H).
Enstriksyon fil elektrik:
- Asire w ke machin nan koupe kouran anvan ou kòmanse enstalasyon an.
- Identify the reverse light circuit on your vehicle. The alarm operates on 12-24VDC.
- Connect the positive wire of the alarm to the positive wire of the reverse light circuit.
- Connect the negative wire of the alarm to a suitable ground point on the vehicle chassis.
- Secure all connections using appropriate electrical connectors and ensure they are insulated to prevent short circuits.
- Mount the alarm securely to a flat surface using the two integrated bolt holes.
- Test the alarm by engaging the vehicle's reverse gear to ensure proper operation.
Opere alam la
The ECCO 530 Back-Up Alarm is designed to automatically activate when the vehicle is placed into reverse, emitting a loud, clear warning signal to alert pedestrians and other vehicles of the backing maneuver. The alarm produces a sound level of 102 dB, ensuring high visibility in various environments, including those with significant ambient noise.
Figi 3: Devan view of the ECCO 530 Back-Up Alarm, showcasing its compact design and durable housing.
Figure 4: The ECCO 530 Back-Up Alarm shown in context with a commercial van, emphasizing its superior quality, 102dB sound level, surface mount capability, and 12-24V compatibility. A 2-year warranty badge is also visible.
Antretyen
The ECCO 530 Back-Up Alarm is designed for minimal maintenance due to its robust construction. The glass-filled nylon housing and epoxy-encapsulated electronics provide excellent protection against environmental factors.
Figure 5: Waterproof Design. The alarm boasts an IP65 rating, making it highly resistant to water and suitable for all weather conditions.
Swen ak netwayaj:
- Periodically inspect the alarm for any visible damage or loose connections.
- Clean the exterior of the alarm with a damp twal pou retire pousyè tè ak debri. Evite itilize pwodui chimik piman bouk oswa pwodui netwayaj abrazif.
- Ensure the speaker grille is free from obstructions to maintain optimal sound output.
Depanaj
If you experience issues with your ECCO 530 Back-Up Alarm, please refer to the following common troubleshooting steps:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Alam pa sonnen | No power to the alarm; Loose or incorrect wiring; Damaged unit. | Check power supply and fuse; Verify all wiring connections are secure and correct; Inspect the unit for physical damage. If damaged, replace the unit. |
| Alam son tanzantan | Loose wiring connection; Intermittent power supply. | Check and secure all wiring connections; Inspect the vehicle's reverse light circuit for stable power output. |
| Alam twò trankil | Speaker grille obstructed; Incorrect voltagekipman pou. | Clear any debris from the speaker grille; Ensure the alarm is receiving the correct 12-24VDC power supply. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | 530 |
| Nivo bri | 102 dB |
| Voltage | 12-24 VDC |
| Kalite aliye | Sifas |
| Materyèl | Glass-filled nylon housing, epoxy-encapsulated electronics |
| Dimansyon pwodwi | 4 x 1.6 x 2.8 pous |
| Pwa atik | 12 ons (0.75 liv) |
| Metòd kontwòl | Manyen (Note: This typically refers to activation via reverse gear engagement.) |
| Sensor Teknoloji | Contact Sensor (Note: This typically refers to activation via reverse gear engagement.) |
| UPC | 758379000144 |
| Konpozan ki enkli | Product and Instructions |
| Batri obligatwa? | Non |
Enfòmasyon sou Garanti
The ECCO 530 Back-Up Alarm is covered by a Garanti manifakti 2 zanGaranti sa a kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon nòmal. Tanpri konsève prèv acha ou pou nenpòt reklamasyon garanti.
Sipò
For further assistance, technical support, or warranty inquiries, please contact ECCO customer service. Visit the official ECCO websit la oubyen gade enfòmasyon kontak ki vini ak anbalaj pwodwi a.
