Entwodiksyon

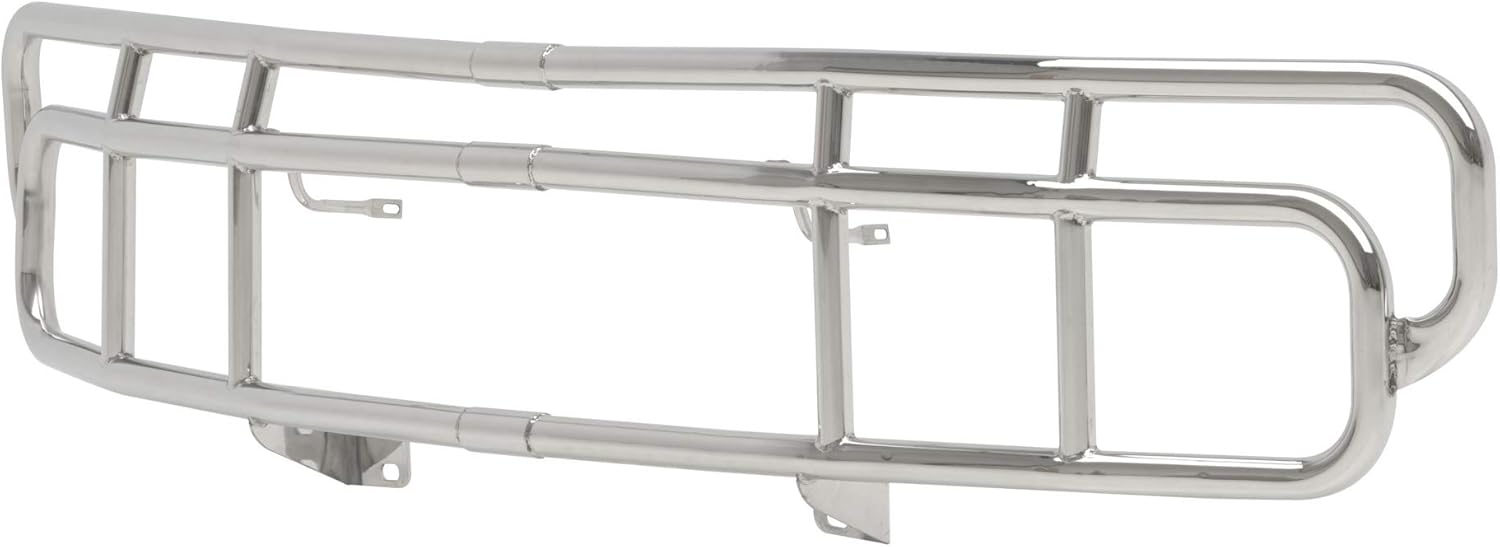

This manual provides detailed instructions for the installation, operation, and maintenance of your ARIES 4076-2 Polished Stainless Steel Grille Guard. Designed for select Hummer H2 models, this grille guard offers enhanced front-end protection and a distinctive aesthetic.
Karakteristik pwodwi
- CUSTOM LOOK: This grill guard adds an aggressive, aftermarket look to your vehicle, accenting its existing features and integrating with the design of the front end.
- CORROSION-RESISTANT: To protect this grill guard from the elements, it is constructed from polished 304 stainless steel, ensuring maximum resistance to rain, dirt and other corrosive threats.
- STRONG BUILD: This grille guard is constructed with a high-strength, one-piece frame, using welded stainless steel tubing. The tubing is 1.5-inch diameter, heavy-wall tubing for maximum strength and rigidity.
- EXTRA PROTECTION: For extra protection on the front end of this grille guard push bar, the vertical risers are covered in rubber stripping. This protects the finish and maintains a clean, consistent look.
- NO-DRILL: This ARIES grille guard installs with no drilling needed, and it fits select model years of the Hummer H2.
Enfòmasyon sou Sekirite
- Toujou mete ekipman pwoteksyon pèsonèl (PPE) ki apwopriye pandan enstalasyon an.
- Asire w ke machin nan pake sou yon sifas ki plat epi fren pakin nan angaje.
- Disconnect the vehicle's battery before beginning any electrical work (if applicable for auxiliary lights).
- Do not overtighten fasteners, as this may damage components. Refer to torque specifications if provided in separate documentation.
- Regularly inspect the grille guard for loose fasteners or damage.
Ki sa ki nan bwat la
- Gad griyaj
- Installation Hardware (bolts, washers, nuts, brackets)
Enstalasyon ak Enstalasyon
The ARIES 4076-2 Grille Guard is designed for a no-drill installation, utilizing existing factory holes on your Hummer H2.
- Preparasyon: Park the vehicle on a flat, stable surface. Engage the parking brake.
- Idantifye pwen montaj yo: Locate the factory mounting points on the vehicle's frame, typically behind the bumper.
- Tache parantèz: Secure the provided mounting brackets to the vehicle's frame using the specified hardware. Do not fully tighten at this stage.
- Position Grille Guard: With assistance, carefully lift the grille guard and align its mounting points with the attached brackets.
- Secure Grille Guard: Attach the grille guard to the brackets using the remaining hardware.
- Ajiste epi sere boulon: Adjust the grille guard for proper alignment and clearance. Once positioned correctly, fully tighten all fasteners according to manufacturer's torque specifications (if available).
- Final Enspeksyon: Verify that the grille guard is securely mounted and does not interfere with any vehicle functions (e.g., headlights, turn signals, hood opening).
Videyo: Yon finiview of ARIES Grille Guards, highlighting features and different models. This video provides a general understanding of ARIES grille guard products.
Operating (General Use)
The ARIES Grille Guard is a passive protection accessory. Once installed, no specific "operation" is required. It functions to provide front-end protection for your vehicle against minor impacts and debris.
Antretyen
- Netwayaj: Regularly clean the polished stainless steel surface with a mild automotive soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Polisaj: To maintain the mirror-like shine, periodically polish the stainless steel with a non-abrasive metal polish designed for stainless steel.
- Enspeksyon: Periodically check all mounting hardware for tightness. Vibrations from driving can cause fasteners to loosen over time. Re-tighten as necessary.
- Tcheke domaj: Inspect the grille guard for any signs of damage, such as bends, cracks, or deep scratches, especially after off-road use or minor collisions.
Depanaj
Loose Grille Guard
sentòm: The grille guard feels loose or rattles during driving.
Solisyon: Inspect all mounting bolts and nuts. Re-tighten any loose fasteners. Ensure all washers and lock washers are correctly installed.
Corrosion/Discoloration
sentòm: The stainless steel surface shows signs of rust spots or discoloration.
Solisyon: While 304 stainless steel is highly corrosion-resistant, environmental factors can sometimes cause surface discoloration. Clean thoroughly with a stainless steel cleaner and polish. For persistent spots, consult a professional automotive detailer.
Espesifikasyon
| Atribi | Valè |
|---|---|
| Koulè | Nerjaveèi |
| Mak | ARIES |
| Dimansyon atik L x W x H | 84 x 40 x 26 pous |
| Kalite Sèvis Machin | Kamyon |
| Kalite enstalasyon | Boulon-sou |
| Klas pwodwi | New/Unused |
| Nimewo OEM Pati | 4076-2 |
| Nimewo Idantifikasyon Komès Mondyal la | 00812410014931 |
| Manifakti | ARIES |
| UPC | 812410014931 |
| Modèl | 4076-2 |
| Pwa atik | 0.16 ons |
| Dimansyon pwodwi | 84 x 40 x 26 pous |
| Nimewo modèl atik | 4076-2 |
| Se Manifakti sispann | Non |
| Eksteryè | Poli Nerjaveèi |
| Nimewo Pati Manifakti | 4076-2 |
| Pozisyon | Devan |
| Dat Premye Disponib | 3 septanm 2008 |
Garanti ak sipò
For specific warranty information regarding your ARIES 4076-2 Grille Guard, please refer to the warranty documentation included with your purchase or visit the official ARIES websit.
For technical support or assistance with installation, please contact ARIES customer service directly. Contact information can typically be found on the manufacturer's websit oswa anbalaj pwodwi a.
