The Behringer RACKTUNER BTR2000 is an ultra-flexible, auto-chromatic 2-channel tuner designed for rack mounting. It features an integrated metronome and racklights, making it a versatile tool for both studio and live setups. This manual provides detailed instructions for the setup, operation, and maintenance of your BTR2000.
Key functionalities include a built-in microphone for acoustic instruments, a metronome adjustable from 30 to 240 BPM with visual and audible indicators, and switchable high-power LED racklights for illuminating your rack gear. The BTR2000 offers 11 different tuner modes, including chromatic, guitar, bass, and various open tunings, based on 12 equally tempered tones. It supports manual or automatic A-tone standard pitch calibration from 428 Hz to 452 Hz, transposable by up to ±7 semitones for flexible tuning. The adjustable resolution of the LED bar allows for precise tuning.
The unit provides two separate input channels accessible via front and back connectors, with optional footswitch control. An additional 1/4'' TS output is available for metronome click or reference tone, ideal for monitoring and practice. It features true hardware bypass for signal integrity and a practical Mute function for direct signal muting during tuning, also controllable via an optional footswitch.
Enstalasyon ak Koneksyon
Before operating the BTR2000, ensure it is securely mounted in a standard 19-inch equipment rack or placed on a stable, flat surface. Connect the unit to a suitable AC power source using the provided power cable.
Koneksyon Front Panel

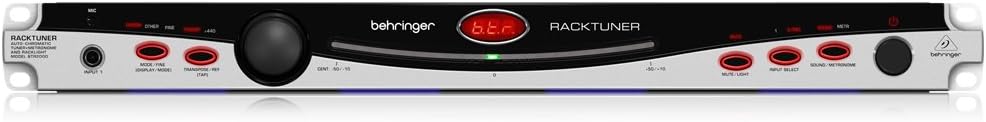

Figi 1: Panèl Devan anlèview. This image displays the front panel of the BTR2000, showing the main display, control knobs, and input/output jacks.
- INPUT 1 (1/4" TS Jack): Connect your instrument here for primary input.
- MIC: The built-in microphone is located on the front panel for tuning acoustic instruments.
- MODE/FINE Button: Used to select different tuner modes and fine-tune settings.
- TRANSPOSE/TAP Button: Adjusts transposition and activates the TAP tempo function for the metronome.
- MUTE/LIGHT Button: Mutes the output signal and controls the integrated racklights.
- INPUT SELECT Button: Toggles between input channels (front input, rear inputs, or microphone).
- SOUND/METRONOME Button: Activates the metronome and reference tone functions.
Koneksyon Panèl Dèyè
Figi 2: Panèl dèyè aview. This image shows the rear panel of the BTR2000, detailing the power input, additional instrument inputs, and footswitch/output jacks.
- ENTRE ENERGIS AC: Connect the supplied AC power cable here.
- INPUT 1 & 2 (1/4" TS Jacks): These provide alternative input channels for instruments. You can connect two instruments here and switch between them using the INPUT SELECT button or an optional footswitch.
- SOUND (1/4" TS Jack): Outputs the metronome click or reference tone. This is useful for monitoring or practice applications.
- MAIN (1/4" TS Jack): This is the primary audio output. It can output either the sounds generated by the BTR2000 (metronome/reference tone) and the instrument signal, or the instrument signal alone, depending on settings.
- MUTE (1/4" TS Jack): Connect an optional footswitch (e.g., BEHRINGER AB200 or FS112) to this jack to mute the MAIN output directly.
- SELECT (1/4" TS Jack): Connect an optional footswitch to this jack to toggle between INPUT 1 and INPUT 2/MIC inputs, or to activate/deactivate the metronome.
Operasyon
Fonksyon sentonizè
The BTR2000 offers various tuning modes to accommodate different instruments and preferences:
- Mòd sentonizè: Press the MODE/FINE button to cycle through 11 different tuning modes, including Chromatic, Guitar, Bass, Baritone, Banjo, Ukulele, Open D, Open E, Open G, Open A, and DADGAD. The selected mode will be displayed on the unit.
- Pitch Calibration: The standard "A" pitch can be calibrated from 428 Hz to 452 Hz in 1 Hz increments. This allows for precise tuning to match other instruments or specific orchestral requirements.
- Transpozisyon: The unit supports transposition by a maximum of ±7 semitones, providing flexibility for various musical contexts.
- Akor presizyon: The LED bar's resolution can be adjusted (5 Cent/LED vs. 1 Cent/LED) to enable precise tuning down to the cent, supporting user-defined tuning systems.
- Seleksyon Antre: Use the INPUT SELECT button to choose between the front 1/4" input, the rear 1/4" inputs (Input 1 or Input 2), or the built-in microphone for acoustic instruments.
- Fonksyon bèbè: The MUTE/LIGHT button or an optional footswitch can be used to mute the output signal during tuning, preventing unwanted sounds from being heard through your sound system.
Fonksyon Metronom
The BTR2000 includes a fully adjustable metronome:
- Aktivasyon: Press the SOUND/METRONOME button to activate the metronome.
- BPM Adjustment: Adjust the Beats Per Minute (BPM) from 30 to 240. The metronome provides both optical (visual display) and acoustic (audible click via SOUND output) indications of the beat.
- TAP Tempo: Use the TRANSPOSE/TAP button to manually set the tempo by tapping.
Integrated Racklights
The BTR2000 features integrated, switchable racklights with high-power LEDs:
- Aktivasyon: Press the MUTE/LIGHT button to toggle the racklights on or off. These lights provide illumination for your rack gear, offering better visibility in low-light environments.
Figi 3: Angle View with Racklights. This image shows the BTR2000 from an angled perspective, highlighting the illuminated racklights at the bottom of the unit.
Antretyen
To ensure the longevity and optimal performance of your Behringer BTR2000, follow these general maintenance guidelines:
- Netwayaj: Regularly wipe the unit with a soft, dry cloth. For stubborn dirt, a slightly damp Ou ka itilize twal, men asire w pa gen likid ki antre nan aparèy la. Evite pwodui netwayaj abrazif oswa solvan.
- Vantilasyon: Ensure proper ventilation around the unit, especially if rack-mounted, to prevent overheating. Do not block any ventilation openings.
- Depo: Lè w pa itilize aparèy la pou yon bon bout tan, sere l nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
- Jesyon kab: Keep cables organized and free from kinks or excessive tension to prevent damage to connectors and the unit.
There are no user-serviceable parts inside the BTR2000. Refer all servicing to qualified service personnel.
Depanaj
If you encounter issues with your BTR2000, refer to the following common troubleshooting steps:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Aparèy pa limen. | No power supply; faulty power cable; unit malfunction. | Check power cable connection. Ensure power outlet is active. Try a different power cable if available. If problem persists, contact support. |
| Tuner does not detect notes accurately. | Incorrect input selected; instrument signal too low; specific instrument frequency range (e.g., very low bass notes). | Ensure the correct input (front, rear, or MIC) is selected. Check instrument cable connections. For acoustic instruments, ensure sufficient volume for the built-in microphone. Some very low frequencies may be challenging for any tuner; try tuning an octave higher if possible. |
| Metronome sound is too low or absent. | Volume setting too low; incorrect output connection; external monitoring issue. | Ensure the metronome volume is set appropriately. Verify that the SOUND output is connected to an amplifier or monitoring system and that its volume is up. |
| Output signal is muted unexpectedly. | Mute function activated; faulty footswitch. | Press the MUTE/LIGHT button to deactivate mute. If using a footswitch, disconnect it to see if the issue resolves, indicating a potential footswitch problem. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Modèl | BTR2000 |
| Pwa atik | 4.85 liv |
| Dimansyon pwodwi | 22.13 x 7.24 x 4.41 pous |
| Mòd sentonizè | 11 (Chromatic, Guitar, Bass, Baritone, Banjo, Ukulele, Open D, Open E, Open G, Open A, DADGAD) |
| Pitch Calibration Range | 428 Hz to 452 Hz (1 Hz increments) |
| Transpozisyon | ± 7 semitones maximum |
| Metwonòm Tempo Range | 30 a 240 BPM |
| Antre | 2 x 1/4" TS (rear), 1 x 1/4" TS (front), Built-in Microphone |
| Sòti yo | 1 x 1/4" TS (MAIN), 1 x 1/4" TS (SOUND) |
| Kontwòl Footswitch | Mute, Input Select/Metronome (optional footswitches) |
| Racklights | Integrated, switchable high-power LEDs |
| Manifakti | Behringer USA |
| UPC | 713757155915 |
Garanti ak sipò
Behringer products are designed and manufactured to high standards. For detailed warranty information and support, please refer to the official Behringer websit la oubyen kontakte sèvis kliyan yo. Kenbe resi acha w la kòm prèv acha pou nenpòt reklamasyon garanti.
For technical assistance, product registration, or to find authorized service centers, visit the official Behringer support page. Regular updates and additional resources may also be available online.
