JET 6" x 89" Oscillating Edge Sander (Model OES-80CS) Instruction Manual

Entwodiksyon

The JET Oscillating Edge Sander, Model OES-80CS, is designed for precision and durability in woodworking applications. This machine is capable of edge, face, bevel, and contour sanding, offering robust performance for both large and fine work. It features a 1-1/2 HP motor and a 6 x 89 inch abrasive belt.

Karakteristik kle:

• Oscillating feature reduces heat build-up on sanding belt to reduce loading and burning, which increases belt life.
• Quick release lever and tracking control dial are conveniently located for replacing and tracking belts.
• Belt platen is made from precision-ground steel plate for strength and durability.
• Graphite covered platen runs cooler, increasing machine and belt life.
• Cast iron table moves up or down to provide exact workpiece positioning.
• Adjustable outer drum support table enables contour sanding.
• Tilting sanding head for sanding bevels, angles and flat surfaces.

Figure 1: JET 6" x 89" Oscillating Edge Sander, Model OES-80CS.

Enstalasyon ak Asanble

The JET OES-80CS requires assembly upon delivery. While the base is designed for single-person assembly, the main table and motor unit are heavy and may require two people or mechanical assistance for safe placement. Ensure all components listed in the packing list are present before beginning assembly.

• Assemble the steel enclosed base cabinet first, which provides support and storage.
• Carefully mount the table and motor unit onto the assembled base.
• Install the sanding belt, utilizing the quick release lever for ease of installation.
• Attach the drum guard and dust port.
• Connect the machine to a 115V power source, as it is pre-wired for this voltage. Conversion to 230V is possible if required, but should be performed by a qualified electrician.
• Adjust the belt tracking system using the included wrench to ensure proper belt alignment.

Figure 2: The sander features a convenient storage cabinet in its base.

Enstriksyon Operasyon

The OES-80CS is designed for versatile sanding operations. Always wear appropriate safety gear, including eye protection, when operating the machine.

Operasyon debaz:

• Limen/Etenyen: Use the simple, industrial-style push-button switch located on the front of the machine.
• Table Adjustment: The cast-iron table (30 x 10 inches) can be adjusted up and down for precise workpiece positioning. It also features a full-length miter slot for use with the included miter gauge.
• Sanding Belt Speed: The abrasive belt operates at 3900 SFPM (surface feet per minute), suitable for various wood species and grit types.
• Oscillating Action: The 1/2-inch stroke oscillates 108 times per minute, utilizing a larger belt area and reducing heat buildup, which extends belt life and prevents burning of the workpiece.

Advanced Sanding Techniques:

• Edge and Face Sanding: Position the workpiece against the belt and table for flat sanding.
• Bevel and Angle Sanding: The oscillating head can be tilted for sanding bevels, angles, or flat surfaces. This adjustment is made by releasing the pivot lever.
• Contour Sanding: Utilize the adjustable outer drum support table for sanding curves or profiles.

Figure 3: Key features of the Oscillating Edge Sander, including the sanding head, tension lever, platen, oscillation stroke, dust port, belt speed, cast iron table, and footprint.

Figure 4: The sanding head can be tilted for various angle and bevel sanding operations.

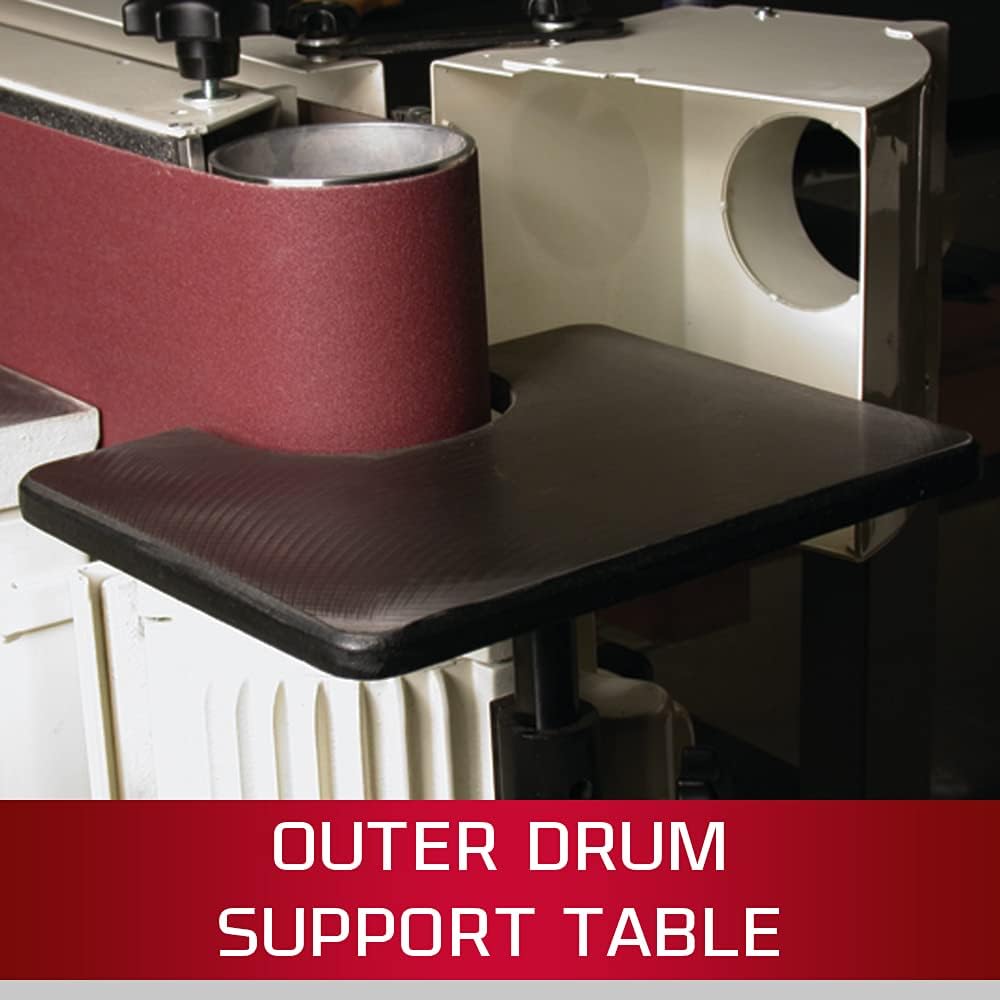

Figure 5: The outer drum support table facilitates contour sanding.

Antretyen

Regular maintenance ensures the longevity and optimal performance of your JET Oscillating Edge Sander.

• Ranplasman senti: The quick release lever makes changing the sanding belt fast and tool-free. Ensure the new belt is properly tracked using the tracking control dial.
• Koleksyon pousyè: The machine includes a 4-inch diameter dust port built into the hinged end of the belt guard. Connect a dust collector to this port to maintain a clean workspace and maximize efficiency. Effective dust collection is crucial for all edge sanders.
• Platen Care: The graphite-covered platen is designed to run cooler, extending machine and belt life. No waxing or special maintenance is required for the platen surface due to its low-friction coating.
• Netwayaj jeneral: Regularly clean sawdust and debris from the machine, especially around moving parts and the dust collection system.

Depanaj

This section addresses common issues you might encounter with your Oscillating Edge Sander.

• Deklanchman disjoncteurs: Si 20 la amp breaker trips frequently, especially during startup, consider converting the machine to 220V operation if your electrical system supports it. The machine is rated at 18-19 amps when pre-wired for 115V.
• Belt Tracking Issues: If the sanding belt is not tracking correctly, use the belt tracking control dial for adjustment. Ensure the quick release lever is fully engaged after belt changes.
• Suboptimal Dust Collection: Verify that the dust port is clear and properly connected to a sufficiently powerful dust collector. The belt guard system helps direct dust, but a strong vacuum is essential.
• Difficulty with Table Angle Adjustment: While the table can be adjusted for precise alignment, there is no specific "stop" for repeatable angle setups (e.g., 90 degrees). Use a reliable square for accurate angle setting.

Espesifikasyon

Garanti ak sipò

The JET 6" x 89" Oscillating Edge Sander (Model OES-80CS) is backed by a comprehensive warranty and support resources.

Enfòmasyon sou garanti:

The OES-80CS is covered by a 5-ane garanti for residential use. If used for commercial or industrial purposes, the warranty defaults to a 2-Year Warranty.

Figure 6: The JET OES-80CS comes with a 5-year warranty.

Lòt Resous:

• For detailed instructions and diagrams, please refer to the official Manyèl itilizatè (PDF).
• For further assistance or to purchase replacement parts, contact Jet customer support.
