1. Entwodiksyon
This manual provides essential instructions for the safe and proper installation, operation, and maintenance of your Blue Wave San Pedro 24-ft Round 52-in Deep Hard Sided Steel Wall Above Ground Pool. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper installation and maintenance are crucial for the longevity and safe use of your pool.
Image 1.1: The Blue Wave San Pedro 24-ft Round Above Ground Pool, showcasing its design and size in a backyard setting. This pool is designed for family recreation.
2. Enfòmasyon sou Sekirite
AVÈTISMAN: Si w pa suiv enstriksyon sekirite sa yo, sa ka lakòz blesi grav oswa lanmò.
- Sipèvizyon granmoun: Always provide active adult supervision to prevent drowning, especially for children.
- No Diving or Jumping: This is an above-ground pool. Its depth is not suitable for diving or jumping. Serious injury, paralysis, or death can occur.
- Fencing and Barriers: Install appropriate fencing or barriers around the pool to prevent unsupervised access by children and pets. Check local regulations for specific requirements.
- Sekirite elektrik: Ensure all electrical equipment (pumps, filters, lighting) is installed by a qualified electrician and complies with local codes. Use Ground Fault Circuit Interrupters (GFCIs).
- Manyen chimik: Handle pool chemicals according to manufacturer instructions. Store chemicals in a secure, dry place away from children and pets. Never mix different chemicals.
- Emergency Equipment: Keep rescue equipment (e.g., life ring, shepherd's hook) readily accessible near the pool.
- Premye Swen: Have a first aid kit available and know how to perform CPR.
- Clear Deck Area: Keep the pool deck and surrounding area clear of toys, furniture, and other obstructions to prevent tripping hazards.
3. Pake kontni
The Blue Wave San Pedro pool package includes the following components:
- Steel Pool Structure Components (walls, uprights, top seats, resin top caps)
- Standard-Gauge Blue Overlap Vinyl Liner
- Widemouth Leaf Skimmer
- Manyèl Enstriksyon
Nòt: Additional accessories such as the pool pump, sand filter system, and ladder are vann separeman and are required for full operation.

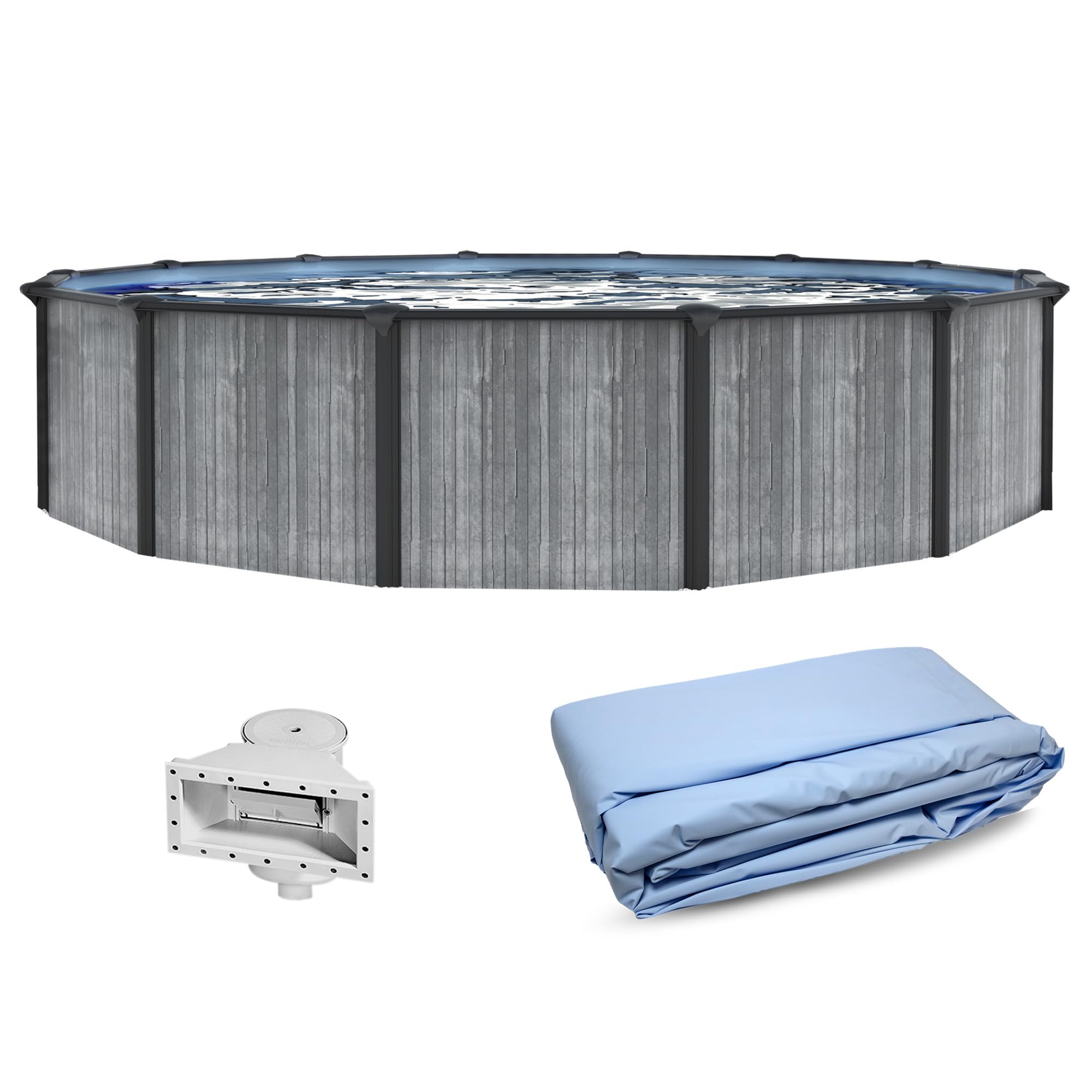

Image 3.1: Visual representation of components included in the pool kit (widemouth skimmer, overlap liner) and items typically sold separately (pump, sand filter, A-frame ladder).
4. Preparasyon sit
Proper site preparation is critical for the stability, safety, and longevity of your above-ground pool.
- Tè plat: The pool must be installed on a perfectly level, firm, and properly prepared ground surface. Uneven ground can cause structural stress, liner damage, and potential collapse.
- Zòn klè: Choose a location free from overhead power lines, underground pipes, and tree roots. Ensure adequate clearance around the pool for maintenance and safety.
- Drenaj: Select a site with good drainage to prevent water accumulation around the pool base.
- Limyè solèy la: Consider sunlight exposure for water warming and reduced chemical use.
- Fondasyon: Prepare a solid foundation. This may involve removing sod, leveling the soil, and adding a layer of sand or crushed stone for cushioning and stability.
5. Assembly and Setup Instructions
Assembly of the Blue Wave San Pedro pool typically takes one to two days with two to three helpers. Professional installation is recommended.
- Depake epi òganize: Carefully unpack all components and verify against the package contents list. Organize parts for easy access.
- Bottom Track Assembly: Assemble the bottom track system on your prepared, level site according to the detailed diagrams in the full assembly guide.
- Enstalasyon mi: Erect the galvanized steel wall into the bottom track. The wall features a triple-layer rust resistance system: a hot-dip galvanized steel core, a zinc-aluminum coating, and a protective enamel top coat for multi-season durability. Secure the wall ends as instructed.
- Upright and Top Seat Installation: Install the 5-inch steel verticals and 6-inch steel top seats. These components are engineered for lasting strength and help maintain frame alignment and provide reliable stability. Secure the resin top caps over the structural joints.
- Enstalasyon revètman: Carefully install the standard-gauge blue overlap vinyl liner. Ensure it is centered and smooth, with no wrinkles. Begin filling the pool slowly, smoothing out any remaining wrinkles as the water level rises.
- Enstalasyon Skimmer: Install the widemouth leaf skimmer according to the instructions provided with the skimmer unit.
- Connect Filtration System: Once the pool is filled to the appropriate level, connect your separately purchased pump and filter system. Follow the manufacturer's instructions for these components.
- Enstale nechèl la: Securely install your pool ladder according to its manufacturer's instructions.
Image 5.1: Cross-section diagram detailing the three layers of rust and corrosion defense in the pool's steel wall construction.
Image 5.2: Detail showing the reinforced 6-inch top seats and 5-inch steel verticals, crucial for the pool's structural integrity.
6. Operasyon Enstriksyon
- Ranpli Inisyal: Fill the pool to the recommended water level, typically halfway up the skimmer opening.
- Chimi dlo: Test the water chemistry daily or as needed. Maintain proper pH, alkalinity, and sanitizer levels (e.g., chlorine) to ensure safe and clean swimming conditions. Consult a pool chemical guide for specific ranges.
- Filtrasyon: Operate your pump and filter system for at least 8-12 hours daily to ensure proper water circulation and filtration.
- Ekremaj: Use the widemouth skimmer to remove leaves and debris from the water surface regularly.
7. Antretyen
- Netwayaj regilye: Vacuum the pool floor and brush the walls weekly to prevent algae growth and remove debris.
- Antretyen filtè: Backwash or clean your filter according to its manufacturer's instructions to maintain optimal filtration performance.
- Enspeksyon revètman: Periodically inspect the vinyl liner for any tears, punctures, or signs of wear. Address minor repairs promptly to prevent larger issues. The overlap liner design allows for easy replacement when needed.
- Structure Inspection: Annually inspect the steel wall, uprights, and top seats for any signs of rust, corrosion, or damage.
- Winterization (Cold Climates): In cold climates, proper winterization is essential. This typically involves lowering the water level, draining equipment, adding winterizing chemicals, and installing a winter cover. Consult a local pool professional for specific winterization procedures for your region.
NAN. Depanaj
This section addresses common issues you might encounter with your above-ground pool.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Dlo twoub | Poor filtration, improper chemical balance, high organic load | Check filter, adjust water chemistry (pH, sanitizer), shock treat the pool, run filter longer. |
| Kwasans alg | Low sanitizer levels, poor circulation | Brush walls, shock treat with algaecide, ensure proper filtration. |
| Water Level Drop | Evaporation, leak in liner or plumbing | Monitor evaporation; if excessive, inspect liner and plumbing for leaks. Contact a professional if a leak is suspected. |
| Ponp pa Priming | Air leak, low water level, clogged skimmer/strainer | Check water level, inspect for air leaks in plumbing, clean skimmer basket and pump strainer. |
9. Espesifikasyon
- Nimewo Modèl: NB7029
- Fòm: Round
- Dimansyon: 24-ft Diameter (288 inches L x 288 inches W), 52-inch Wall Height
- Kapasite: Apeprè 12,600 galon
- Materyèl: Galvanized Steel (wall), Vinyl (liner)
- Konstriksyon mi: Hard-sided steel wall with triple-layer rust and corrosion defense (Hot-Dip Galvanized Steel Core, Zinc Aluminum Coating, Protective Enamel Top Coat)
- Top Seats: 6-inch Steel
- Verticals: 5-inch Steel
- Eleman ki enkli: Pool structure, vinyl liner, widemouth skimmer
- Asanble obligatwa: Wi
- Itilizasyon anndan/deyò: Deyò
10. Garanti ak sipò
Your Blue Wave San Pedro Above Ground Pool structure is backed by a 15-ane garanti limite. This warranty covers defects in materials and workmanship of the pool structure under normal use and service, when properly installed and maintained.
Image 10.1: Visual representation of the 15-year limited warranty, highlighting Blue Wave's industry experience and commitment to quality.
For warranty claims, technical support, or to purchase replacement parts, please contact Blue Wave customer service. Refer to the contact information provided on the Blue Wave websit la oswa dokiman acha ou a.
Pwodwi Blue Wave has over 33 years of experience in the pool industry, ensuring dependable support for your product.
