ARZOPA 15.6" Dual Portable Monitor Instruction Manual

1. Entwodiksyon

This manual provides detailed instructions for the ARZOPA 15.6" Dual Portable Monitor. This device is designed to extend your laptop's display, offering a versatile and portable solution for enhanced productivity and entertainment. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its lifespan.

ARZOPA 15.6 inch Dual Portable Monitor showing two screens with vibrant display

Image: The ARZOPA 15.6" Dual Portable Monitor, showcasing its dual-screen setup with vibrant visuals and key display specifications like Low Blue Light, 16.7 Million Colors, 300 cd/m² brightness, HDR10+, 100% sRGB, and 1200:1 Contrast Ratio.

2. Pwodwi Features

15.6" FHD IPS Dual Display: Features two 1080P Full HD screens with 100% sRGB color gamut and HDR technology, providing vivid, true-to-life colors and wide viewing angles. The flicker-free design helps reduce eye strain during extended use.
Foldable and Stackable Design: An integrated structure allows for easy folding and stacking, making it slim and highly portable for travel and on-the-go use.
Kickstand reglabl: Equipped with a sturdy kickstand that allows for 315° free screen adjustment and an 80° tilt, accommodating various viewing and usage needs without requiring additional setup.
Plug & Play Connectivity: Offers universal USB-C and HDMI dual interfaces for direct connection and stable signal transmission. No drivers are required for most operating systems (except MacOS, which may require a driver).
Premium PU Sleeve Bag: Includes a water-resistant PU leather sleeve with a soft lining to protect the portable monitor from scratches, water, and dust.

3. Ki sa ki nan bwat la

Carefully unpack the box and ensure all items listed below are present and in good condition.

Contents of the ARZOPA Dual Portable Monitor box

Image: A visual representation of the items included in the product package. It shows the dual portable monitor, a USB-C to USB-C Cable (Data), a USB-C to USB-C Cable (Power), a PD30W Charger, a USB-C to USB-A Adapter, and a Mini HDMI to HDMI Cable.

ARZOPA 15.6" Dual Portable Monitor
USB-C to USB-C Cable (Data)
USB-C to USB-C Cable (Power)
PD30W Charger
USB-C pou USB-A adaptè
Mini HDMI kab HDMI
PU Sleeve Bag

4. Gid Enstalasyon

4.1 Konekte monitè a

The ARZOPA Dual Portable Monitor supports both USB-C and HDMI connections for video and power. Ensure your device has compatible ports.

USB-C Connection (Full Functionality): If your laptop or device has a full-featured USB-C port (supporting DisplayPort Alternate Mode and power delivery), connect one end of the USB-C to USB-C cable to your device and the other end to the monitor's USB-C port. This single cable can transmit video, audio, and power.
Koneksyon HDMI: Connect the Mini HDMI to HDMI cable from your device's HDMI port to the monitor's Mini HDMI port. For power, connect the USB-C to USB-C (Power) cable from the monitor's USB-C port to the PD30W charger or a powered USB-A port using the USB-C to USB-A adapter.
Pwovizyon pou pouvwa: If your device cannot provide sufficient power via USB-C, or if using HDMI, connect the monitor to the included PD30W charger using the USB-C to USB-C (Power) cable.

4.2 Enstalasyon chofè

The monitor is generally Plug & Play for most operating systems. However, for MacOS, a specific driver may be required for optimal functionality. Please refer to the ARZOPA official website for the latest driver downloads if necessary.

4.3 Montre mòd

The monitor supports various display modes to suit your workflow.

Diagram showing Extended, Mirror, and Splice display modes

Image: This diagram illustrates three display modes: Mòd pwolonje, where the dual monitors expand the desktop horizontally; Mode glas, where the dual monitors duplicate the laptop's display; and Mòd épissure, where the dual monitors are stacked vertically to expand the screen.

Pwolonje mòd: Expands your desktop across multiple screens, allowing for more workspace.
Mòd glas: Duplicates your primary display onto the portable monitors, useful for presentations.
Splice Mode: Expands your screen vertically by stacking the monitors, ideal for specific applications requiring vertical screen space.

You can typically configure these display settings through your operating system's display settings (e.g., Windows Display Settings, macOS System Preferences > Displays).

5. Operasyon Enstriksyon

5.1 Ajiste Pozisyon Monitè a

The integrated kickstand allows for flexible positioning of the dual monitors.

ARZOPA Dual Portable Monitor with adjustable kickstand

Image: The ARZOPA Dual Portable Monitor demonstrating its stable adjustable kickstand. It shows the screens rotated up to 315 degrees and the kickstand tilted up to 80 degrees, allowing for various viewing angles and configurations.

Wotasyon ekran: The screens can be rotated up to 315° to achieve your desired viewang ang.
Kickstand Tilt: The sturdy kickstand can be adjusted from 0° to 80° to provide stable support and ergonomic viewing.

Gently adjust the screens and kickstand to avoid damage. Do not force movements beyond the specified ranges.

5.2 Meni OSD (On-Screen Display).

The monitor features an OSD menu for adjusting display settings such as brightness, contrast, color temperature, and input source. Refer to the specific button layout on your monitor for navigation instructions.

6. Aparèy konpatibilite

The ARZOPA Dual Portable Monitor is designed for broad compatibility with various devices.

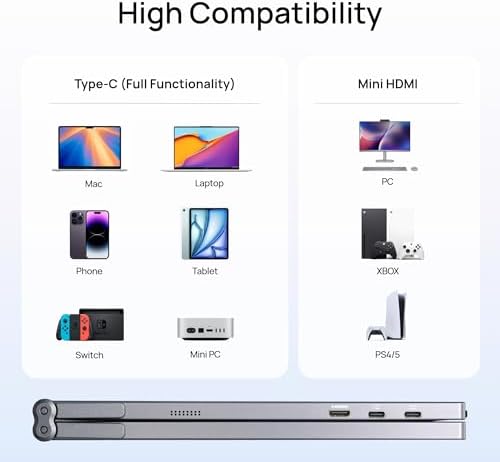

Compatibility chart for ARZOPA Dual Portable Monitor

Image: A compatibility chart illustrating various devices that can connect to the ARZOPA Dual Portable Monitor. It shows compatibility with Mac, Laptops, Phones, Tablets, PCs, Xbox, Nintendo Switch, Mini PCs, and PlayStation 4/5, via Type-C (Full Functionality) or Mini HDMI ports.

Type-C (Full Functionality): Compatible with Mac, Laptops, Phones, Tablets, Nintendo Switch, and Mini PCs that support DisplayPort Alternate Mode and power delivery via USB-C.
Mini HDMI: Compatible with PCs, Xbox consoles, and PlayStation 4/5.

Ensure your device has the necessary ports and supports the required video output protocols for optimal performance.

7. Antretyen ak Swen

7.1 Netwaye monitè a

Toujou etenn epi debranche monitè a anvan ou netwaye li.
Sèvi ak yon ti moso twal mou, ki san pèl damplave avèk dlo oswa yon pwodui netwayaj ekran ki pa abrazif.
Pa flite pwodui netwayaj la dirèkteman sou ekran an. Aplike l sou twal la anvan.
Avoid using harsh chemicals, alcohol, or abrasive materials, as these can damage the screen and casing.

7.2 Caring for the PU Sleeve Bag

The included PU sleeve bag is designed to protect your monitor during transport and storage.

ARZOPA PU sleeve bag for portable monitor

Image: The ARZOPA PU sleeve bag, designed to fit various devices including iPads, MacBooks, notebooks, laptops, and portable monitors, providing protective storage.

Imaj: Yon gwo plan view of the ARZOPA PU leather storage bag's interior, highlighting its soft interlayer design for enhanced protection and additional storage space.

Keep the sleeve clean and dry. Wipe with a damp twal si sa nesesè.
Avoid exposing the sleeve to extreme temperatures or direct sunlight for prolonged periods.
Ensure the monitor is securely placed inside the sleeve with the tight closure to prevent it from slipping out.

NAN. Depanaj

If you encounter issues with your ARZOPA Dual Portable Monitor, refer to the following common problems and solutions.

Pwoblèm	Kòz posib	Solisyon
Pa gen ekspozisyon/Ekran nwa	Pa gen kouran oswa kouran ki pa ase. Sous opinyon ki pa kòrèk la chwazi. Koneksyon kab defo.	Ensure the monitor is connected to a power source (PD30W charger or full-featured USB-C port). Check if the correct input source (USB-C or HDMI) is selected in the OSD menu. Verify all cables are securely connected. Try a different cable if available.
Ekran k ap flache	Ekipman kouran enstab. Cable interference.	Ensure a stable power supply. Use the included PD30W charger. Try a different cable or ensure cables are not near strong electromagnetic sources.
Pa gen son	Monitor volume too low or muted. Incorrect audio output selected on the source device.	Adjust the volume via the OSD menu. Check your device's audio settings to ensure the monitor is selected as the output device.
Mesaj "Pa gen siyal"	No video input detected. Incorrect input source.	Ensure your source device is powered on and outputting video. Select the correct input source (USB-C or HDMI) on the monitor.

9. Spécifications pwodwi

Karakteristik	Detay
Mak	ARZOPA
Gwosè ekran	15.6 pous (chak ekran)
Rezolisyon	FHD 1080p (1920 x 1080)
Aspè rapò	16:9
Rafrechisman pousantaj	60 Hz
Teknoloji ekspozisyon	IPS LCD
Gamut koulè	100% sRGB
Picture Quality Enhancement	HDR, Wide Color Gamut, Flicker-Free
Koneksyon	HDMI, USB Kalite C
Number of Component Outputs	2 (referring to the dual screens)

10. Garanti ak sipò

ARZOPA products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please visit the official ARZOPA websit la oubyen kontakte sèvis kliyan yo dirèkteman. Kenbe resi acha w la kòm prèv acha pou reklamasyon garanti.

ARZOPA Official Websit: ARZOPA Store on Amazon (This link directs to the brand's Amazon store page, which often contains links to official support or contact information).
