1. Enstriksyon Sekirite Enpòtan
Read all instructions carefully before operating the grass trimmer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Sekirite Pèsonèl: Always wear eye protection, long pants, and sturdy footwear when operating the trimmer. Do not operate when barefoot or wearing open-toed sandals.
- Sekirite Zòn Travay: Keep the work area clean and well-lit. Remove all debris, rocks, wires, or other objects that could be thrown by the blade. Keep bystanders, children, and pets at least 15 meters (50 feet) away from the operating area.
- Sekirite elektrik: This is a battery-powered tool. Use only the specified battery pack and charger. Do not expose the battery pack or tool to rain or wet conditions.
- Itilizasyon zouti ak swen: Do not force the tool. Use the correct tool for your application. Maintain the tool with care. Keep cutting blades sharp and clean for better and safer performance.
- Sekirite batri: Do not incinerate the battery pack even if it is severely damaged or completely worn out. The battery can explode in a fire.
2. Pake kontni
Verify that all items listed below are included in your package. If any parts are missing or damaged, contact SEYVUM customer service.
- SEYVUM Grass Trimmer Unit (MJ8604)

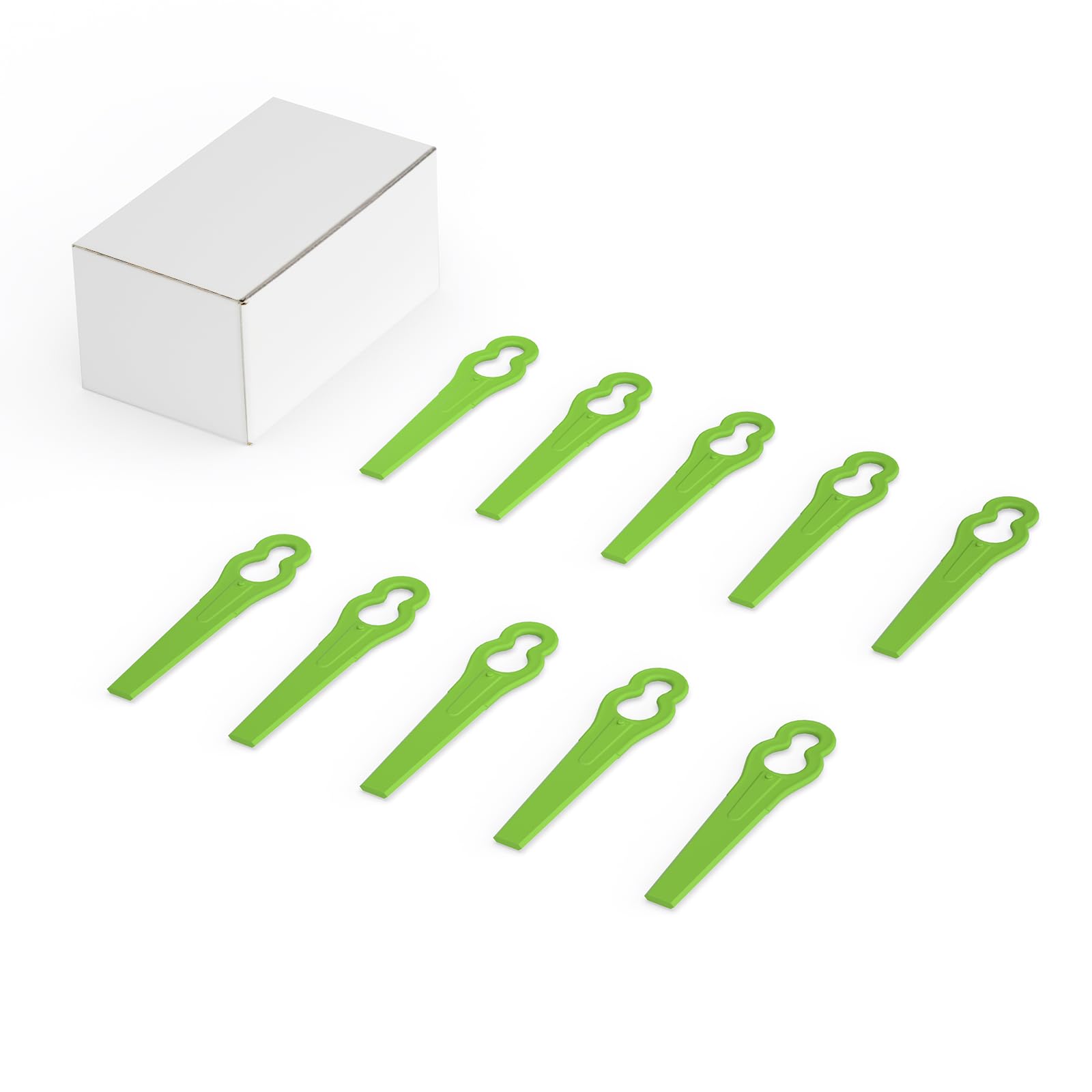

- Plastic Blades (pre-installed or separate)
- Gad Sekirite
- Manch oksilyè
- Battery Pack (if included in kit)
- Battery Charger (if included in kit)
- Manyèl itilizatè
3. Enstalasyon ak Asanble
The SEYVUM MJ8604 grass trimmer requires minor assembly before first use. Ensure the battery is removed before assembly.
- Attach the Safety Guard: Align the safety guard with the mounting slots on the trimmer head. Secure it firmly using the provided screws or clips. Ensure it is properly seated and does not wobble.
- Enstale manch oksilyè a: Slide the auxiliary handle onto the main shaft. Adjust its position for comfortable operation and tighten the locking mechanism or screws.
- Insert Plastic Blades: If not pre-installed, carefully attach the plastic blades to the trimmer head according to the diagram. Ensure they click into place securely.
Image: SEYVUM MJ8604 Grass Trimmer with safety guard and handle attached. This image shows the fully assembled trimmer, highlighting the main unit, safety guard, and auxiliary handle.
4. Operasyon Enstriksyon
Follow these steps for safe and effective operation of your SEYVUM MJ8604 grass trimmer.
- Chaje batri a: Before first use, fully charge the battery pack using the provided charger. Refer to the charger's instructions for charging times.
- Mete batri a: Once charged, slide the battery pack into the battery compartment on the trimmer until it clicks into place. Ensure it is firmly seated.
- Kòmanse Trimmer la: Hold the trimmer firmly with both hands. Press the safety lock-off button (if present) and then squeeze the trigger switch to start the motor.
- Teknik pou koupe: Move the trimmer in a sweeping motion, keeping the cutting head slightly above the ground. Avoid hitting hard objects or thick brush to prevent blade damage.
- Kijan pou kanpe kouto a: Release the trigger switch to stop the motor. Always remove the battery pack when not in use or before performing any maintenance.
5. Antretyen
Regular maintenance ensures optimal performance and extends the life of your SEYVUM MJ8604 grass trimmer.
- Netwayaj: After each use, remove the battery and clean the trimmer head and safety guard with a dry cloth or soft brush. Remove any grass clippings or debris. Do not use water or solvents.
- Ranplasman lam: Inspect plastic blades regularly for wear or damage. Replace worn blades promptly to maintain cutting efficiency. Refer to the diagram for proper blade replacement.
- Swen batri: Store the battery pack in a cool, dry place away from direct sunlight. Do not store the battery in a discharged state for extended periods.
- Depo: Store the trimmer in a dry, secure location out of reach of children.
NAN. Depanaj
If you encounter issues with your SEYVUM MJ8604 grass trimmer, refer to the following table for common problems and solutions.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Trimmer pa kòmanse | Battery not charged or improperly inserted; Safety lock-off not engaged; Faulty switch | Charge battery and reinsert; Ensure safety lock-off is pressed before trigger; Contact customer service |
| Pèfòmans koupe pòv | Worn or damaged blades; Grass too thick; Trimmer head clogged | Replace plastic blades; Trim in smaller passes; Clean trimmer head |
| Twòp Vibration | Damaged blade; Loose components | Inspect and replace blade; Check all fasteners for tightness |
7. Espesifikasyon
Technical specifications for the SEYVUM MJ8604 Grass Trimmer.
- Mak: SEYVUM
- Modèl: MJ8604
- Sous pouvwa: Ki mache ak pil
- Koulè: Vèt
- Koupe Lajè: 10 pous
- Dimansyon pwodwi (L x W): 9.1 cm x 5.5 cm
- San fil: Wi
- Asanble obligatwa: Wi
- Itilizasyon Rekòmande: Koupe
8. Garanti ak sipò
SEYVUM products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or visit the official SEYVUM websit la. Kenbe resi acha ou kòm prèv acha.
For further assistance, please contact SEYVUM customer service through the contact information provided on our websit la oubyen nan dokimantasyon pwodwi ou a.
