EUHOMY IM046-S 2-Inch Ice Ball Maker Instruction Manual

1. Enfòmasyon enpòtan sou sekirite

Please read all instructions carefully before operating the appliance. Retain this manual for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury.

• Asire w ke aparèy la konekte ak yon priz kouran ki byen konekte ak tè a.
• Pa plonje fil elektrik la, ploge, oswa aparèy nan dlo oswa lòt likid.
• Deploge aparèy la anvan w netwaye oswa lè w pa itilize li.
• Pa opere aparèy la ak yon kòd oswa ploge ki domaje.
• Kenbe aparèy la lwen sous chalè ak limyè solèy la dirèk.
• Aparèy sa a se pou itilize nan kay la sèlman.

2. Pwodwi souview

The EUHOMY IM046-S is a countertop ice ball maker designed to produce crystal-clear, slow-melting 2-inch ice spheres. It features a self-cleaning function and offers both manual and automatic water refill options.

Imaj 2.1: Devan view of the EUHOMY IM046-S Ice Ball Maker, showcasing its compact design and the ice spheres inside.

3. Enstalasyon

3.1 Debake

• Retire machin glas la nan anbalaj li avèk prekosyon.
• Check that all included components are present: Ice Maker Machine, Inlet Pipe, Instruction Manual, Ice Clamp.
• Remove any protective film or tape from the appliance.

3.2 Plasman

Place the ice maker on a stable, level surface away from direct sunlight and heat sources. Ensure there is adequate ventilation around the unit. The product dimensions are 17.6"D x 12.6"W x 17.9"H.

Image 3.1: Product dimensions (Length: 12.6 in, Width: 17.6 in, Height: 17.9 in) and key specifications.

3.3 Ranpli Dlo

Machin glas la ofri de metòd pou ajoute dlo:

• Ranpli manyèl: Open the water inlet cover and pour clean drinking water directly into the reservoir.
• Auto Refill: Connect the provided inlet pipe to a water line for continuous water supply.

Image 3.2: Illustration of the two water filling methods: manual pour and automatic water line connection.

3.4 Netwayaj Premye

Before first use, perform a self-cleaning cycle. Refer to the 'Maintenance' section for detailed instructions on using the self-cleaning function.

4. Operasyon Enstriksyon

4.1 Kontwòl Panel

The ice maker features an intuitive touch control panel. Familiarize yourself with the buttons and indicators:

• Bouton pouvwa: Limen oswa etenn aparèy la.
• Netwaye bouton: Li kòmanse sik oto-netwayaj la.
• Dlo Shortage Alèt: Indicates when the water reservoir needs refilling.
• Door Alert: Indicates if the door is not properly closed.
• Ice Making Progress Bar: Montre s aktyèl latage of the ice production cycle.
• Breathing Indicator Light: Provides visual feedback on the machine's status.

Imaj 4.1: Detaye view of the easy touch controls and indicators on the ice maker's display panel.

4.2 Fè Glas

1. Asire w ke rezèvwa dlo a plen.
2. Peze a Bouton pouvwa (right side) to turn on the machine.
3. The ice maker will automatically begin the ice production cycle. Four 2-inch ice balls are typically ready in approximately 40 minutes.
4. The machine will continue to produce ice until the ice storage capacity is reached or the water level is low.

4.3 Depo Glas

The ice maker has a storage capacity of approximately 30-40 ice balls. The machine is designed to keep ice cold longer through adaptive cooling and high-density PU foam insulation, but it is not a freezer. For long-term storage, transfer ice balls to a freezer.

Image 4.2: The ice maker's large storage capacity, ideal for continuous ice supply.

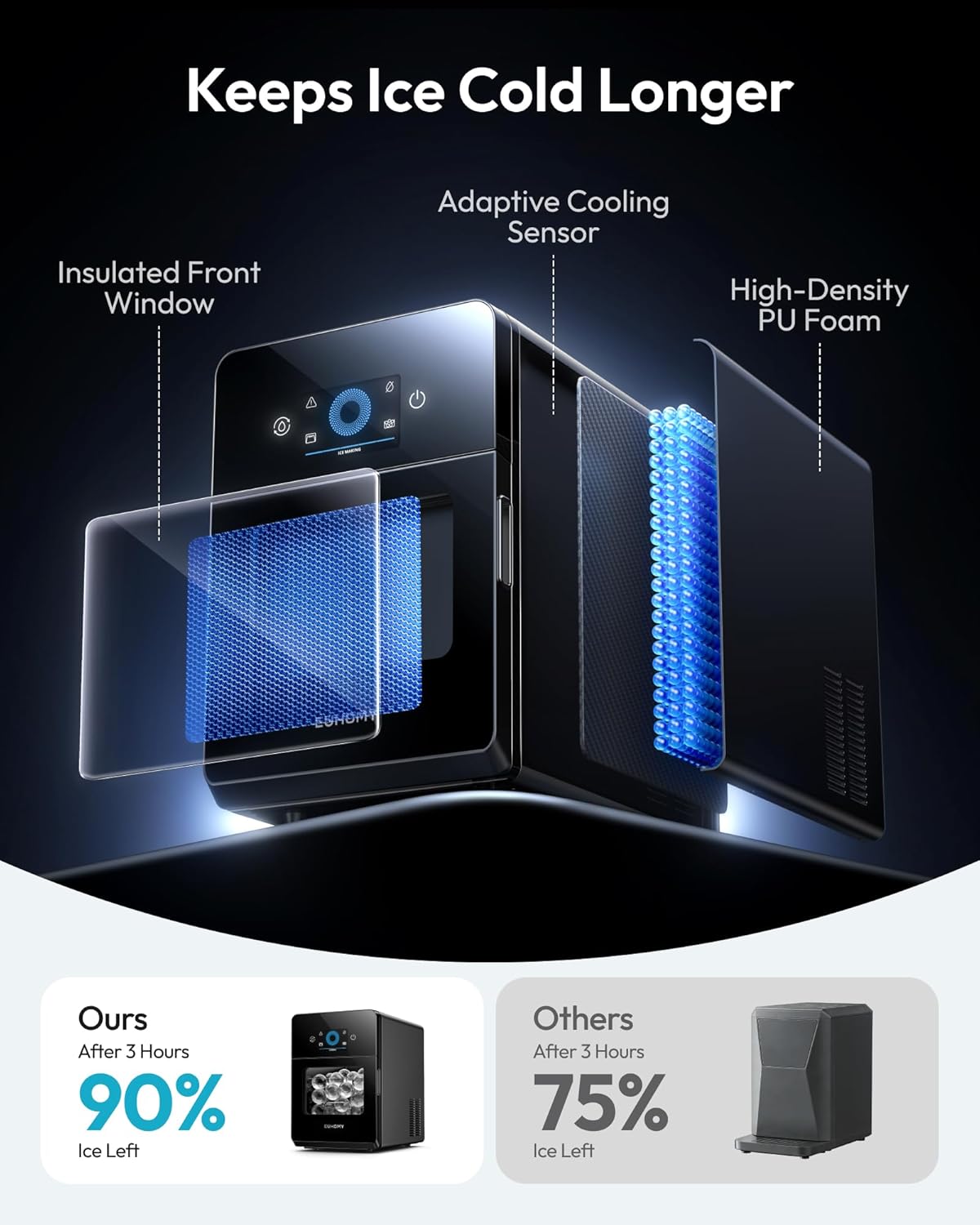

Image 4.3: Internal components demonstrating how the ice maker keeps ice cold longer, including insulation and cooling sensor.

4.4 Water Quality for Clear Ice

The clarity of the ice balls can be influenced by the quality of the water used. For best results and crystal-clear ice, distilled water is recommended. Filtered water also produces good results, while tap water may result in cloudier ice with more bubbles.

Image 4.4: Visual guide to ice clarity based on the Total Dissolved Solids (TDS) level in water, recommending distilled water for optimal results.

Image 4.5: Illustration demonstrating how the 2-inch clear ice spheres melt slower than standard ice cubes, preserving drink flavor.

5. Antretyen

5.1 Fonksyon Oto-Netwayaj

The ice maker is equipped with an automatic deep cleaning system:

1. Asire w ke rezèvwa dlo a plen ak dlo pwòp.
2. Peze epi kenbe la Netwaye bouton (left side) for 5 seconds to initiate the thorough cleaning cycle.
3. The machine will perform a cleaning process, circulating water to remove impurities.
4. Once the cleaning cycle is complete, drain the water as described in section 5.2.

Image 5.1: The self-cleaning feature in action, ensuring hygienic ice production without manual scrubbing.

5.2 Vide Dlo

To drain water from the appliance:

1. Locate the front-edge drain port at the bottom of the unit.
2. Place a container under the drain port.
3. Retire bouchon drenaj la pou kite dlo a koule soti.
4. Yon fwa dlo a fin vide, remete bouchon drenaj la byen fèm.

Image 5.2: The convenient front-edge drain port for easy water removal without lifting the machine.

5.3 Netwayaj jeneral

Regularly wipe the exterior of the appliance with a soft, damp cloth. For the interior, in addition to the self-cleaning function, periodically wipe down surfaces with a mild detergent solution and rinse thoroughly. Ensure the appliance is unplugged before any manual cleaning.

NAN. Depanaj

If you encounter issues with your EUHOMY IM046-S ice ball maker, refer to the following common problems and solutions:

Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, tanpri kontakte sèvis kliyan.

7. Espesifikasyon

8. Garanti ak sipò

This EUHOMY ice ball maker comes with a 1 Ane Manifakti Garanti. For warranty claims, technical support, or any questions regarding the operation or maintenance of your appliance, please contact EUHOMY customer service. Refer to the contact information provided in the packaging or on the official EUHOMY websit.
