Entwodiksyon
Thank you for choosing the KRIB BLING Full-Automatic Washing Machine. This compact and portable washing machine is designed for convenience in apartments, RVs, camping, and other small living spaces. It features 10 preset wash programs and 8 water level selections to cater to various laundry needs. This manual provides essential information for safe operation, installation, maintenance, and troubleshooting.

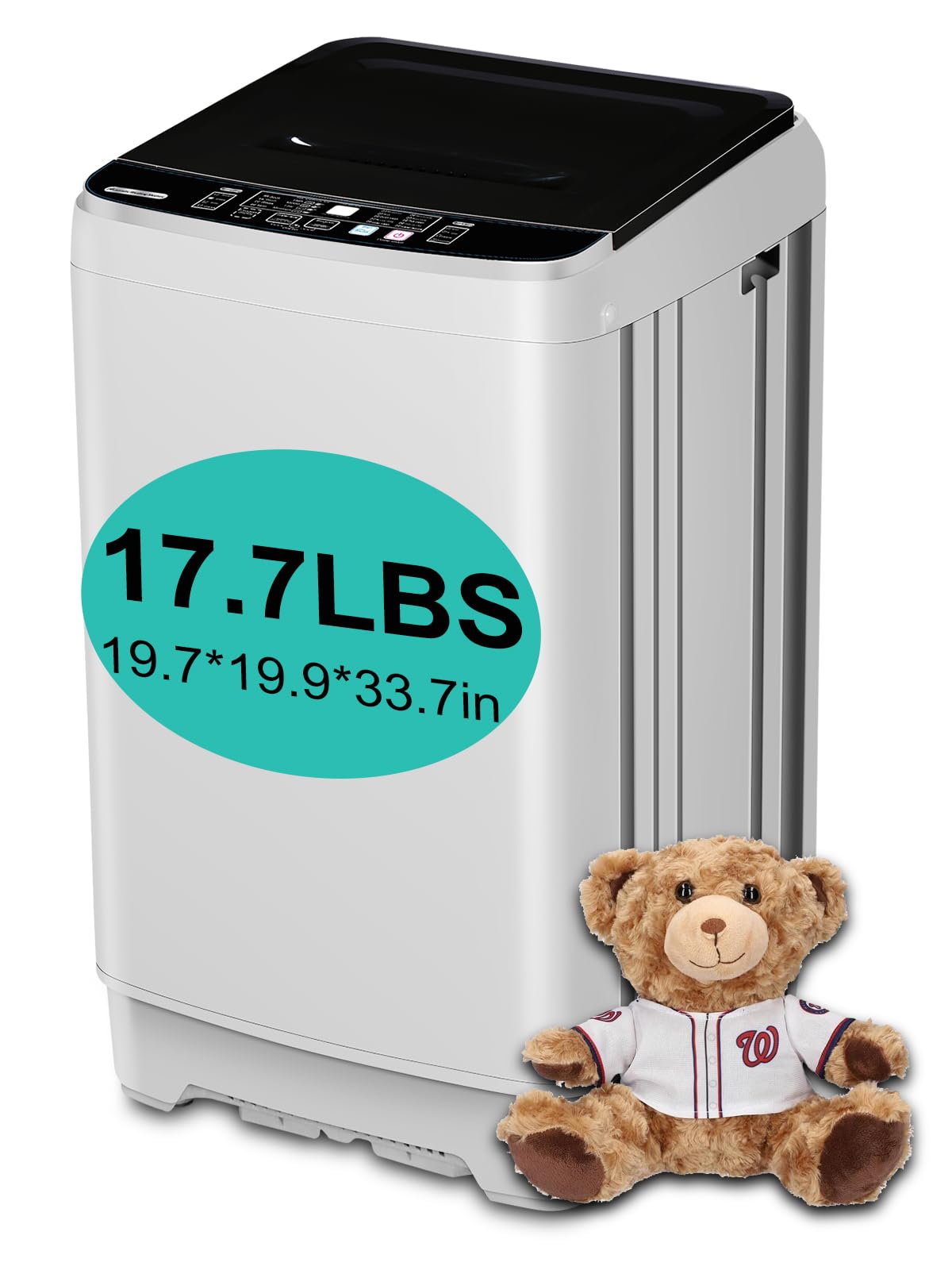

Figure 1: KRIB BLING Full-Automatic Washing Machine
Enfòmasyon sou Sekirite
- Do not use water at a temperature exceeding 50°C (122°F).
- Ensure the washing machine is plugged into a dedicated socket; do not share with other appliances.
- Always check connections of inlet and drain pipes before operation.
- Clothing with colors that may bleed should be washed separately.
- Keep children away from the appliance during operation. The machine includes a child lock feature for safety.
- If the water level is below the minimum, the impeller may stop running.
- All products are fully inspected; minor water stains or residual water may be present, which is normal for a new product.
Figure 2: Child Lock Feature for Safety
Ki sa ki nan bwat la
Lè w ap debale, tanpri asire w ke tout konpozan sa yo prezan:
- KRIB BLING Full-Automatic Washing Machine
- Kouvri
- Ranpli kawotchou
- Kawoutchou D '
- Venting Duct
Enstalasyon
Follow these steps to set up your washing machine:
- Connect the Water Inlet Pipe: Attach the water inlet pipe securely to the designated inlet on the washing machine.
- Konekte ak Tap: Connect the other end of the inlet pipe to a water tap. Ensure the connection is tight to prevent leaks, then turn on the tap.
- Koneksyon pouvwa: Plug the washing machine into a grounded electrical socket. Avoid using extension cords or sharing the socket with other high-power appliances.
- Mete tiyo drenaj la an plas: Place the drain hose into a suitable drainage area. The machine features a built-in drain pump.
- Nivelman: Ensure the washing machine is placed on a flat, stable surface to prevent excessive vibration during operation.
Enstriksyon Operasyon
The KRIB BLING washing machine offers 10 preset programs and 8 water level selections for optimal washing performance.
Kontwòl Panel Plis paseview
Figure 3: Control Panel and Features
Pwosesis lave
- Chaje lesiv: Open the lid and place your clothes into the inner tub. Do not overload the machine. The capacity is 17.7 lbs.
- Ajoute detèjan: Ajoute kantite apwopriye detèjan nan distribitè a.
- Chwazi Nivo Dlo a: Use the 'Water Level' button to choose the desired water level (High, Middle, Low, Minimum) based on your laundry load.
- Chwazi pwogram: Press the 'Program' button to cycle through the 10 available wash programs. These include options like Wash-Rinse-Spin, Soak-Wash-Rinse-Spin, Wash only, Wash-Rinse, Rinse-Spin, and Spin only.
- Kòmanse lave: Press the 'Start/Pause' button to begin the selected wash cycle.
- Fonksyon Delay Start: Utilize the 24-hour delay washing function to schedule your laundry cycle to start at a later time.

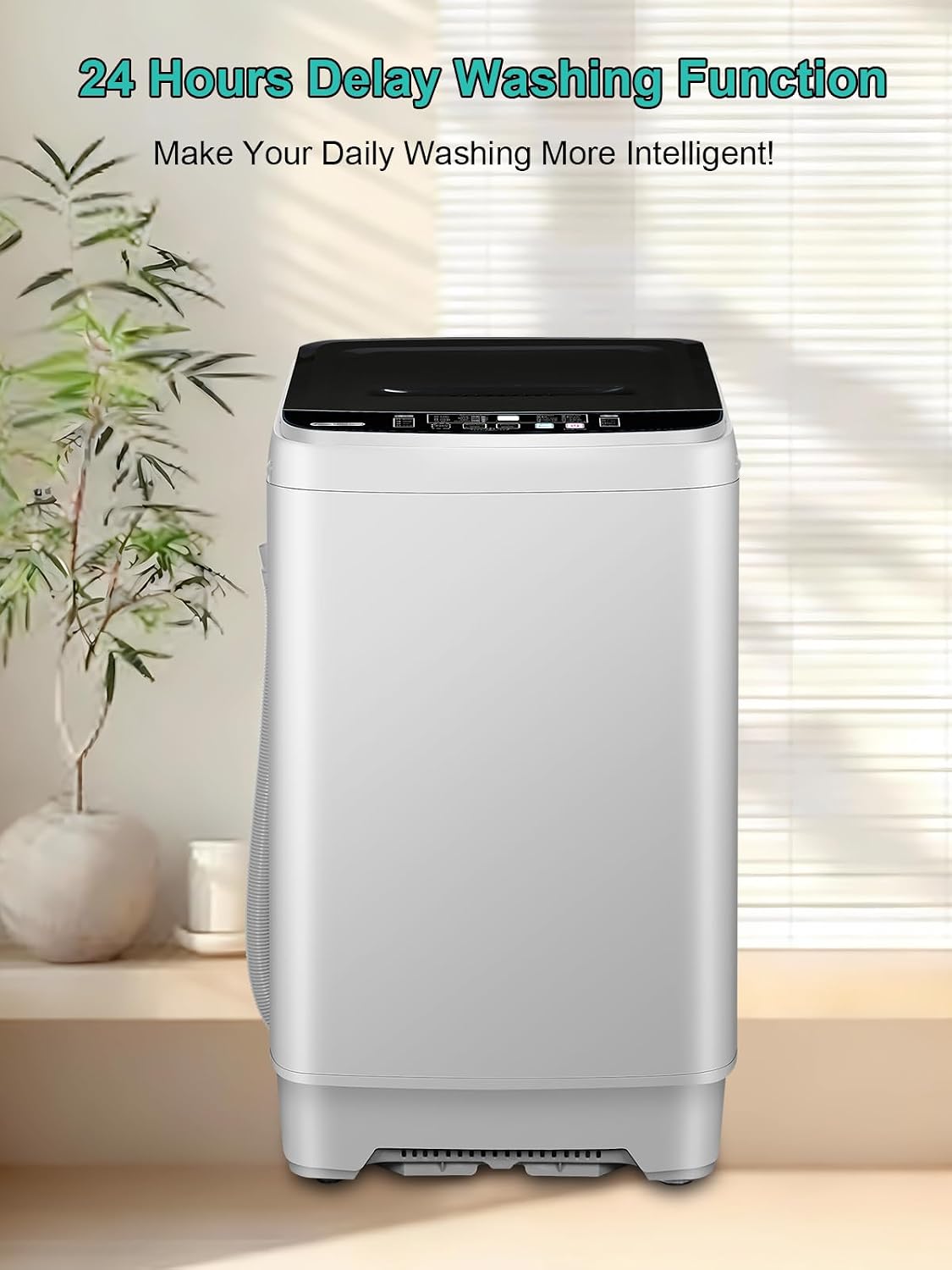

Figure 4: 24 Hours Delay Washing Function
Antretyen
Auto Tub Cleaning Function
The washing machine is equipped with an Auto Tub Cleaning function to help maintain hygiene and prevent odor buildup in the inner tub.
Figure 5: Auto Tub Cleaning Function
Netwayaj jeneral
- Siye eksteryè machin nan ak yon mou, damp twal. Evite pwodui netwayaj abrazif.
- Clean the detergent dispenser regularly to prevent residue buildup.
- Periodically check and clean the lint filter (if applicable, refer to specific model instructions for location).
- After each use, leave the lid slightly ajar to allow the tub to air dry and prevent mildew.
Depanaj
Gade tablo ki anba a pou pwoblèm komen ak solisyon yo.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Machin pa kòmanse | Power cord unplugged; Lid not closed properly; Program not selected. | Check power connection; Ensure lid is fully closed; Select a wash program. |
| Dlo flit | Inlet/drain hose loose; Damaged hose. | Tighten hose connections; Replace damaged hoses. |
| Vibrasyon twòp / bri | Machine not level; Uneven load; Shipping bolts not removed (if applicable). | Adjust leveling feet; Redistribute laundry evenly; Remove any shipping bolts. The machine has automatic unbalance detection. |
| Dlo pa drenaj | Tiyo drenaj la pliye oswa bouche; Pwoblèm ponp drenaj. | Straighten drain hose; Clear any blockages; Contact customer support if pump is faulty. |
Figure 6: Automatic Unbalance Detection
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | KRIB BLING |
| Non modèl | KB03-WHITE6 |
| Kapasite | 17.7 liv |
| Dimansyon pwodwi (D x W x H) | 19.7"D x 19.9"W x 33.7"H |
| Pwa atik | 46 liv |
| Koulè | Blan |
| Materyèl | Plastic (Body), Stainless Steel (Drum) |
| Aksè Kote | Top chaj |
| Karakteristik espesyal | Full-otomatik |
| Kantite Sik Estanda | 10 |
| Kontwòl Kalite | Pouse bouton |
| Vitès wotasyon maksimòm | 1300 RPM |
| Voltage | 110 Volts |
| Kalite enstalasyon | Otonòm |
Figi 7: Dimansyon ak Kapasite Pwodwi a
Enfòmasyon sou Garanti
This KRIB BLING washing machine comes with a 1 ANE GARANTI from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
Sipò pou Kliyan
For any quality problems, technical assistance, or warranty inquiries, please contact KRIB BLING customer service. Our customer service team aims to respond within 24 hours.
Please refer to the contact information provided with your product packaging or visit the official KRIB BLING websit pou detay sipò.
