diymore ESP32 Display Development Board 2.8-inch LCD User Manual

Entwodiksyon

This manual provides detailed instructions for the setup, operation, and maintenance of your diymore ESP32 Display Development Board. This board integrates an ESP32 module with a 2.8-inch LCD touch display, offering WiFi, Bluetooth, and extensive IoT connectivity for various development projects.

Pwodwi souview

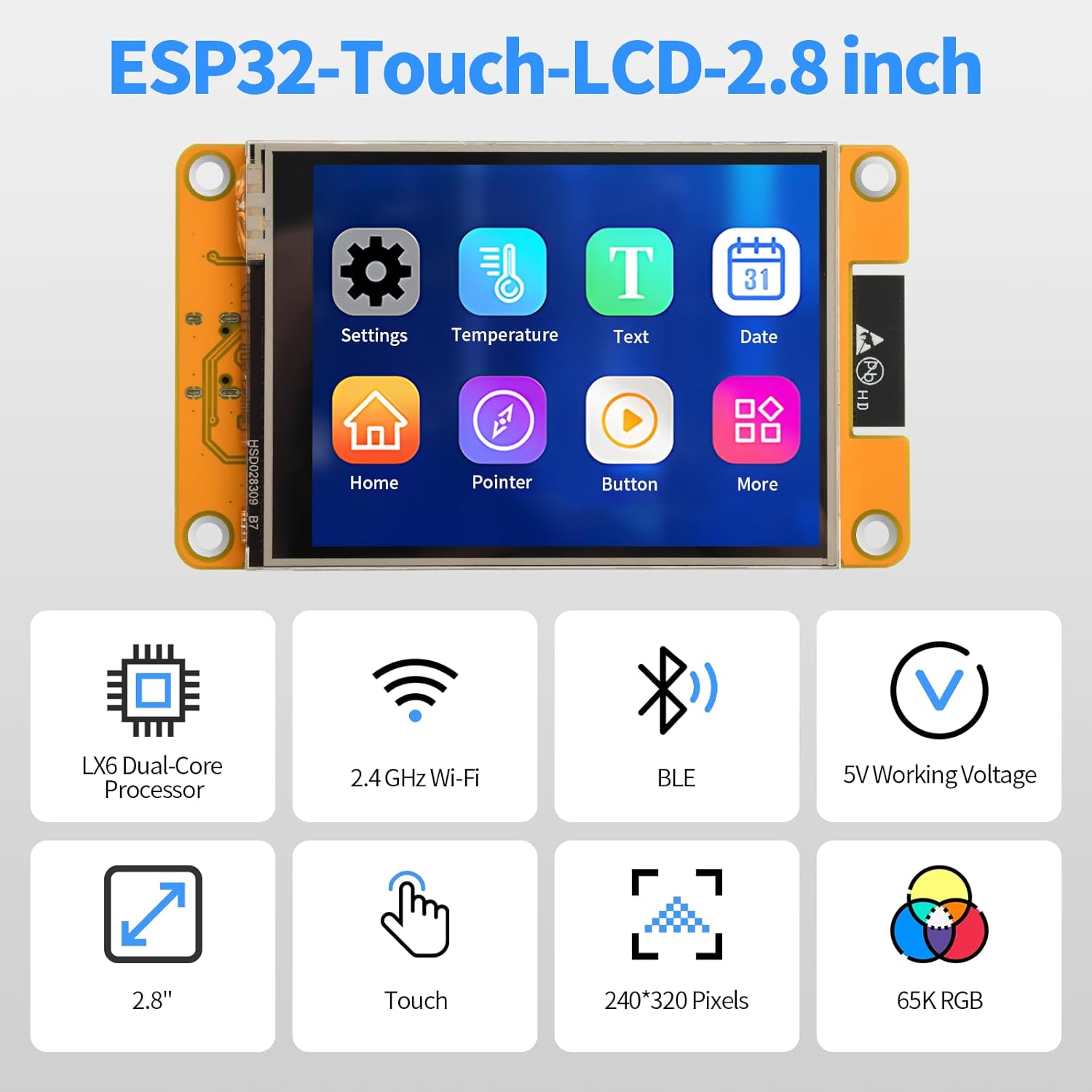

The diymore ESP32 Display Development Board is a versatile module designed for embedded systems and IoT applications. It features a 2.8-inch color LCD with a resolution of 240x320 pixels and touch functionality. The board includes a TYPE-C connector for easy programming and power supply, a Micro-TF card slot for memory expansion, and support for external speakers and lithium batteries.

Karakteristik kle:

• Integrated ESP32 module with WiFi and Bluetooth (BLE) connectivity.
• 2.8-inch 240x320 pixel color LCD touch display.
• TYPE-C USB port for power and data transfer.
• Micro-TF card slot for expandable storage.
• Support for external speakers and audio playback.
• Three-color RGB indicator for status display.
• External lithium battery support with integrated charging management.
• Multiple interface support: UART, SPI, I2C, PWM, ADC, DAC.
• Built-in flash memory, LwIP, and FreeRTOS.
• Compatibility with various development environments: Arduino IDE, MicroPython, Scratch 3.0, Espressif IDF, PlatformIO.
• Supports LVGL GUI and Human-Machine Interface (HMI) development.

Idantifikasyon konpozan:

Refer to the diagram below for the location and function of key components on the development board.

• ESP32-WROOM-32 module: The core processing unit.
• Ekran LCD 2.8 pous: The primary visual output and touch input interface.
• Plas pou kat mikwo SD: For external memory expansion.
• TIP-C: USB port for power and programming.
• Bouton RESET: Resets the ESP32 module.
• Bouton BOOT: Used for entering bootloader mode for flashing firmware.
• Lithium battery interface: Connector for an external 3.7V lithium polymer battery.
• UART serial port: For serial communication.
• Horn interface: Pou konekte yon oratè ekstèn.
• RGB: Three-color LED indicator.
• SPI peripheral interface: For connecting SPI devices.
• Extended pins: General purpose input/output (GPIO) pins for connecting other modules and sensors.

Espesifikasyon

Enstalasyon

1. Pwovizyon pou pouvwa: Connect the development board to a 5V power source using the provided TYPE-C USB cable. You can connect it to a computer's USB port or a compatible USB power adapter.
2. Enstalasyon chofè: Depending on your operating system, you may need to install USB-to-serial drivers (e.g., CP210x or CH340G drivers) for your computer to recognize the ESP32 board. Refer to the ESP32 documentation for specific driver requirements.
3. Konfigirasyon Anviwònman Devlopman:
   • Install your preferred Integrated Development Environment (IDE), such as Arduino IDE, PlatformIO, or Espressif IDF.
   • Configure the IDE to support ESP32 development boards. This typically involves installing the ESP32 board package.
   • For graphical user interface (GUI) development, consider setting up LVGL.
4. Initial Program Upload:
   • Connect the board to your computer via the TYPE-C USB cable.
   • Chwazi kat ak pò COM ki kòrèk la nan IDE ou a.
   • Write or load your program code.
   • Compile the code and upload it to the ESP32 board. Ensure the correct board and port are selected.
   • If the upload fails, try holding down the BOOT button while pressing and releasing the RESET button, then release BOOT, and attempt the upload again.
5. Micro-TF Card (Optional): Insert a Micro-TF card into the designated slot for additional storage if your application requires it.
6. Oratè ekstèn (opsyonèl): Connect an external speaker to the Horn interface if audio output is needed.
7. External Battery (Optional): For portable applications, connect a 3.7V lithium polymer battery to the lithium battery interface. The board includes a charging management circuit.

Enstriksyon Operasyon

1. Operasyon debaz: Once powered, the display will activate according to the loaded firmware. If no program is loaded, it may show a default boot screen or remain blank.
2. Entèraksyon ekran taktil: Use the included stylus or your finger to interact with the touch display. The responsiveness and functionality depend on the application programmed onto the ESP32.
3. Programming and Firmware Upload:
   • Connect the board to your computer via the TYPE-C USB port.
   • Open your chosen IDE (e.g., Arduino IDE).
   • Write or load your program code.
   • Compile the code and upload it to the ESP32 board. Ensure the correct board and port are selected.
   • If the upload fails, try holding down the BOOT button while pressing and releasing the RESET button, then release BOOT, and attempt the upload again.
4. IoT Applications:
   • Utilize the integrated WiFi and Bluetooth for remote monitoring, control, and data exchange.
   • Develop applications for remote data query, environmental monitoring, and parameter adjustment via mobile apps or web interfaces.
5. Lektur odyo: If an external speaker is connected, the ESP32 can be programmed to play audio files or generate sounds.
6. RGB Indicator: Observe the three-color RGB LED for status indications as defined by your custom firmware.

Antretyen

• Netwayaj: Keep the board and display clean. Use a soft, dry cloth to wipe the screen. Avoid abrasive cleaners or solvents.
• Depo: Store the development board in a dry, anti-static environment when not in use. Avoid extreme temperatures and humidity.
• Manyen: Handle the board by its edges to avoid touching sensitive electronic components. Static electricity can damage the board.
• Mizajou mikrolojisyèl: Regularly check for updated firmware or library versions for the ESP32 and display drivers to ensure optimal performance and access to new features.
• Swen batri (si sa aplikab): If using an external lithium battery, follow standard battery safety guidelines. Do not overcharge or deep discharge the battery.

Depanaj

Problem: Board not recognized by computer.

Solisyon: Ensure USB-to-serial drivers are correctly installed. Try a different USB cable or port. Verify the cable is a data cable, not just a charging cable.

Problem: Firmware upload fails.

Solisyon:

• Check if the correct board and COM port are selected in your IDE.
• Try holding the BOOT button, then pressing and releasing RESET, then releasing BOOT before initiating the upload.
• Ensure no other applications are using the serial port.
• Verify your code compiles without errors.

Problem: Display is blank or shows garbled output.

Solisyon:

• Confirm the display is properly connected to the board (if detachable).
• Check your code for correct display initialization and drawing commands.
• Asire w ke ekipman pou pouvwa a estab epi sifizan.

Problem: Touch screen is unresponsive or inaccurate.

Solisyon:

• Calibrate the touch screen if your firmware supports it.
• Ensure the touch screen drivers are correctly implemented in your code.
• Clean the display surface for any obstructions.

Problem: WiFi or Bluetooth connectivity issues.

Solisyon:

• Verify your network credentials (SSID, password) are correct in your code.
• Ensure the antenna (if external) is properly connected.
• Check for interference from other 2.4 GHz devices.
• Update ESP32 core libraries in your IDE.

Garanti ak sipò

For warranty information and technical support, please refer to the official diymore websit la oubyen kontakte machann ou an. Kenbe resi acha ou kòm prèv acha pou nenpòt reklamasyon garanti.

Online resources and community forums for ESP32 development are also available for additional assistance and project ideas.
