AIRMSEN 95 kPa Vacuum Sealer (Model VS8001G) Instruction Manual

1. Enstriksyon Sekirite Enpòtan

Please read all instructions carefully before using the AIRMSEN Vacuum Sealer. Retain this manual for future reference.

• Asire w ke aparèy la konekte ak yon priz kouran ki gen tè.
• Pa plonje aparèy la, kòd kouran an, oswa ploge a nan dlo oswa lòt likid.
• Kenbe aparèy la pa rive jwenn timoun yo.
• Pa sèvi ak aparèy la si fil la oswa ploge a domaje. Kontakte sèvis kliyan pou reparasyon.
• Avoid using abrasive cleaning agents or sharp objects on the sealing strip or vacuum chamber.
• Always allow the appliance to cool down between sealing cycles to prevent overheating.
• Do not vacuum seal liquids without pre-freezing or using the "Moist" mode with caution to prevent liquid from entering the vacuum pump.
• Use only AIRMSEN or compatible vacuum sealer bags and rolls.

2. Pake kontni

Lè w ap debale, tanpri asire w tout bagay yo la epi yo an bon kondisyon:

• 1 x AIRMSEN 95 kPa Vacuum Sealer (Model VS8001G)
• 1 x External Vacuum Hose
• 1 x Roll of BPA-free Food Bags (28 x 300 cm)
• 1 x manyèl itilizatè

Image: The AIRMSEN Vacuum Sealer, along with its included external vacuum hose, a roll of vacuum bags, and the user manual, laid out on a wooden surface.

3. Pwodwi souview

The AIRMSEN VS8001G Vacuum Sealer is designed for versatile food preservation with multiple functions and user-friendly features.

Karakteristik kle:

• Unique Inflation Function: Protects fragile foods by injecting air into the bag.
• Powerful 95 kPa Suction: Equipped with dual pumps for rapid air removal and airtight sealing.
• Mòd reglabl: "Dry" for solid foods, "Moist" for juicy or tender items, "Gentle" and "Normal" pressure settings.
• Integrated Bag Cutter & Roll Storage: Conveniently cut and store bags.
• Plato degoute detachable: Collects excess liquids for easy cleaning.
• Double 30 cm Sealing: Ensures a secure and wide seal.
• External Vacuum Port: For use with zipper bags, vacuum containers, and wine bottles.

Image: The AIRMSEN Vacuum Sealer, showcasing its sleek design and intuitive control panel.

Image: The control panel of the AIRMSEN Vacuum Sealer, highlighting the "Sec" (Dry), "Humide" (Moist), "Humide+" (Very Moist), "Gonflage" (Inflation), "Scellage Seul" (Seal Only), "Pulse", "Externe" (External), and "Stop" functions.

Image: A detailed breakdown of the AIRMSEN Vacuum Sealer's ergonomic design, showing the digital timer, silicone sealing strip, integrated roll storage and cutter, removable drip tray, one-hand operation handle, and double thermal sealing bar.

4. Enstalasyon

4.1 Installing the Bag Roll

1. Louvri kouvèti machin pou sele vakyòm nan.
2. Place the bag roll into the designated storage compartment inside the machine.
3. Pull out a sufficient length of the bag material.
4. Use the integrated cutter to cut the bag to your desired length, ensuring enough space for the food and sealing.
5. Close the lid and press down firmly on both sides until it clicks into place.

4.2 Initial Sealing of the Bag

1. Insert one open end of the cut bag under the red baffle (for "Seal Only").
2. Close the lid and press down firmly on both sides until it clicks into place.
3. Press the "Seal Only" button. The machine will create a seal.
4. Once the sealing process is complete, open the lid and remove the sealed bag.

Image: Visual guide showing the steps to cut a bag, insert it into the vacuum chamber, press "VAC & SEAL", and open the cover after the countdown. This image also illustrates the "Seal Only" function.

5. Operasyon Enstriksyon

5.1 Vacuum & Seal Function

This mode removes air from the bag and then automatically seals it, preserving food up to 8 times longer.

1. Place the food inside the pre-sealed bag, leaving at least 10-12 cm (4-5 inches) of space from the open end.
2. Asire w ke bout ouvè sak la pwòp, sèk, epi plat.
3. Insert the open end of the bag into the vacuum chamber (under the green baffle).
4. Close the lid and press down firmly on both sides until it clicks into place.
5. Select the appropriate food type:
   • Sèk: For solid, non-liquid foods (e.g., nuts, grains).
   • Imid: For foods with some moisture (e.g., raw meat, fish).
   • Very Moist (Humide+): For very juicy or tender foods, extending vacuum time.
6. Select the desired pressure:
   • Nòmal: Standard vacuum pressure.
   • dou: Reduced vacuum pressure for delicate items.
7. Press the "Vac & Seal" button. The machine will automatically vacuum and seal the bag.
8. Once the countdown on the digital display ends, open the lid and remove the sealed bag.

Image: The AIRMSEN Vacuum Sealer in action, compressing soda cans within a vacuum bag, illustrating its powerful 95 kPa suction.

5.2 Seal Only Function

Use this function to seal bags without vacuuming, ideal for delicate items or creating custom-sized bags from a roll.

1. Insert the open end of the bag under the red baffle (for "Seal Only").
2. Close the lid and press down firmly on both sides until it clicks into place.
3. Press the "Seal Only" button. The machine will create a seal.
4. Once the sealing process is complete, open the lid and remove the sealed bag.

Image: The "Seal Only" mode is demonstrated for various items like chips, frozen peas, pasta, and frozen chicken nuggets, indicating its use for resealing packages.

5.3 Inflation Function

The innovative inflation mode injects air into the bag to protect fragile foods like chips, cookies, and pastries from crushing, preserving their original shape.

1. Place the fragile food inside the bag.
2. Insert the open end of the bag into the vacuum chamber (under the green baffle).
3. Close the lid and press down firmly on both sides until it clicks into place.
4. Long press the "Inflate" button. The machine will inflate the bag.
5. Once the desired inflation level is reached, press "Seal Only" to seal the bag.

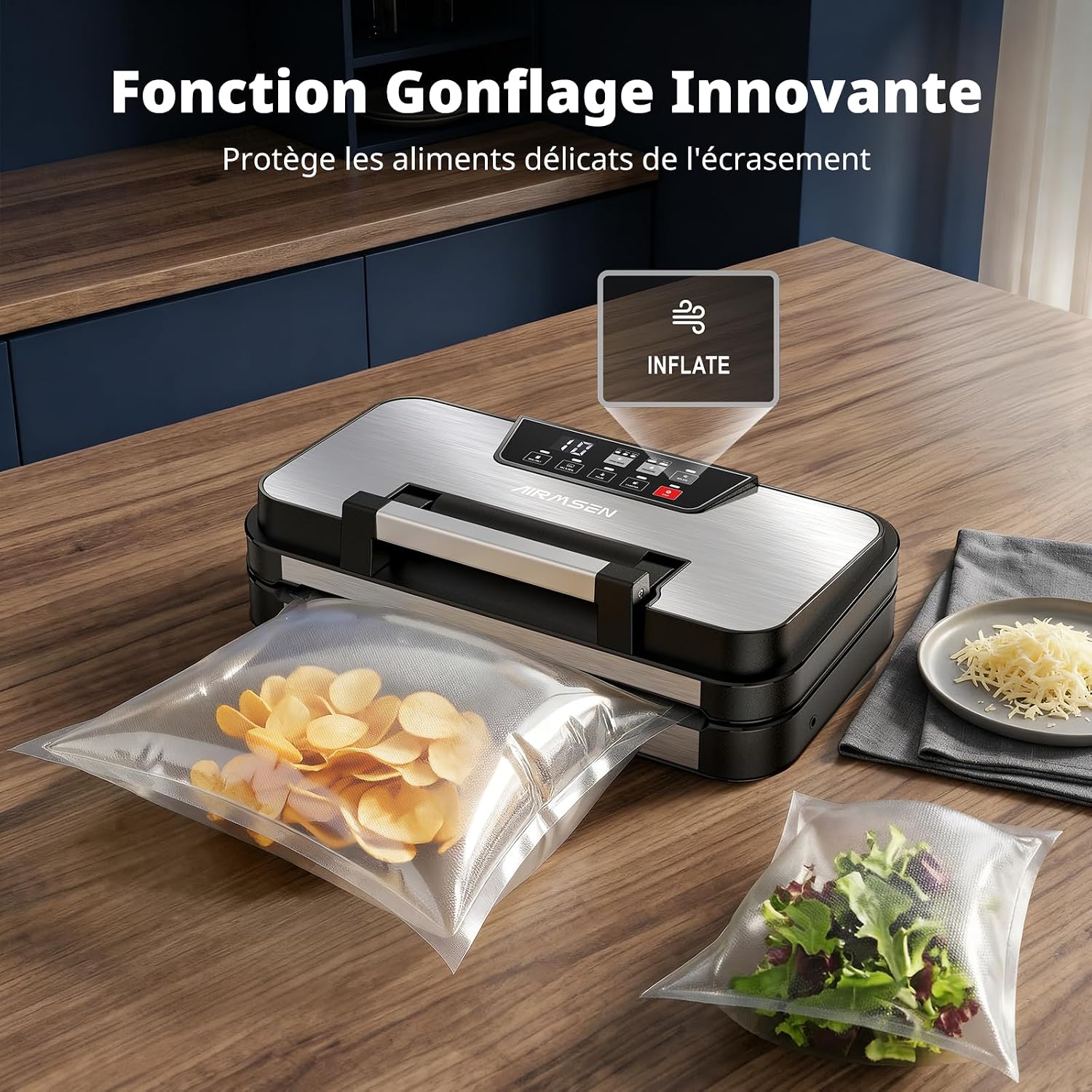

Image: The inflation function in use, showing bags being inflated to protect delicate items like chips and salad from being crushed.

Image: A step-by-step visual guide on how to use the inflation function, including inserting the bag, locking the cover, long-pressing "INFLATE", and then pressing "SEAL ONLY".

5.4 External Vacuum Function

Use the external vacuum hose to vacuum seal zipper bags, vacuum containers, and wine bottles.

1. Connect one end of the external vacuum hose to the external vacuum port on the machine.
2. Attach the other end of the hose to your vacuum-sealable container or wine stopper.
3. Press the "Canister" button to start the external vacuum process.
4. The machine will automatically stop once the vacuum is complete.

Image: The external vacuum function is shown in use with various accessories, including jars, wine stoppers, zipper bags, and for compressing clothing for storage.

Image: A visual guide detailing the steps for external vacuuming: connecting the hose to the appliance, attaching it to a container, and pressing the "Canister" button.

5.5 Pulse Vacuum Function

The "Pulse" mode allows manual control over the vacuum process, ideal for soft or delicate foods that could be crushed by full vacuum pressure.

1. Place the delicate food inside the bag.
2. Insert the open end of the bag into the vacuum chamber (under the green baffle).
3. Close the lid and press down firmly on both sides until it clicks into place.
4. Press and hold the "Pulse" button to manually control the vacuum. Release the button when the desired air removal is achieved.
5. Immediately press the "Seal Only" button to seal the bag.

Image: The "Pulse" mode is illustrated for delicate foods such as bread, berries, mushrooms, thick sauces, and stews, allowing manual control over vacuum strength to prevent crushing.

6. Antretyen ak netwayaj

Regular cleaning and maintenance will ensure the longevity and optimal performance of your AIRMSEN Vacuum Sealer.

• Plato degoute detachable: The drip tray collects any excess liquids. Remove it after each use and wash with warm, soapy water. Rinse thoroughly and dry completely before reinserting.
• Netwayaj eksteryè: Siye sifas asye pur la ak yon twal mou, damp twal. Pa sèvi ak pwodui netwayaj abrazif oswa kousinen.
• Bann sele: Periodically check the sealing strip for any food debris or damage. Clean gently with a damp cloth. Ensure it is dry before closing the lid.
• Depo: Sere aparèy la nan yon kote ki sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.

Image: Instructions for easy cleaning and maintenance, showing the removable drip tray being washed under running water and the brushed stainless steel finish being wiped clean with a cloth.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak sipò

For warranty information, technical support, or any questions regarding your AIRMSEN Vacuum Sealer, please contact our customer service team.

Refer to the contact details provided in your product packaging or visit the official AIRMSEN websit pou asistans.

Sipò sou entènèt: Visit the AIRMSEN Store on Amazon
