RAPOO E9050L Wireless Keyboard User Manual

Entwodiksyon

The RAPOO E9050L is a versatile wireless keyboard designed for seamless connectivity across multiple devices and operating systems. Its ultra-slim profile, quiet keys, and long-lasting rechargeable battery make it ideal for various environments, from office to travel. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal use of your keyboard.

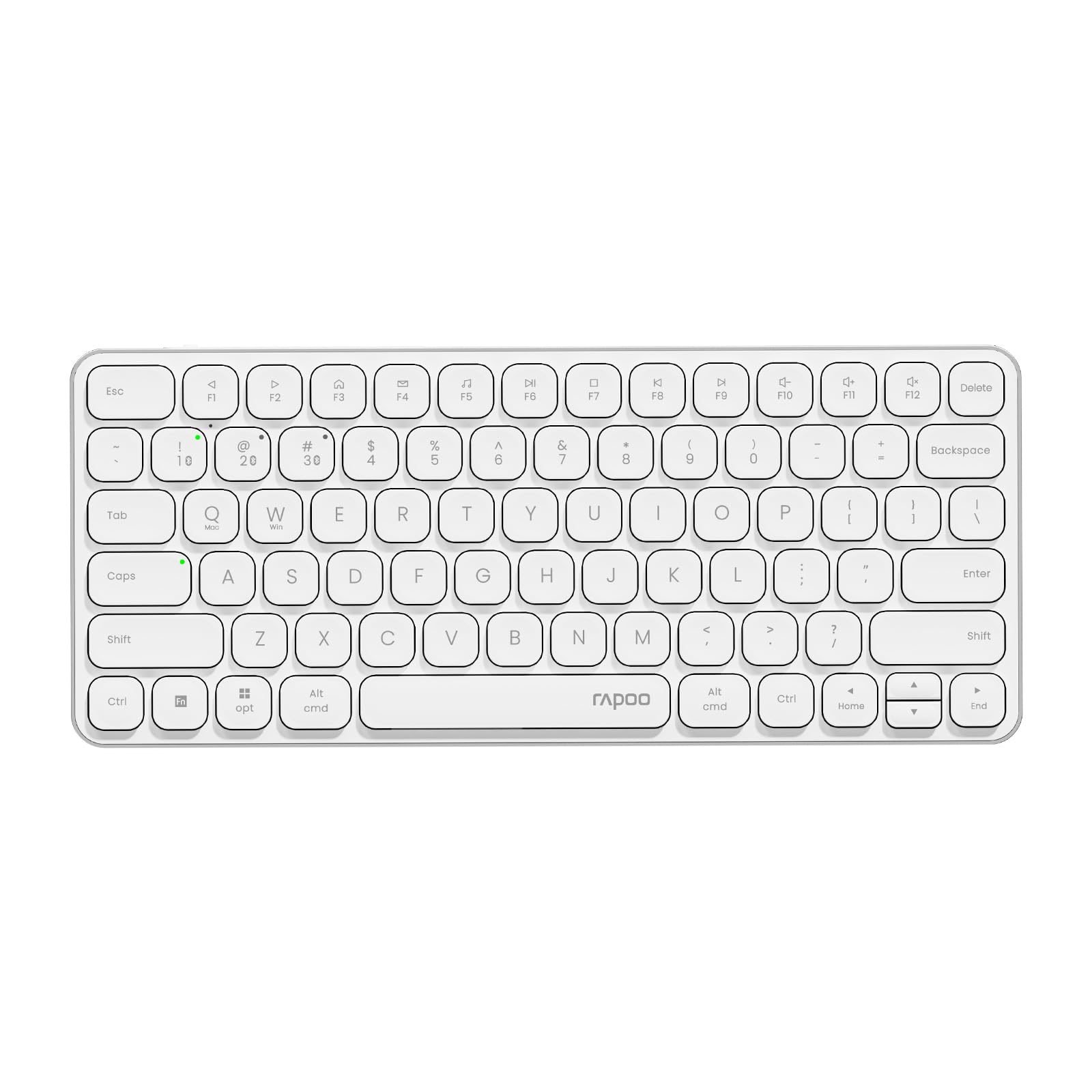

Image: The RAPOO E9050L Wireless Keyboard, showcasing konsepsyon elegant li yo.

Enstalasyon

Kontni pake

• RAPOO E9050L Wireless Keyboard
• USB-C Chaje Kab
• Manyèl itilizatè

Chaje klavye a

The E9050L features a built-in rechargeable battery. Before first use, fully charge the keyboard using the provided USB-C cable. A full charge can provide up to 90 days of continuous use. A quick 10-minute charge can provide enough power for one day of use.

Image: Diagram illustrating the rechargeable battery and charging indicators.

Connecting to Devices (Multi-Device & Multi-OS)

The keyboard supports wireless connection via 2.4GHz USB receiver or Bluetooth 5.0/4.0, allowing connection to up to 4 devices simultaneously. You can seamlessly switch between a notebook PC, desktop PC, tablet, or smartphone.

Image: Visual representation of multi-device and multi-OS connectivity options.

1. 2.4GHz Wireless Koneksyon:
   Mete reseptè USB a nan yon pò USB ki disponib sou òdinatè w la. Klavye a ta dwe konekte otomatikman.
2. Koneksyon Bluetooth:
   Press and hold the Bluetooth pairing key (usually indicated by a Bluetooth icon or a specific Fn key combination) until the indicator light flashes. On your device (PC, tablet, smartphone), enable Bluetooth and search for "RAPOO E9050L". Select it to pair.
3. Chanje ant aparèy:
   Use the dedicated device switching keys (e.g., Fn + 1, Fn + 2, Fn + 3, Fn + 4) to switch between your paired devices. The corresponding indicator light will show which device is currently active.

Image: Icons representing compatibility with various operating systems including Windows, Mac OS, Linux, iOS, Android, and Chrome OS.

Enstriksyon Operasyon

Key Functions and Multimedia Hotkeys

The E9050L features a compact 78-key layout with 12 multimedia hotkeys for quick access to common functions like play/pause, volume control, and email. These functions are accessed by pressing the Fn key in combination with the corresponding F-keys (F1-F12).

Image: Diagram showing the multimedia hotkeys and their functions when used with the Fn key.

OS Chanje

The keyboard supports dual system compatibility. To switch between Windows and Mac OS layouts, use the following key combinations:

• For Windows: Press Fn + W
• For Mac OS: Press Fn + Q

Limyè Endikatè

The keyboard includes indicator lights for device connection, Caps Lock status, and battery level. These lights provide clear visual feedback on the keyboard's current state, addressing user feedback for improved clarity.

Imaj: Gwo plan view of the device indicator lights and Caps Lock indicator.

Eksperyans sezisman

The E9050L utilizes thin chiclet keycaps and a scissor-switch mechanism, providing a quiet and comfortable typing experience. The ultra-thin design (0.2 inches / 0.53 cm) reduces wrist strain, eliminating the need for a separate palm rest.

Imaj: Detaye view of the thin chiclet keycaps and scissor-switch mechanism.

Antretyen

To ensure the longevity and optimal performance of your RAPOO E9050L keyboard, follow these maintenance guidelines:

• Netwayaj: Sèvi ak yon ti moso twal mou, ki san pèl dampened with water or a mild cleaning solution to wipe the keycaps and surface. Avoid harsh chemicals or abrasive materials.
• Retire pousyè: Sèvi ak lè konprese pou retire pousyè ak debri ki ant kle yo.
• Evite likid: Do not expose the keyboard to excessive moisture or submerge it in liquids. In case of spills, immediately disconnect the keyboard and allow it to dry completely before reuse.
• Depo: Sere klavye a nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.

Depanaj

If you encounter issues with your RAPOO E9050L keyboard, refer to the following common solutions:

• Klavye a pa konekte:

  • Asire w klavye a chaje.
  • Verify that the 2.4GHz USB receiver is properly inserted or that Bluetooth is enabled and paired on your device.
  • Eseye re-konekte Bluetooth la oubyen mete reseptè USB a ankò.
  • Ensure you are on the correct device channel (Fn + 1/2/3/4).
• Keys Not Responding or Delayed Response:

  • Check the battery level; low battery can affect performance.
  • Ensure the keyboard is within range of your device (for Bluetooth/2.4GHz).
  • Interference from other wireless devices can cause issues; try moving closer to your device or away from other wireless sources.
  • Rekòmanse òdinatè w la oswa aparèy ou an.
• Incorrect Key Output (e.g., @ key types "):

  • This often indicates an incorrect keyboard layout setting on your operating system. Ensure your device's keyboard settings match the US layout of the E9050L.
  • Verify the correct OS mode is selected on the keyboard (Fn + W for Windows, Fn + Q for Mac).
• Caps Lock / Device Indicator Not Working:

  • Asire w klavye a limen epi li konekte.
  • If the issue persists, try restarting the keyboard and your device.

Espesifikasyon

Image: Diagram showing the precise dimensions of the RAPOO E9050L keyboard.

Garanti ak sipò

Enfòmasyon sou Garanti

The RAPOO E9050L Wireless Keyboard comes with a Garanti manifakti 1 zan apati dat acha a. Garanti sa a kouvri domaj nan materyèl ak nan fabrikasyon anba itilizasyon nòmal. Tanpri konsève prèv acha ou pou reklamasyon garanti.

Sipò pou Kliyan

For technical assistance, troubleshooting, or warranty inquiries, please contact RAPOO customer support through the official website or your retailer. Detailed contact information can typically be found on the product packaging or the RAPOO official support page.
