1. Entwodiksyon
Thank you for choosing the Generic 20-180X70 High Power Binoculars. This manual provides detailed instructions for the proper setup, operation, and maintenance of your binoculars. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
These binoculars are designed for a wide range of outdoor activities, including stargazing, bird watching, hiking, travel, and viewing sporting events. They feature high magnification, a durable construction, and user-friendly adjustments for a clear vieweksperyans nan.
2. Pwodwi Features
- Adjustable Eye Distance and Focusing Wheel: Easy and quick adjustment for focal length and interpupillary distance, suitable for both adults and children.
- High Resolution Optics: Features 20-180x magnification (real extension 10-60x) and a 70mm objective lens diameter for bright, magnified, and clear optical performance.
- Non-slip and Anti-vibration Design: Constructed with natural rubber material for a secure grip and enhanced durability.
- Fully Coated Lenses: Lenses are fully coated for improved brightness and light transmission, adapting to various lighting conditions (not for total darkness).
- Konsepsyon ki enpèmeyab: Built to withstand different climates and outdoor conditions.
- Pòtab ak kontra enfòmèl ant: Foldable design allows for easy storage and transport in a bag or pocket.
- BAK4 Prism: High-quality BAK4 prism for bright and clear images, correcting inverted views.
3. Idantifikasyon Konpozan ak Pyès
Familiarize yourself with the main components of your binoculars:
Image 3.1: Binocular Components. This image displays the key parts of the binoculars, including the diopter adjustment, eyepieces, main body, tripod interface, natural rubber grip, and objective lenses.
- Oculaires: Kote ou gade atravè view imaj la.
- Ajisteman dioptri: Located on one eyepiece, used to compensate for differences in vision between your eyes.
- Konsantre wou: Central wheel used to adjust the focus for both eyes simultaneously.
- Lantiy objektif: Gwo lantiy ki devan jimo yo ki rasanble limyè.
- Entèfas Tripod: A threaded socket, usually under a cap, for mounting the binoculars on a tripod.
- Zam kawoutchou: The protective rubber coating providing grip and shock absorption.
4. Enstalasyon ak Premye Itilizasyon
- Debake: Carefully remove the binoculars and all accessories from the packaging. Check for any damage.
- Mete senti kou a: Securely attach the provided neck strap to the binoculars' strap lugs.
- Adjust Interpupillary Distance: Kenbe jimo yo anlè je ou. Ajiste distans ki genyen ant de barik yo lè w deplase yo pi pre oswa pi lwen youn ak lòt jiskaske ou wè yon sèl chan sikilè klè. view.
- Ajisteman dioptri:
- Close your right eye. Look through the left eyepiece and rotate the central focusing wheel until the image is sharp.
- Close your left eye. Look through the right eyepiece (with the diopter adjustment ring) and rotate the diopter ring until the image is sharp. Do not use the central focusing wheel for this step.
- Now, with both eyes open, the image should be clear. For subsequent use, you will only need to adjust the central focusing wheel.
5. Operasyon Enstriksyon
Once the initial setup is complete, using your binoculars is straightforward:
- Konsantre:
- Point the binoculars at the object you wish to observe.
- Rotate the central focusing wheel until the image appears sharp and clear.
- Fonksyon Zoom: These binoculars feature a variable magnification. To adjust the zoom, locate the zoom lever or ring (often near the right eyepiece) and rotate it to increase or decrease magnification. Re-focus after adjusting the zoom.
Image 5.1: High Zoom Function. This image illustrates the high zoom capability of the binoculars, showing how distant objects can be magnified for detailed viewing.
- Itilizasyon avèk yon trépied: Pou pwolonje viewing periods or at high magnifications, using a tripod is recommended for stability. Remove the cap from the tripod interface (usually at the front hinge) and screw the binoculars onto a compatible tripod adapter.
Aplikasyon Komen:
Image 5.2: Outdoor/Travel Use. Binoculars are ideal for enhancing travel experiences by providing detailed views of distant landscapes, wildlife, and historical sites.
Image 5.3: Stargazing. These binoculars can be used for observing celestial objects, allowing users to view stars, galaxies, and star clusters in the night sky.
6. Swen ak Antretyen
Bon swen ap asire lonjevite ak pèfòmans linèt ou yo:
- Netwayaj Lantiy:
- Use the provided lens cleaning cloth or a soft, lint-free cloth.
- Gently brush off any dust or debris from the lens surfaces.
- For stubborn smudges, use a small amount of lens cleaning fluid applied to the cloth, not directly to the lens.
- Evite touche sifas lantiy yo ak dwèt ou.
- Netwayaj kò a: Wipe the body of the binoculars with a soft, damp twal. Evite pwodui chimik ki agresif oswa materyèl abrazif.
- Depo: Store the binoculars in a cool, dry place, away from direct sunlight and extreme temperatures. Use the protective case when not in use to prevent dust and scratches.
- Rezistans dlo: While waterproof, avoid submerging the binoculars in water. If they get wet, wipe them dry immediately.
NAN. Depanaj
Si ou rankontre pwoblèm ak binòk ou yo, gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Imaj twoub | Fokus oswa reglaj dyoptri ki pa kòrèk. | Adjust the central focusing wheel. Re-adjust the diopter if necessary (refer to Section 4). |
| Double image or two circles | Interpupillary distance not set correctly. | Ajiste distans ki genyen ant barik yo jiskaske yon sèl chan sikilè view is seen (refer to Section 4). |
| Dark or dim image | Low light conditions, dirty lenses, or lens caps still on. | Ensure lens caps are removed. Clean lenses if dirty (refer to Section 6). Note that binoculars are not designed for total darkness. |
| Difficulty adjusting zoom | Mekanis lan ka rèd oswa bouche. | Apply gentle, even pressure. Do not force. If persistent, contact customer support. |
8. Spécifications pwodwi
| Karakteristik | Detay |
|---|---|
| Modèl | 20-180x70 |
| Magnification (Extension) | 20-180X (Real extension: 10-60x) |
| Dyamèt lantiy objektif | 70 mm |
| Materyèl | Metallic lens barrel body, non-slip rubber outer coating |
| Kouch lantiy | Green film, high contrast, three-dimensional mesh square broadband |
| Kalite Prism | BAK4 |
| Konsantre Sistèm | Central focus |
| Jaden nan View (FOV) | 63° (78FT/1000YDS) |
| Sòti Dyamèt Elèv la | 4 mm |
| Eye Relief (Pupillary exit distance) | 18 mm |
| Distans Konsantrasyon ki Pi Pre | 15 m |
| Koulè | Nwa |
| Gwosè pwodwi | 37.5cm (height), 23.5cm (width) |

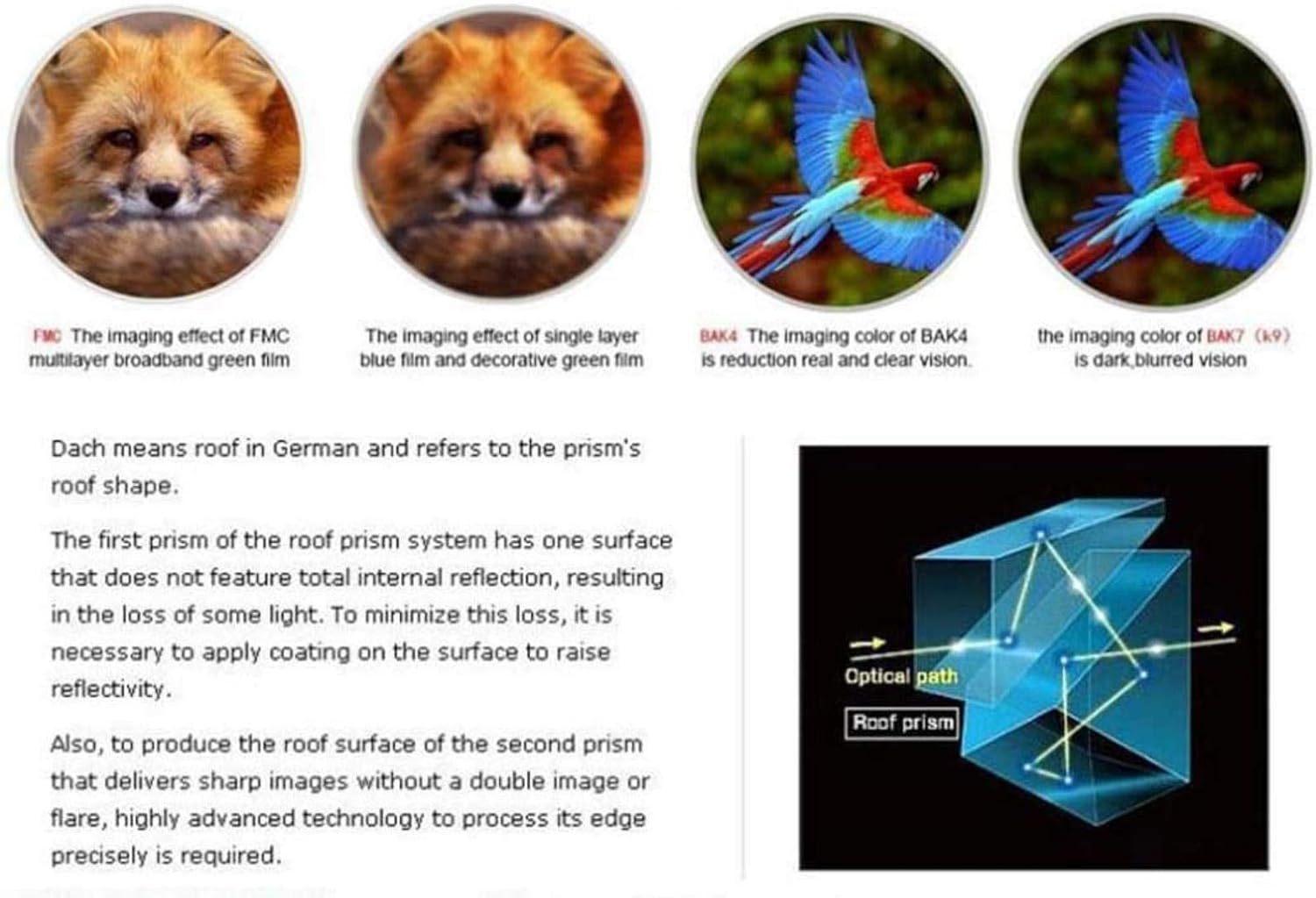

Image 8.1: Optical Path and Lens Coatings. This image shows the internal optical path of a roof prism and compares the visual quality achieved with different lens coatings, highlighting the superior clarity of BAK4 prisms and FMC multilayer broadband green film.
Image 8.2: BAK4 Prism. This image displays a BAK4 prism, which is known for its high-quality optical properties, contributing to bright and clear images in binoculars.
9. Garanti ak Sipò Kliyan
For warranty information or if you require further assistance, please refer to the retailer's return policy or contact the seller directly through the platform where the purchase was made. Keep your purchase receipt as proof of purchase.
For general inquiries or technical support, please consult the product listing page or the seller's contact information.
