Entwodiksyon
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Sunster 8KW Portable Diesel Heater. Please read this manual thoroughly before using the product and retain it for future reference. Proper use ensures optimal performance and longevity of your heater.

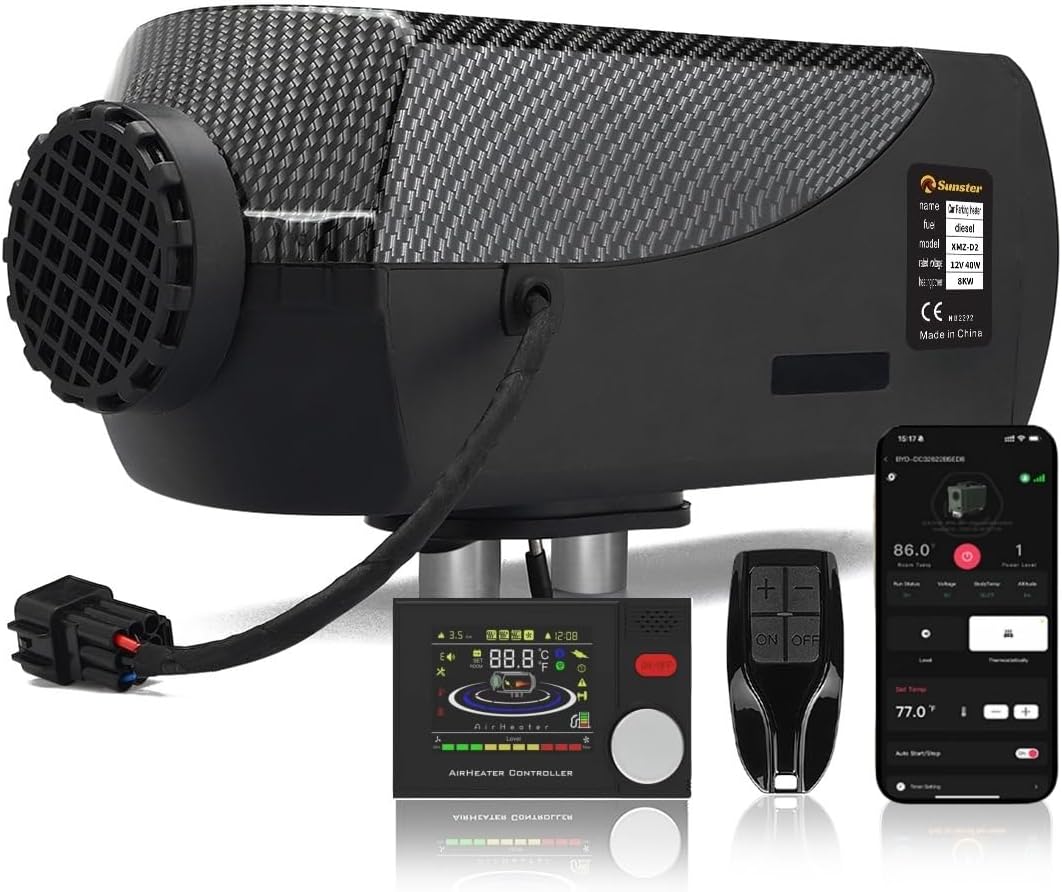

Image: The Sunster 8KW Portable Diesel Heater, showing the main unit, LCD control panel, and remote control. This image illustrates the complete product package.
Enstalasyon ak Enstalasyon
1. Debalaj ak Idantifikasyon Konpozan
Carefully unpack all components from the packaging. Verify that all items listed in the 'What's in the Box' section are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- Diesel heater (with LCD)
- Remote switch
- Manyèl itilizatè (dokiman sa a)
- Installation Accessories (fuel pump, fuel line, exhaust pipe, air intake pipe, clamps, elatriye)
Image: Product dimensions are displayed, indicating the heater's physical size for installation planning.
2. Gid enstalasyon yo
The heater is designed for installation in various vehicles such as campervans, trucks, boats, and cars. Ensure the installation location is well-ventilated and away from flammable materials. Secure the heater firmly to prevent movement during operation.
- Pwovizyon pou gaz: Connect the fuel line from the fuel tank to the heater's fuel pump. Ensure all connections are secure and leak-free. Use diesel fuel only.
- Sistèm echapman: Install the exhaust pipe to direct exhaust gases safely outside the vehicle. Ensure no exhaust fumes can enter the cabin.
- Konsomasyon lè: Connect the air intake pipe. Ensure it draws clean air and is not obstructed.
- Koneksyon elektrik: Connect the heater to a 12V or 24V power source, ensuring correct polarity and sufficient amperage. The heater requires 9-11A for start-up and 1-3A for working power.
Image: An exploded diagram illustrating the internal components of the diesel heater, including the air inlet, air fan, flame retardant impeller, combustion chamber, ignition plug, heating zone, and air outlet. This helps in understanding the heater's construction.
Enstriksyon Operasyon
1. Operasyon debaz
The heater can be controlled via the LCD monitor, remote control, or Bluetooth APP.
- Limen/Etenyen: Press the 'ON/OFF' button on the LCD panel or remote control.
- Ajisteman Tanperati: Use the control knob or arrow buttons to set the desired temperature (8-36 °C / 46.4-96.8 °F).
- Seleksyon mòd: Navigate through the menu to select different operating modes.
Image: The intelligent LCD control panel and remote control for the Sunster diesel heater. The LCD displays timing, temperature, and various modes, while the remote offers simple on/off functionality.
2. LCD Monitor Functions
The LCD monitor provides detailed information and control options:
- 24-Hour Timing Function: Set specific times for the heater to turn on or off.
- Temperature / Gear Regulation: Adjust heating intensity.
- Chanje Lang: Options include German, English, Russian.
- Mòd vantilasyon: Fè lè sikile san chofe.
- Turbo Heat Mode: Provides rapid heating.
- Automatic Start-Stop: Maintains a constant temperature by automatically turning on/off.
3. Kontwòl Aplikasyon Bluetooth
Download the 'Sunster' app from Google Play (Android) or the App Store (iOS) to control your heater remotely.
- Peyaj: Follow the app's instructions to pair your device with the heater.
- Ajisteman a distans: Adjust settings, create heating plans, and monitor performance from your smartphone.
Image: A smartphone screen showing the Sunster app interface, which allows for timing, language settings, gear settings, automatic start & stop, and blow mode control. This demonstrates the convenience of app-based operation.
4. Fonksyon Otomatik Start-Stop
This feature allows the heater to maintain a set temperature. When the ambient temperature reaches the set point, the heater will automatically shut off. It will reactivate when the temperature drops below the set point, ensuring consistent warmth and energy efficiency.
Image: A graphic demonstrating the automatic start-stop function, showing the heater stopping at 35°C and starting at 30°C to maintain a desired temperature range. This highlights the intelligent temperature control.
Antretyen
Regular maintenance ensures the safe and efficient operation of your diesel heater.
1. Netwayaj woutin
- Eksteryè: Siye eksteryè a ak anonsamp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvang.
- Antre/Sòti lè: Ensure the air intake and outlet grilles are free from dust and debris. Clean gently with a soft brush or vacuum.
2. Fuel System Care
- Filtè gaz: Periodically check and clean or replace the fuel filter to prevent blockages.
- Kalite gaz: Always use clean, high-quality diesel fuel to prevent carbon buildup and damage to the combustion system.
3. Depo
If storing the heater for an extended period, ensure the fuel tank is empty and the heater is clean and dry. Store in a cool, dry place.
Depanaj
Gade tablo ki anba a pou pwoblèm komen yo ak solisyon yo. Si pwoblèm nan pèsiste, kontakte sèvis kliyan.
| Problem / Error Code | Kòz posib | Solisyon |
|---|---|---|
| Aparèy chofaj pa kòmanse | No power, low fuel, clogged fuel line, faulty ignition. | Check power connections, ensure sufficient fuel, inspect fuel line for blockages, check ignition plug. |
| Kòd Erè E04 | Fuel pump disconnected or faulty. | Check fuel pump connection. If connected, the pump may be faulty and require replacement. |
| Pwodiksyon chalè ki ba | Low power setting, air intake/outlet obstructed, poor fuel quality. | Increase power setting, clear obstructions, use clean diesel fuel. |
| Twòp lafimen | Poor combustion, incorrect fuel-air mixture, carbon buildup. | Ensure proper ventilation, check fuel quality, consider professional cleaning. |
| Bri etranj | Loose components, fan obstruction, fuel pump issue. | Inspect for loose parts, clear fan area, check fuel pump for proper operation. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Modèl | 8KW dyezèl aparèy chofaj |
| Rated pouvwa | 8KW |
| Rated Voltage | 12V & 24V |
| Kalite gaz | Diesel Only |
| Konsomasyon gaz | 0.16-0.45 L/H |
| Travay Tanperati Anbyen | -40 ° C a 40 ° C (-104 ° F a 104 ° F) |
| Start-up Power Consumption | 9-11A |
| Travay Konsomasyon pouvwa | 1-3A |
| Metòd kontwòl | LCD Monitor, Remote Control, Bluetooth APP |
| Karakteristik sekirite | Overheating prevention, short circuit prevention, reverse connection prevention, overvoltage prevansyon |
Image: The Sunster diesel heater with icons indicating its safety features: short-circuit protection, overheat protection, and intelligent temperature control. This emphasizes the product's reliability.
Garanti ak sipò
Sunster products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or contact Sunster customer support. Keep your purchase receipt as proof of purchase.
Sipò pou Kliyan
For technical assistance, troubleshooting, or warranty claims, please visit the official Sunster websit entènèt la oubyen kontakte depatman sèvis kliyan yo. Anjeneral, ou ka jwenn enfòmasyon pou kontakte yo sou anbalaj pwodwi a oubyen sou prezans ofisyèl mak la sou entènèt.
