Entwodiksyon
This manual provides essential information for the safe and efficient operation of your Hitachi RAS.V512PCDIST 1 Ton 5 Star Inverter Split Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference. This air conditioner features a variable speed inverter compressor, 1 Ton capacity suitable for rooms up to 120 sq.ft, a 5-star energy rating, and a 100% copper condenser coil for enhanced cooling and low maintenance. Key technologies include 4-Way Swing, ice Clean, Xpandable+, Smart View Display, and Penta Sensor technology.
Enfòmasyon sou Sekirite
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Asire w ke ekipman pou pouvwa a koresponn ak etikèt klasifikasyon ki sou aparèy la.
- Pa opere inite a ak men mouye.
- Pa mete objè nan priz lè a.
- Asire bon baz pou anpeche chòk elektrik.
- Kenbe timoun yo lwen aparèy la.
- Pa eseye repare aparèy la tèt ou. Kontakte pèsonèl sèvis kalifye.
Enstalasyon ak Enstalasyon
Professional installation is highly recommended for this split air conditioner to ensure proper functioning and safety. The installation process involves mounting the indoor and outdoor units, connecting refrigerant lines, electrical wiring, and drainage pipes.
Eleman ki enkli:
- 1 Inite Andedan kay la
- 1 Inite Deyò
- Inter Connecting Copper Pipe (3m length)
- 1 Kontwòl Remote
- Manyèl enstalasyon
- Manyèl itilizatè & Kat Garanti
- 2 Batteries (for remote)
Image: The Hitachi RAS.V512PCDIST indoor unit mounted on a wall, with an illustration of the outdoor unit and various features like Xpandable+ technology, ice Clean, 3in1 SmartView Display, 4-Way Swing, and OCTA Sensor Technology.
Tcheke anvan enstalasyon:
- Ensure the installation site is structurally sound to support the unit's weight.
- Verify adequate space for air circulation around both indoor and outdoor units.
- Confirm proper drainage for condensate water.
Enstriksyon Operasyon
Your Hitachi AC is designed for user-friendly operation via the included remote control. Familiarize yourself with the remote's functions for optimal comfort.
Operasyon debaz:
- Limen/Etenyen: Press the power button on the remote to turn the unit on or off.
- Seleksyon mòd: Use the 'Mode' button to cycle through cooling, fan, dry, and auto modes.
- Ajisteman Tanperati: Use the 'Temp Up' and 'Temp Down' buttons to set your desired temperature.
- Vitès fanatik: Adjust fan speed using the 'Fan' button.
Karakteristik espesyal:
- 4-Way Swing: Activates horizontal and vertical louvers for uniform air distribution.
- Xpandable+ Technology: The inverter compressor automatically adjusts its capacity to provide up to 112% cooling capacity under varying conditions, ensuring consistent comfort.
- Entelijan View Display (3in1): Provides precise temperature readings (0.5°C precision), smart alerts for service, and adjustable brightness for convenience.
- Mòd mwen an: Allows you to save your preferred settings for quick access.
- Penta Sensor Technology: Optimizes cooling performance and energy efficiency by monitoring indoor and outdoor conditions.
Image: An illustration demonstrating Hitachi's Xpandable+ technology, showing how the unit automatically adjusts to provide enhanced cooling capacity.

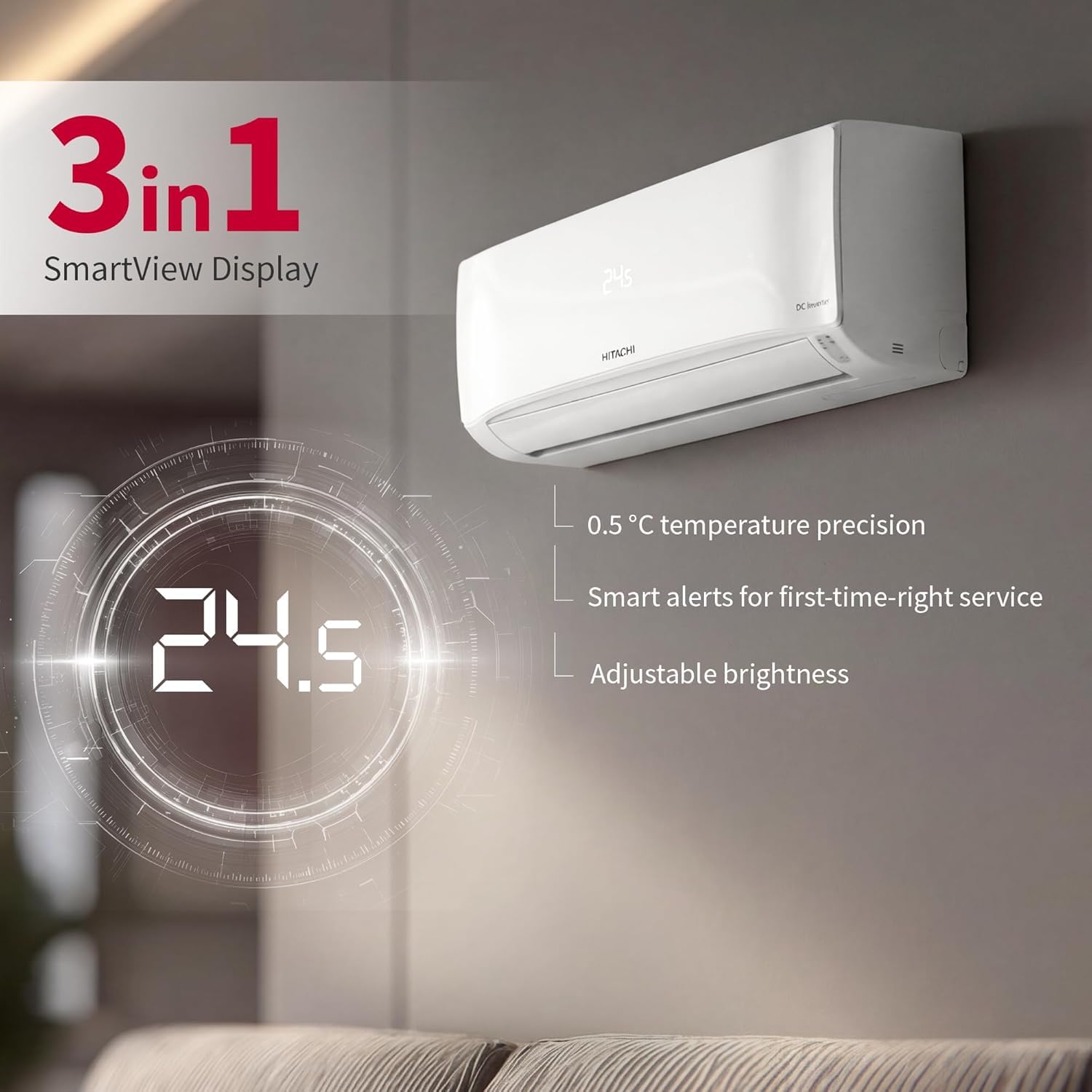

Image: A close-up of the Hitachi 3in1 SmartView Display, highlighting its features such as 0.5°C temperature precision, smart alerts for service, and adjustable brightness.
Antretyen
Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect power before performing any maintenance.
Netwayaj filtè:
- The dust filter should be cleaned every two weeks or more frequently depending on usage and air quality.
- Louvri panèl devan inite enteryè a epi retire filtè yo ak anpil atansyon.
- Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly and allow them to dry completely before reinserting.
ice Clean (FrostWash Technology):
Your Hitachi AC is equipped with ice Clean technology, which automatically cleans the indoor coil. This feature freezes the coil to trap dust and then melts the ice to wash away impurities, helping to remove viruses, bacteria, and mold for cleaner, odor-free air and better airflow performance.
Image: An illustration detailing the Hitachi ice Clean (FrostWash) technology, showing the process of dust freezing, melting, and cleaning, which removes viruses, bacteria, and mold from the indoor unit coil.
Netwayaj jeneral:
- Wipe the indoor unit's exterior with a soft, dry cloth. For stubborn dirt, use a damp twal la avèk yon savon dou, apresa siye l sèk.
- Ensure the outdoor unit's coil is free from obstructions like leaves or debris.
- Schedule annual professional servicing to ensure all components are functioning correctly and refrigerant levels are optimal.
Depanaj
Anvan ou kontakte sèvis kliyan, tanpri gade pwoblèm ak solisyon komen sa yo:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Inite pa limen | Pa gen kouran; Pil kontwòl remote yo fini. | Check circuit breaker; Replace remote batteries |
| Refwadisman ensifizan | Dirty air filter; Doors/windows open; Temperature setting too high; Outdoor unit obstructed | Clean air filter; Close doors/windows; Lower temperature setting; Clear obstructions from outdoor unit |
| Bri etranj | Pyès ki lach; Inite a pa nivo; Obstriksyon nan vantilatè a | Contact service technician; Ensure unit is level; Check for and remove obstructions |
| Flit dlo nan inite andedan an | Tiyo drenaj bouche; Enstalasyon ki pa kòrèk | Clear drain pipe; Contact service technician for inspection |
Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, tanpri kontakte pèsonèl sèvis otorize.
Espesifikasyon pwodwi
| Mak | Hitachi |
| Non modèl | RAS.V512PCDIST |
| Kapasite | 1 tòn |
| Evalyasyon enèji | 5 Star |
| Pouvwa refwadisman | 12000 Inite tèmik Britanik yo |
| Refrijeran | R-32 (Environmental Friendly) |
| Nivo bri | 37 Desibèl |
| Dimansyon pwodwi (D x W x H) | 23.5P x 95W x 29.4H santimèt |
| Pwa atik | 10 Kilogram |
| Materyèl debaz | Kwiv |
| Voltage | 230 Volts |
| Wattage | 3450 Watts |
| Karakteristik espesyal | 4 Way Swing, Active Carbon Filter, Anti Bacterial Filter, Auto Clean, Temperature Display, Odour-free air, Silent air, Penta Sensor technology, My Mode, ice Clean, Xpandable+, Smart View Ekspozisyon |
| Kalite COMPRESSOR | Rotary Screw (Inverter) |
| Konsomasyon enèji chak ane | 534.15 kilowat èdtan pa ane |
| Rapò Efikasite Enèji Sezonye (SEER) | 5 |
Enfòmasyon sou Garanti
Your Hitachi RAS.V512PCDIST Air Conditioner comes with the following warranty:
- 1 ane garanti konplè sou tout pwodwi a.
- 10 ane garanti sou Konpresè a.
- 5 ane garanti on the PCB/Controller.
Please refer to the warranty card included with your product for detailed terms and conditions, including coverage, exclusions, and claim procedures. Keep your purchase receipt as proof of purchase for warranty claims.
Sipò pou Kliyan
For technical assistance, service requests, or any inquiries regarding your Hitachi Air Conditioner, please contact the manufacturer's customer support.
Manifakti: Johnson Controls Hitachi Air Conditioning India Limited
Please refer to your warranty card or the official Hitachi website for the most current contact information, including phone numbers and service center locations.
