Generic 5L 1350W Air Fryer Oven Instruction Manual (Model: ZG-B36FH854)

1. Pwodwi souview

The Generic 5L Air Fryer Oven is designed to cook a variety of foods using rapid hot air circulation, offering a healthier alternative to traditional frying. This appliance features a 5-liter capacity, 1350W power, and intuitive knob controls for temperature and timing.

1.1 Kontni pake a

• 1 x Air Fryer Inite
• 1 x Removable Frying Basket
• 1 x Manyèl Enstriksyon (dokiman sa a)

1.2 Dyagram pwodwi

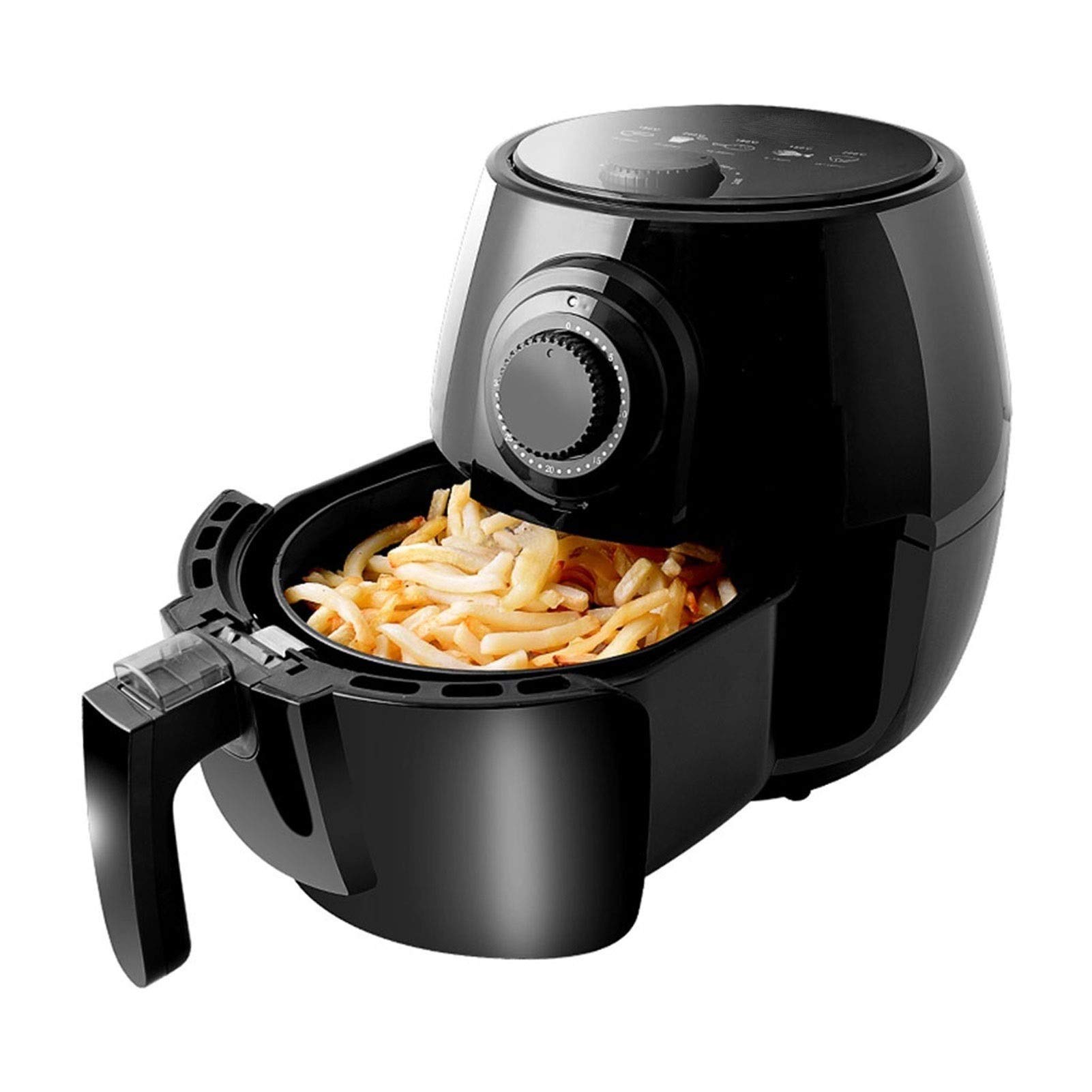

Figi 1: Devan view of the Generic 5L Air Fryer Oven.

Figure 2: Air Fryer dimensions, approximately 27cm width and 29.5cm height.

2. Enstriksyon Sekirite Enpòtan

Tanpri li tout enstriksyon yo ak anpil atansyon anvan ou itilize aparèy la pou evite aksidan pèsonèl oswa domaj materyèl. Kenbe manyèl sa a pou referans pita.

• Sekirite elektrik: Asire voltage indicated on the appliance matches your local power supply. Do not immerse the cord, plug, or appliance in water or other liquids.
• Chalè ak Sifas: Sifas aparèy la vin cho pandan w ap itilize li. Sèvi ak gan fou lè w ap manyen konpozan cho yo. Pa bouche ouvèti lè yo.
• Plasman: Mete friteuz la sou yon sifas ki estab epi ki reziste chalè, lwen mi yo oswa lòt aparèy pou pèmèt bon vantilasyon.
• Timoun: Aparèy sa a pa fèt pou timoun itilize. Li nesesè pou siveye l byen lè w ap itilize nenpòt aparèy toupre timoun.
• Antretyen: Do not attempt to repair the appliance yourself. Contact qualified service personnel for repairs.
• Preparasyon Manje: Do not overfill the basket. Do not add excessive oil directly into the basket, as this can cause fire hazards.

3. Enstalasyon ak Premye Itilizasyon

3.1 Debake

1. Remove all packaging materials from the air fryer.
2. Tcheke ke tout pati yo prezan epi yo pa domaje.
3. Retire nenpòt stickers oswa etikèt sou aparèy la.

3.2 Netwayaj anvan premye itilize

1. Siye eksteryè friteur lè a ak piblisiteamp twal.
2. Wash the frying basket and pan with hot water, dish soap, and a non-abrasive sponge.
3. Rinse thoroughly and dry all parts completely before use.

3.3 Premye Operasyon (Burn-in)

It is recommended to run the air fryer empty for about 10 minutes during its first use to eliminate any manufacturing odors.

1. Place the clean frying basket into the air fryer.
2. Ploge aparèy la nan yon priz kouran ki chita.
3. Mete tanperati a sou 200°C (400°F) epi mete revèy la sou 10 minit.
4. A slight odor may be present; this is normal and will dissipate.
5. Allow the appliance to cool completely before proceeding.

4. Operasyon Enstriksyon

4.1 Kontwòl souview

Figure 3: Top knob for temperature adjustment (80-200°C), bottom knob for time adjustment (0-30 minutes).

4.2 Operasyon Jeneral

1. Prepare Manje: Mete engredyan ou yo nan panyen fri a. Pa depase liy MAX la.
2. Mete panyen an: Glise panyen fri a tounen nan fritè lè a jiskaske li fè yon klik an plas.
3. Mete Tanperati: Turn the temperature control knob to your desired cooking temperature (80-200°C).
4. Mete revèy: Turn the timer knob to the required cooking time (0-30 minutes). The air fryer will start heating automatically.
5. Pwosesis pou kwit manje: The indicator light will illuminate, and the fan will start. During cooking, you may pull out the basket to shake or flip ingredients. The air fryer will pause and resume when the basket is reinserted.
6. Konplete: When the timer reaches zero, a bell will ring, and the air fryer will automatically shut off. Carefully pull out the basket and remove cooked food.

4.3 Hot Air Circulation Technology

Figure 4: The air fryer utilizes 360° high-speed hot air circulation for even cooking and reduced oil usage.

Figi 5: Entèn view showing the spiral heating tube and hot air distribution for efficient cooking.

4.4 Gid pou Kwit Manje (Apeprè)

Nòt: Tan ak tanperati pou kwit manje yo se apeprè epi yo ka varye selon kantite manje a, gwosè li, ak jan ou vle l sèk. Toujou asire w ke manje a byen kwit.

5. Netwayaj ak antretyen

Netwayaj regilye ap pwolonje lavi friteuz lè ou a epi asire pèfòmans optimal.

5.1 Netwayaj Apre Chak Itilizasyon

1. Deploge: Toujou debranche friteuz la epi kite l refwadi nèt anvan ou netwaye li.
2. Netwaye panyen an ak chodyè a: Remove the frying basket and pan. Wash them with hot water, dish soap, and a non-abrasive sponge. The non-stick coating makes them easy to clean.
3. Enteryè pwòp: Siye enteryè aparèy la ak anonsamp twal. Pou rès ki difisil pou retire, sèvi ak yon savon dou.
4. Netwaye eksteryè: Siye eksteryè a ak anonsamp twal. Pa sèvi ak pwodui netwayaj abrazif.
5. Sèk: Asire w tout pyès yo byen sèk anvan ou sere yo oubyen anvan ou itilize yo pwochen fwa a.

Figure 6: The hollow basket design facilitates easy cleaning after use.

5.2 Depo

Sere friteuz la nan yon kote ki fre epi sèk lè w pa ap itilize li. Asire w ke kòd kouran an byen vlope epi byen sere.

NAN. Depanaj

7. Spécifications pwodwi

• Modèl: ZG-B36FH854
• Pouvwa nominal: 1350W
• Kapasite: 5 lit
• Kalite kontwòl: Knob Timing and Temperature Control
• Ranje Tanperati: 80°C - 200°C
• Revèy: 0 - 30 minit
• Pwa nèt: 3.9 kg
• Koulè: Nwa
• Approximate Dimensions (W x H): 27cm x 29.5cm (refer to Figure 2)
• Longè kòd pouvwa: Apeprè 83cm

8. Garanti ak sipò

8.1 Garanti limite

Pwodwi sa a vini ak yon 3 mwa garanti limite from the date of purchase. The warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accident, alteration, neglect, or unauthorized repair.

8.2 Sipò pou Kliyan

For any questions, concerns, or warranty claims, please contact your retailer or the manufacturer's customer service. Please have your model number (ZG-B36FH854) and purchase information ready.
