ALLmeter Digital Angle Gauge Instruction Manual

1. Entwodiksyon

Thank you for choosing the ALLmeter Digital Angle Gauge. This precision instrument is designed to provide accurate and reliable angle measurements for a wide range of applications, including woodworking, construction, automotive tasks, and home improvement projects. This manual provides essential information for the safe and effective use of your device. Please read it thoroughly before operation and retain it for future reference.

2. Pwodwi souview

2.1 Karakteristik kle

• Segondè Precision: Provides accurate measurements with a precision of ±0.1° at 0° and 90°, and ±0.2° at other angles.
• Magnetic V-Groove Base: Ensures secure attachment to metal surfaces, including round pipes, for stable, hands-free measurements.
• Backlit VA LCD Screen: Enhanced display with white characters on a black background for clear readings in various lighting conditions, featuring automatic display inversion for upside-down use.
• Mòd mezi miltip: Supports degrees (°), percentages (%), millimeters per meter (mm/m), and inches per foot (in/ft).
• Zero and Hold Functions: For relative and absolute angle measurements, and to freeze readings on the display.
• Dirab ak pòtab: Compact design with an IP52 waterproof and dust protection rating, suitable for diverse environments.
• Otomatik fèmen: Powers off after 3 minutes of inactivity to conserve battery life.

2.2 Kontni pake a

Lè w ap debale, tanpri verifye ke tout atik ki nan lis anba a yo prezan epi yo an bon kondisyon:

• 1 x ALLmeter Digital Angle Gauge
• 2 x AAA pil
• 1 x Mini tournevis
• 1 x pote sak
• 1 x manyèl itilizatè

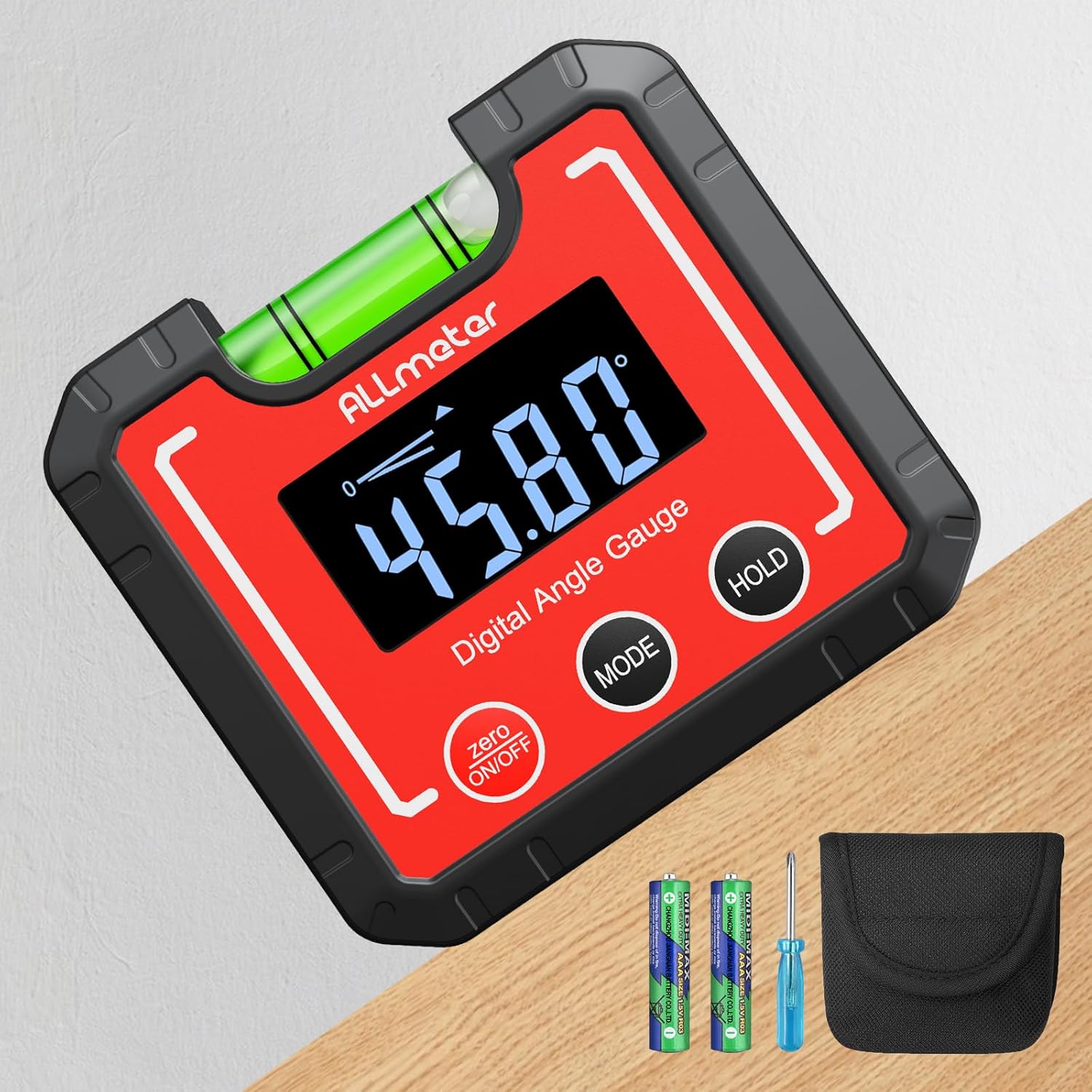

Image: The ALLmeter Digital Angle Gauge shown with its complete accessory kit, including two AAA batteries, a mini screwdriver for battery compartment access, and a protective carrying bag.

3. Enfòmasyon sou Sekirite

Pou asire operasyon an san danje epi pou anpeche domaj nan aparèy la, tanpri swiv prekosyon sekirite sa yo:

3.1 Sekirite jeneral

• Pa eseye demonte oswa modifye aparèy la. Sa ka anile garanti a epi lakòz domaj.
• Kenbe aparèy la lwen chan mayetik fò, paske sa ka afekte presizyon mezi a.
• Evite ekspoze aparèy la nan tanperati ekstrèm, limyè solèy la dirèk, oswa imidite segondè.
• Netwaye aparèy la avèk yon twal mou epi sèk. Pa sèvi ak pwodui netwayaj abrazif oswa solvan.
• This device is rated IP52 for dust and splash protection. Do not immerse it in water.

3.2 Sekirite Batri

• Use only AAA alkaline batteries as specified.
• Asire w ke pil yo mete ak polarite ki kòrèk la (+/-).
• Pa melanje ansyen ak nouvo pil, oswa diferan kalite pil.
• Retire pil yo si ou pa pral itilize aparèy la pou yon peryòd tan pwolonje pou anpeche flit.
• Jete pil yo itilize dapre règleman lokal yo.

4. Enstalasyon

4.1 Enstalasyon batri

1. Jwenn kouvèti konpatiman batri a sou dèyè aparèy la.
2. Use the provided mini screwdriver to loosen the screw on the battery compartment cover.
3. Retire kouvèti a.
4. Mete de pil AAA, asire w polarite ki kòrèk la (+ ak -) jan yo endike anndan konpatiman an.
5. Remèt kouvèti konpatiman batri a epi sere vis la byen sere.

5. Operasyon Enstriksyon

5.1 Power On/Off

• Peze a ZERO ON/OFF bouton pou limen aparèy la.
• Peze epi kenbe la ZERO ON/OFF button for approximately 3 seconds to turn the device off.
• Aparèy la ap koupe otomatikman apre 3 minit inaktivite.

5.2 Zewo (kalibrasyon)

To ensure accurate measurements, it is recommended to zero the device on a known flat, level surface before use.

1. Place the angle gauge on a perfectly flat and level surface.
2. Peze a ZERO ON/OFF button briefly. The display should show 0.00°.
3. The device is now calibrated and ready for absolute angle measurements.

5.3 Fonksyon HOLD

Fonksyon HOLD la pèmèt ou bloke lekti aktyèl la sou ekran an.

• While taking a measurement, briefly press the KENBE button. The current reading will be frozen on the screen, indicated by a 'H' icon.
• Peze a KENBE button again to release the reading and resume live measurement.

5.4 Measurement Modes (Absolute vs. Relative)

The device supports two measurement modes: Absolute Angle and Relative Angle.

Image: Visual representation of the two measurement modes. Mode 1 (Absolute angle) shows the device measuring 30.0° from a horizontal reference. Mode 2 (Relative angle) shows the device zeroed on a 30° surface, then measuring a relative angle of 10.0° from that new zero.

• Absolute Angle Mode: This is the default mode after power-on or zeroing on a level surface. It measures the angle relative to the true horizontal plane.
• Relative Angle Mode: To measure the angle between two surfaces, place the device on the first surface and press the ZERO ON/OFF button to set it as the new 0° reference. Then, move the device to the second surface, and the display will show the angle difference between the two surfaces.

5.5 Chanjman Inite

The device can display measurements in four different units.

Image: The digital angle gauge displaying measurements in four different units: degrees (°), percentage (%), millimeters per meter (mm/m), and inches per foot (in/ft).

• Yon ti tan peze la MÒD button to cycle through the available measurement units: Degrees (°), Percentage (%), Millimeters per meter (mm/m), and Inches per foot (in/ft).

5.6 Automatic Display Reversal

The display automatically inverts when the device is used upside down, ensuring easy readability from any orientation.

Image: This image demonstrates three key features: the HOLD function (1) which keeps the screen read, the Magnetic V-slot on the bottom (2) for attaching to curved surfaces, and the Automatically Reversal Data (3) which ensures the display orientation is always correct for easier access to data.

5.7 Magnetic V-Groove Base

The strong magnetic V-groove base allows for secure attachment to various metal surfaces, including flat and curved objects like pipes, for stable and hands-free operation.

Imaj: Yon gwo plan view of the VA LCD display, showing a clear reading of 15.00 degrees, demonstrating its visibility even in low-light conditions.

5.8 Horizontal Bubble Level

The integrated horizontal bubble level allows for quick visual leveling, even when the digital display is not powered on.

Image: The digital angle gauge positioned on a circular saw blade, highlighting the horizontal bubble level. The digital display shows an angle of 45.00 degrees.

6. Antretyen

6.1 Netwayaj

• Siye aparèy la avèk yon twal mou, sèk oswa yon ti kras mouye.amp twal.
• Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the casing oswa ekspozisyon.
• Ensure no liquid enters the device openings.

6.2 Depo

• Store the device in its protective carrying bag when not in use.
• Kenbe aparèy la nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
• Remove batteries if storing for an extended period (more than one month) to prevent battery leakage and potential damage to the device.

Image: The digital angle gauge on a wooden surface with water droplets, illustrating its IP52 sealing and dust protection. The edge lines on both sides provide practical reference points for measurements.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak sipò

Specific warranty information for this product is not provided within this manual. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact ALLmeter customer support directly.

For technical support, troubleshooting assistance, or inquiries about your ALLmeter Digital Angle Gauge, please visit the official ALLmeter website or contact their customer service department using the contact information provided at the point of purchase or on the manufacturer's official channels.
