Entwodiksyon
Thank you for choosing the Generic M100 Clip On Ear Headphones. These open-ear wireless earbuds are designed for comfort and high-quality audio, featuring advanced Bluetooth 5.4 technology, smart touchscreen controls, and intelligent noise cancellation. This manual provides essential information for setting up, operating, and maintaining your headphones.

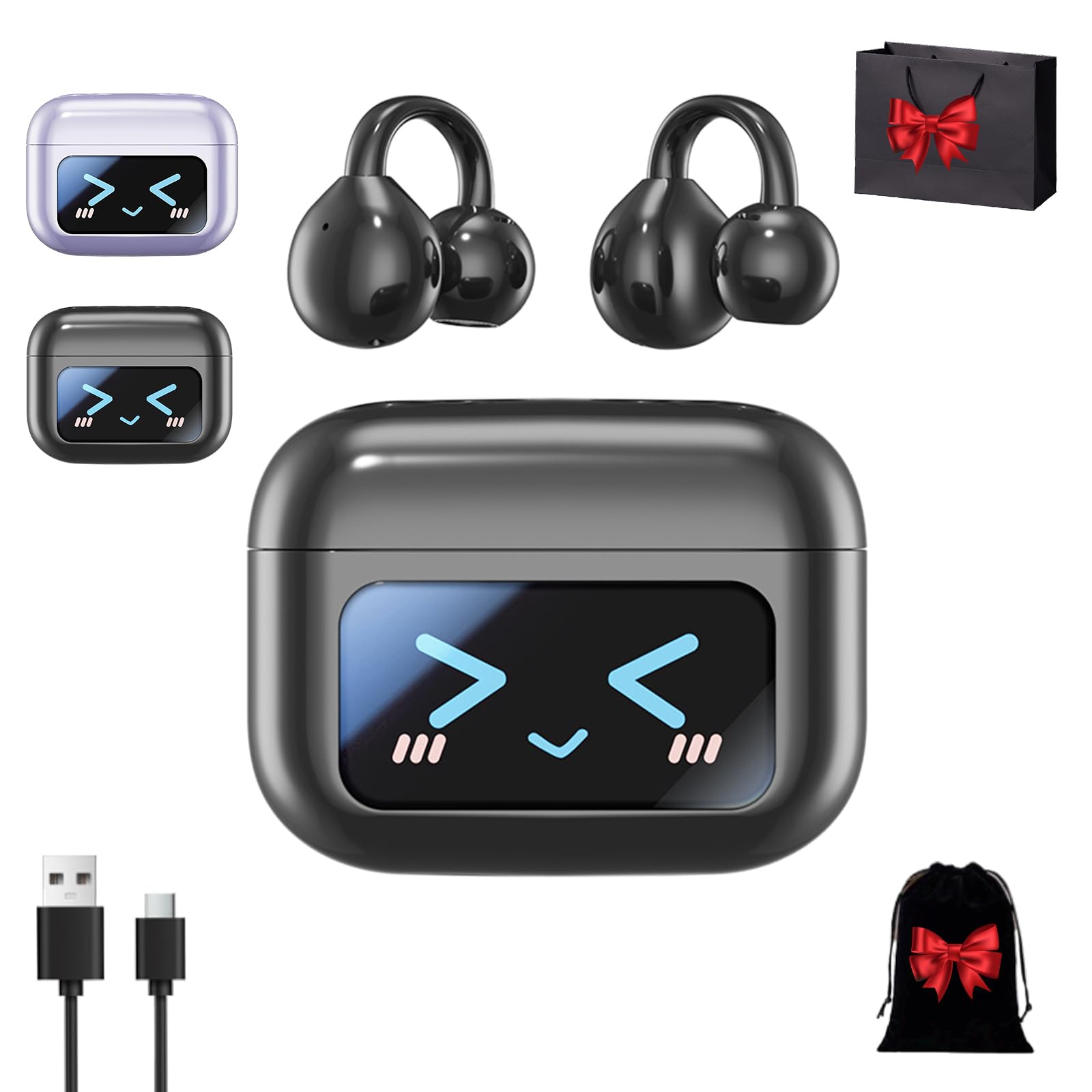

Image: The Generic M100 Clip On Ear Headphones and their charging case, showcasing konsepsyon elegant la.
Image: Visual representation of key features including high-resolution sound, noise reduction, open-ear design, HD voice, and Bluetooth 5.4 wireless technology.
Image: A person wearing the M100 earbuds, demonstrating their comfortable and secure open-ear fit, designed to allow awareness of surroundings.
Enstalasyon
Chaje kas ekoutè yo
Before first use, fully charge the headphones and charging case. Connect the provided Type-C charging cable to the charging port on the case and to a compatible USB power source. The LED screen on the case will indicate charging status.
- Charging Time: Approximately 1 hour for a full charge.
Automatic Quick Pairing
- Asire w ke Bluetooth aparèy ou an aktive.
- Louvri bwat chaje a. Ekoutè yo ap limen otomatikman epi antre nan mòd koneksyon.
- On your device, search for Bluetooth devices and select "M100" from the list.
- Once connected, the earbuds will automatically pair with your device whenever the charging case is opened.
The M100 headphones utilize a Bluetooth 5.4 chip for a faster and more stable connection.
Enstriksyon Operasyon
Smart LED Touchscreen
Image: The M100 charging case featuring an LCD touch screen for single-screen control and information display.
The M100 charging case features a smart LED touchscreen that allows you to:
- Control date and time.
- View the battery level of both earbuds and the charging case.
- Check the Bluetooth connection status.
- Access functions such as music equalizer, brightness adjustment, time setting, alarm setting, song volume adjustment, and lyrics display.
Kontwòl manyen
Image: Diagram illustrating the touch control functions on the M100 earbuds.
The earbuds feature intuitive touch controls for managing audio and calls:
- Chanje Chante: Double klike sou ekoutè gòch la oswa dwa.
- Rejte apèl k ap vini yo: Long peze swa ekoutè pou 2 segonn.
- Reponn/Fen Apèl: Double klike sou nenpòt ekoutè.
- Pòz/Jwe: Yon sèl klike sou nenpòt ekoutè.
- Ajisteman Volim: Triple click the left earbud for volume down, triple click the right earbud for volume up.
- Asistan vwa: Peze pandan lontan sou nenpòt ekoutè.
Antretyen
Netwayaj
Regularly clean your M100 headphones and charging case with a soft, dry, lint-free cloth. Avoid using abrasive materials, alcohol, or chemical cleaners.
Rezistans dlo
The M100 headphones are water-resistant. However, they are not waterproof. Avoid submerging them in water or exposing them to heavy rain. Dry them thoroughly if they get wet.
Depo
Lè w pa ap itilize kas ekoutè yo, sere yo nan bwat chajman yo pou pwoteje yo kont pousyè ak domaj. Sere yo nan yon kote ki fre epi sèk, lwen tanperati ekstrèm.
Depanaj
Pa gen son oswa koneksyon tanzantan
- Asire ke ekoutè yo chaje.
- Tcheke si Bluetooth la aktive sou aparèy ou an epi ekoutè yo asosye.
- Move your device closer to the earbuds to ensure it is within the 10m transmission range.
- Eseye dekonekte epi konekte ekoutè yo ak aparèy ou an ankò.
- Restart your device and the earbuds (by placing them back in the case and closing/opening it).
Ekoutè pa chaje
- Asire w ke kab chaje a byen konekte ak tou de bwat la ak sous kouran an.
- Check the charging contacts on the earbuds and inside the case for any debris and clean them gently with a dry cotton swab.
- Eseye yon lòt kab chaje oswa adaptè kouran.
Kontwòl manyen pa reponn
- Asire ke dwèt ou yo pwòp epi sèk lè w ap itilize kontwòl manyen yo.
- Restart the earbuds by placing them in the charging case and closing the lid for a few seconds, then reopening.
Espesifikasyon
| Non pwodwi | Kas ekoutè M100 ak klip |
| Bluetooth vèsyon | V5.4 |
| Transmisyon Range | Jiska 10 mèt (33 pye) |
| frekans travay | 2.402-2.480GHz |
| Ekoutè Playtime | Approximately 4-5 hours (single charge) |
| Tan total pou jwe (ak bwat) | Jiska 50 èdtan |
| Rechaje bwat chaje | Can charge earbuds 4+ times |
| Tan pou chaje | Apeprè 1 èdtan |
| Chaje Metòd | Kalite-C chaje |
| Earbud Dimansyon | 2.8 x 2.5 x 1.8 cm (apeprè) |
| Ka dimansyon | 11.5 cm / 4.5 in (width) x 9.2 cm / 3.6 in (height) |
| Materyèl | Plastik |
| Nivo rezistans dlo | Dlo ki reziste |
| Kontwòl bri | Anilasyon Bri Entelijan |
| Aparèy konpatib | Aparèy ki pèmèt Bluetooth |
| Konpozan ki enkli | Ka chaje san fil |
Image: The M100 charging case with indicated dimensions of 11.5 cm (4.5 inches) width and 9.2 cm (3.6 inches) height.
Image: Visual representation of battery life, showing total battery life, listening time, and charge time. (Note: Text specifications provide more detailed battery life information.)
Enfòmasyon sou Garanti
For specific warranty details, please refer to the retailer or manufacturer's official website where you purchased the Generic M100 Clip On Ear Headphones. Warranty terms and conditions may vary by region and retailer.
Sipò pou Kliyan
If you encounter any issues or have questions regarding your Generic M100 Clip On Ear Headphones that are not covered in this manual, please contact the retailer or manufacturer's customer support for further assistance. Please have your product model (M100) and purchase information ready when contacting support.
