1. Entwodiksyon
Thank you for choosing the Hitachi HNFP3630XB Dishwasher. This appliance is designed to provide efficient and hygienic cleaning for your dishes with its advanced features. This manual provides essential information for the safe installation, operation, and maintenance of your new dishwasher. Please read it thoroughly before using the appliance and keep it for future reference.

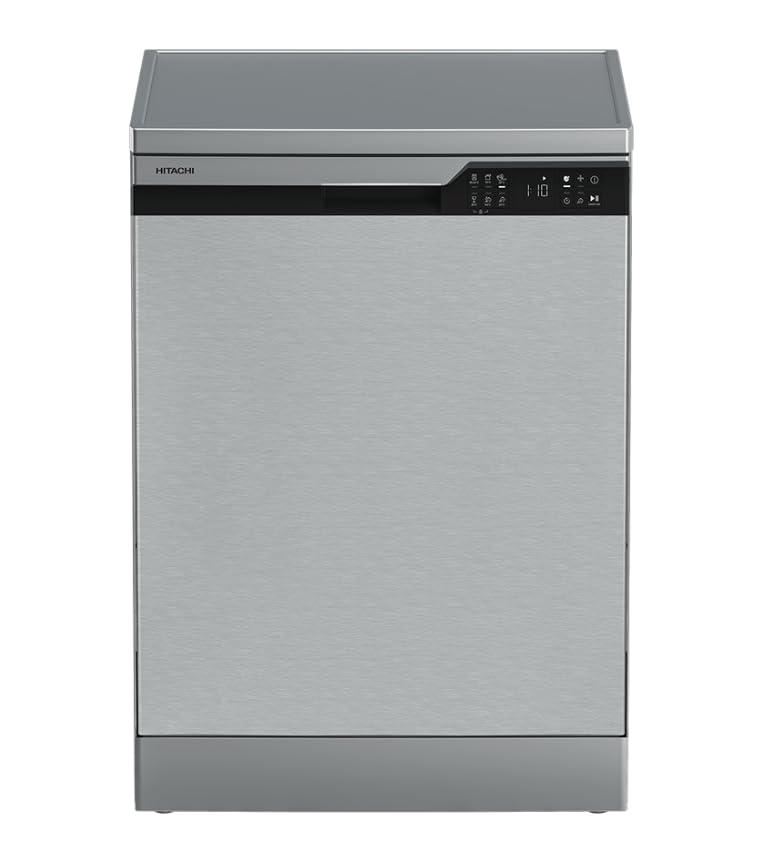

Imaj 1.1: Devan view of the Hitachi HNFP3630XB Dishwasher in Pearl Inox color.
2. Enstriksyon Sekirite
Pou asire yon operasyon an sekirite, toujou swiv prekosyon sekirite debaz sa yo:
- Sekirite elektrik: Ensure the dishwasher is connected to a properly grounded 220 Volt electrical outlet. Do not use extension cords. Disconnect power before any maintenance or cleaning.
- Koneksyon dlo: Connect the water inlet and outlet hoses securely to prevent leaks. Check for leaks after installation.
- Itilizasyon detèjan: Sèvi sèlman ak detèjan ak pwodui rense ki fèt espesyalman pou machin alave otomatik yo. Kenbe pwodui sa yo lwen timoun yo.
- Sekirite timoun: Do not allow children to play with or inside the dishwasher. Keep the door closed when not in use.
- Objè byen file: Chaje objè byen file yo (kouto, brochèt) ak pwent yo anba pou evite blesi.
3. Enstalasyon ak Enstalasyon
Bon enstalasyon enpòtan anpil pou pèfòmans ak sekirite optimal.
3.1 Debake
- Carefully remove all packaging materials, including internal packing.
- Inspect the dishwasher for any shipping damage. If damaged, do not install and contact your retailer.
3.2 Plasman
The Hitachi HNFP3630XB is a freestanding dishwasher. Choose a stable, level surface near a water supply, drain, and electrical outlet.
- Dimansyon: The appliance measures approximately 23.62"D x 23.62"W x 33.46"H. Ensure adequate space for installation and door opening.
- Nivelman: Adjust the leveling feet at the bottom of the dishwasher to ensure it is perfectly level. This prevents vibrations and ensures proper door closure.
3.3 Koneksyon dlo
- Connect the water inlet hose to a cold water supply tap. Ensure the connection is tight to prevent leaks.
- Connect the drain hose to a suitable drain pipe or sink trap. Ensure the hose is not kinked or obstructed.
3.4 Koneksyon elektrik
- Plug the included power cord into a dedicated, grounded 220 Volt electrical outlet.
- Pa sèvi ak adaptè oswa priz miltip.
4. Operasyon Enstriksyon
Follow these steps for effective dishwashing.
4.1 Chaje asyèt
- Grate gwo rès manje nan asyèt yo anvan ou mete yo.
- Place dishes in the racks, ensuring they do not block the spray arms. The 15 place setting capacity allows for a large load.
- Sèvi ak Extra Basket and Tray Holder for convenient organization of smaller items or cutlery.
4.2 Ajoute detèjan ak èd pou rense
- Ranpli distribitè detèjan an ak kantite detèjan pou machin alave a rekòmande a.
- Check the rinse aid indicator and refill the rinse aid dispenser as needed. Rinse aid helps with drying and prevents spots.
4.3 Seleksyon Pwogram
The dishwasher offers 6 versatile washing programs. Select the appropriate program using the push-button controls based on the soil level and type of dishes.
- Corner Wash Technology: This feature ensures thorough cleaning by directing water to all corners of the dishwasher, optimizing coverage.
- Sterilization Feature: For an extra layer of hygiene, select a program that includes the sterilization feature to eliminate bacteria.
- Turbo Wash System: Use this system for faster cleaning cycles when time is a factor, without compromising wash performance.
4.4 Kòmanse yon sik
- Fèmen pòt machin alave a byen fèm.
- Peze bouton Kòmanse pou kòmanse pwogram lave yo chwazi a.
- La Motè Inverter ProSmart ensures quiet operation, with a noise level of 45 Decibels.
5. Antretyen ak Swen
Regular maintenance helps prolong the life of your dishwasher and ensures optimal cleaning results.
5.1 Netwayaj filtè yo
- Periodically check and clean the filter system located at the bottom of the dishwasher. Remove food debris to prevent blockages and odors.
5.2 Netwayaj Bra Espre yo
- Ensure the spray arm nozzles are not clogged. Remove and rinse them if necessary.
5.3 Netwayaj Eksteryè
- Wipe the exterior, especially the Pearl Inox finish, with a soft, damp twal. Evite pwodui netwayaj abrazif.
NAN. Depanaj
If you encounter issues with your dishwasher, refer to the common problems and solutions below before contacting service.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Dishwasher pa kòmanse | Pwoblèm kouran, pòt la pa byen fèmen, pwogram nan pa chwazi. | Tcheke koneksyon kouran an, asire w pòt la byen fèmen, epi chwazi yon pwogram lave. |
| Asyèt yo pa pwòp | Clogged spray arms, dirty filters, improper loading, insufficient detergent. | Clean spray arms and filters, reload dishes correctly, add more detergent. |
| Dlo koule | Loose hose connections, damaged door seal. | Check and tighten hose connections, inspect door seal for damage. |
| Bri etranj | Asyèt k ap entèfere ak bra espre yo, objè etranje nan ponp lan. | Rearrange dishes, inspect pump area for obstructions. |
7. Espesifikasyon
Technical details of the Hitachi HNFP3630XB Dishwasher.
| Karakteristik | Detay |
|---|---|
| Mak | Hitachi |
| Nimewo Modèl | HNFP3630XB |
| Kalite enstalasyon | Otonòm |
| Dimansyon pwodwi (D x W x H) | 23.62" x 23.62" x 33.46" |
| Kapasite | 15 Mete Anviwònman |
| Pwogram yo | 6 versatile washing programs |
| Karakteristik espesyal | Corner Wash Technology, Sterilization Feature, Turbo Wash System, ProSmart Inverter Motor |
| Koulè | Pearl Inox |
| Kontwòl Kalite | Pouse bouton |
| Nivo bri | 45 Desibèl |
| Voltage | 220 Volts |
| Pwa atik | 50 Kilogram |
| Konpozan ki enkli | Kòd pouvwa |
8. Garanti ak sipò
Pou enfòmasyon sou garanti a ak sipò kliyan, tanpri gade kat garanti ki vini ak pwodwi a oswa vizite sit entènèt ofisyèl Hitachi a. websit la. Kenbe resi acha ou kòm prèv acha.
For further assistance, you may contact Hitachi customer service through their official channels. Details can typically be found on the manufacturer's websit oswa nan anbalaj pwodwi a.
