Entwodiksyon
Thank you for choosing the Yeego 20 Bottle Wine Cooler Refrigerator. This appliance is designed to provide an optimal environment for storing your wine, ensuring its flavor and quality are preserved. Featuring a compressor cooling system, digital temperature control, and a double-layer glass door, this wine cooler offers reliable performance and ease of use. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance.
Enfòmasyon sou Sekirite
Pou diminye risk pou dife, chòk elektrik, oswa blesi lè w ap itilize aparèy ou an, swiv prekosyon debaz sa yo:
- Li tout enstriksyon yo anvan ou sèvi ak aparèy la.
- Do not touch cold surfaces immediately after plugging in the unit.
- Asire w ke aparèy la byen chita.
- Pa opere aparèy la ak yon kòd oswa ploge ki domaje.
- Kenbe ouvèti vantilasyon yo klè ak obstak.
- Pa sere sibstans eksplozif tankou bwat ayewosòl ak yon pwopilsif ki ka pran dife nan aparèy sa a.
- Aparèy sa a pa fèt pou itilize pa moun (ki gen ladan timoun) ki gen kapasite fizik, sansoryèl oswa mantal redwi, oswa ki pa gen eksperyans ak konesans, sof si yo te ba yo sipèvizyon oswa enstriksyon konsènan itilizasyon aparèy la pa yon moun ki responsab sekirite yo.
- Timoun yo ta dwe sipèvize pou asire ke yo pa jwe ak aparèy la.
Kontni pake
Verifye ke tout atik yo prezan nan pakè a:
- 1 x Yeego Wine Cooler Refrigerator
- 4 x etajè fil
- 1 x manyèl enstriksyon
Enstalasyon
Debalaj ak plasman
Carefully remove all packaging materials. This wine cooler is designed for freestanding or under-counter placement. It is not recommended for built-in installation. Ensure adequate ventilation around the unit. Allow at least 2-3 inches of space on the sides and back for proper air circulation. Place the unit on a flat, stable surface away from direct sunlight and heat sources.

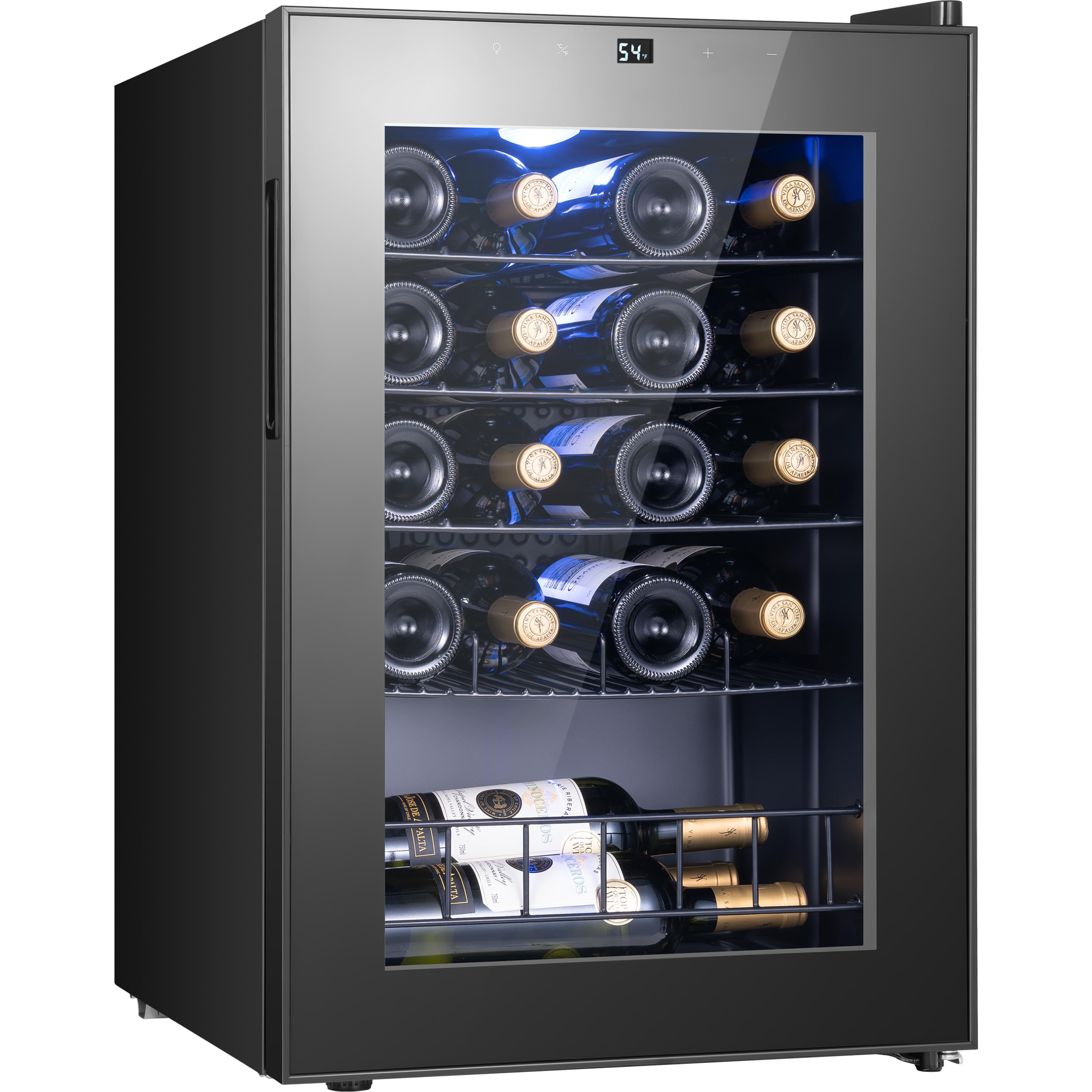

Image: The Yeego 20 Bottle Wine Cooler Refrigerator, showcasing its sleek design and compact size suitable for various placements.
Nivelman aparèy la
The wine cooler is equipped with adjustable feet. Use a level to ensure the appliance is perfectly level. Adjust the feet by turning them clockwise or counter-clockwise until the unit is stable and level. Proper leveling is crucial for efficient operation and to prevent vibrations.
Premye pouvwa-sou
After placing the unit, allow it to stand upright for 24-36 hours before plugging it into a power outlet. This allows the refrigerant to settle, optimizing cooling performance and preventing damage to the compressor.
Handle Installation (if applicable)
If your model requires handle installation, align the handle with the pre-drilled holes on the door. You may need to gently push aside or temporarily remove the door gasket to access the screw holes. Secure the handle with the provided screws. Ensure the gasket is properly seated after installation to maintain a secure seal.
Image: Detailed product dimensions (16.96"W x 18.93"D x 25.62"H) for proper placement and installation planning.
Enstriksyon Operasyon
Kontwòl Panel Plis paseview
The wine cooler features an intuitive digital touch control panel located on the door frame, allowing temperature adjustments without opening the door.
Image: Close-up of the external touch control panel, showing the light-on/off button, temperature unit switch, temperature display, and temperature adjustment buttons.
Ajisteman Tanperati
Use the "+" and "-" buttons on the control panel to set your desired temperature. The temperature range is 38-65°F (3-18°C). Each press adjusts the temperature by 1°F. The digital display will show the set temperature, then revert to the actual internal temperature.
Chanjman Inite Tanperati
Press the "°F/°C" button to switch the temperature display between Fahrenheit and Celsius.
Dirije limyè kontwòl
Press the light bulb icon button to turn the internal soft blue LED light on or off. This light provides ambiance and visibility without affecting wine quality.
Image: The wine cooler interior illuminated by soft blue LED lighting, highlighting bottles on the shelves.
Electronic Safety Lock
The control panel features an electronic safety lock to prevent accidental temperature changes. The panel will automatically lock after 12 seconds of inactivity. To unlock, press and hold the "+" and "-" buttons simultaneously for 5 seconds.
Pouvwa echèk memwa
Nan evènman an nan yon pouvwa outage, the wine cooler's power failure memory function will restore the previous temperature setting once power is re-established, preventing wine flavor changes due to temperature fluctuations.
Shelf Adjustment and Bottle Storage
The wine cooler includes 4 removable wire shelves. These shelves can be adjusted or removed to accommodate various bottle sizes and quantities. The unit can store at least 20 standard 750ml Bordeaux bottles. For optimal storage, ensure bottles are placed securely to prevent rolling.
Image: The interior of the wine cooler displaying its large capacity and adjustable wire shelves, designed to fit multiple wine bottle sizes.
Image: Detail of the strengthened wire shelves, providing stable support for each bottle and allowing for flexible arrangement.
Antretyen
Netwaye glasyè diven an
Regular cleaning helps maintain the appearance and efficiency of your wine cooler. Unplug the unit before cleaning.
- Enteryè: Netwaye enteryè a ak yon twal mou dampened with a solution of baking soda and warm water (2 tablespoons baking soda to 1 quart water). Rinse thoroughly and dry.
- Eksteryè: Wipe the exterior surfaces with a soft cloth and mild detergent. For the glass door, use a glass cleaner. Avoid abrasive cleaners or solvents.
- Joint pòt: Netwaye jwenti pòt la regilyèman pou asire yon sele byen sere.
- Etajè: Remove and clean the wire shelves with mild soap and water, then dry completely before returning them to the unit.
Dekonjle manyèl
This appliance features a manual defrost system. Frost buildup can occur over time, especially in humid environments. When frost accumulation exceeds 1/4 inch (0.6 cm), the unit should be defrosted.
- Unplug the wine cooler from the power outlet.
- Remove all bottles and shelves.
- Leave the door open to allow frost to melt naturally. Place towels at the bottom to absorb water. Do not use sharp objects or heating devices to speed up defrosting.
- Yon fwa li fin deglase, netwaye epi seche anndan an byen.
- Plug the unit back in and allow it to reach the desired temperature before reloading bottles.
Depanaj
Anvan ou kontakte sèvis kliyan, re-view this section for potential solutions to common issues.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Aparèy pa opere | Pa branche; disjonktè a sote; switch kouran an etenn. | Ensure plug is secure; check circuit breaker; turn power switch on. |
| Tanperati a pa ase frèt | Door not closed properly; excessive door openings; warm items added; poor ventilation; unit placed near heat source; temperature setting too high. | Check door seal; reduce door openings; allow time for new items to cool; ensure proper clearance; relocate unit; lower temperature setting. |
| Twòp Vibration | Aparèy pa nivo. | Ajiste pye nivelman yo. |
| Bri ki soti nan inite a | Normal compressor operation; fan noise; bottles rattling. | This is normal; ensure bottles are stable on shelves. |
| Pòt pa fèmen byen | Appliance not level; gasket dirty or damaged; shelves out of position. | Level the unit; clean or replace gasket; reposition shelves. |
Espesifikasyon
Key technical details for your Yeego Wine Cooler Refrigerator:
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | YG-WSJC62-25 |
| Kapasite | 20 Bottles (750ml Bordeaux standard) / 2.19 Cubic Feet |
| Ranje Tanperati | 38-65 ° F (3-18 ° C) |
| Metòd refwadisman | COMPRESSOR |
| Kalite enstalasyon | Otonòm |
| Dimansyon pwodwi (D x W x H) | 18.93" x 16.96" x 25.62" |
| Kantite etajè | 4 (Wire, Removable) |
| Kalite Pòt | Double-layer UV-Resistant Glass |
| Sistèm dekonjle | Manyèl dekonjle |
| Voltage | 115 Volts |
| Karakteristik espesyal | Digital Temperature Control, Low Noise, Electronic Safety Lock, Touch Control, Adjustable Feet |
Garanti ak sipò
Your Yeego 20 Bottle Wine Cooler Refrigerator is covered by a 1-ane garanti manifakti. The compressor is covered by a 3-ane garanti. For any questions regarding installation, operation, maintenance, or troubleshooting, our support team is available 24/7 to assist you. Please refer to the contact information provided with your purchase or visit the official Yeego websit pou asistans.
Video: Official video demonstrating the direct cooling system and features of the Yeego Wine Cooler, including its design and functionality.
